Hatco  |  SKU: HWBI43-4D

Hatco HWBI43-4D Steam Tables & Food Wells

$4,336.20
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Parts list Catalog brochure Color chart
Related Searches
Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines Hatco Hot Well Restaurant Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Hatco HWBI43-4D Drop-In Modular/Ganged Heated Well – 4 Wells (4/3-Size)

Insulated • With individual ¾" drains • Remote thermostat & lighted power switch

Replace an entire steam table with one seamless, top-mounted unit. The Hatco HWBI43-4D holds food at precise serving temperatures in four independent 4/3-size wells, each deep enough to accept up to four 1⁄3-size pans. Quick-install EZ-Lock™ hardware, rugged stainless & aluminized construction, and Hatco’s legendary Made-in-USA reliability make it a favorite of chefs, designers and installers alike.

Why you’ll love it

  • Independent control per well – remote dial thermostat delivers tighter temperature accuracy and longer holding times.
  • Separate lighted On/Off rocker switch for quick visual confirmation of power status.
  • 50 % larger ¾" NPT drain with flat screen simplifies clean-up and prevents pan wobble.

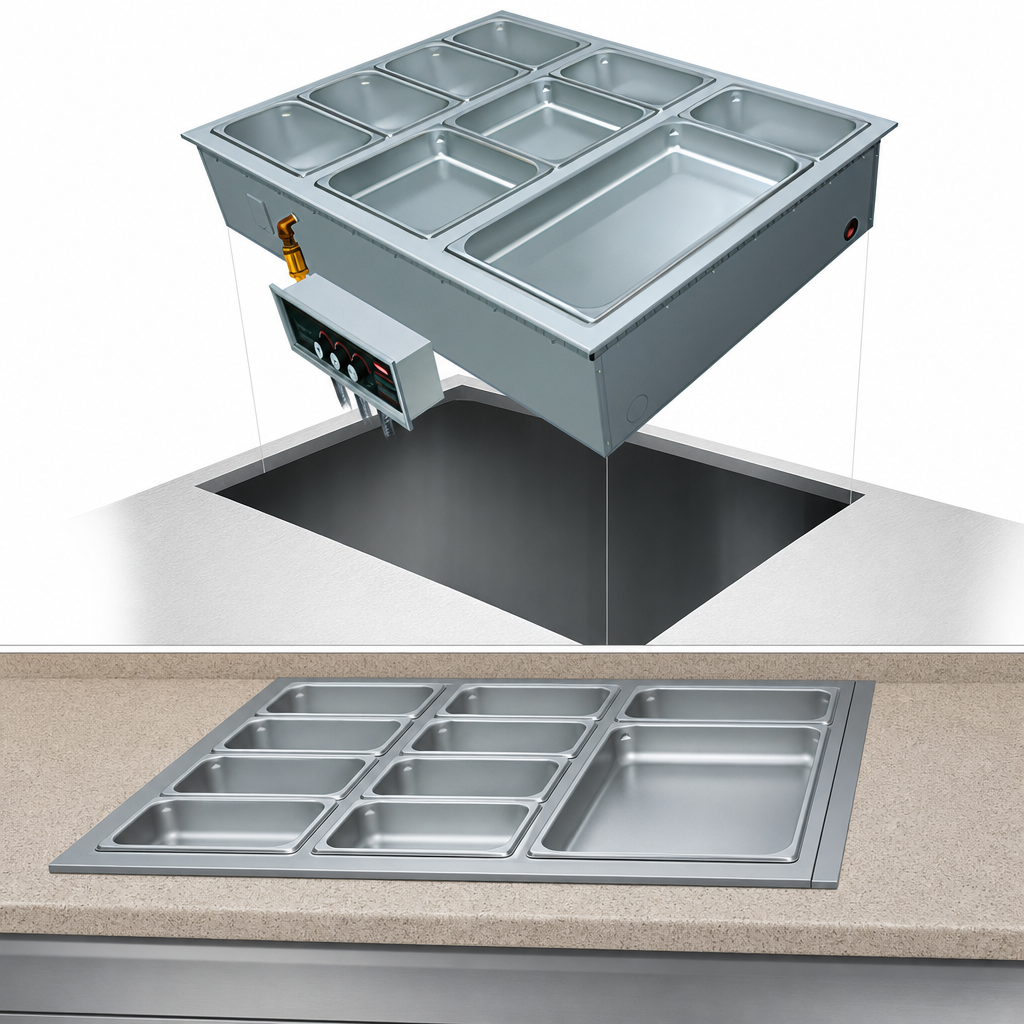

  • EZ-Lock™ one-hand mounting speeds installation and assures a flush, professional fit.
  • Stainless steel top flange and aluminized steel body stand up to daily commercial use.
  • 6 ft (1829 mm) flexible conduit included for convenient placement of the control box.
  • CE, cULus & NSF/ANSI 4 (UL EPH) listed – fully compliant for international and U.S. operations.
  • Proudly Made in the USA and backed by 24/7 technical support.

Pan configurations per well

  • 4 × 1⁄3-size pans
  • 2 × 1⁄2-size pans + 1 × 1⁄3-size pan
  • 1 × full-size pan + 1 × 1⁄3-size pan

Pans, lids and trivets sold separately.

Technical specifications

Model HWBI43-4D
Total wells 4 (ganged)
Well opening 4/3-size rectangular
Overall dimensions (W × D × H) 57.5 in × 30.375 in × 9.62 in
(1461 mm × 772 mm × 244 mm)
Countertop cut-out 56.19 – 56.37 in × 29.19 – 29.44 in
(1428 – 1432 mm × 742 – 748 mm)
Drain connection ¾" NPT per well (individual drains)
Electrical 208 V or 240 V, single or three-phase (see options)
Ship weight ≈ 166 lb (75 kg)
Certifications CE • cULus • UL EPH Classified
Origin Made in USA

Factory options (ordered with unit)

  • Auto-fill kit for hands-free water maintenance
  • Copper drain manifold (side or bottom exit)
  • Three-phase wiring
  • Split control boxes (not available in Canada)
  • Pre-installed gasket – no silicone needed

Popular add-ons

  • Full, half & third-size stainless food pans (2.5", 4" or 6" deep)
  • 11 qt round pans with hinged or notched lids
  • Stainless steel wire trivets
  • External copper drain manifold with individual shut-off valves
Installation note: This is a professional drop-in appliance. Follow Hatco’s installation & operating manual and all local codes for electrical, plumbing and health-department compliance.

Features & Specs

Manufacturer

Hatco

Certifications

CE, cULus, UL EPH Classified, Made in USA

Height

9.62in

Width

57.5in

Depth

30.38in

Shipping Weight

152.0lbs

Wet or Dry operation

wet or dry

Pan Capacity

(4) 4/3 size (12" x 27")

Construction

stainless steel top, corrosion resistant steel exterior

Drain

with drain

Style

individual pans

Controls

thermostatic controls

Insulated or Non-Insulated

insulated

Specifications

Drop-In Modular/Ganged Heated Well, with drain, (4) 4/3 size pan capacity, insulated, top mounted, remote thermostat dial with separate on/off rocker switch, EZ locking hardware, stainless steel & aluminized construction, CE, cULus, UL EPH Classified, Made in USA
