Hatco HWBI43-4 Steam Tables & Food Wells
Description

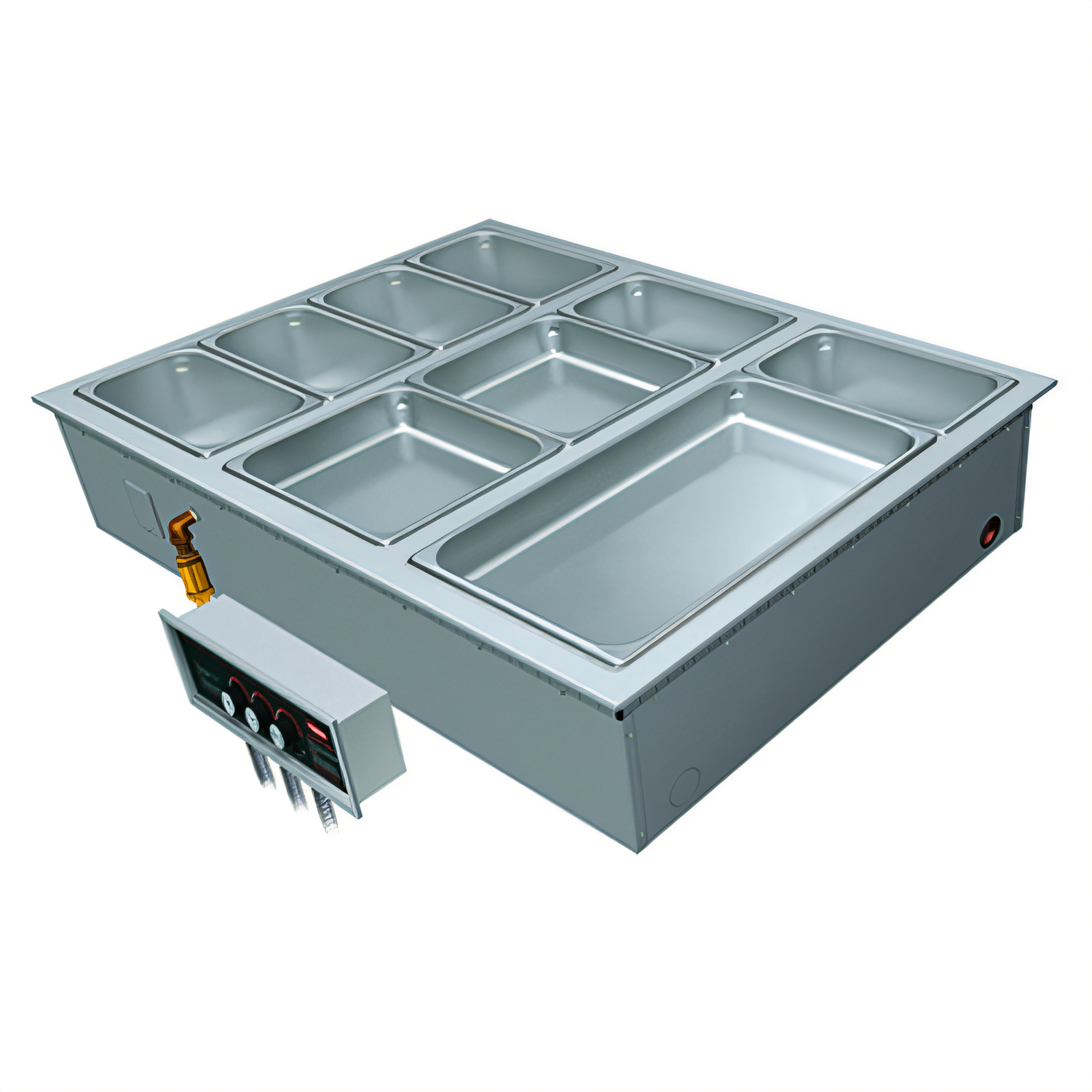

Hatco HWBI43-4 Drop-In Modular/Ganged Heated Well
(4) 4/3-size wells • insulated, top-mount design • Made in USABuild a sleek, hard-working steam table right into your counter with Hatco’s HWBI43-4 Modular Heated Well. Four individually-controlled 4⁄3-size wells keep entrées and sides hot, fresh and food-safe for hours— all in one fully-integrated drop-in unit that installs in minutes with Hatco’s exclusive EZ locking hardware.
Why You’ll Love It

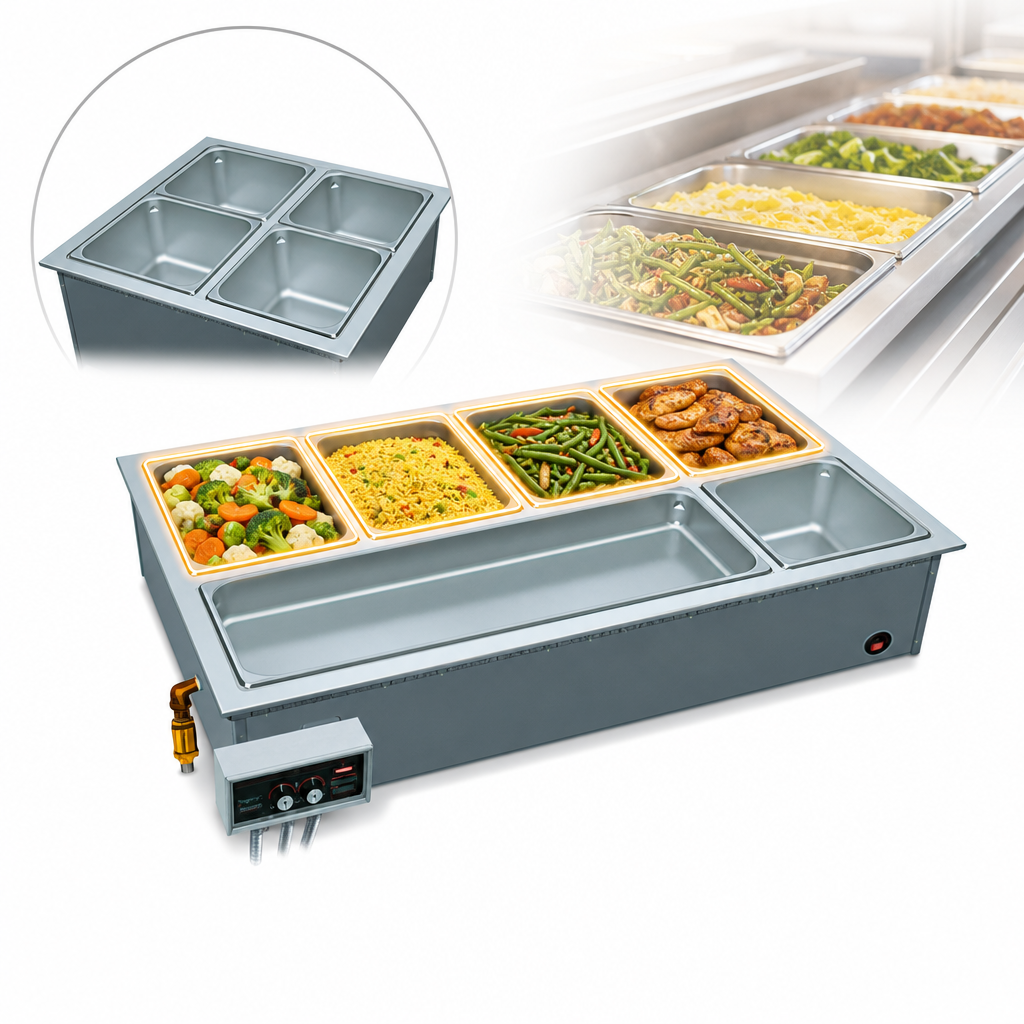

- Holds up to 4 third-size, 2 half-size + 1 third-size, or 1 full-size + 1 third-size pans per well – unmatched menu flexibility.
- Individual mechanical controls for each well: lighted on/off rocker switch plus remote thermostat dial (0-200 °F) for precise holding.
- Deep, fully-insulated design delivers longer holding times ± tighter temperature accuracy.
- 50 % larger NPT drain with flat screen speeds clean-up and keeps pans level.
- Stainless steel top & aluminized steel body – built for daily commercial abuse.
- 6 ft (1829 mm) flexible conduit lets you mount the control box where it’s easiest for staff.
- Field-replaceable elements & thermostats minimize downtime.
- Accepts optional auto-fill, manifold drain, split controls, and cord/plug kits at the time of order.
Key Specifications
| Model | HWBI43-4 (also available as -4D / -4DA / -4M / -4MA) |
|---|---|
| Pan Capacity | Four 4⁄3-size wells (each well fits 4 ¹⁄₃ pans) |
| Overall Dimensions | 57.5 W × 30.375 D × 9.62 H in (1461 × 772 × 244 mm) |
| Cut-out (countertop) | Refer to Hatco cut-out chart (57.19 – 57.37 W × 29.18 – 29.44 D in) |
| Voltage / Power | 208 V or 240 V, single-phase standard 4 815 W @ 208 V • 5 286 W @ 240 V |
| Controls | Remote mechanical thermostats (one per well) + separate lighted rocker switches |
| Drain | ¾″ individual NPT drain standard; 1″ manifold drain kits available |
| Construction | Stainless steel top, aluminized steel exterior, solid-brazed drain fittings |
| Certifications | cULus • UL EPH Classified • CE • NSF/ANSI 4 |
| Country of Origin | Made in USA |
Ideal For
- Buffet lines & cafeterias
- Quick-service & fast-casual restaurants
- Supermarket hot bars & convenience stores
- Catering & banqueting holding stations
Popular Factory Options
- Auto-fill package with low-water sensor & back-flow preventer
- Manifold drain (side or bottom exit) with 1″ NPT
- Three-phase wiring (not available on export voltages)
- Gasketed rim – eliminates silicone during installation
- 6 ft (914 mm) conduit for split control boxes (4-, 5-, 6-pan only)
Need lids, adapter plates or stainless pans? Ask us about Hatco’s full line of third-, half- and full-size accessories designed to fit this well perfectly.
24/7 parts & service assistance available in the U.S. & Canada at 414-671-6350.
