Hatco HWBI43-3MA Steam Tables & Food Wells
Description

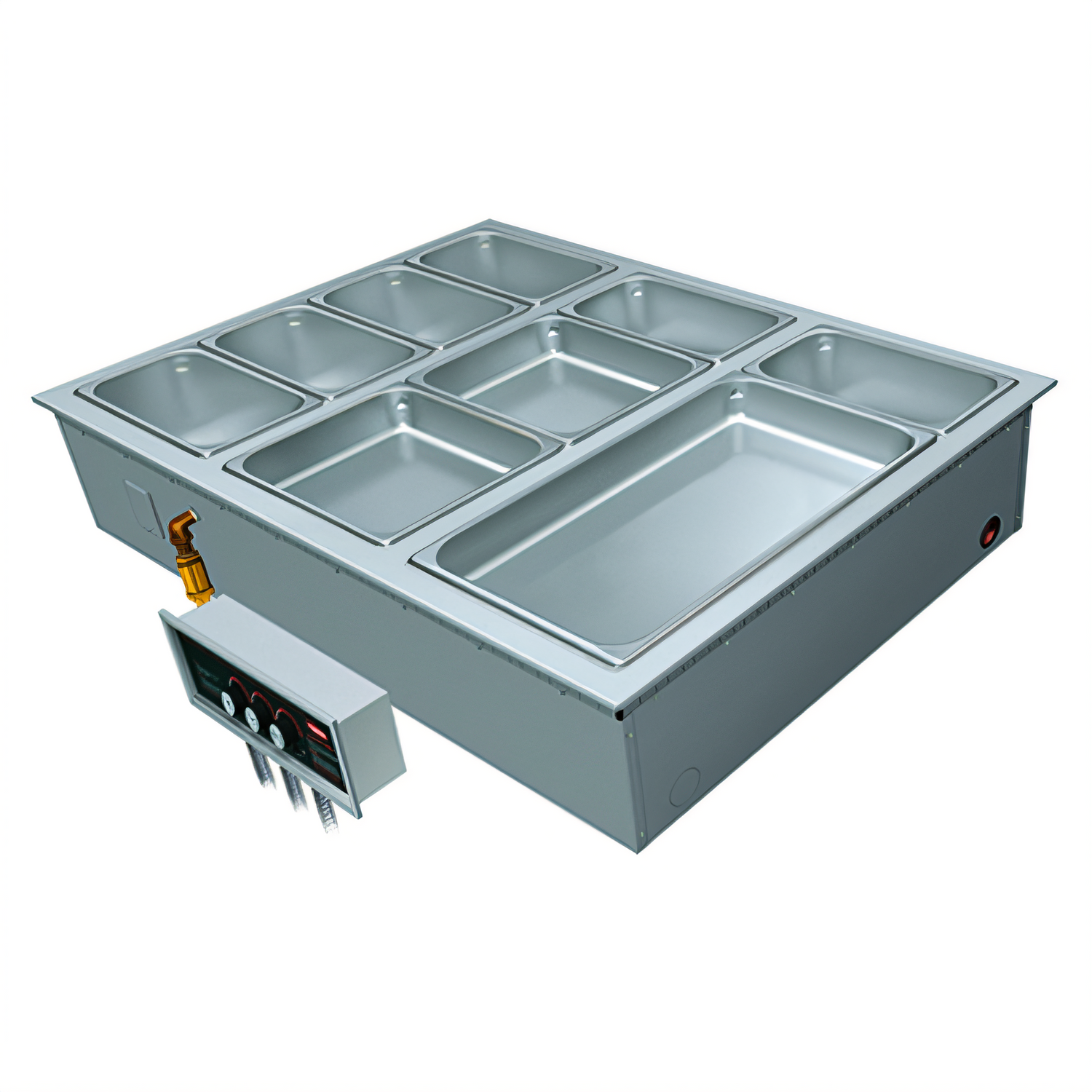

Hatco HWBI43-3MA Drop-In Modular/Ganged 4/3-Size Heated Well
3-Well • Auto-Fill • Manifold Drain • Top-MountedKeep entrées, sides and sauces hot, fresh and food-safe with the Hatco HWBI43-3MA. This insulated, three-well module delivers precise holding temperatures, automated water management and effortless cleanup—all in one seamless drop-in package that installs in minutes and performs for years.
Performance & Convenience Highlights
- Individual remote thermostat dials for each well ensure pinpoint temperature control.
- Lighted on/off rocker switches give instant visual confirmation of power status.
- Auto-fill system continuously maintains proper water level to prevent element burnout.
- 1" copper manifold drain with flat screen lets you empty and clean all three wells at once.
- Generous 4/3-size depth holds up to 4 third-size pans per well—12 third-size pans total.
- EZ locking hardware speeds one-person, tool-free installation.
- Durable stainless-steel top and aluminized steel housing stand up to demanding kitchens.
- Supplied 6' (1829 mm) flexible conduit allows convenient placement of the single control box.
- Made in the USA and certified CE, cULus and UL EPH for worldwide peace of mind.
Flexible Pan Combinations
- 12 × 1/3-size pans (2.5" / 64 mm deep)
- 6 × 1/2-size pans + 3 × 1/3-size pans
- 3 × full-size pans + 3 × 1/3-size pans
Food pans, lids and wire trivets are available separately.
Technical Specifications
| Model | HWBI43-3MA (Auto-Fill & Manifold Drain) |
|---|---|
| Overall Dimensions (W × D × H) | 43.5" × 30.38" × 9.62" (1105 × 772 × 244 mm) |
| Countertop Cut-Out | 42.19"–42.37" × 29.18"–29.44" (W × D) |
| Electrical | 208–240 V, single / three phase, 3.6 kW (≈17.4 A @ 208 V) |
| Controls | Remote mechanical thermostats (one per well) with separate lighted rocker switches |
| Drain | 1" copper manifold drain, side exit, flat screen strainer |
| Water Management | Automatic fill with low-water protection |
| Construction | Stainless-steel top, aluminized steel body, full insulation |
| Certifications | CE • cULus • UL EPH Classified • Made in USA |
| Approx. Ship Weight | 135 lb (61 kg) |
Perfect For
- Buffet lines & catering service
- QSR & fast-casual build stations
- Cafeterias, schools & healthcare facilities
- Convenience stores & grab-and-go counters
Looking for a different size or control option? Explore the full Hatco HWBI43 Series or chat with us for a custom quote.
