Hatco HWBI43-3M Steam Tables & Food Wells
Description

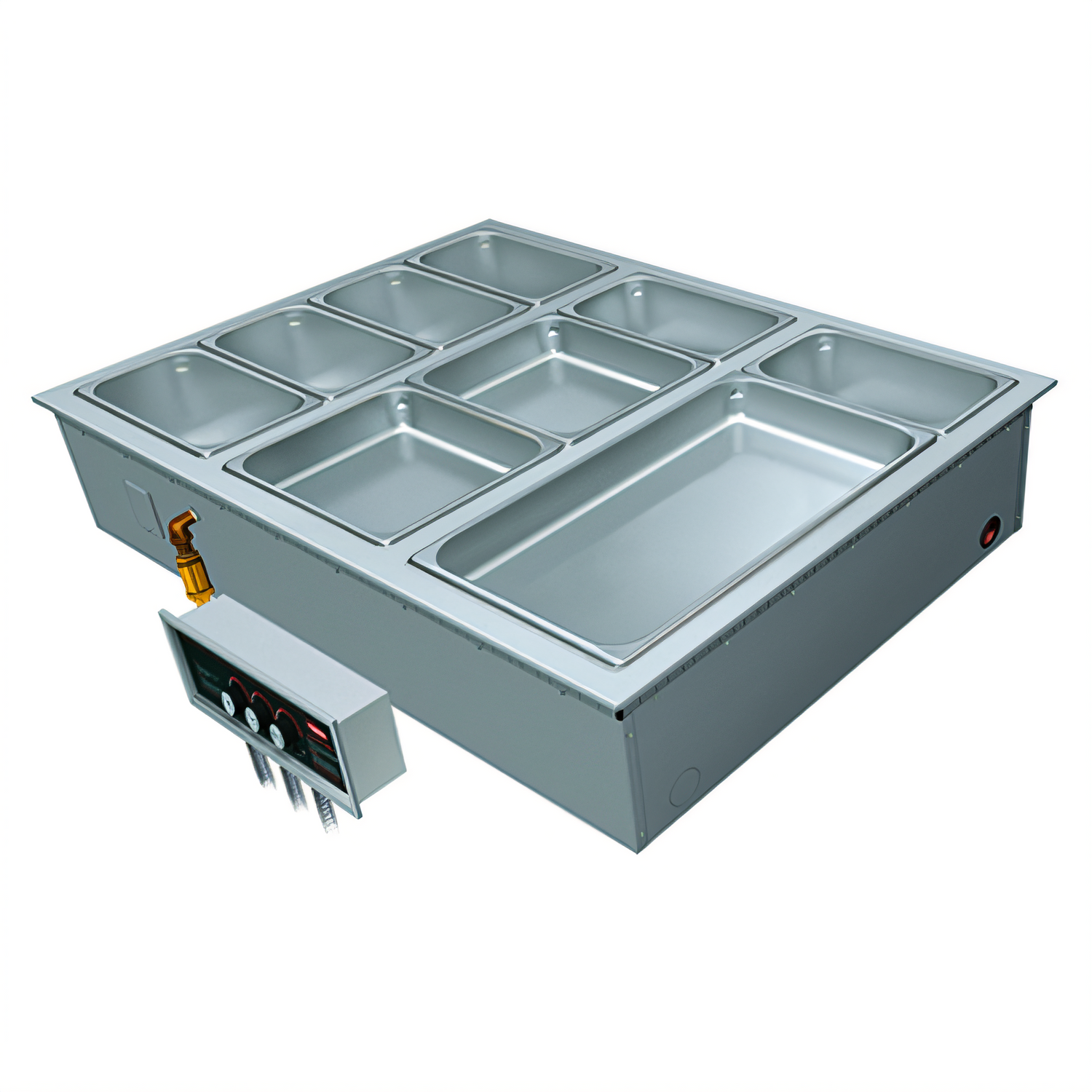

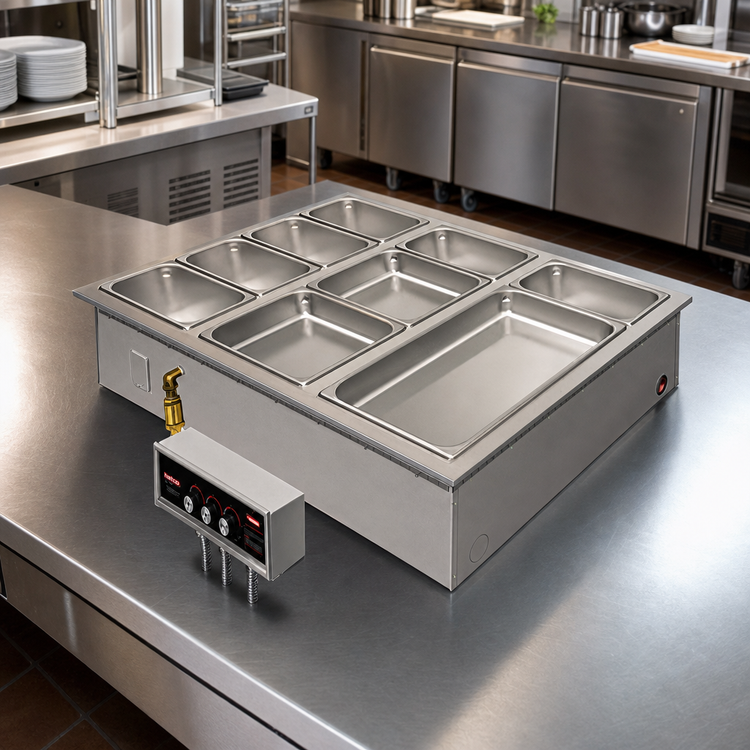

Hatco HWBI43-3 Drop-In 3-Well Modular Heated Well
4/3-size | Insulated | Manifold Drain | Made in USAGive every entrée the perfect holding temperature while streamlining your counter line-up. The Hatco HWBI43-3 is a factory-ganged, three-well drop-in that delivers the performance of a full steam table in one clean, top-mounted module—complete with individual controls, an oversized manifold drain and Hatco’s legendary build quality.
Why You’ll Love It
- Three independent 4/3-size wells – each well easily fits 4 third-size pans, 2 half-size plus one third-size pan, or 1 full-size plus one third-size pan.
- Precise holding – remote thermostat dial for each well maintains food above safe-serve temperatures without overcooking.
- Operator-friendly controls – lighted On/Off rocker switch is separate from the temperature dial for quick, intuitive use.
- Oversized 1 in. manifold drain – 50 % larger opening with flat screen speeds water removal and keeps pans level while you clean.
- Top-mount, insulated design – drops flush into a countertop cut-out; full fiberglass insulation locks heat inside the well, not in your kitchen.
- EZ-Locking hardware – built-in cam clamps tighten from above the counter for a fast, silicone-free installation.
- Built to last – stainless-steel well with aluminized-steel housing and solid-brazed joints stands up to daily commercial use.
- Ready to wire & go – 6 ft (1 829 mm) flexible conduit pre-installed on the control box.
At-a-Glance Specs
| Model | HWBI43-3 (ganged 3-well, insulated, manifold drain) |
|---|---|
| Overall Size (W × D × H) | 43.5 in × 30.38 in × 9.62 in (1 105 × 772 × 244 mm) |
| Counter Cut-out (W × D) | 42.19–42.37 in × 29.19–29.44 in |
| Electrical | 208 / 240 V, single phase, 3 615 W (17.4 / 15.1 A) |
| Controls | Remote mechanical thermostats (one per well) with separate lighted rocker switches |
| Drain | Common 1 in. NPT manifold drain, side exit |
| Shipping Weight | Approx. 115 lb (52 kg) |
| Construction | Stainless-steel well, aluminized-steel exterior, fiberglass insulation |
| Certifications | cULus, UL EPH Classified (ANSI/NSF 4), CE, Made in USA |
Compatible Accessories (sold separately)
- Full-, half-, and third-size stainless food pans
- Stainless wire trivets & support bars
- Adaptor kit to convert a well into two 11 qt (10 L) round insets
- Ball or gate drain valves for permanent plumbing connections
Need help configuring voltage, control box location or optional auto-fill? Contact our food-service equipment team—we’re Hatco experts and happy to help.
