Hatco HWBI43-3DA Steam Tables & Food Wells
Description

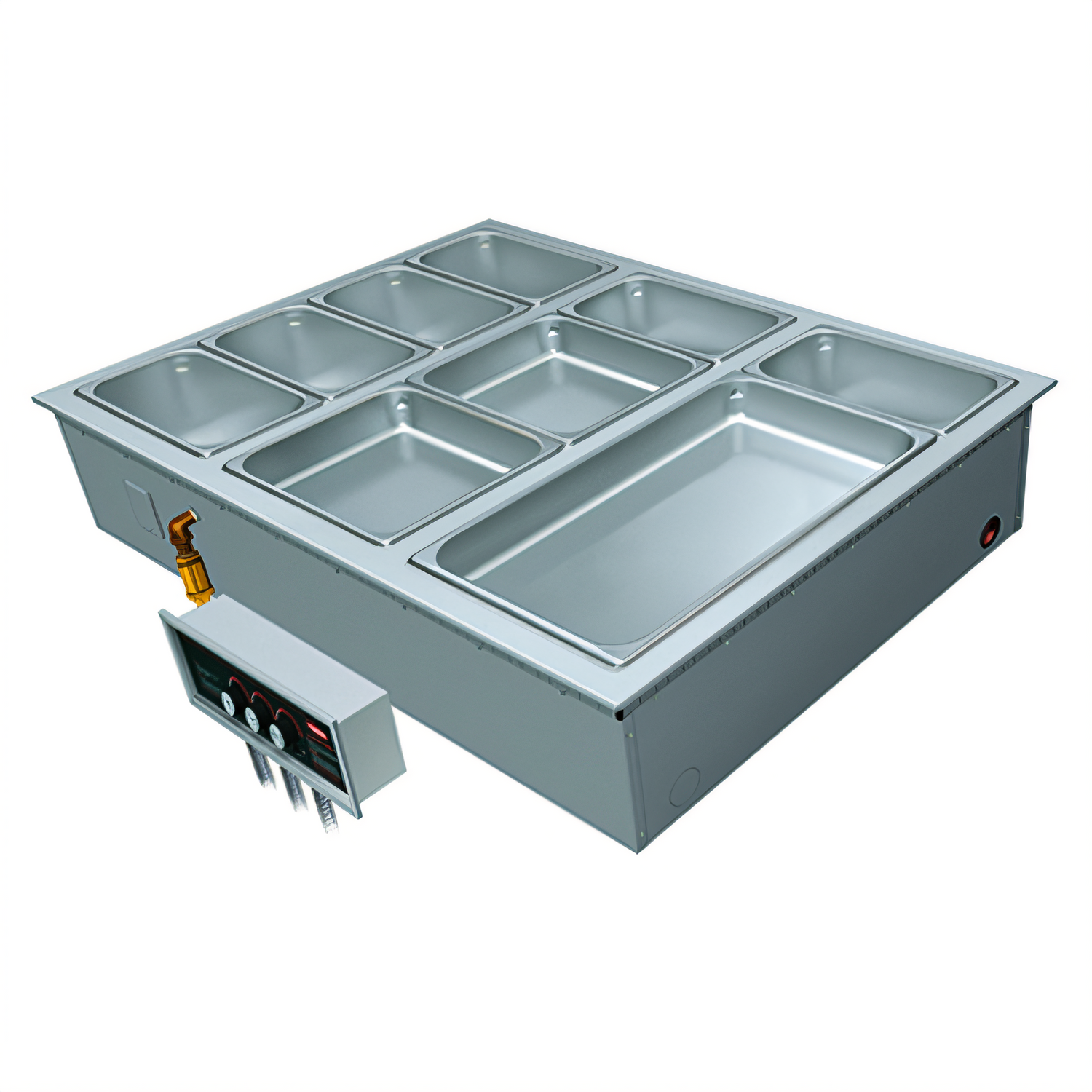

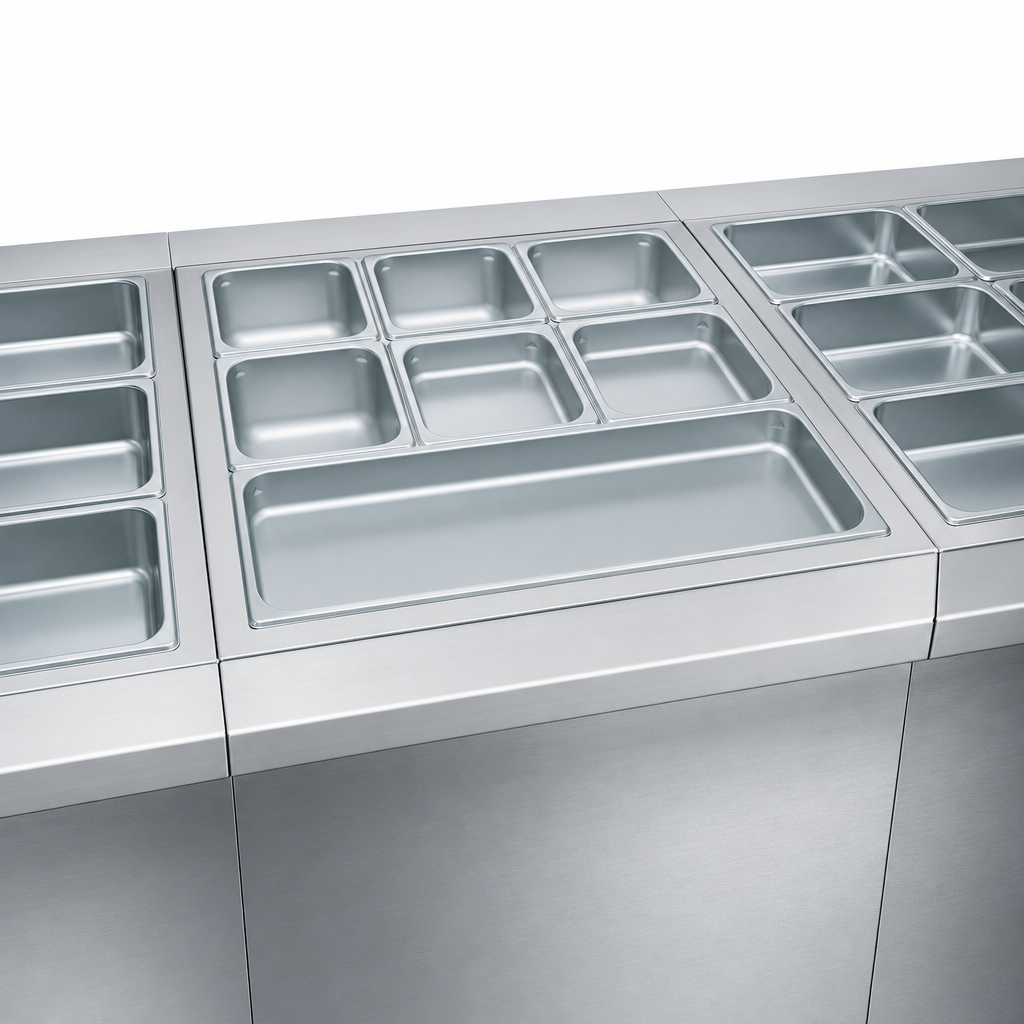

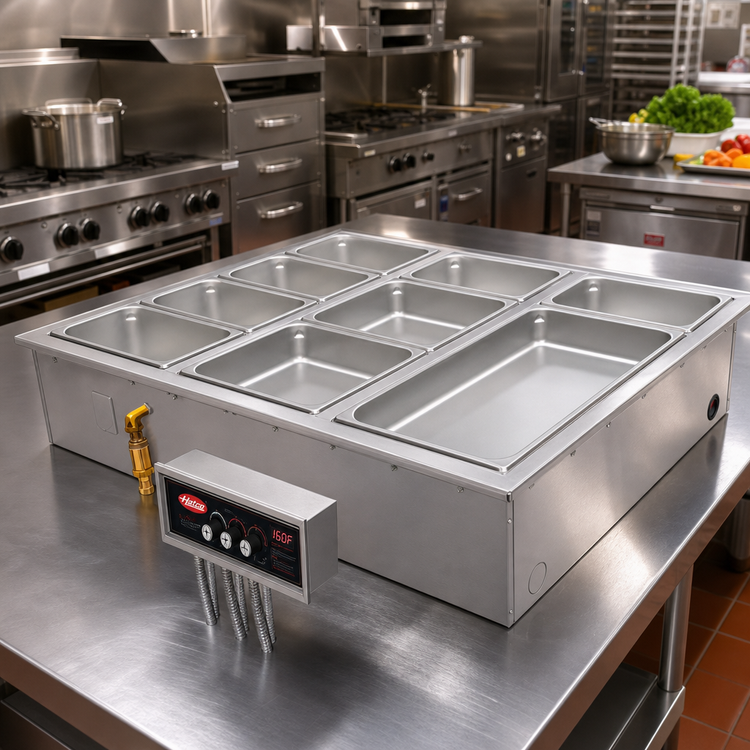

Hatco HWBI43-3DA Drop-In Modular/Ganged Heated Well
3-Well • 4/3-Size • Auto-Fill & Individual DrainsKeep every entrée picture-perfect and food-safe with Hatco’s top-mounted, insulated hot well module. The HWBI43-3DA delivers precise, independent temperature control for three 4/3-size wells, while automatic water fill and oversized drains take the work out of daily operation.
Why You’ll Love It
- Accurate, even heat—remote thermostats for each well maintain ideal serving temps.
- Auto-fill system keeps water at the proper level and protects elements from dry-fire.
- Large ¾″ NPT drains with flat strainers empty wells fast and keep pans level.
- Lighted rocker switch and dial make operation simple, even in low-light kitchens.
- EZ Locking hardware snaps the unit into the counter—no fumbling under the deck.
- Heavy-duty stainless steel interior and aluminized exterior built to survive the rush.
- Quick-swap element/thermostat design reduces downtime and service costs.
Pan Capacity per Well
- 4 × 1⁄3-size pans (2.5″ / 64 mm deep)
- OR 2 × 1⁄2-size + 1 × 1⁄3-size pan
- OR 1 × full-size + 1 × 1⁄3-size pan
Technical Specs
| Model | HWBI43-3DA |
|---|---|
| Well Count / Size | 3 × 4/3-size, insulated drop-in |
| Overall Dimensions | 43.5″ W × 30.38″ D × 9.62″ H (1105 × 772 × 244 mm) |
| Electrical | 208–240 V, single-phase; 3.6–4.8 kW (field wired) |
| Controls | Remote thermostat dial & lighted On/Off rocker (one set per well) |
| Water Management | Auto-fill with low-water protection |
| Drain | Individual ¾″ NPT drains, flat strainers |
| Conduit | 6′ (1.8 m) flexible pre-wired harness |
| Construction | 304 stainless steel well, aluminized steel housing |
| Certifications | cULus • CE • UL EPH Classified |
| Origin | Made in USA |
Perfect For
- Buffet lines & cafeterias
- Hotel breakfast bars
- Supermarket hot bars & delis
- High-volume catering stations
Popular Add-Ons (sold separately)
- Full-, half- & third-size stainless food pans
- Stainless wire trivets for non-submerged operation
- Copper drain manifolds (side or bottom exit)
- Factory-installed gasket—no silicone required
- Split control boxes for longer wells (not available in Canada)
Looking for a different pan count, voltage or finish? Explore the full Hatco HWBI43 series or contact us for a custom quote.
