Hatco HWBI43-3D Steam Tables & Food Wells
Description

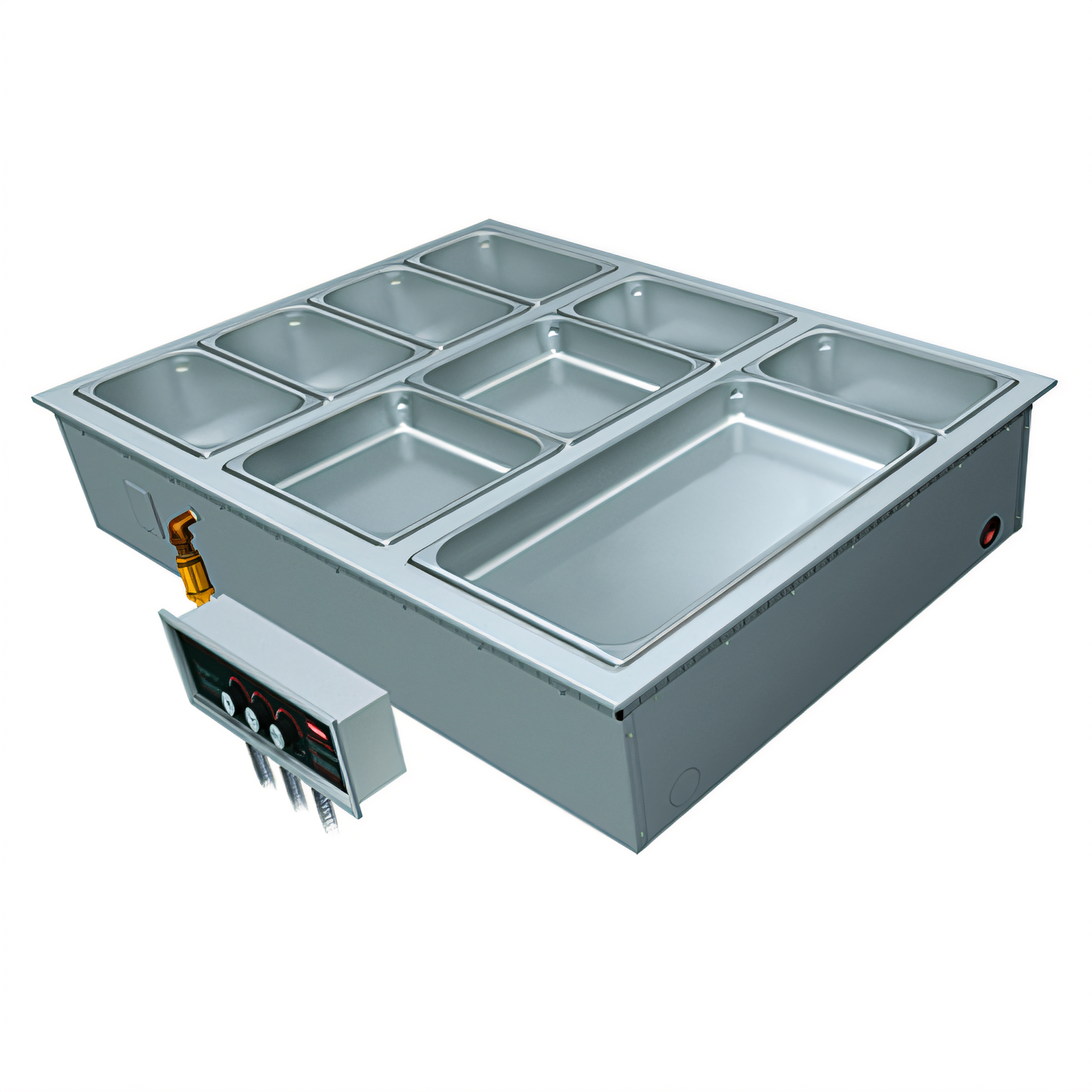

Hatco HWBI43-3D Drop-In Modular Heated Well — 3 Wells
4/3-size rectangular wells with individual drains & remote controlsEngineered for chefs who demand precision holding and effortless installation, the Hatco HWBI43-3D combines three fully-independent, insulated wells into one seamless drop-in module. Lower it into the cut-out, tighten the EZ-Lock fasteners and keep entrées, sides and sauces hot, fresh and food-safe all day long.
Key benefits

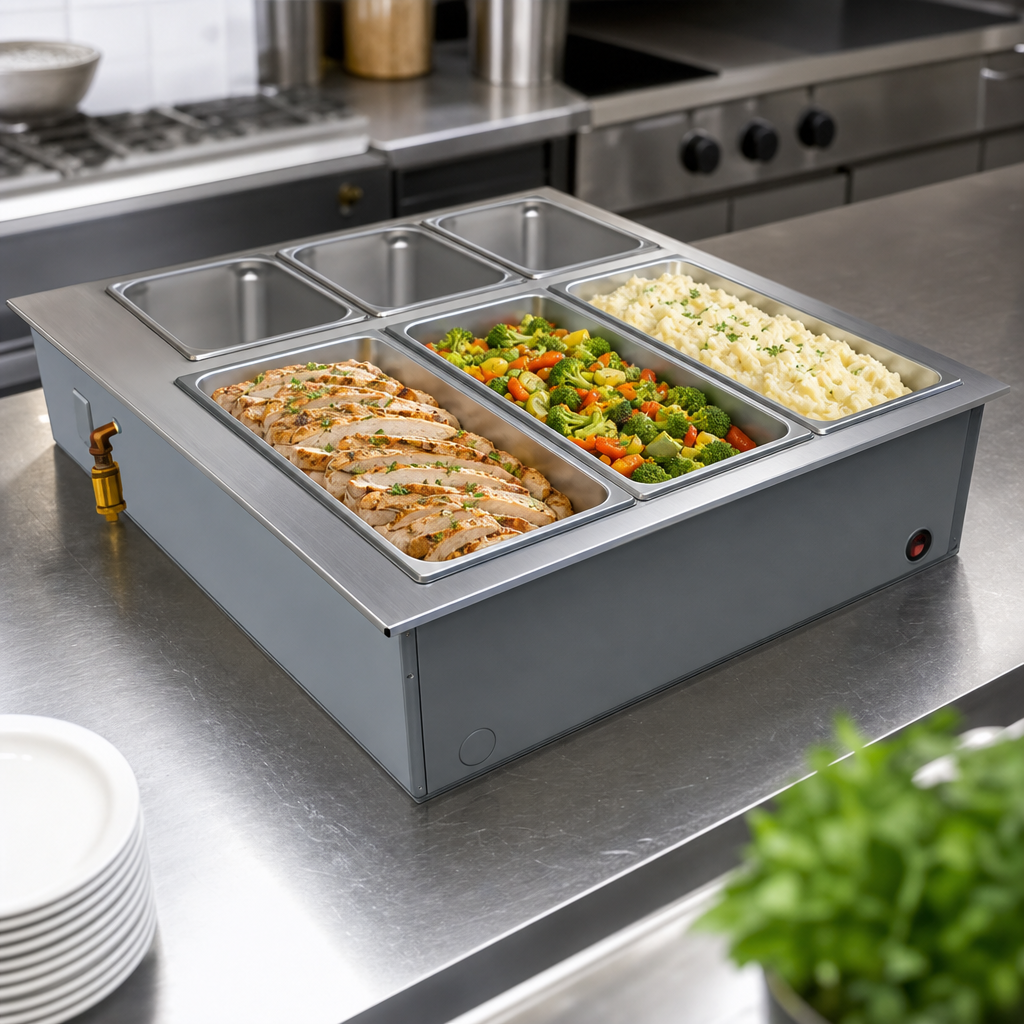

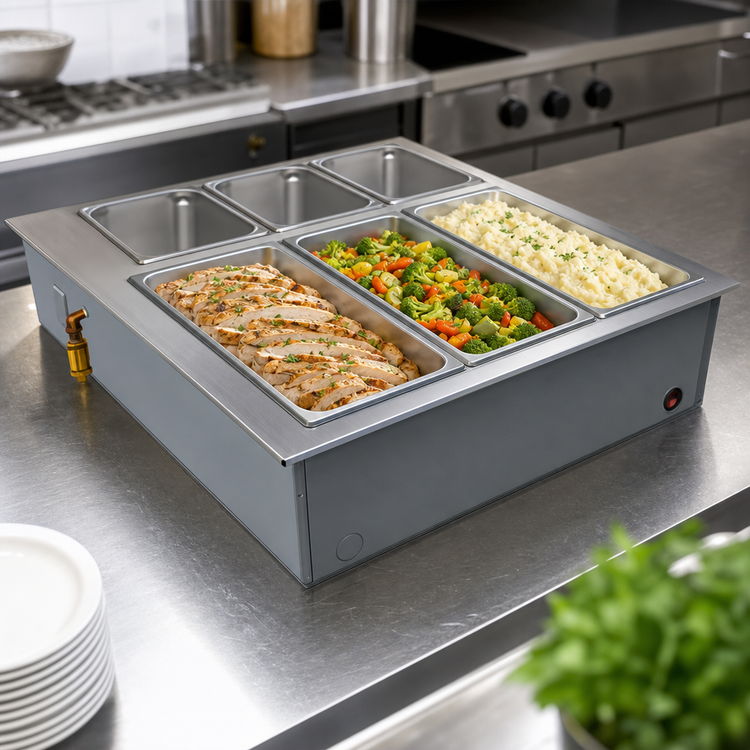

- 3 ganged 4/3-size wells form a sleek, one-piece steam table.
- Each well holds:
- 4 × ⅓-size pans
- 2 × ½-size + 1 × ⅓-size pan
- 1 × full-size + 1 × ⅓-size pan
- Remote thermostat dial (0 – 200 °F) + lighted on/off rocker switch per well.
- 50 % larger ¾″ NPT drains with flat strainers speed clean-up and keep pans level.
- EZ-Lock top-mounting hardware — no crawling under counters.
- Stainless steel tank and top, aluminized steel exterior for long-term durability.
- Deep, fiberglass-insulated design reduces energy loss and protects cabinetry.
- 6 ft (1.8 m) flexible conduit included for easy control-box placement.
- Safety & quality assured: CE, cULus, UL EPH Classified (ANSI/NSF 4).
- Proudly Made in the USA and backed by Hatco’s 24/7 service network.
Perfect for
- Buffet, cafeteria and carving stations
- Supermarket or c-store hot bars
- QSR makelines and catering kitchens
- Custom counters where a traditional steam table won’t fit
Technical details
| Model | HWBI43-3D |
|---|---|
| Wells | 3 (individual drains) |
| Pan capacity | See “Key benefits” above |
| Overall dimensions | 43.5″ W × 30.375″ D × 9.62″ H (1105 × 772 × 244 mm) |
| Countertop cut-out | Min 42.19″ W × 29.188″ D • Max 42.37″ W × 29.438″ D (1072–1076 × 742–748 mm) |
| Voltage / phase | 208 V or 240 V, single or 3-phase |
| Wattage range | 3,615 W (208 V 1-φ) – 4,815 W (208 V 3-φ) |
| Drain connection | ¾″ NPT per well |
| Ship weight | Approx. 115 lb (52 kg) |
| Construction | 304 stainless liner & top, aluminized steel exterior, fiberglass insulation |
| Controls | Remote mechanical thermostat & lighted rocker switch (one set per well) |
| Certifications | CE, cULus, UL EPH Classified |
| Origin | Milwaukee, Wisconsin, USA |
Popular accessories (sold separately)
- Stainless food pans: ⅓, ½ & full-size (2.5″, 4″ and 6″ depths)
- Copper drain manifolds (side or bottom exit)
- Ball & gate valves (¾″ or 1″)
- 11 qt round pan adaptors & lids
- Stainless wire trivets and support bars
Need auto-fill, three-phase wiring or a different well count? Contact us for a custom quote or explore the full Hatco HWBI43 series.
