Hatco HWBI43-3 Steam Tables & Food Wells
Description

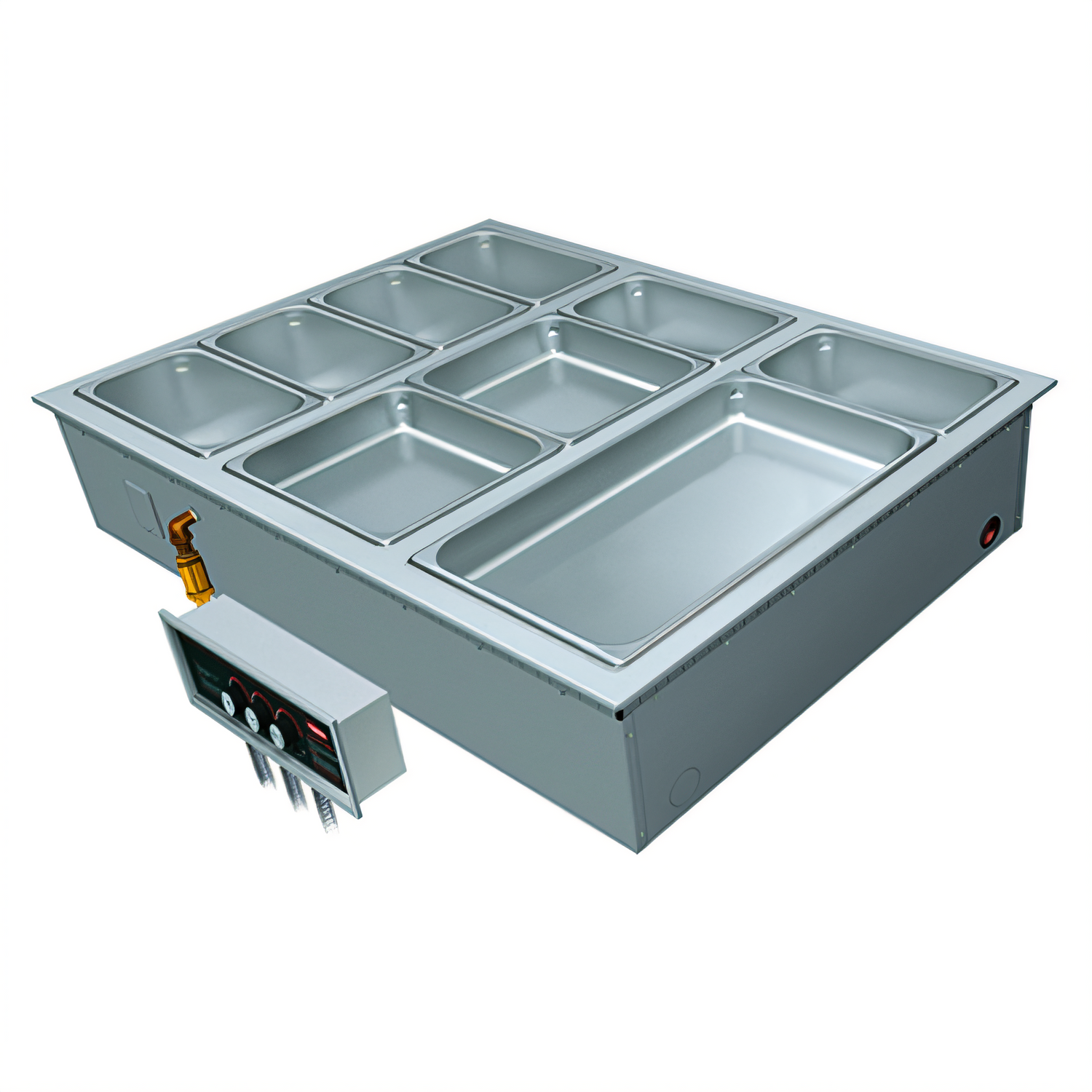

Hatco Drop-In 3-Well Modular/Ganged 4/3-Size Heated Well
Model HWBI43-3 • Made in the USABuild a seamless, high-capacity steam table in a single cut-out. Hatco’s HWBI43-3 insulated heated well module delivers precise holding temperatures for three independent 4/3-size wells while cutting installation time to minutes thanks to factory-mounted EZ Locking™ hardware and an included 6 ft (1.8 m) flexible control conduit.
Key performance advantages
- Three individually controlled 4/3-size wells – keep entrées, sides and sauces at safe serving temps simultaneously.
- Remote mechanical thermostat dial with separate lighted On/Off rocker switch for each well.
- Deeper basin design holds up to:
- 4 × 1/3-size pans per well (12 total)
- OR 2 × 1/2-size + 1 × 1/3-size pans per well
- OR 1 × full-size + 1 × 1/3-size pan per well
- Even, accurate heat distribution for longer hold times and consistent food quality.
- Fully insulated walls to reduce energy loss and keep counter surfaces cooler.
- 50 % larger flat-screen drain (optional) speeds cleanup and keeps pans level.
- EZ Locking™ hardware clamps the module flush to the countertop—no tools or silicone required when ordered with factory gasket.
- Rugged stainless-steel well with aluminized steel housing resists corrosion and daily wear.
- 6 ft (1.8 m) flexible conduit allows convenient placement of the remote control box.
- Certified safe & sanitary: CE, cULus, UL EPH Classified.
Smart options (factory-installed)
- Copper individual or manifold drains with ¾″ or 1″ shut-off valves
- Auto-fill kit for continuous water level management
- Single- or three-phase wiring and export voltages
- Split control boxes for island counters (4-, 5- & 6-well units only)
- Pre-installed perimeter gasket for silicone-free mounting
Specification highlights

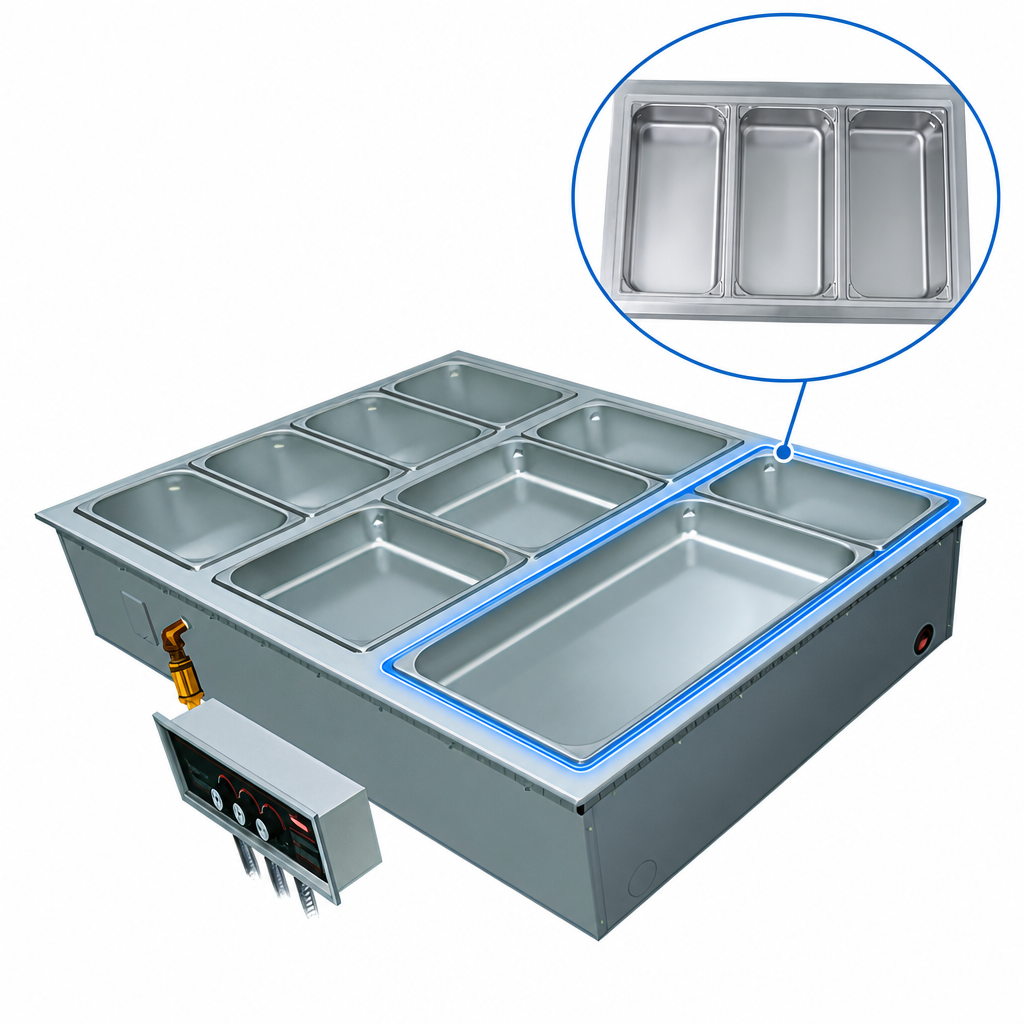

| Pan capacity | 3 × 4/3-size wells (up to 12 third-size pans) |
|---|---|
| Overall dimensions | 43.5″ W × 30.375″ D × 9.62″ H (1105 × 772 × 244 mm) |
| Counter cut-out | 42.19–42.37″ W × 29.18–29.43″ D (1072–1076 × 742–748 mm) |
| Electrical | 208–240 V, single or three phase; 3.6–4.8 kW total (per selected voltage) |
| Control location | Remote, top-mount dial & switch box (6′ conduit supplied) |
| Construction | Stainless-steel liner, aluminized exterior, fully insulated |
| Certifications | CE • cULus • UL EPH Classified • NSF 4 |
| Origin | Manufactured in Milwaukee, Wisconsin, USA |
Perfect for
- Buffet lines & cafeterias
- C-stores & grab-and-go programs
- QSR & fast-casual holding stations
- Banquet & catering service lines
Need a different length steam table? Hatco offers 1- through 6-well configurations in the same HWBI43 series. Talk to our team for sizing, drain and auto-fill selections before ordering.
