Hatco HWBI43-2MA Steam Tables & Food Wells
Description

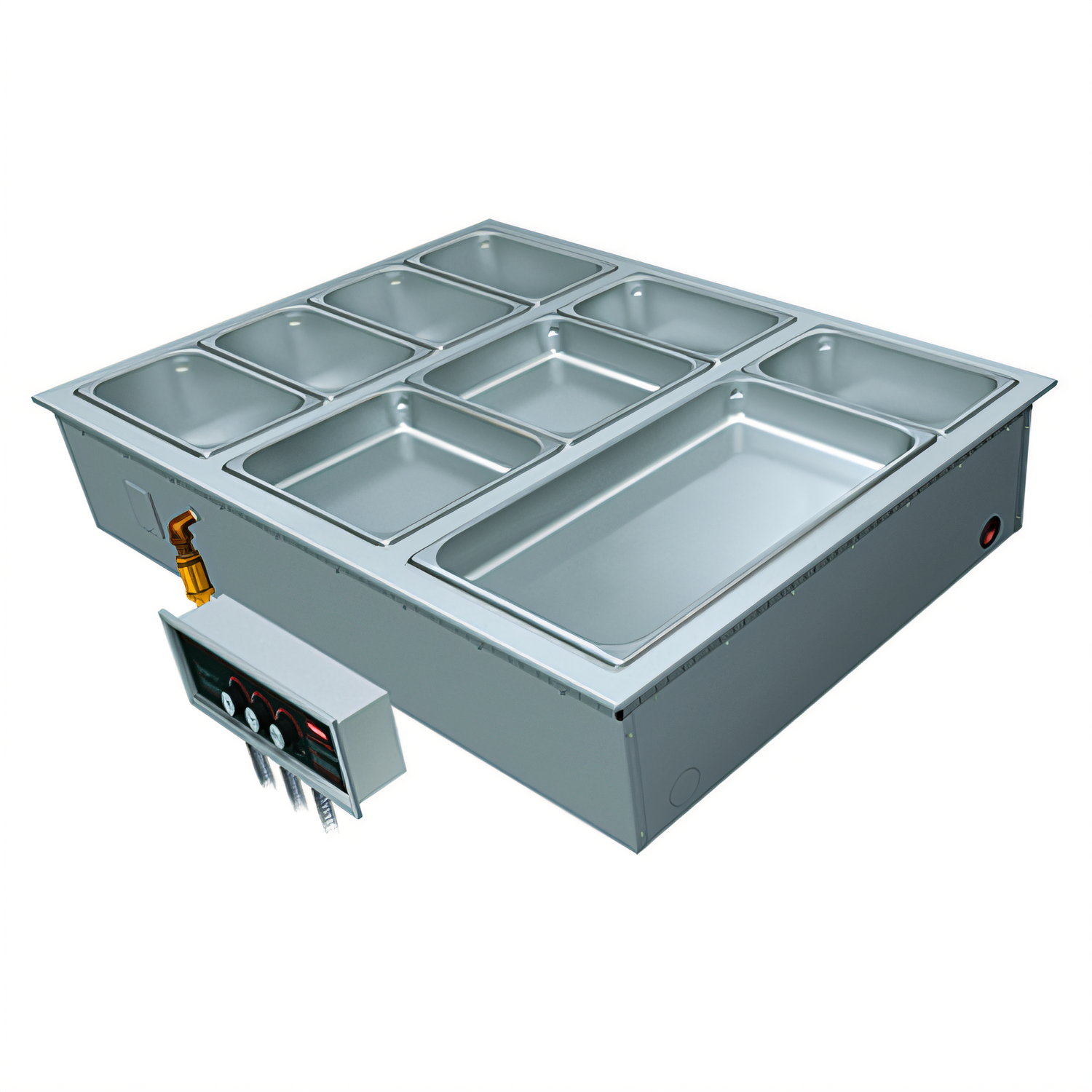

Hatco HWBI43-2DA Drop-In Modular Heated Well – 2 Wells, Auto-Fill & Manifold Drain

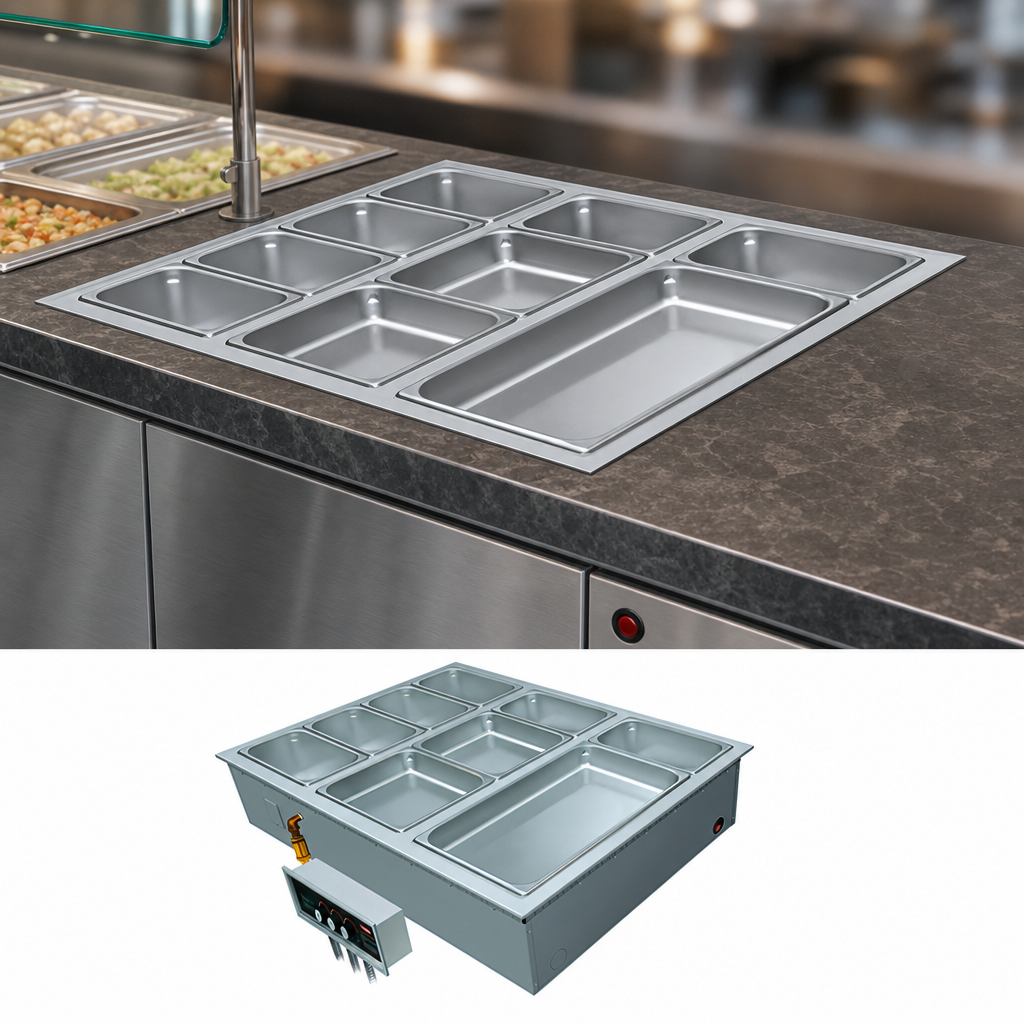

The simple, space-saving way to keep multiple menu items hot and ready to serve.Built for high-volume foodservice operations, the Hatco HWBI43-2DA gives you two completely independent 4/3-size wells in one factory-assembled module. Just drop it into your counter cut-out, tighten the EZ-Locking brackets, hook up water & power, and you’ve got a professional steam table with precise temperature control – no field fabrication required.
Key benefits
- Two insulated 4/3-size wells – each deep enough to hold:
• 4 third-size pans • 2 half-size + 1 third-size • 1 full-size + 1 third-size - Auto-fill system maintains water level automatically, protecting elements and saving labour.
- 1 inch copper manifold drain with flat-screen strainer empties both wells fast and clog-free.
- Remote thermostat dials with separate lighted ON/OFF rocker switches – set each well from the front counter without reaching over hot food.
- EZ-Locking hardware clamps the unit tight to the countertop in seconds – no silicone required when ordered with the factory gasket option.
- Stainless-steel well liner, aluminised outer housing and solid-brazed drain fittings deliver long-term durability in demanding commercial kitchens.
- Field-replaceable elements and thermostats – change out parts quickly and keep service costs down.
- Includes 6 ft (1.8 m) flexible conduit for convenient control-box placement.
Specification snapshot
| Model | HWBI43-2DA |
|---|---|
| Pan capacity | 2 × 4/3 wells (up to 8 third-size pans total) |
| Overall size (W × D × H) | 29.5″ × 30.38″ × 9.62″ (749 × 772 × 244 mm) |
| Counter cut-out (min–max) | 28.19–28.37″ W × 29.18–29.44″ D |
| Electrical | 208, 220 or 240 V, single phase | up to 2.9 kW (see price list for options) |
| Water system | Auto-fill with low-water protection + 1″ manifold drain |
| Controls | Remote mechanical thermostats, individual lighted rocker switches |
| Construction | Stainless steel wells, aluminised steel housing, high-temperature insulation |
| Certifications | CE • cULus • UL EPH Classified (NSF 4) |
| Origin | Made in the USA |
Perfect for
- Restaurant cook-lines & pass-thru stations
- Buffets, cafeterias and self-service bars
- QSR & fast-casual holding lines
- C-stores, delis and commissary kitchens
Need more capacity? HWBI43 Modular Heated Wells are also available in 1-, 3-, 4-, 5- and 6-well configurations. Chat with our team for a custom quote.
