Hatco  |  SKU: HWBI43-2M

Hatco HWBI43-2M Steam Tables & Food Wells

$2,391.44
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog brochure Owner's manual Parts list Color chart
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

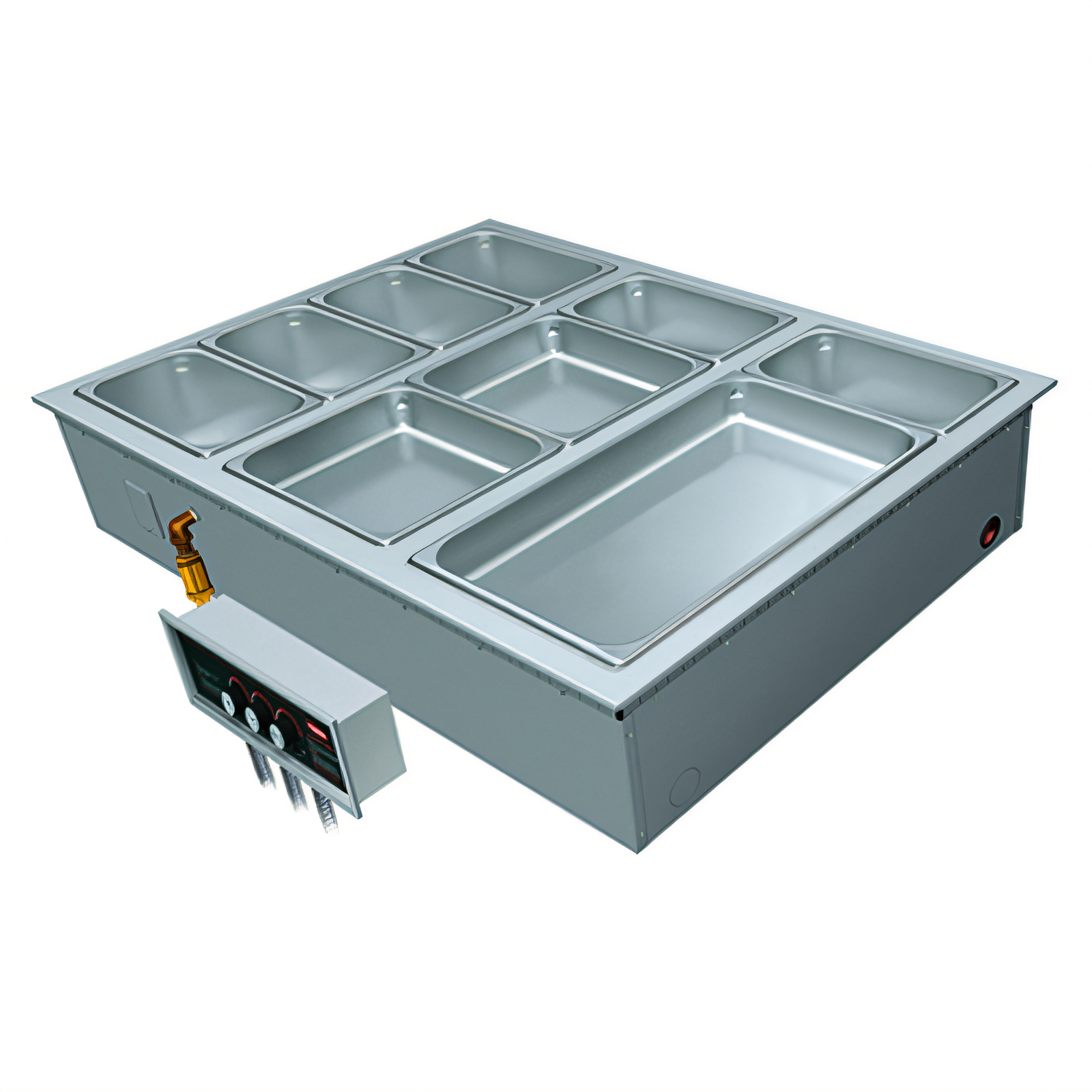

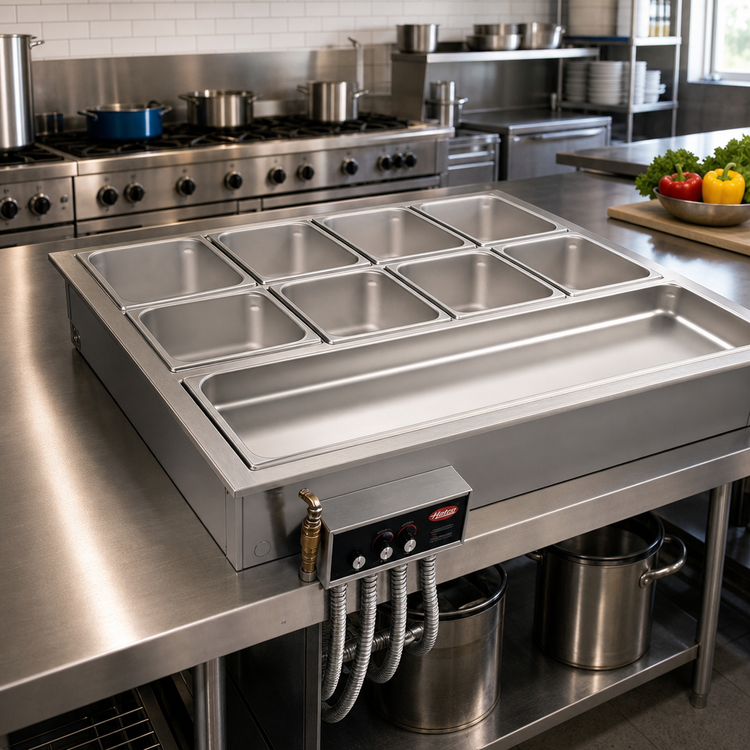

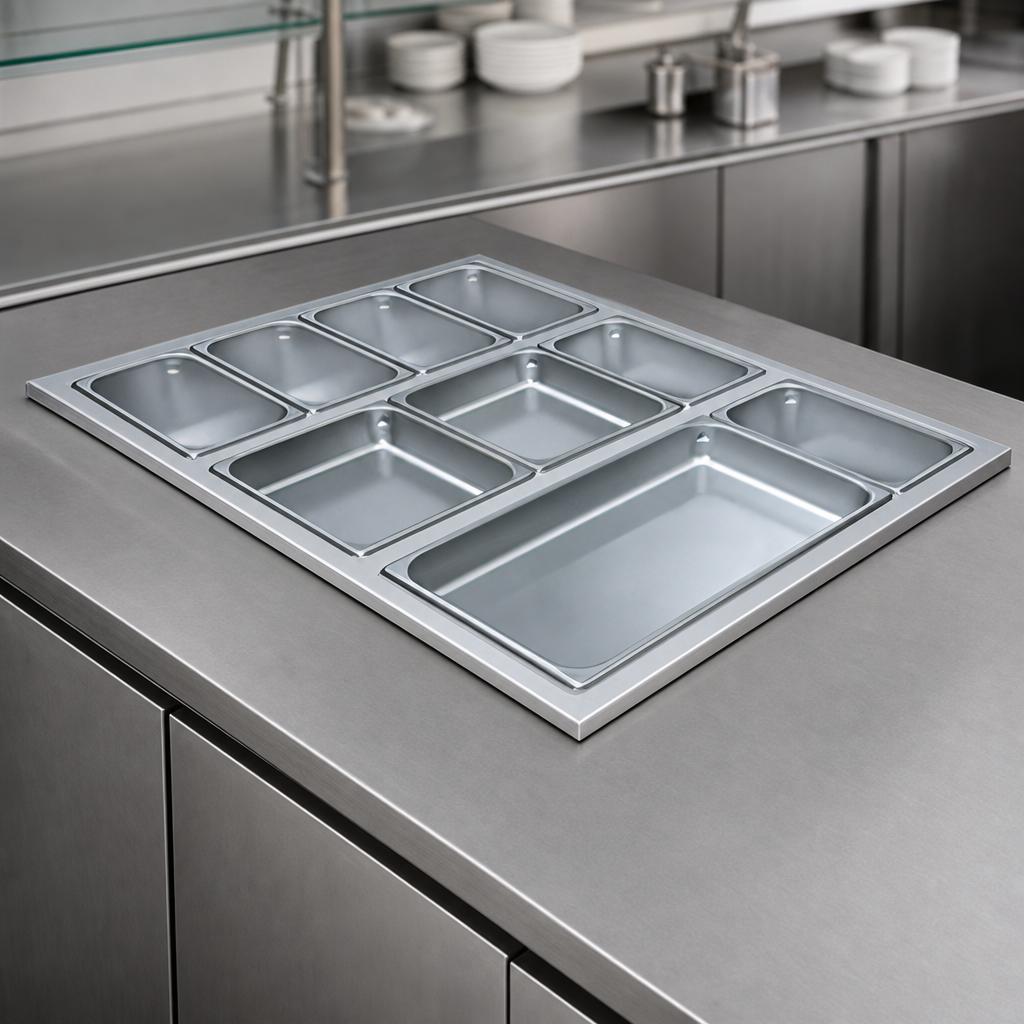

Hatco HWBI43-2M Drop-In 4/3-Size Modular Heated Well – 2-Well

Insulated top-mount with manifold drain & remote mechanical controls

Build a cleaner, more flexible steam table with Hatco’s next-generation drop-in heated wells. The HWBI43-2M gives you two individually controlled 4/3-size wells in one seamless module, delivering precise, even heat while streamlining installation and daily cleanup.

Key advantages

  • Deep 4/3-size wells hold up to 4 third-size pans per well (or the equivalent combination of ½ and full-size pans).
  • Factory-installed 1" NPT manifold drain with 50 % larger flat screen speeds water removal and resists clogging.
  • Remote thermostat dial with separate lighted rocker switch for each well – mount controls exactly where staff need them.
  • Fully insulated stainless-steel well with aluminized steel exterior maximizes efficiency and durability.
  • EZ-Locking hardware slips into the counter cut-out and tightens from above for one-person installation.
  • 6 ft (1829 mm) flexible conduit included for convenient control-box placement.
  • Certified safe: cULus, UL EPH Classified, CE  •  Built and tested in Milwaukee, Wisconsin USA.

Pan capacity options (per well)

  • 4 × 1⁄3-size pans (2.5" / 64 mm deep)
  • 2 × 1⁄2-size pans + 1 × 1⁄3-size pan
  • 1 × full-size pan + 1 × 1⁄3-size pan

Technical specifications

Model HWBI43-2M (2-well, manifold drain)
Overall size (W × D × H) 29.5" × 30.375" × 9.62"  (749 × 772 × 244 mm)
Counter cut-out 28.19"–28.37" W × 29.18"–29.43" D  (716–721 mm × 742–748 mm)
Electrical 208 V or 240 V, single-phase standard (three-phase optional)
Total wattage 2,415 W @ 208 V  •  2,640 W @ 240 V
Amps (single-phase) 11.1 A @ 208 V  •  11.5 A @ 240 V
Drain connection 1" NPT manifold outlet
Controls Remote mechanical thermostats with illuminated on/off rocker switches
Ship weight 88 – 98 lb (40 – 45 kg)
Certifications cULus  •  UL EPH Classified  •  CE  •  ANSI/NSF 4
Country of origin Made in USA

What’s in the box

  • HWBI43-2M 2-well drop-in module
  • Remote control box (pre-wired)
  • EZ-Locking installation hardware
  • 6 ft flexible conduit
  • Installation & operation manual
Electrical notice: Always verify voltage and phase requirements with a qualified electrician before installation. Three-phase units or export voltages may require additional lead time.

Stainless-steel food pans, lids, trivets, adaptors and additional drain accessories are available separately.

Features & Specs

Manufacturer

Hatco

Certifications

CE, cULus, UL EPH Classified, Made in USA

Height

9.62in

Width

29.5in

Depth

30.38in

Shipping Weight

82.0lbs

Style

individual pans

Pan Capacity

(2) 4/3 size (12" x 27")

Controls

thermostatic controls

Construction

stainless steel top, corrosion resistant steel exterior

Insulated or Non-Insulated

insulated

Wet or Dry operation

wet or dry

Drain

with drain

Specifications

Drop-In Modular/Ganged Heated Well, with manifold drain, (2) 4/3 size pan capacity, insulated, top mounted, remote thermostat dial with separate on/off rocker switch, EZ locking hardware, stainless steel & aluminized construction, CE, cULus, UL EPH Classified, Made in USA
