Hatco  |  SKU: HWBI43-2DA

Hatco HWBI43-2DA Steam Tables & Food Wells

$2,664.24
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list Color chart Owner's manual Catalog brochure
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

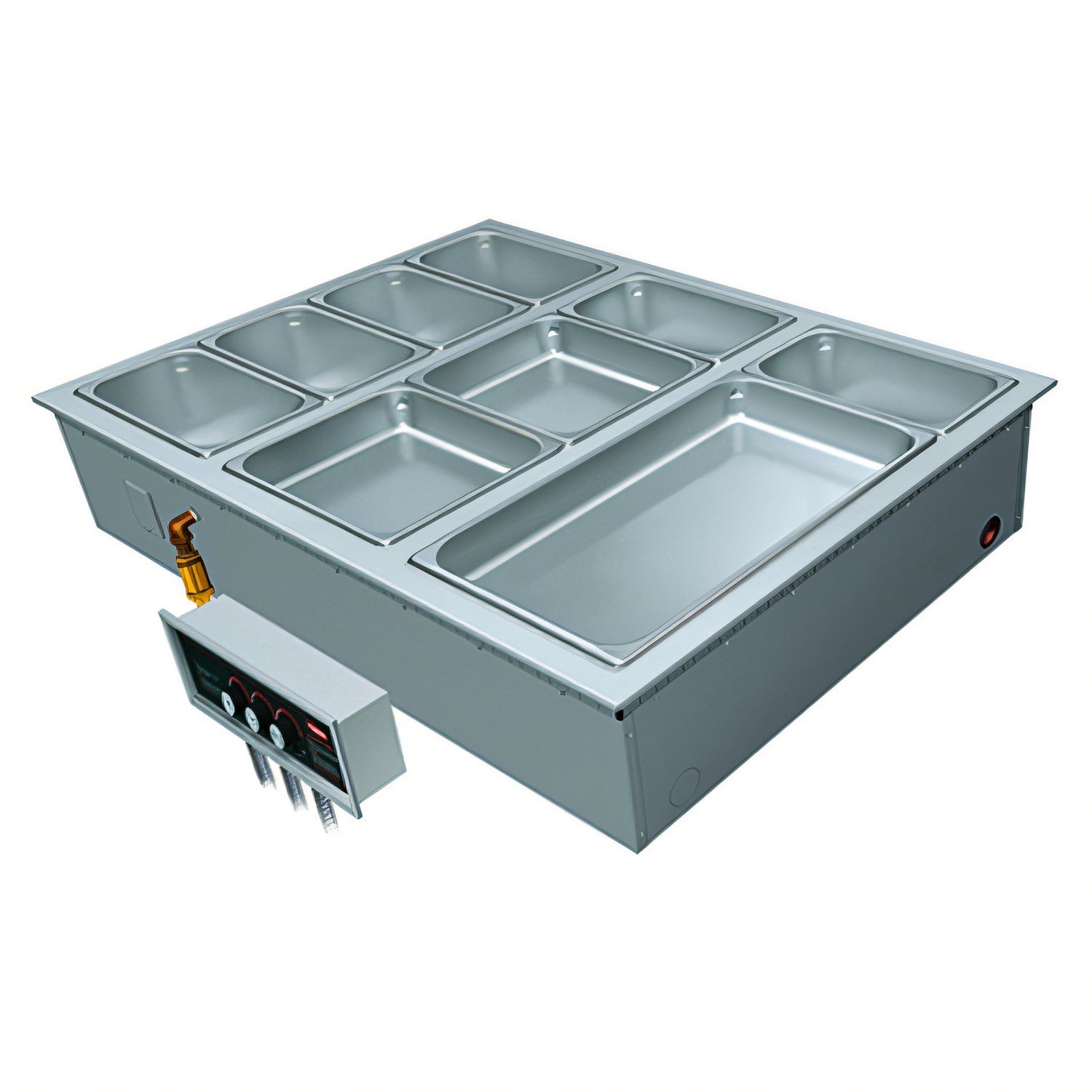

Hatco HWBI43-2DA Drop-In Dual 4/3-Size Heated Well

Auto-Fill • Integrated Drain • Remote Controls • Made in USA

Turn any counter into a high-performance hot holding station. Hatco’s insulated, two-well HWBI43-2DA keeps your menu items at safe serving temperatures with the accuracy, convenience and legendary durability foodservice pros trust.

Key Benefits

  • Dual 4/3-size wells—each handles up to four 1/3-size pans (8 total) or a variety of pan combinations.
  • Auto-fill system with built-in low-water sensor keeps the reservoir at the proper level and protects components.
  • Oversized 3/4" NPT drain with flat strainer speeds clean-up and keeps pans perfectly level.
  • Individual remote thermostat dial and lighted rocker switch for each well, mounted on a 6 ft (1829 mm) flexible conduit for ergonomic placement.
  • EZ-Locking hardware secures the unit from above the counter—no crawling underneath during installation.
  • Heavily insulated stainless-steel top and aluminized-steel housing reduce heat loss and energy use.
  • Top-accessible elements and thermostats make service fast and inexpensive.
  • Backed by Hatco quality—cULus, CE and UL EPH Classified for sanitation.

Specifications

Pan Capacity (2) 4/3-size wells | up to 8 1/3-size pans total
Exterior Dimensions 29.5" W × 30.375" D × 9.62" H (749 × 772 × 244 mm)
Countertop Cut-Out 28.19–28.37" W × 29.18–29.38" D (716–721 × 742–748 mm)
Drain Connection 3/4" NPT with flat screen
Electrical 208 V, 1-ph, 2,415 W, 11.6 A
240 V, 1-ph, 2,818 W, 11.8 A (field wired)
Ship Weight Approx. 88 lb (40 kg)
Certifications CE • cULus • UL EPH Classified (NSF 4)
Country of Origin Made in USA

Perfect For

  • Buffet, cafeteria & self-serve lines
  • Supermarket delis & hot cases
  • C-store grab-and-go programs
  • Catering, banquet & hotel kitchens
Installation note: This is a built-in, top-mount unit and requires an appropriately sized cut-out, field electrical wiring, and connection to water and drain lines. Food pans sold separately.

Looking for more wells or different control options? Explore the complete Hatco HWBI43 modular series or chat with us for a custom quote.

Features & Specs

Manufacturer

Hatco

Certifications

CE, cULus, UL EPH Classified, Made in USA

Height

9.62in

Width

29.5in

Depth

30.38in

Shipping Weight

95.0lbs

Style

individual pans

Pan Capacity

(2) 4/3 size (12" x 27")

Controls

thermostatic controls

Construction

stainless steel top, corrosion resistant steel exterior

Insulated or Non-Insulated

insulated

Wet or Dry operation

wet or dry

Drain

with drain

Specifications

Drop-In Modular/Ganged Heated Well, with drain & autofill, (2) 4/3 size pan capacity, insulated, top mounted, remote thermostat dial with separate on/off rocker switch, EZ locking hardware, stainless steel & aluminized construction, CE, cULus, UL EPH Classified, Made in USA
