Hatco HWBI43-2D Steam Tables & Food Wells
Description

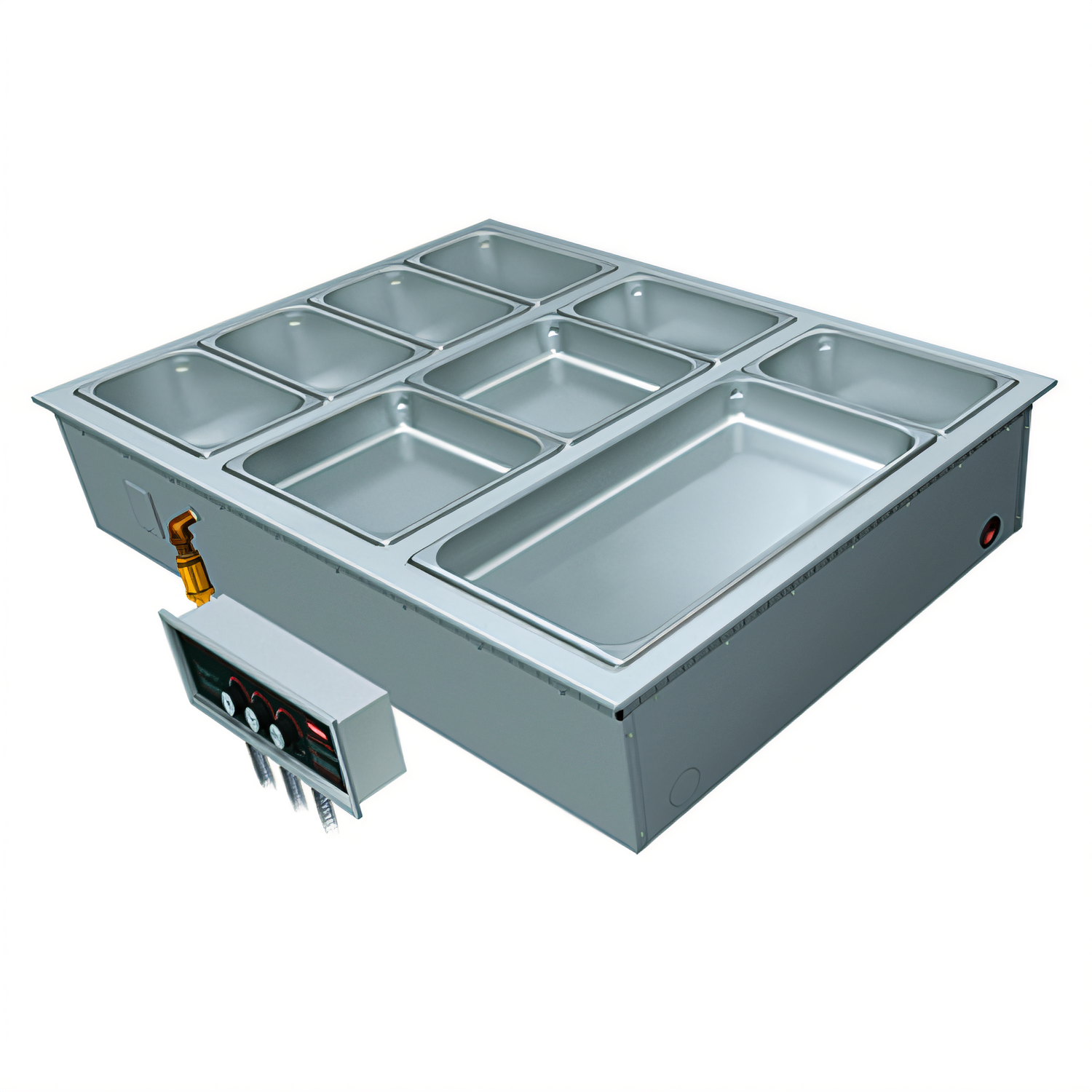

Hatco HWBI43-2D Drop-In 4/3-Size Modular Heated Wells (2-Well)
Top-mounted, insulated wells with individual drains & remote mechanical controlsBuilt for high-volume restaurants, hotels and catering lines, Hatco’s two-module HWBI43-2D delivers precise hot-holding in a single, easy-to-install drop-in. Each 4/3-size well is deeper than a standard full-size pan opening, giving you the flexibility to hold more food — while the remote thermostat dial and lighted rocker switch put exact temperature control right at your fingertips.
Performance That Pays Off
- Individually controlled wells maintain foods above 140 °F for extended serving times.
- 50 % larger ¾″ NPT drains with flat strainers speed clean-up and keep pans level.
- Fully insulated, stainless & aluminized steel housing reduces standby energy loss.
- EZ Locking ™ hardware lets one person secure the unit from the top in minutes.
- 6 ft (1829 mm) flexible conduit allows the remote control box to be mounted where it’s convenient for staff but out of the customer’s sightline.
- Field-replaceable elements and thermostats minimize downtime.

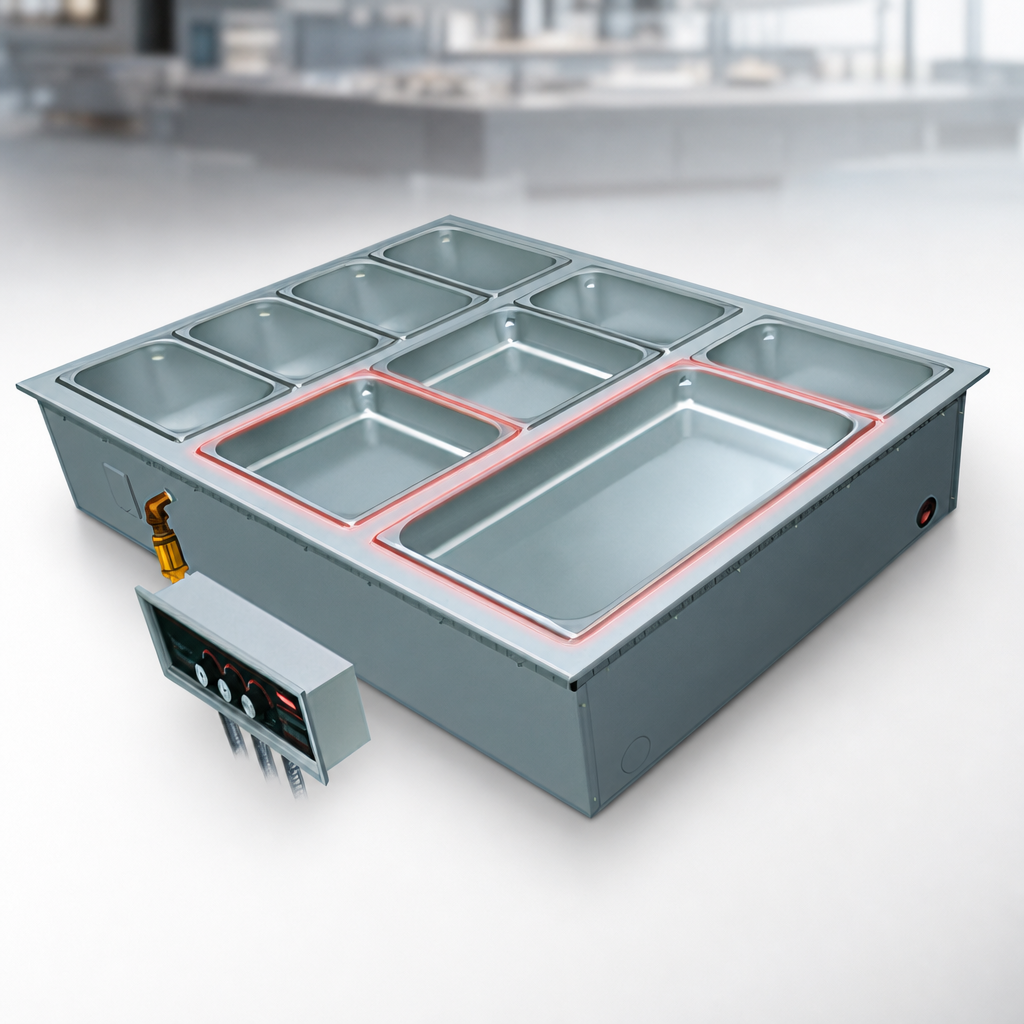

What Fits Inside?
- Per well: up to 4 × ¹⁄₃-size pans
- Or: 2 × ½-size & 1 × ¹⁄₃-size pan
- Or: 1 × full-size & 1 × ¹⁄₃-size pan
- Total for this model (2 wells): as many as 8 ¹⁄₃-size pans
Key Specifications
| Model | HWBI43-2D (2-well, with drains) |
|---|---|
| Overall size (W × D × H) | 29.5″ × 30.375″ × 9.62″ (749 × 772 × 244 mm) |
| Cut-out width | 28.19″ – 28.73″ (716 – 721 mm) |
| Cut-out depth | 29.19″ – 29.44″ (742 – 748 mm) |
| Electrical | 208 V or 240 V, single-phase (3-phase option available at purchase) |
| Total wattage | ≈ 2.4 kW @ 208 V | ≈ 2.6 kW @ 240 V |
| Controls | Remote mechanical thermostat dial with separate lighted ON/OFF rocker switch |
| Drain | Individual ¾″ NPT per well (copper manifold kits optional) |
| Construction | 18-ga stainless top plate & aluminized steel body, solid-brazed drain joints |
| Shipping weight | ≈ 88 lb (40 kg) |
Certifications & Origin
- cULus Listed
- UL EPH Classified (NSF 4 sanitization)
- CE Marked (standard-watt models)
- Made in the USA – Milwaukee, Wisconsin
Popular Factory Options
- Auto-fill package with low-water sensor
- Copper drain manifold (side or bottom exit)
- Three-phase wiring (not available on 1-well models)
- Factory-installed gasket – no silicone needed
Food pans, manifolds, auto-fill kits and other accessories are sold separately. Always verify electrical requirements before ordering.
