Hatco HWBI43-2 Steam Tables & Food Wells
Description

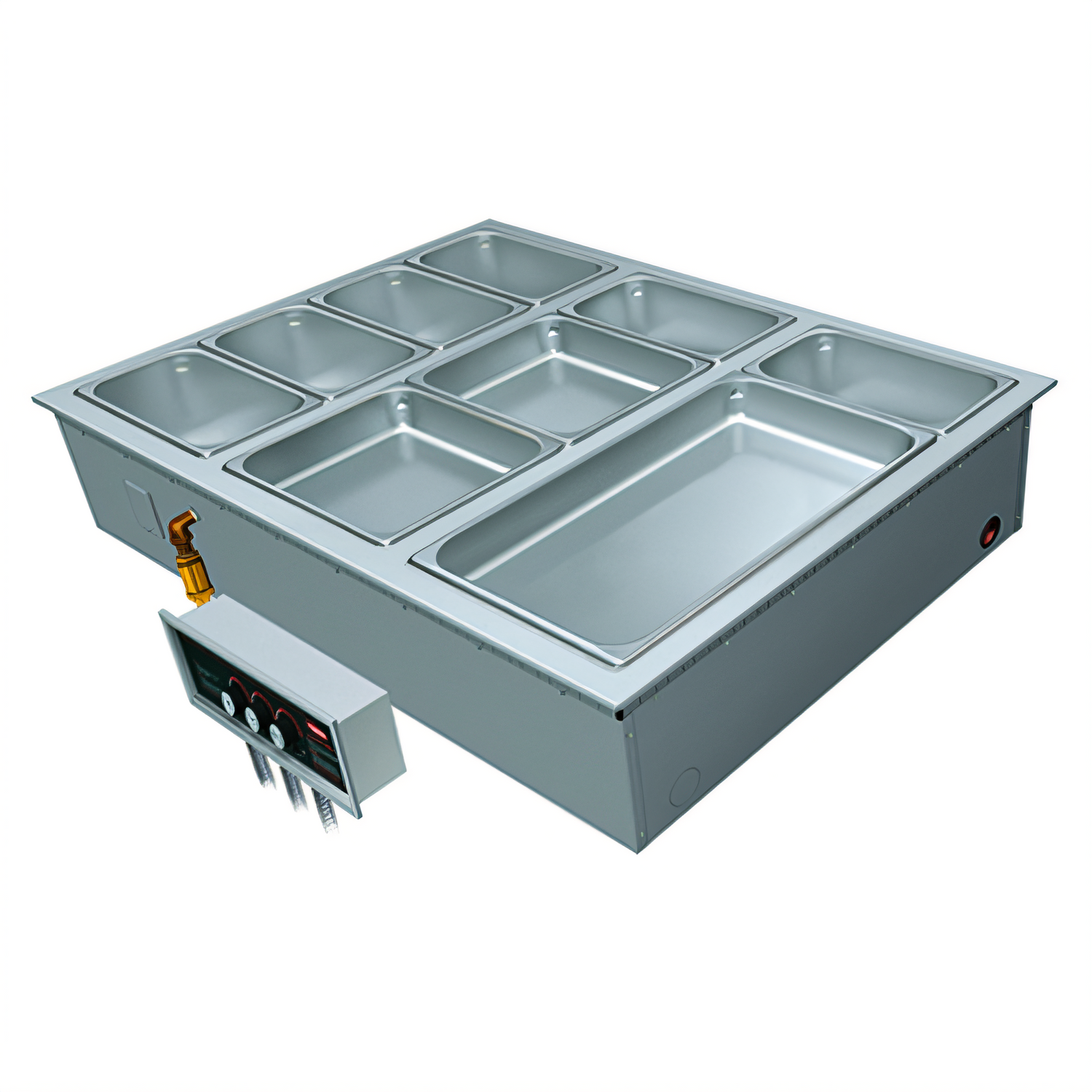

Hatco HWBI43-2 Drop-In Modular/Ganged Heated Well
(2) 4/3-size wells • independent electric heat • top-mountBuild a cleaner, more efficient steam table with Hatco’s HWBI43-2. This factory-ganged, insulated drop-in packs two oversized 4/3-size wells into a single cut-out, giving you precision holding control, faster installation, and the rugged reliability food-service pros expect from Hatco.
Key Features
- Two deep 4/3-size wells hold up to 8 third-size pans (or equivalent half/full-size combinations).
- Remote thermostatic dial for each well plus a separate lighted on/off rocker switch for quick visual status.
- Insulated 304 stainless steel interior with aluminized steel exterior maximises heat retention and durability.
- EZ Locking hardware drops in, twists tight, and secures—no extra clips, screws or silicone required.
- 50 % larger flat-screen drain (optional) speeds clean-up and keeps pans level.
- 6′ (1829 mm) flexible conduit included for convenient control-box placement.
- Field-replaceable elements and thermostats reduce service downtime.
- Meets the toughest standards—cULus, UL EPH Classified & CE—and proudly Made in the USA.
Pan Capacity – per Well
| Combination | Maximum |
|---|---|
| 1/3-size pans (2½″ / 64 mm deep) | 4 |
| ½-size pans + 1/3-size pan | 2 + 1 |
| Full-size pan + 1/3-size pan | 1 + 1 |
Specifications
| Model | HWBI43-2 (suffix designates drains, auto-fill or control options) |
|---|---|
| Wells | 2 (factory-ganged) |
| Overall Dimensions (W × D × H) | 29.5″ × 30.38″ × 9.62″ • 749 × 772 × 244 mm |
| Electrical |
208 V / 60 Hz / 1-ph – 2,415 W • 11.6 A 240 V / 60 Hz / 1-ph – 2,812 W • 11.7 A (3-phase & export voltages available) |
| Control Box | Remote single box with 6′ flexible conduit (top-mount only) |
| Drain | ¾″ NPT individual drain standard; 1″ manifold &/or auto-fill kit optional |
| Construction | Welded stainless steel wells, aluminized outer shell, brazed drain fittings |
| Approx. Ship Weight | 88 – 98 lb (40 – 45 kg) |
| Certifications | cULus | UL EPH | CE |
| Origin | Made in USA |
Built-In Advantages

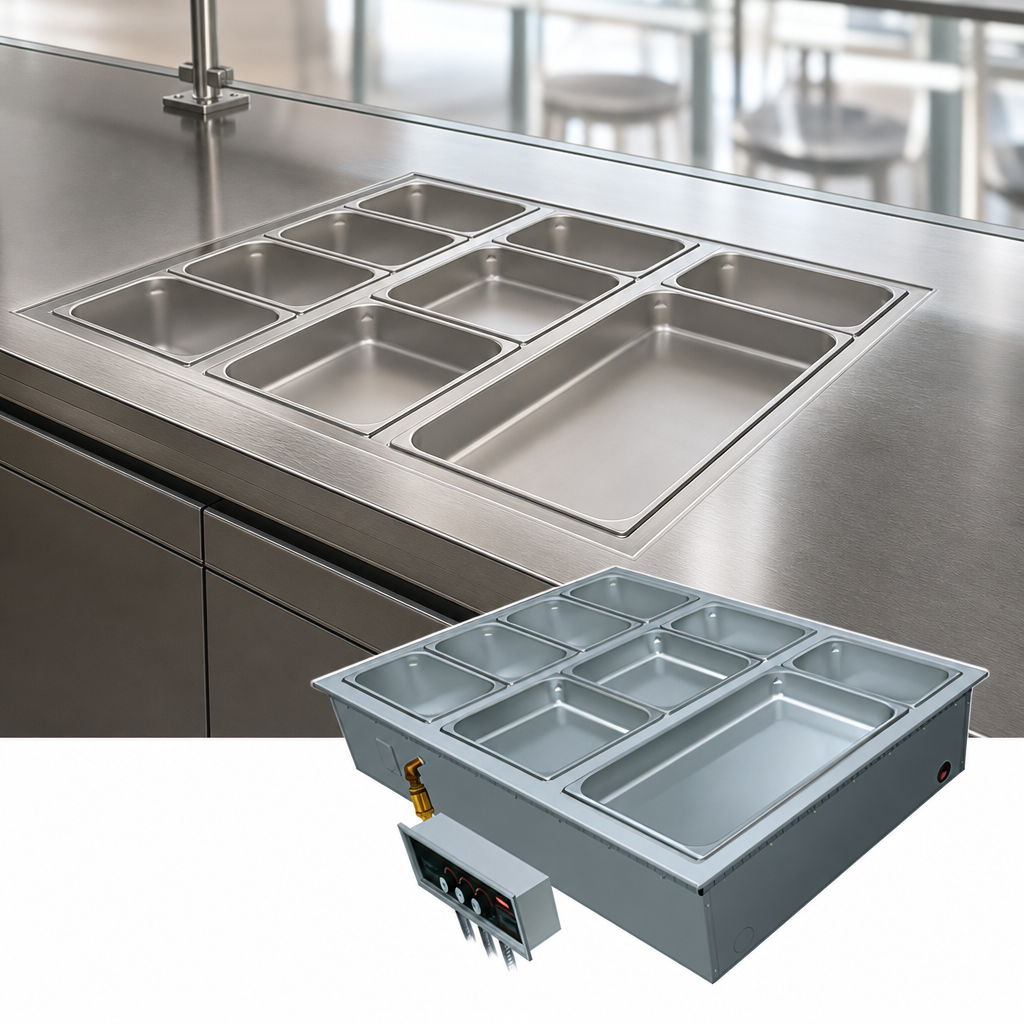

- Create a seamless, continuous steam table without multiple cut-outs or mismatched wells.
- Hold different menu items at their unique ideal temperatures thanks to independent controls per well.
- Compatible with Hatco stainless steel food pans, trivets, support bars, copper drain manifolds and auto-fill accessories (sold separately).
Need a different setup? HWBI43 series drop-ins are available in 1- to 6-well configurations, with three-phase wiring, auto-fill and manifold drains to match any operation. Contact us for a quote on your custom specification.
