Hatco  |  SKU: HWBI43-1DA

Hatco HWBI43-1DA Steam Tables & Food Wells

$1,944.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog brochure Parts list Owner's manual Color chart
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

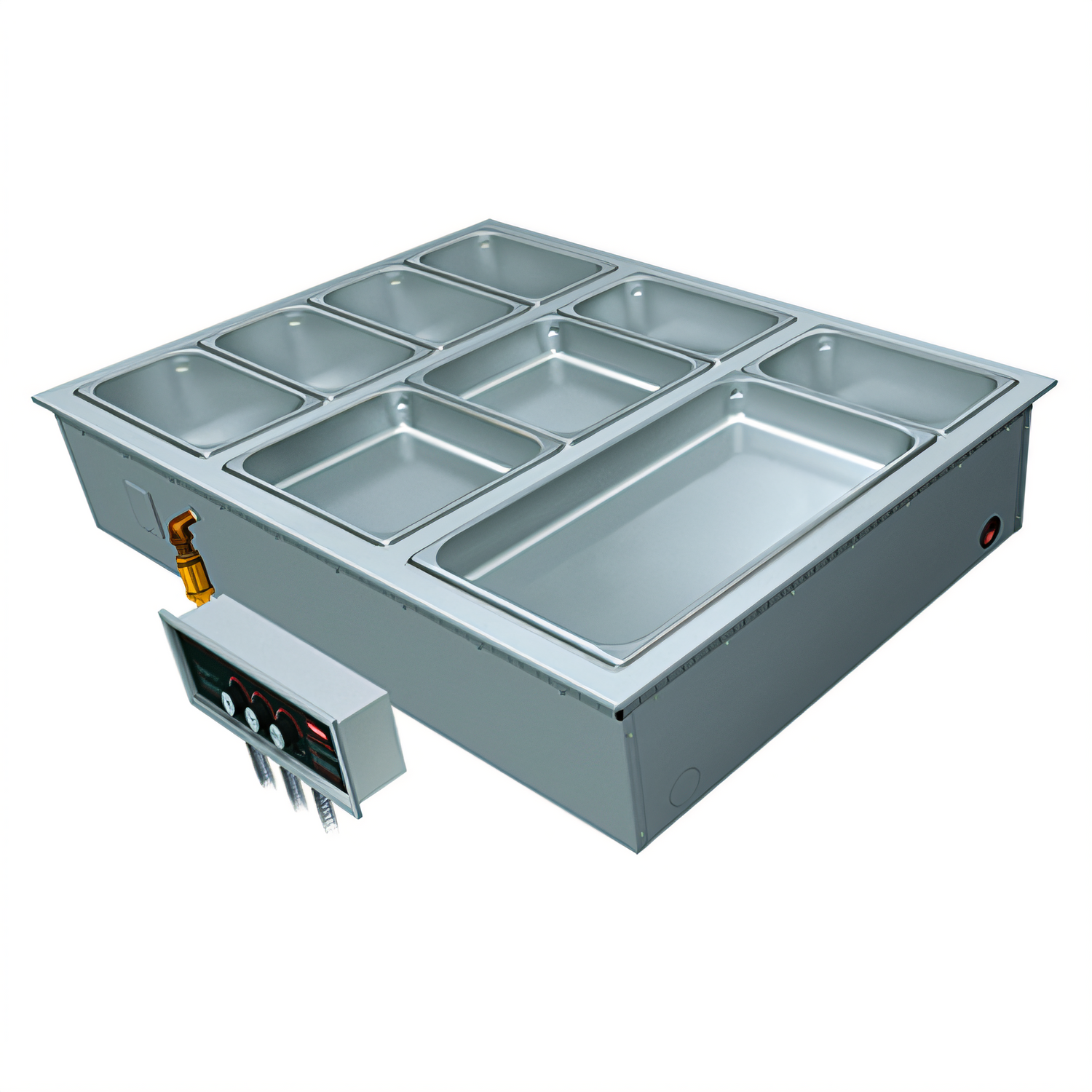

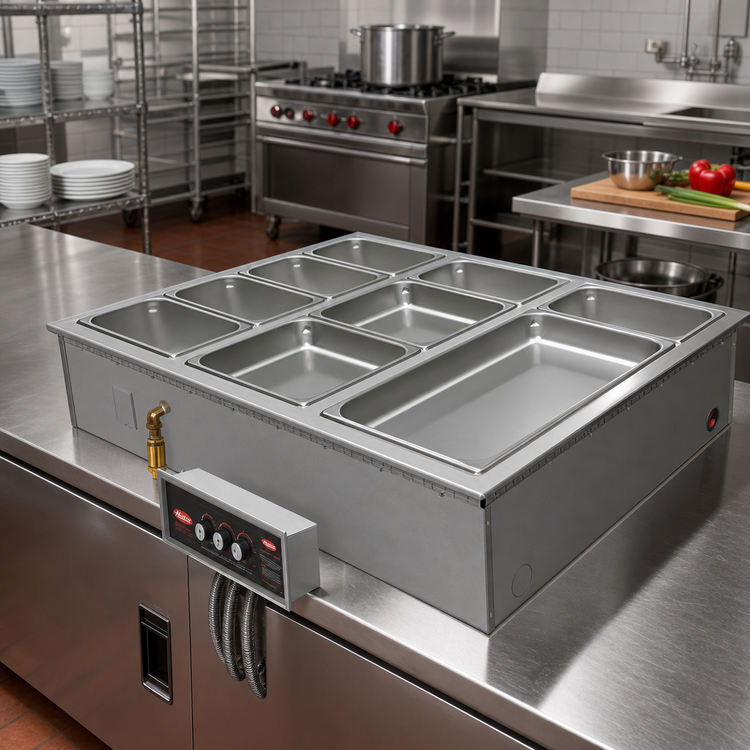

Hatco HWBI43-1DA Drop-In Heated Well

4/3-Size • Auto-Fill & ¾" Drain • Insulated Top-Mount • Made in USA

Build a seamless, high-volume steam table without giving up counter space. Hatco’s single-well HWBI43-1DA keeps entrées, sides and sauces at safe serving temperatures with pinpoint control and less labor – all in a rugged, easy-to-install drop-in package.

Key Advantages
  • 4/3-size rectangular well holds:
     • four 1/3-size pans
     • two 1/2-size pans + one 1/3-size pan
     • one full-size pan + one 1/3-size pan

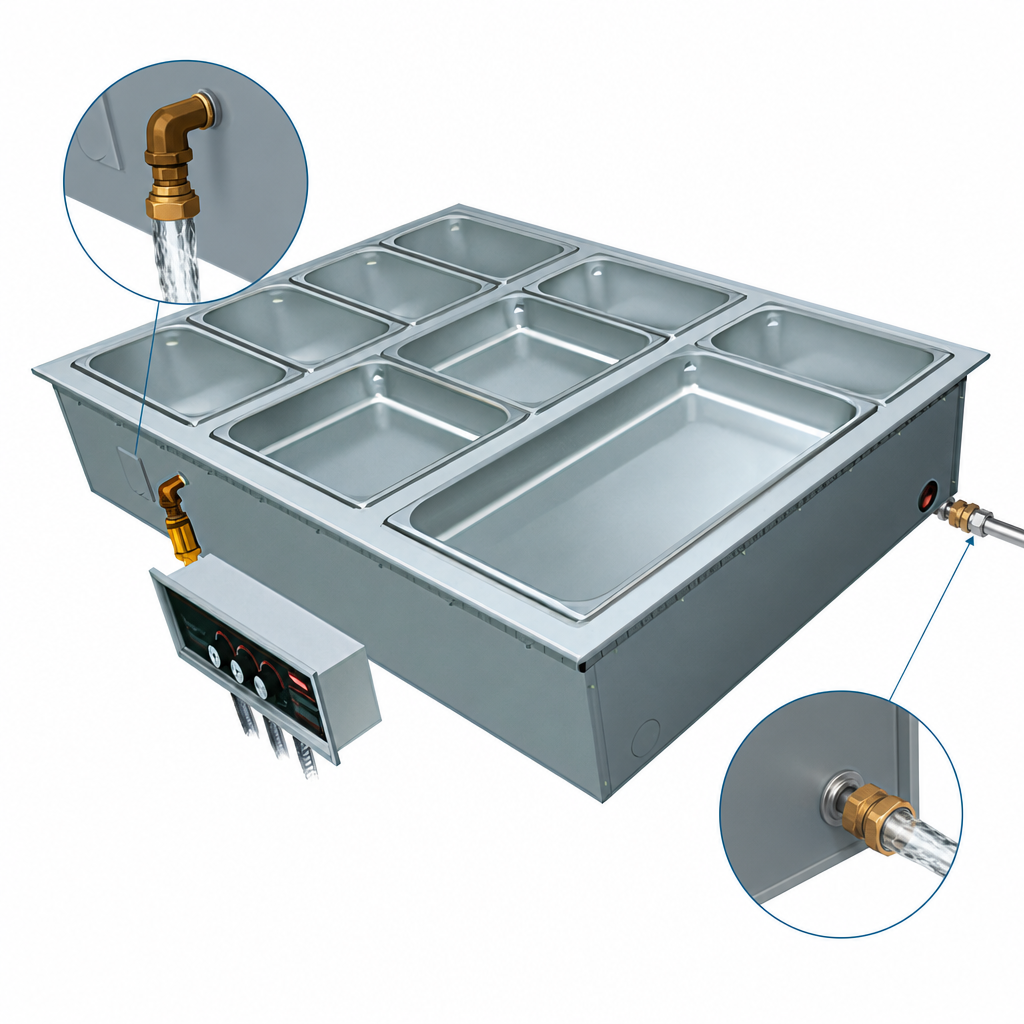

  • Auto-fill maintains a constant water level—no manual refills or temperature swings.
  • Oversized ¾" NPT drain with flat stainless screen speeds clean-up and keeps pans level.
  • Remote thermostat dial with separate lighted rocker switch for intuitive, precise control.
  • EZ-Lock hardware drops in, twists, and secures—no silicone or drilling required.
  • Insulated top-mount design reduces heat loss and keeps surrounding surfaces cooler.
  • Stainless steel well & aluminized housing stand up to daily commercial use.
  • Service-friendly—elements and thermostats can be swapped without removing the well.
Ideal For
  • Buffet lines & cafeterias
  • QSR & fast-casual make lines
  • Convenience-store hot food bars
  • Catering, banquet & concession setups
Specifications
Model HWBI43-1DA (Drain & Auto-Fill)
Pan Capacity (1) 4/3-size well – see pan sets above
Overall Dimensions 15.5" W × 30.38" D × 9.62" H (394 × 772 × 244 mm)
Counter Cut-Out 14.19–14.37" W × 29.19–29.44" D (361–365 × 742–748 mm)
Electrical 208 / 240 V, 1-ph, 1215 W (5.1–5.9 A) – other voltages on request
Water Connections Auto-fill inlet ⅜" O.D. tube • Drain ¾" NPT
Conduit Length 6 ft (1.8 m) flexible, factory supplied
Construction Stainless steel well, aluminized steel housing, solid-brazed drain fittings
Certifications cULus • UL EPH Classified • CE • ANSI/NSF 4 • Made in USA
Approx. Ship Weight 42 – 47 lb (19 – 21 kg)
Standard Inclusions
  • Auto-fill kit with back-flow preventer & hose
  • ¾" drain assembly with flat screen
  • EZ-Lock mounting brackets
  • Remote mechanical control box (thermostat dial & illuminated On/Off switch)
  • 6' flexible electrical conduit
Popular Options & Accessories
  • Full, half & third-size stainless food pans and wire trivets
  • External copper drain manifold with individual shut-off valves
  • Three-phase wiring (consult factory)
  • Factory-installed perimeter gasket – eliminates caulk or sealant

Need multiple wells? Hatco HWBI43 units are available in 1- through 6-pan configurations—contact us for a custom quote.

Features & Specs

Manufacturer

Hatco

Certifications

CE, cULus, UL EPH Classified, Made in USA

Height

9.62in

Width

15.5in

Depth

30.38in

Shipping Weight

42.0lbs

Insulated or Non-Insulated

insulated

Style

individual pans

Controls

thermostatic controls

Construction

stainless steel top, corrosion resistant steel exterior

Drain

with drain

Wet or Dry operation

wet or dry

Pan Capacity

(1) 4/3 size (12" x 27")

Specifications

Drop-In Modular/Ganged Heated Well, with drain & autofill, (1) 4/3 size pan capacity, insulated, top mounted, remote thermostat dial with separate on/off rocker switch, EZ locking hardware, stainless steel & aluminized construction, CE, cULus, UL EPH Classified, Made in USA
