Description

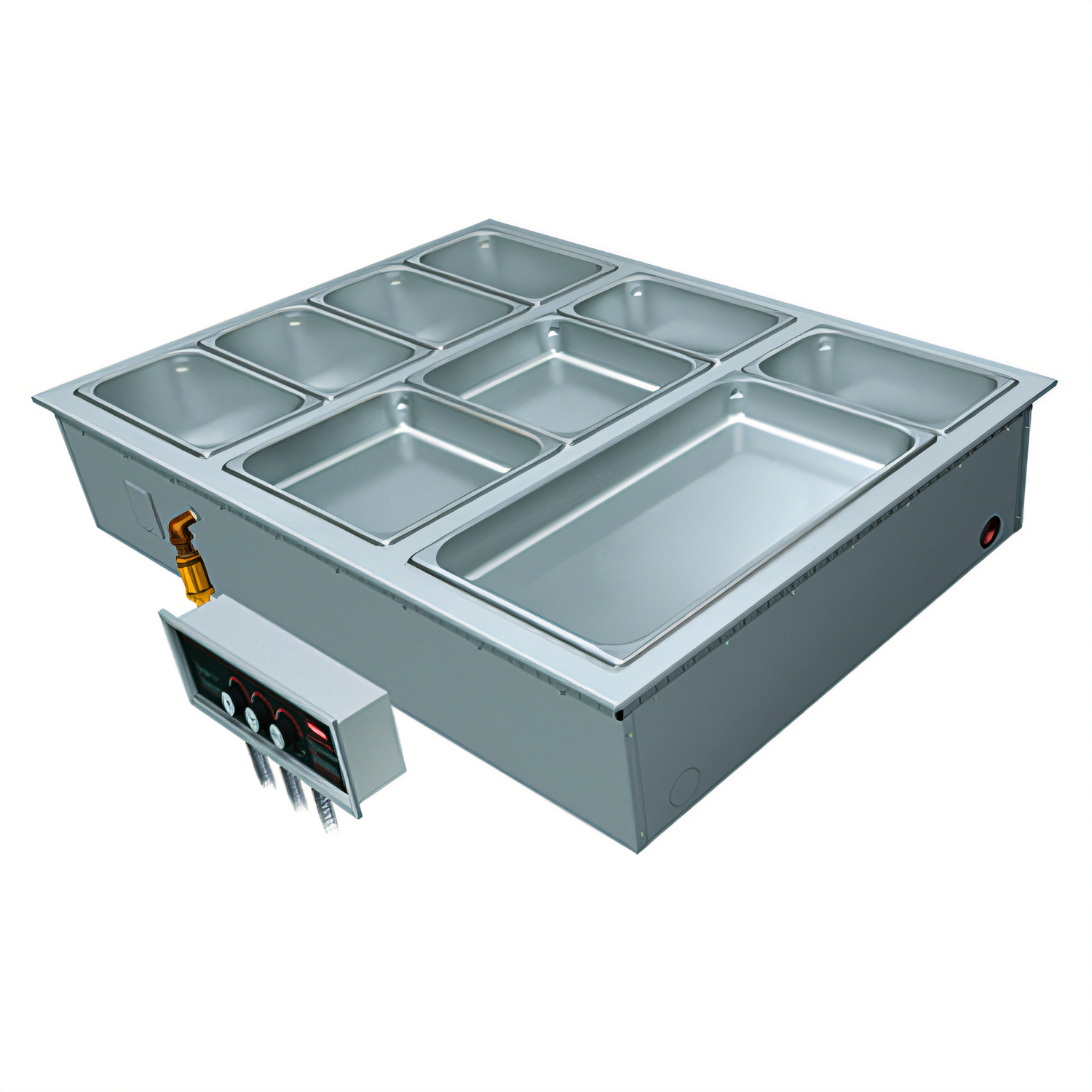

Hatco HWBI43-1 Drop-In 4/3-Size Heated Well

Single well • Top-mounted • Remote mechanical controls

Give every serving the “just-made” taste your guests expect. The Hatco HWBI43-1 is a fully-insulated, 4/3-size rectangular heated well that locks into your counter in minutes and holds food at NSF-safe temperatures for hours, all from a compact one-pan footprint.

Key advantages

  • Precise holding: remote thermostat dial delivers accurate set-point control.
  • Quick start/stop: separate lighted ON/OFF rocker switch for instant confirmation.
  • Versatile capacity: fits 4 × 1⁄3-size, 2 × 1⁄2-size + 1 × 1⁄3-size, or 1 × full-size + 1 × 1⁄3-size pan (pans sold separately).

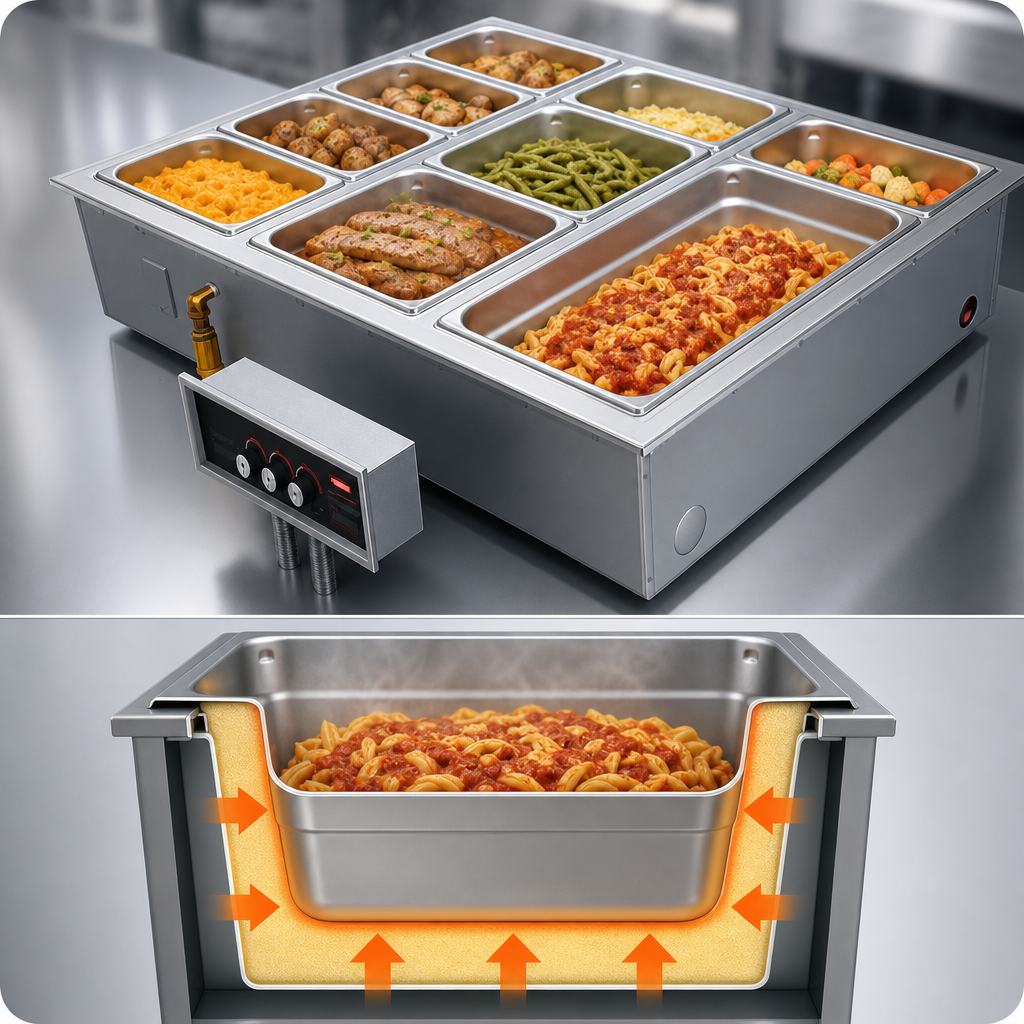

  • Deep, insulated well promotes longer holding times and even heat distribution.
  • EZ-Locking hardware & factory-installed conduit = fast, no-hassle installation.
  • Rugged stainless-steel well with aluminized steel exterior—built for daily commercial use.
  • Made in the USA and fully certified: CE, cULus, UL EPH Classified.

At-a-glance specs

Pan capacity 1 × 4/3-size well (see configurations above)
Exterior dimensions 15.5" W × 30.38" D × 9.62" H (394 × 772 × 244 mm)
Countertop cut-out 14.19–14.37" W × 29.18–29.44" D (361–365 mm × 742–748 mm)
Electrical 208–240 V, single-phase, 1215 W, 5.1–5.9 A  •  6′ (1829 mm) flexible conduit included
Controls Remote mechanical thermostat (0–200 °F) with lighted ON/OFF rocker switch
Drain Standard threaded drain port; 50 % larger opening & flat strainer for faster clean-up*
Ship weight Approx. 42 lb (19 kg)
Certifications CE • cULus • UL EPH Classified
Country of origin Made in USA

Popular factory options

  • Copper drain manifold (side or bottom exit)
  • Factory-installed gasket—no silicone required
  • 3 ft (914 mm) flexible conduit or cord set (single-phase only)
  • 11 qt round pan adaptor, trivets & support bars

Why operators choose Hatco

  • 70-plus years of food-holding innovation
  • 24/7/365 parts & service hotline
  • Global safety & sanitation approvals for peace of mind

*Drain and auto-fill kits are optional on HWBI43-1 models. Looking for multi-well configurations? Check out models HWBI43-2 through HWBI43-6 or speak with our team.

Features & Specs

Manufacturer

Hatco

Certifications

CE, cULus, UL EPH Classified, Made in USA

Height

9.62in

Width

15.5in

Depth

30.38in

Shipping Weight

42.0lbs

Drain

without drain

Insulated or Non-Insulated

insulated

Style

individual pans

Controls

thermostatic controls

Construction

stainless steel top, corrosion resistant steel exterior

Pan Capacity

(1) 4/3 size (12" x 27")

Wet or Dry operation

wet or dry

Specifications

Drop-In Modular/Ganged Heated Well, (1) 4/3 size pan capacity, insulated, top mounted, remote thermostat dial with separate on/off rocker switch, EZ locking hardware, stainless steel & aluminized construction, CE, cULus, UL EPH Classified, Made in USA
