Hatco HWBI-S4MA Steam Tables & Food Wells
Description

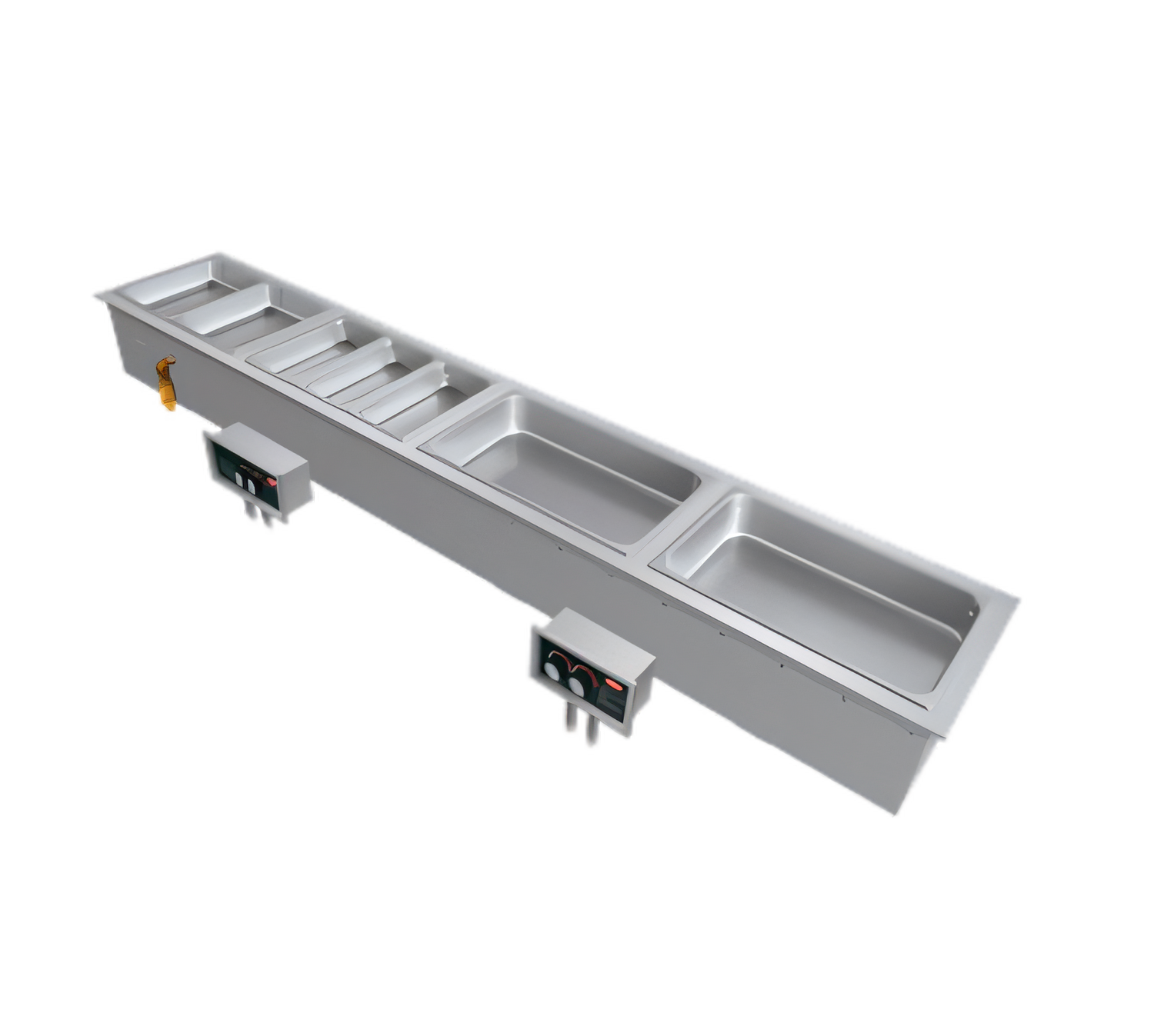

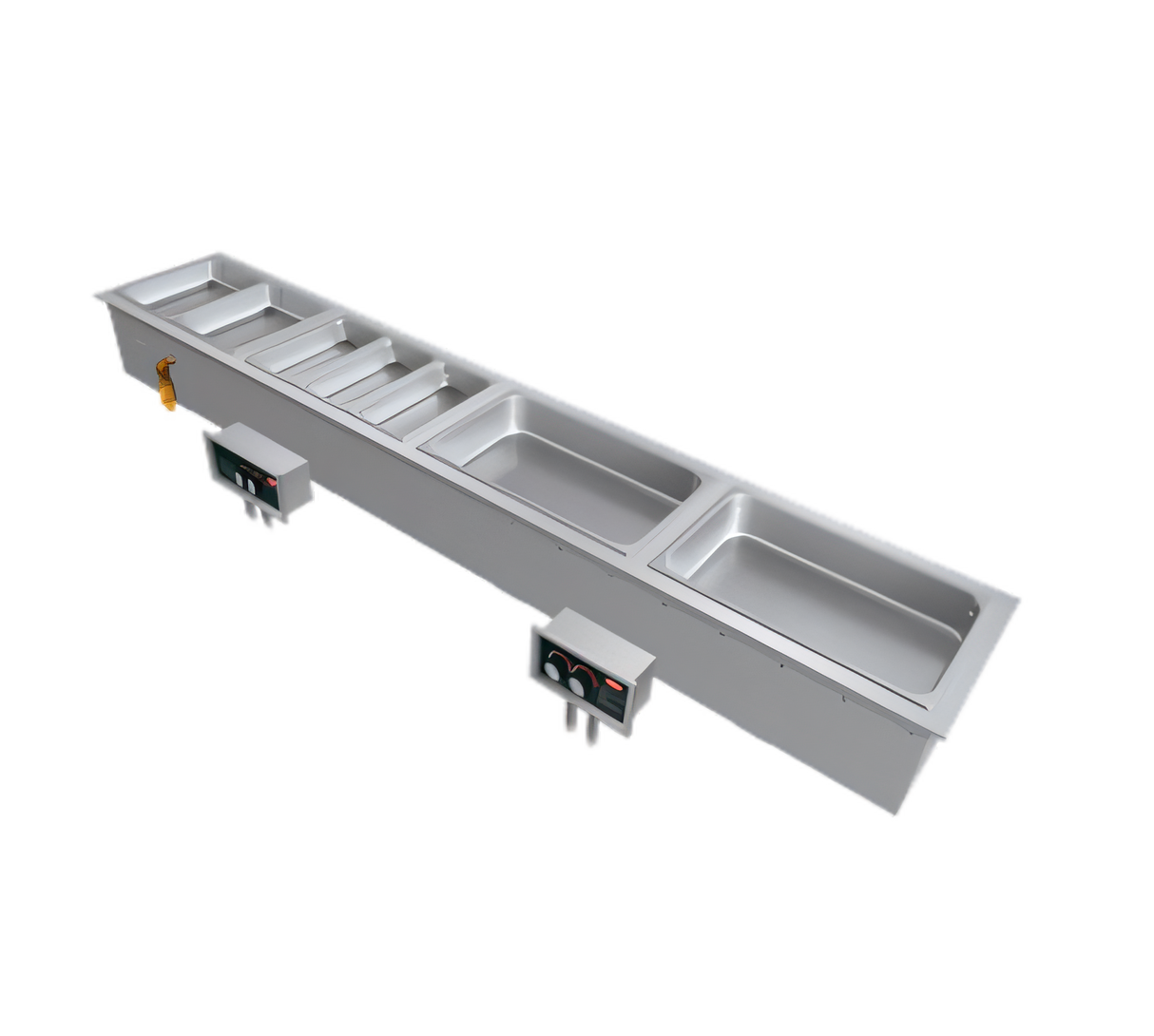

Hatco HWBI-S4 Slim Drop-In Modular Heated Well – Auto-Fill & Manifold Drain
4 Full-Size Pan Capacity | CE, cULus & UL EPH | Made in USABuild a sleeker, more efficient hot line with Hatco’s top-mounted HWBI-S4. This insulated, four-well module keeps entrées and sides at safe-serving temperatures while occupying a slim footprint that’s easy to reach—even beneath today’s narrow sneeze guards.
Why You’ll Love It
- Automatic water Auto-Fill maintains the proper level so staff never have to monitor or top-off manually.
- 1 inch NPT manifold drain empties all wells at once and includes a flat strainer screen for quick clean-up.
- Fully insulated sides & bottom retain heat yet keep surrounding surfaces cooler and safer.
- Remote thermostat with separate lighted power switch provides precise control without cluttering the counter.
- Wet OR dry operation—switch from moist steam holding to dry radiant holding anytime.
- 50 % larger drain opening and fast element recovery cut down turnover time between services.
- Durable stainless-steel well with aluminized exterior and solid-brazed fittings stands up to daily commercial use.
- Comes pre-wired with a 6 ft (1829 mm) flexible conduit for easy, flexible control-box placement.
- Each well is individually controlled so you can hold multiple menu items at their ideal temperature.
Technical Specs
| Pan Capacity | 4 × Full-Size (12 in × 20 in) steam-table pans |
|---|---|
| Overall Dimensions | 89.5 in W × 15.625 in D × 9.56 in H (2273 × 397 × 243 mm) |
| Counter Cut-Out | 88.125–88.375 in W × 14.25–14.5 in D |
| Total Wattage | Up to 4,815 W (standard watt package) |
| Electrical | 208–240 V, single or three-phase (field convertible; each circuit requires its own breaker) |
| Drain Connection | 1 in NPT manifold, installer-selectable side or bottom outlet |
| Shipping Weight | ≈ 154 lb / 70 kg |
| Certifications | CE, cULus, UL EPH Classified |
| Construction | Stainless-steel well, aluminized steel housing |
| Country of Origin | USA |
Ideal For
- Hotel & resort buffets
- Supermarket hot bars
- Cafeteria or corporate dining lines
- Catering and banquet drop-ins
Auto-Fill is factory plumbed to the left-hand well. To feed all wells automatically, installer must connect the drains externally into a common manifold line.
Your Purchase Includes
- HWBI-S4 heated well with auto-fill & manifold drain (factory assembled)
- Remote mechanical control box with lighted On/Off rocker switch
- Factory-installed EZ-Lock mounting hardware
- Hatco’s 24/7 parts & service assistance (U.S. & Canada)
