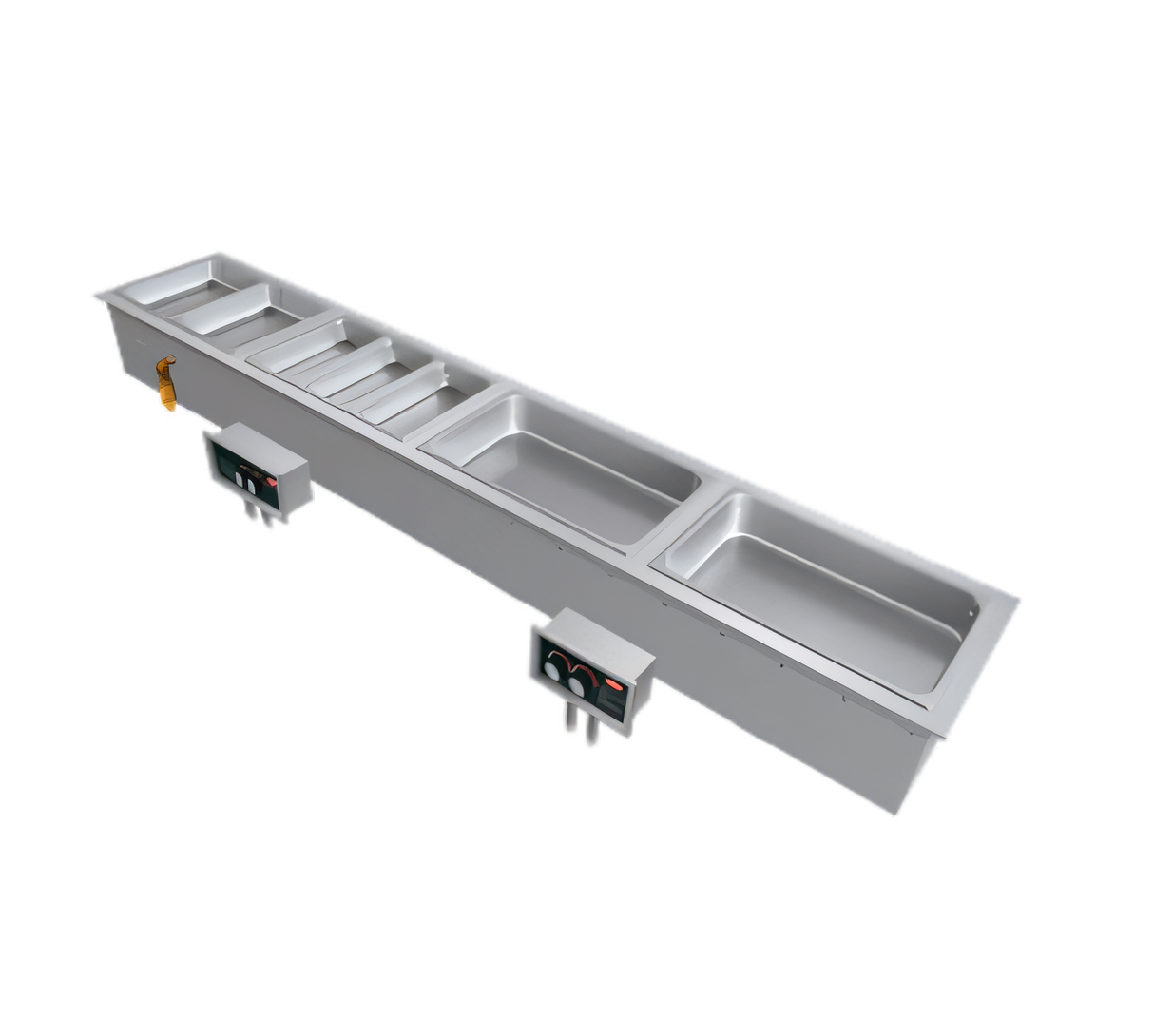

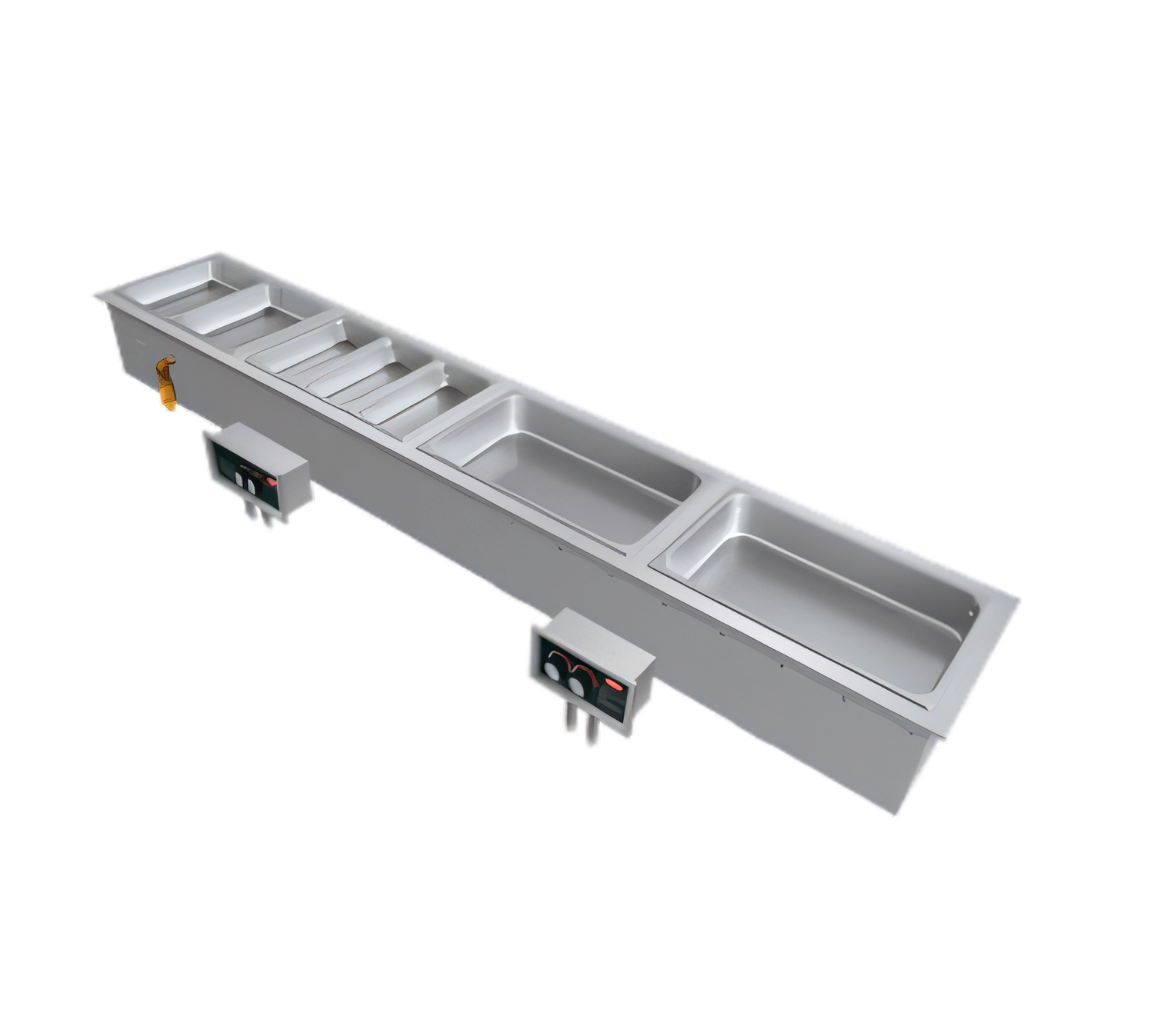

Hatco Drop-In Modular Slim Heated Well with Manifold Drains, 4 Full-Size Pan Capacity, Insulated

Wet or dry operation with remote thermostat and separate power switch

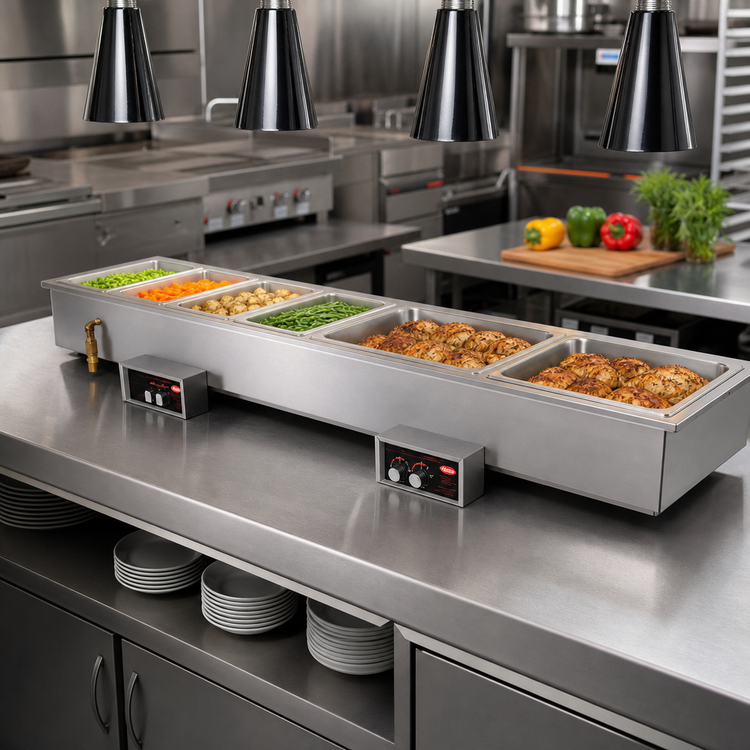

Keep four full-size pans hot and ready in a slim, insulated drop-in well built for a clean integrated buffet presentation.

  • Holds four full-size 12 x 20 pans in a slim, lengthwise drop-in layout.
  • Fully insulated sides and bottom help retain heat and keep surrounding surfaces cooler.
  • Designed for both wet and dry operation with manifold drains for quick emptying.
  • Remote thermostat control with a separate lighted power switch simplifies operation.
  • Stainless steel well construction with aluminized steel housing supports durability.
  • EZ locking hardware and a 6-foot conduit help simplify installation and control placement.

Overall Dimensions:

89.5"W x 15.63"D x 9.48"H

Product Weight:

154.0 lb

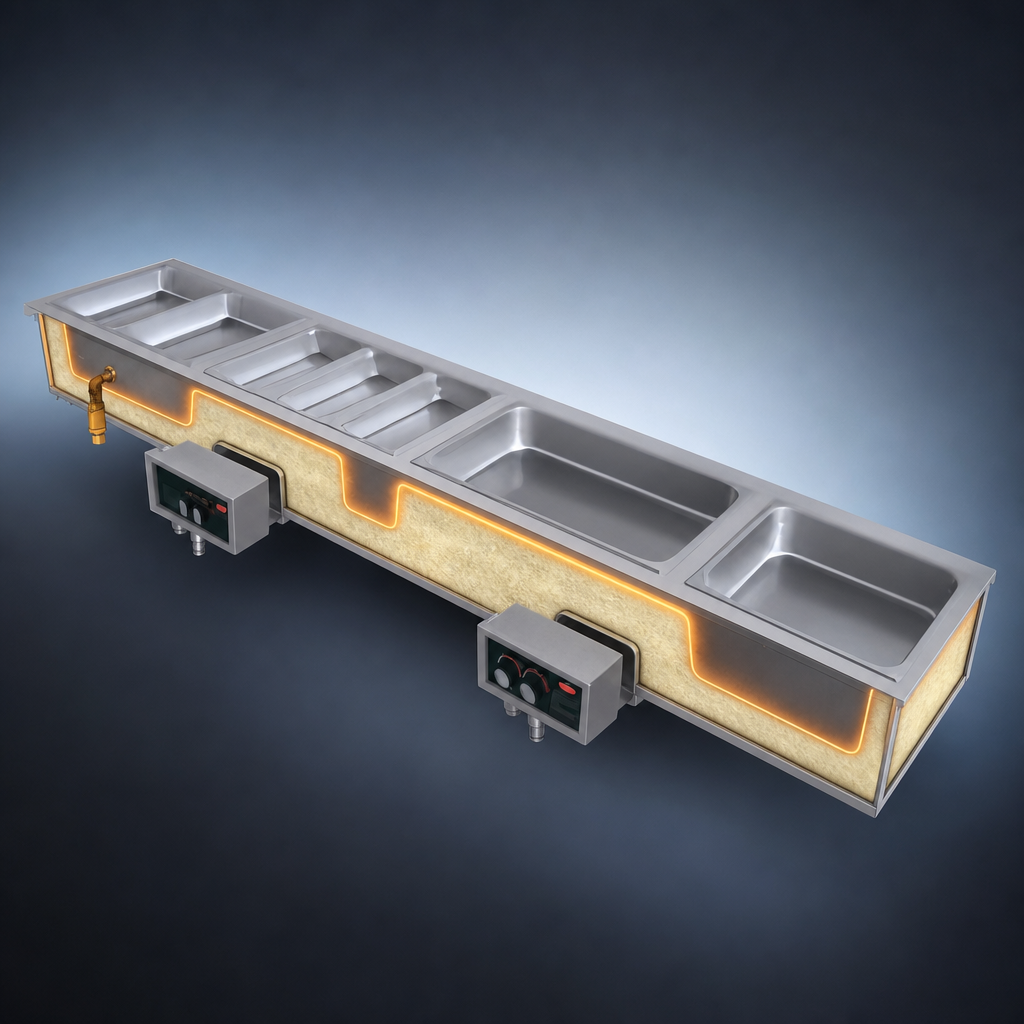

Fully Insulated Construction

Insulated sides and bottom improve heat retention and help keep surrounding surfaces cooler for safer service.

Wet or Dry Operation

Designed to perform in either wet or dry mode to match different holding applications.

Manifold Drains

Manifold drain design helps empty the wells quickly and easily.

Remote Thermostat Control

A remote thermostat with a separate lighted On/Off power switch makes temperature control straightforward.

Stainless Steel and Aluminized Construction

Stainless steel well construction with aluminized steel housing provides durability for heavy-use buffet service.

Easy Service Access

Heating elements and thermostats are accessible for easier maintenance and service.

Slim Modular Drop-In Design

Full-size wells are arranged lengthwise in a modular format for a clean integrated buffet-line appearance.

Installation Hardware and Conduit

Includes EZ locking hardware and a 6-foot conduit for convenient control placement.

Type Heated Well
Style Individual Pans
Installation Type Drop-In
Pan Capacity 4 Full-Size Pans
Pan Size 12 x 20 Inches
Controls Remote Thermostat
Material Stainless Steel
Interior Finish Stainless Steel
Drain Connection Required
Drain Connection Size 1 Inch NPT
Water Connection Not Required
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 90 Inches
Shipping Depth 16 Inches
Shipping Height 10 Inches
Shipping Weight 154 lb.

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Documents

PDF Cutsheet PDF Download PDF Parts list PDF Download PDF Color chart PDF Download PDF Catalog brochure PDF Download PDF Assembly instructions PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

It holds four full-size pans placed lengthwise in the slim modular layout.
Yes. The wells are designed for both wet and dry operation.
It uses manifold drains to empty the wells quickly and easily.
It uses a remote thermostat with a separate lighted On/Off power switch.
The well uses stainless steel construction with aluminized steel housing and insulated sides and bottom.
Yes. The unit includes EZ locking hardware and a 6-foot conduit for convenient control placement.
