Hatco HWBI-S4DA Steam Tables & Food Wells
Description

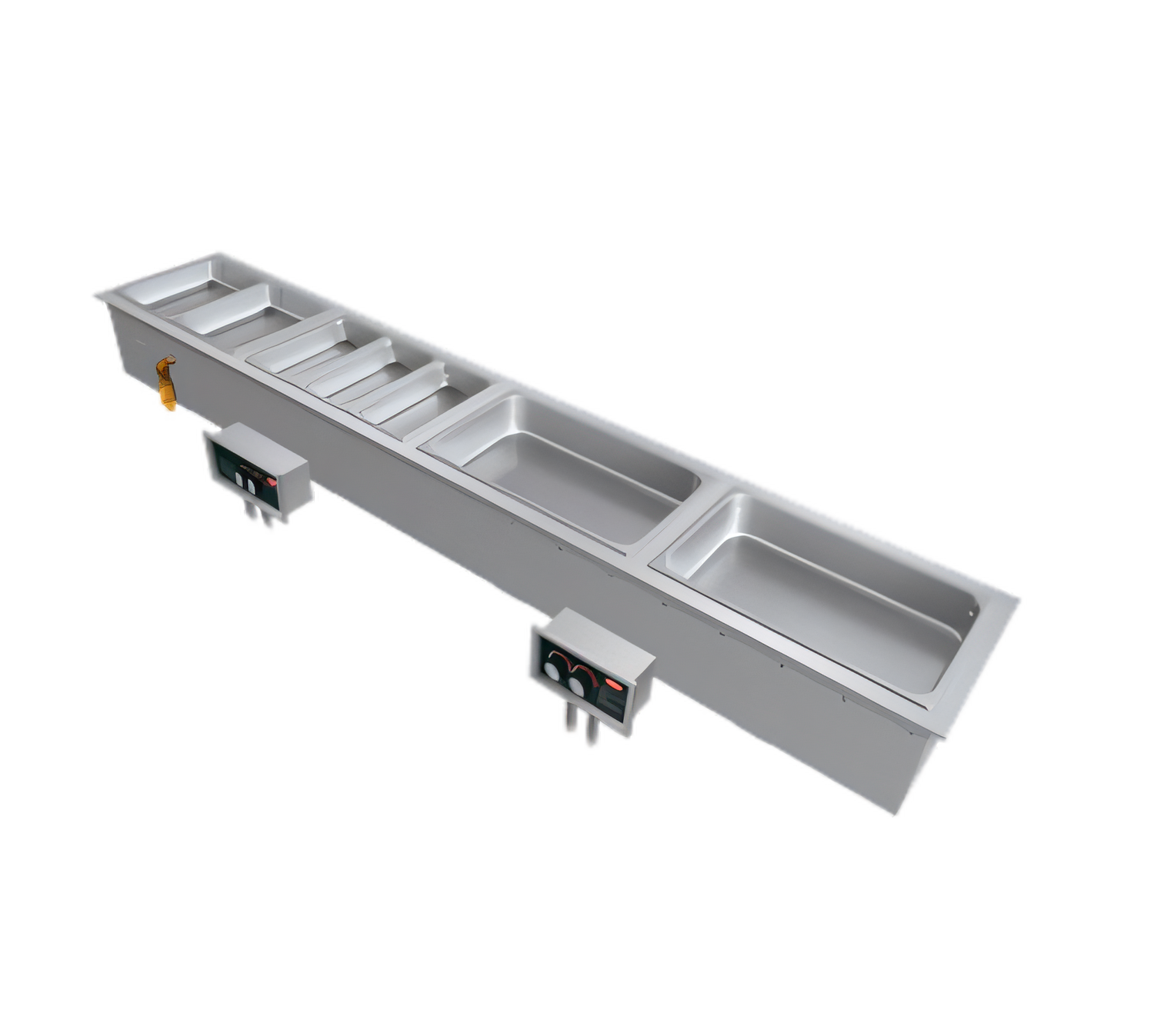

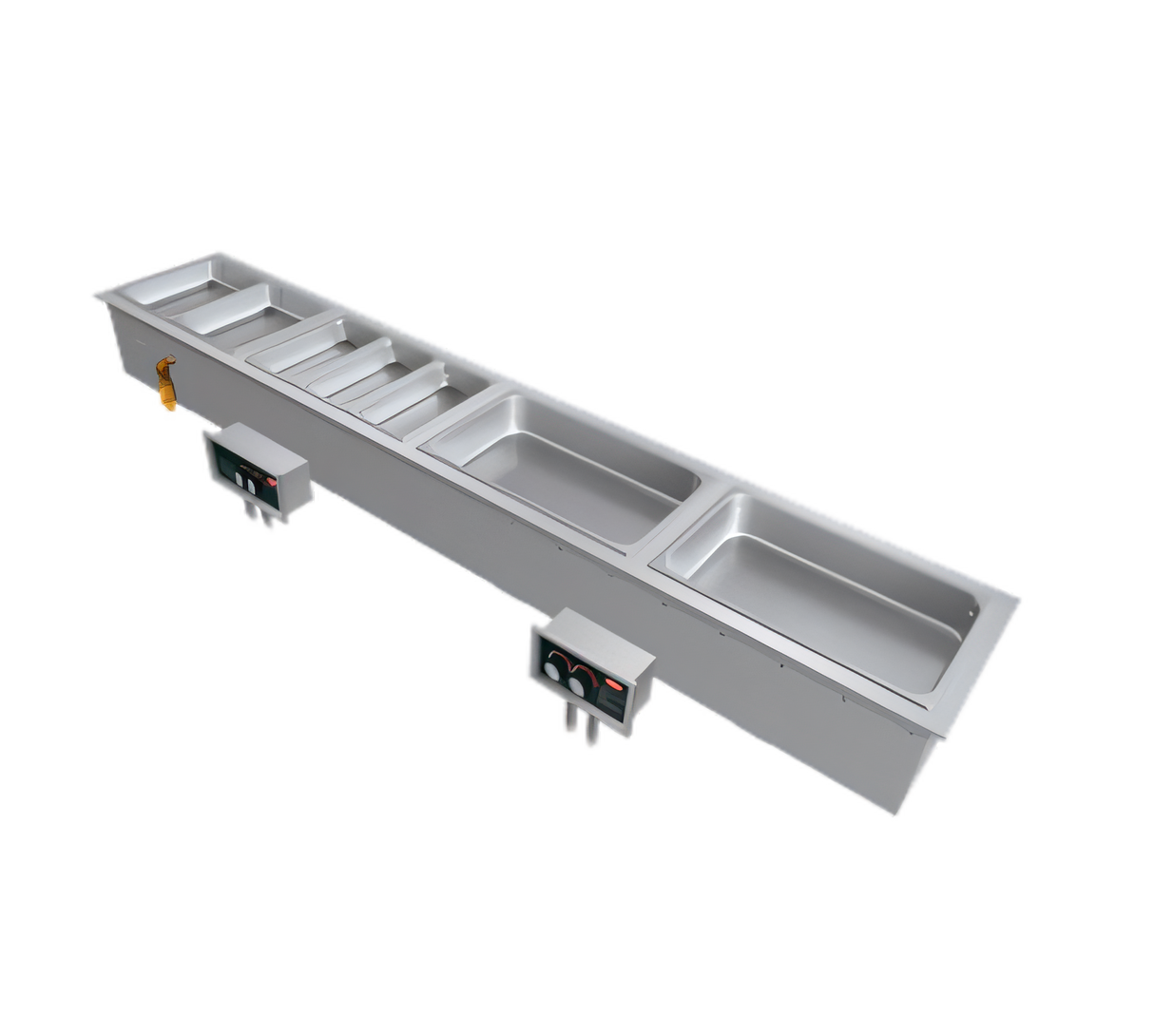

Hatco HWBI-S4DA Drop-In Modular Slim Heated Well
4-Pan • Auto-Fill & Drains • Wet or Dry OperationBuild the ultimate buffet or cafeteria line with Hatco’s flagship four-well slim heater. The HWBI-S4DA delivers precise holding temperatures, automatic water management, and easy-clean drainage in a single, low-profile module that installs flush into your counter.
Why you’ll love it
- 4 full-size pans in easy reach – wells are placed lengthwise so food is directly below the sneeze guard.

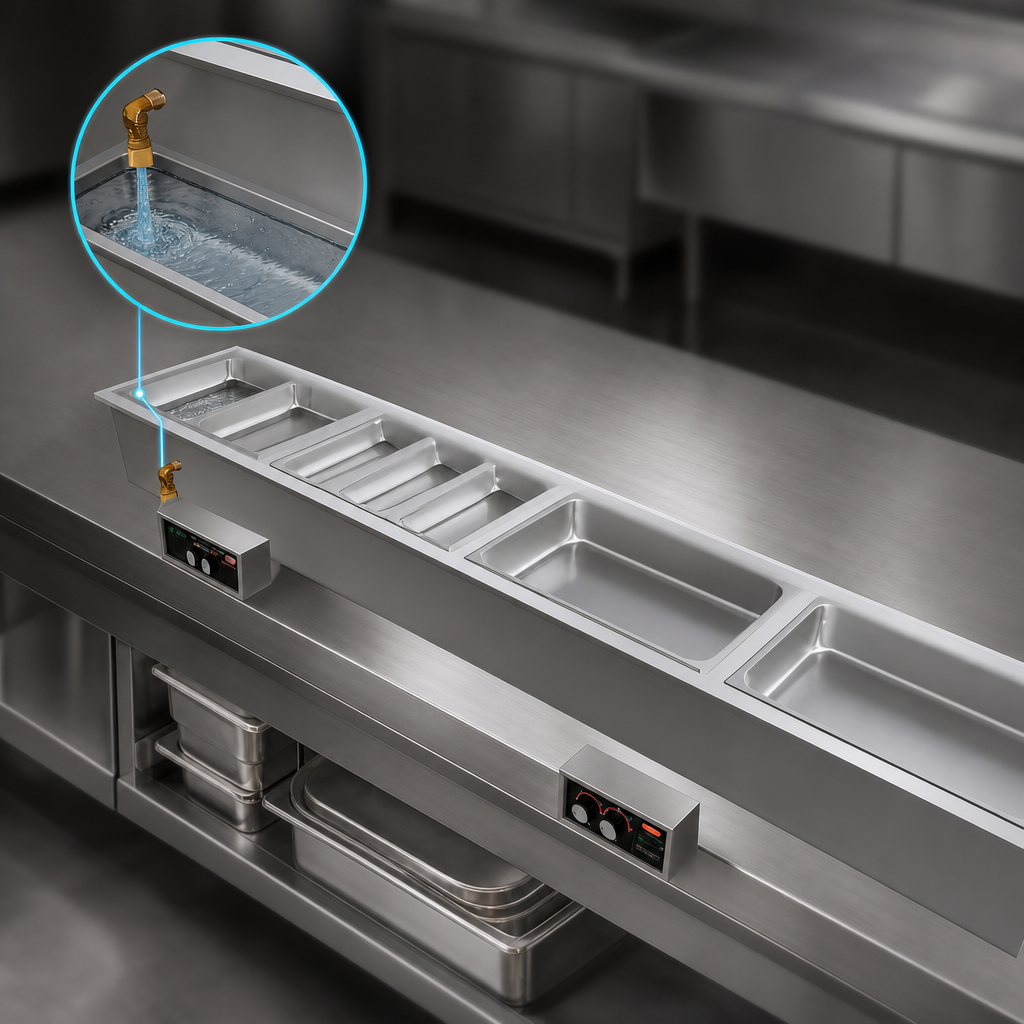

- Auto-fill convenience – integrated system replenishes water automatically, reducing labor and preventing burn-outs.
- Independent temperature control – remote control box gives each well its own thermostat plus a lighted ON/OFF rocker switch.
- Wet or dry flexibility – serve moist entrées or switch to dry convection holding without plumbing restrictions.
- Rapid pre-heat & recovery – high-efficiency elements and full insulation speed up start-up and cut energy use.
- 50 % larger ¾" drain with flat screen speeds cleanup and keeps pans level; manifold-ready for one-point drainage.
- Built for foodservice abuse – stainless-steel wells, aluminized exterior, solid brazed joints, and EZ-Lock mounting hardware.
- Made in the USA and fully certified (cULus, UL EPH, CE).
Product specifications
| Model | HWBI-S4DA (standard-watt) |
|---|---|
| Pan capacity | (4) full-size 12" × 20" pans • compatible with ½- & ⅓-size using support bars |
| Overall dimensions | 89.5" W × 15.625" D × 9.56" H (2273 × 397 × 243 mm) |
| Counter cut-out | 88.125–88.375" W × 14.25–14.50" D (requires 2" clearance below) |
| Construction | Stainless-steel wells, aluminized outer housing, foamed-in insulation |
| Operation | Wet or dry; auto-fill water connection; ¾" individual drains (1" manifold optional) |
| Controls | Remote mechanical thermostats (one per well) with separate illuminated power switch |
| Electrical | 208 V or 240 V, 1 Ø, up to 4.8 kW • NEMA 6-30P plug (other configurations on request) |
| Agency approvals | cULus, UL EPH Classified, CE |
| Shipping weight | ≈ 160 lb / 73 kg |
Perfect for
- Hotel breakfast buffets & banquets
- Cafeterias & college dining halls
- Supermarket hot bars
- Catered event stations
Popular accessories (sold separately)
- Simulated-stone heated well covers – convert a well into a drop-in heated shelf overnight.
- Stainless food pans: full, half, third sizes; 4 qt & 7 qt round adapters.
- ¾" or 1" ball / gate valves and copper manifold kits for quick drainage.
- Factory-installed gasket eliminates silicone caulking at install.
Auto-fill feeds the left-hand well as shipped; connect wells to a manifold drain to auto-fill all four compartments. For complete installation and safety details, consult the Hatco HWBI-S Series manual.
