Hatco HWBI-S4D Steam Tables & Food Wells
Description

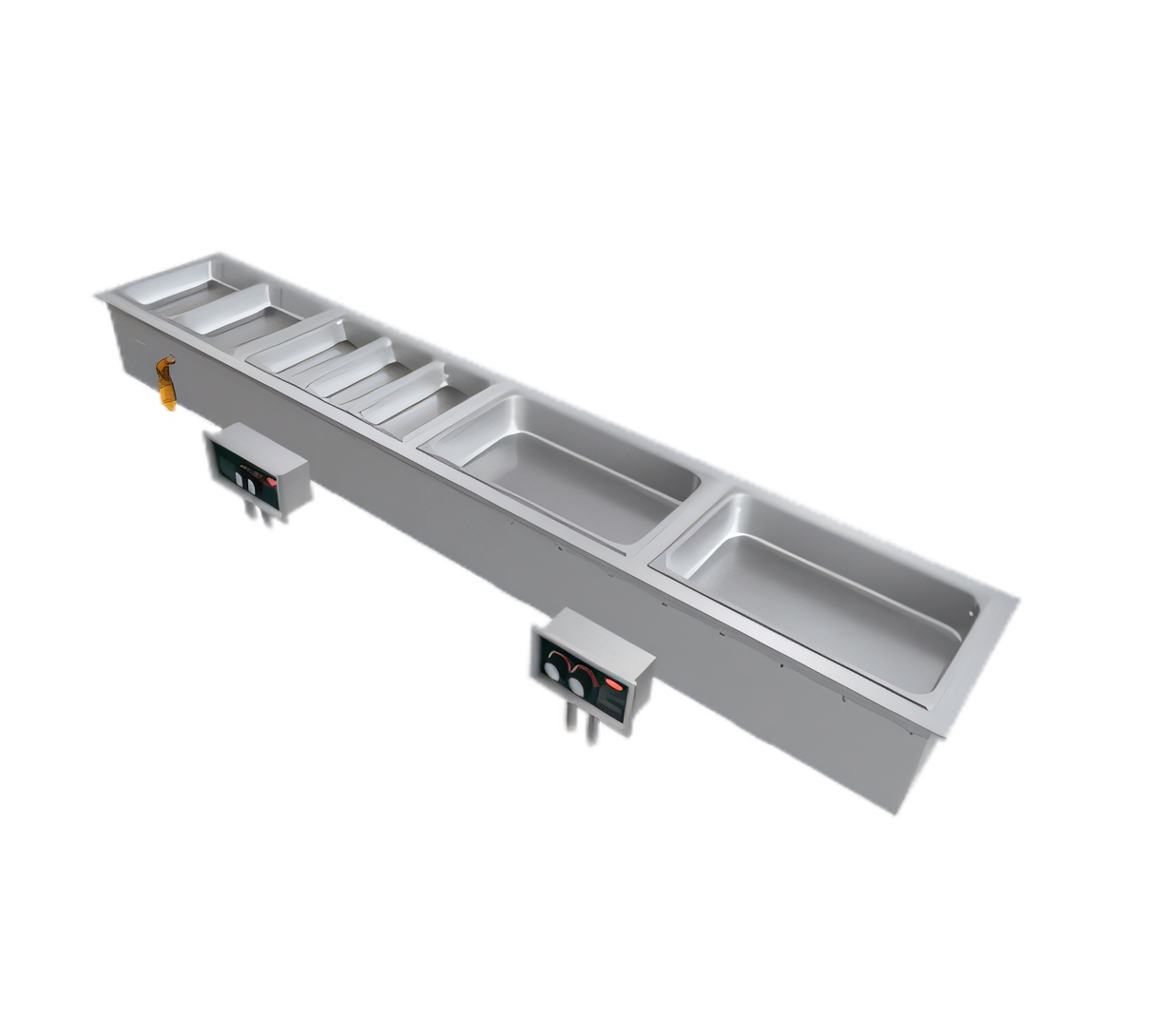

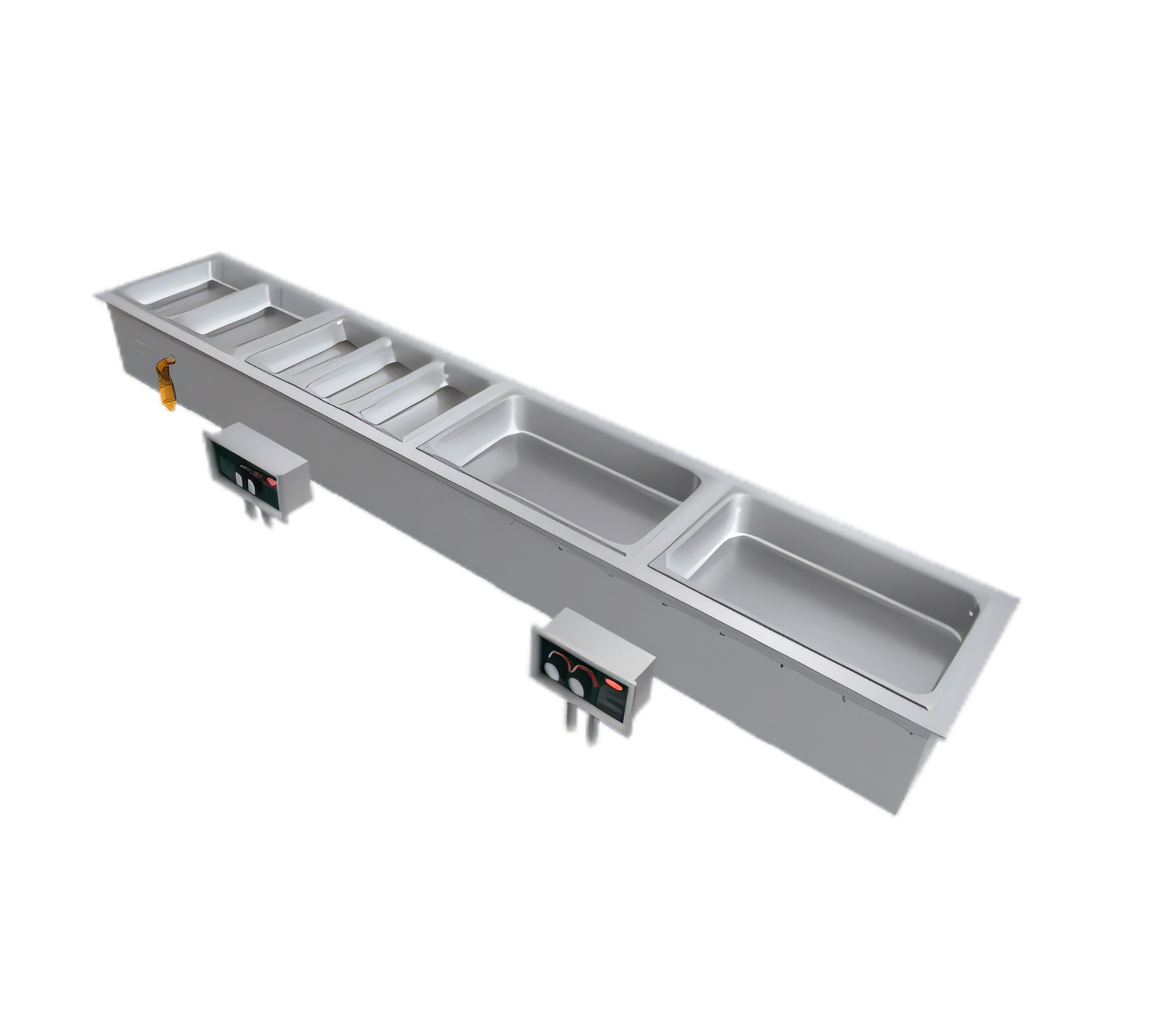

Hatco HWBI-S4D Drop-In Modular Slim Heated Well
4-Pan • Insulated • With Drains & Remote ThermostatTurn any counter run into a full-service steam table without giving up valuable width. Hatco’s slim, 4-well HWBI-S4D drops in from the top, lines four 12" × 20" pans end-to-end, and keeps every entrée or side safely hot—wet or dry—thanks to individual thermostatic control.
At-a-Glance Advantages
- Space-saving 15.6" depth fits tight buffet lines yet serves four full-size pans.
- Fully insulated sides & bottom retain heat and keep surrounding surfaces cooler.
- Remote control box with lighted On/Off rocker and temperature dial for each well.
- 50 % larger ¾" NPT drains with flat strainers for fast, level emptying.
- Rapid pre-heat and recovery reduce energy consumption between rushes.
- Stainless-steel wells with aluminized steel exterior and brazed drain joints for long service life.
- Operates WET or DRY—perfect for soups, sauces, proteins or bakery items.
- 6 ft (1829 mm) flexible conduit included for easy control-box placement.
- CE, cULus & UL EPH Classified for open-food applications.
- Made in the USA and supported 24/7 by Hatco’s service network.
Ideal For
- Buffets & salad bars with sneeze-guard overhangs
- C-stores, delis & grab-and-go hubs
- Catering drop stations & action stations
- Retrofits replacing bulky steam tables
Key Specifications
| Pan capacity | 4 × full-size (12" × 20") steam-table pans |
|---|---|
| Overall dimensions | 89.5" W × 15.625" D × 9.56" H (2273 mm × 397 mm × 243 mm) |
| Counter cut-out | 88.125–88.375" W × 14.25–14.50" D |
| Drain | ¾" NPT per well, flat screen included |
| Electrical | 208 V, 4815 W, 23.2 A — or — 240 V, 4815 W, 20.1 A (single-phase; field-convertible 3-phase) |
| Control | Remote mechanical thermostat, lighted power switch |
| Operation mode | Wet or dry |
| Construction | Stainless-steel wells, aluminized steel housing, EZ-Lock mounting flanges |
| Certifications | CE, cULus, UL EPH Classified |
| Approx. ship weight | 154 lb (70 kg) |
Popular Accessories (sold separately)
- Swanstone® simulated-stone pan covers (Night Sky, Gray Granite, Bermuda Sand) turn the well into a heated shelf.
- Stainless-steel food pans in 2.5", 4" or 6" depths.
- Round pan adapters, trivets & hinged lids.
- Copper drain manifolds and gate valves for custom plumbing.
Need help choosing voltage, controls or accessories? Click “Ask a Question” and our equipment specialists will respond within one business day.
