Hatco  |  SKU: HWBI-S4

Hatco HWBI-S4 Steam Tables & Food Wells

$3,422.73
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog brochure Color chart Parts list Owner's manual Assembly instructions
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

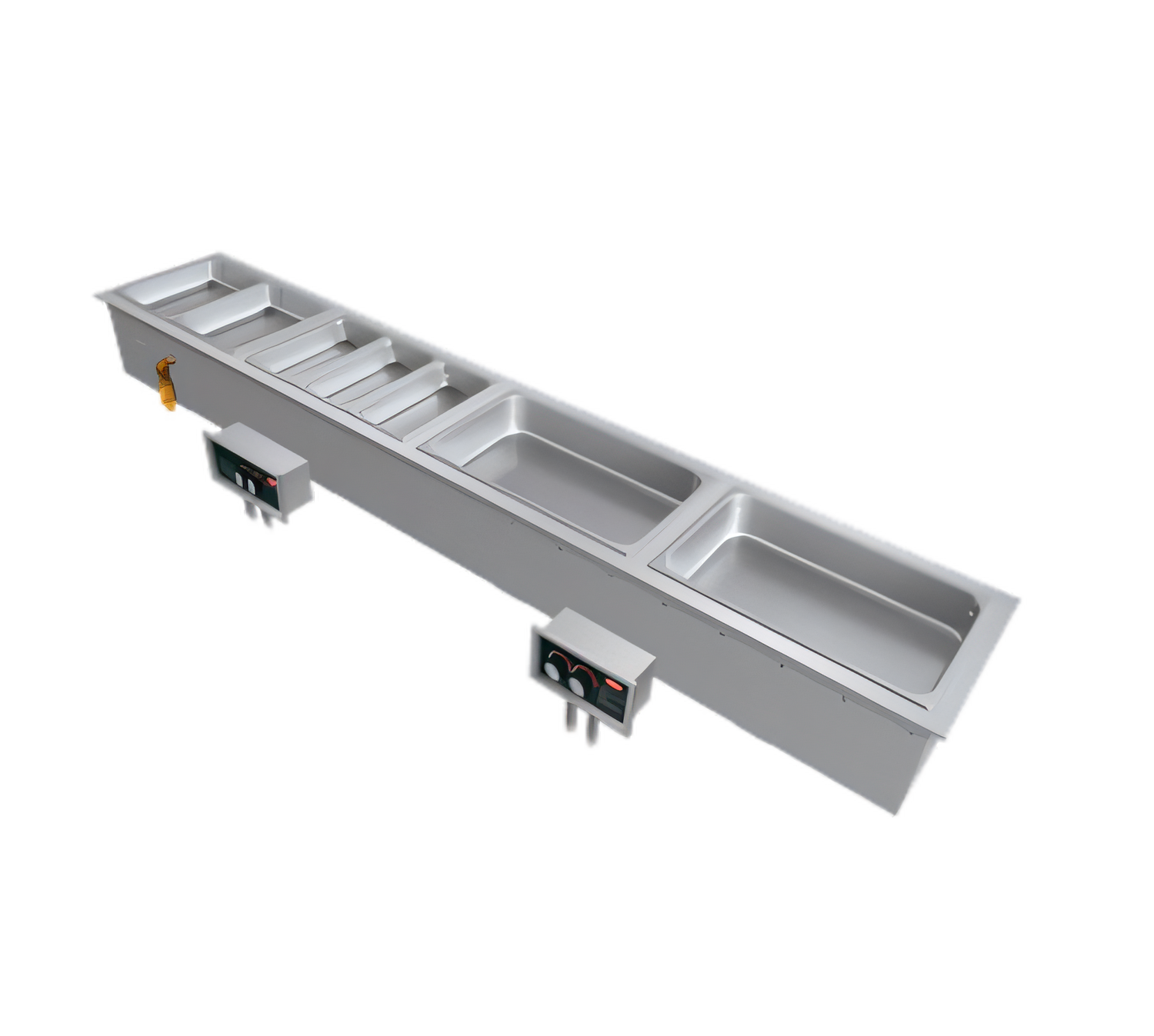

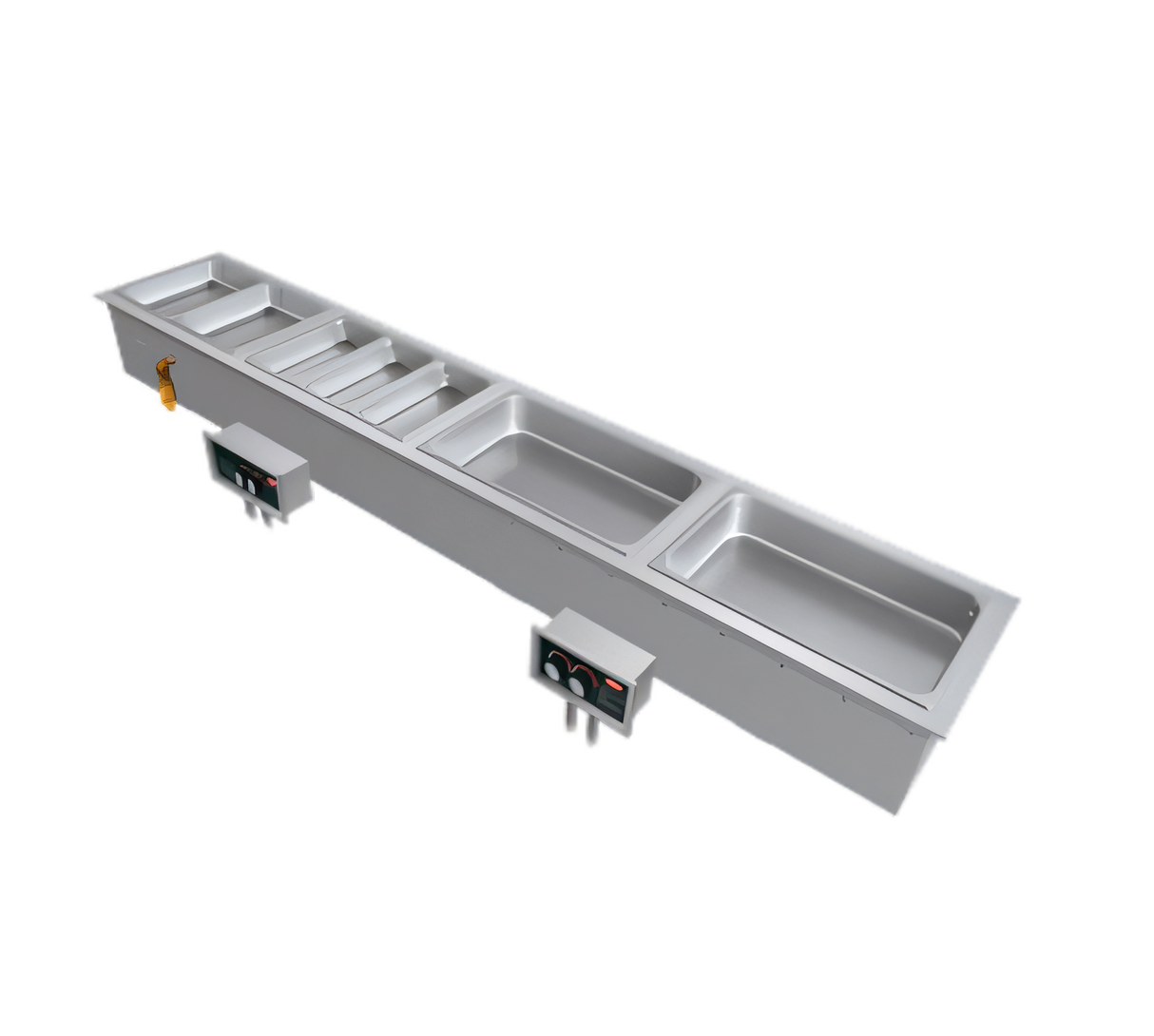

Hatco HWBI-S4 Drop-In Modular Slim Heated Well

4 Full-Size Pans • Wet or Dry Operation • Remote Thermostat

Create a streamlined, easy-reach serving line with Hatco’s slim, ganged well that holds four full-size hotel pans in one sleek drop-in module. Fully insulated cavities, independent controls and rugged stainless/aluminized construction ensure your menu stays hot, safe and ready for service—all shift long.

Why You’ll Love It
  • Lengthwise 4-pan design forms a complete steam-table in a single cut-out.
  • Designed for wet or dry holding—ideal for proteins, sides or crispy items.
  • Top-mounted remote box features an individual thermostat & lighted On/Off switch for each well.

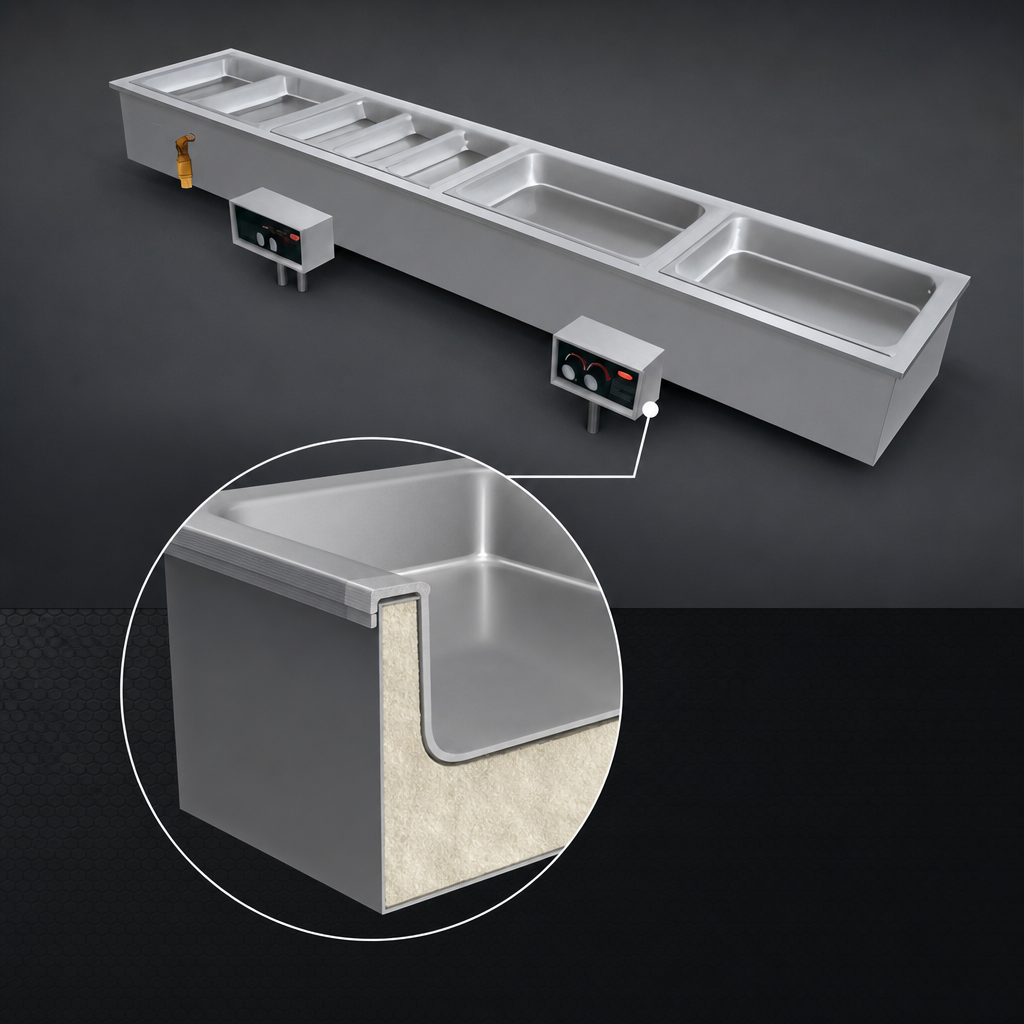

  • Fully insulated sides & bottom maximize heat retention while keeping counter surfaces cooler.
  • Stainless steel well bowls with aluminized steel housing stand up to daily commercial abuse.
  • Rapid pre-heat and recovery maintain precise HACCP-compliant temperatures.
  • Optional ¾" drain with flat strainer makes end-of-day cleanup fast and sanitary.
  • EZ-Lock hardware and a 6 ft (1.8 m) conduit simplify drop-in installation.
  • Standard-watt elements deliver up to 4.8 kW* of dependable holding power.
Built for Busy Venues
  • Buffets, cafeterias & supermarkets
  • Convenience stores & delis
  • Hotel breakfast bars & banquet lines
  • Catering and commissary production
Specifications
Model HWBI-S4 (Standard Watt)
Pan Capacity 4 full-size 12" × 20" pans (or fractional equivalents)
Overall Dimensions 89.5" W × 15.625" D × 9.56" H
(2273 × 397 × 243 mm)
Voltage Options 208–240 V, single or three phase
Power* Up to 4,815 W  (20.1 A @ 240 V single-phase)
Shipping Weight Approx. 154 lb  (70 kg)
Certifications CE, cULus, UL EPH Classified
Country of Origin Made in USA

*Actual wattage & amperage vary with selected voltage/phase configuration.

Optional Accessories
  • Swanstone® simulated-stone heated well covers (Night Sky, Gray Granite, Bermuda Sand)
  • Stainless steel pans – full, half, third sizes in 2.5", 4" & 6" depths
  • Adapters for two 4-qt or two 7-qt round soup inserts
  • 12" support bars for flexible fractional-pan layouts
  • Ball or gate valves for individual or manifold drains
Installation Note: Countertop cut-out and electrical requirements differ by voltage and control configuration. Consult the specification sheet and local codes before ordering.

Features & Specs

Manufacturer

Hatco

Certifications

cULus, UL EPH Classified, Made in USA

Height

9.48in

Width

89.5in

Depth

15.63in

Shipping Weight

154.0lbs

Drain

without drain

Insulated or Non-Insulated

insulated

Style

individual pans

Controls

thermostatic controls

Construction

stainless steel top, corrosion resistant steel exterior

Pan Capacity

(4) full size (12" x 20")

Wet or Dry operation

wet or dry

Specifications

Drop-In Modular Slim Heated Well, (4) full size pan capacity, insulated, top mounted remote thermostat with separate power switch, stainless steel & Aluminized construction (standard watt), CE, cULus, UL EPH Classified, Made in USA
