Hatco | SKU:
HWBI-S3MA
Hatco HWBI-S3MA Steam Tables & Food Wells
$3,462.48
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Hatco HWBI-S3MA Steam Tables & Food Wells is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Hatco HWBI-S3MA Steam Tables & Food Wells
$3,462.48
Unit price
/
Unavailable
Description

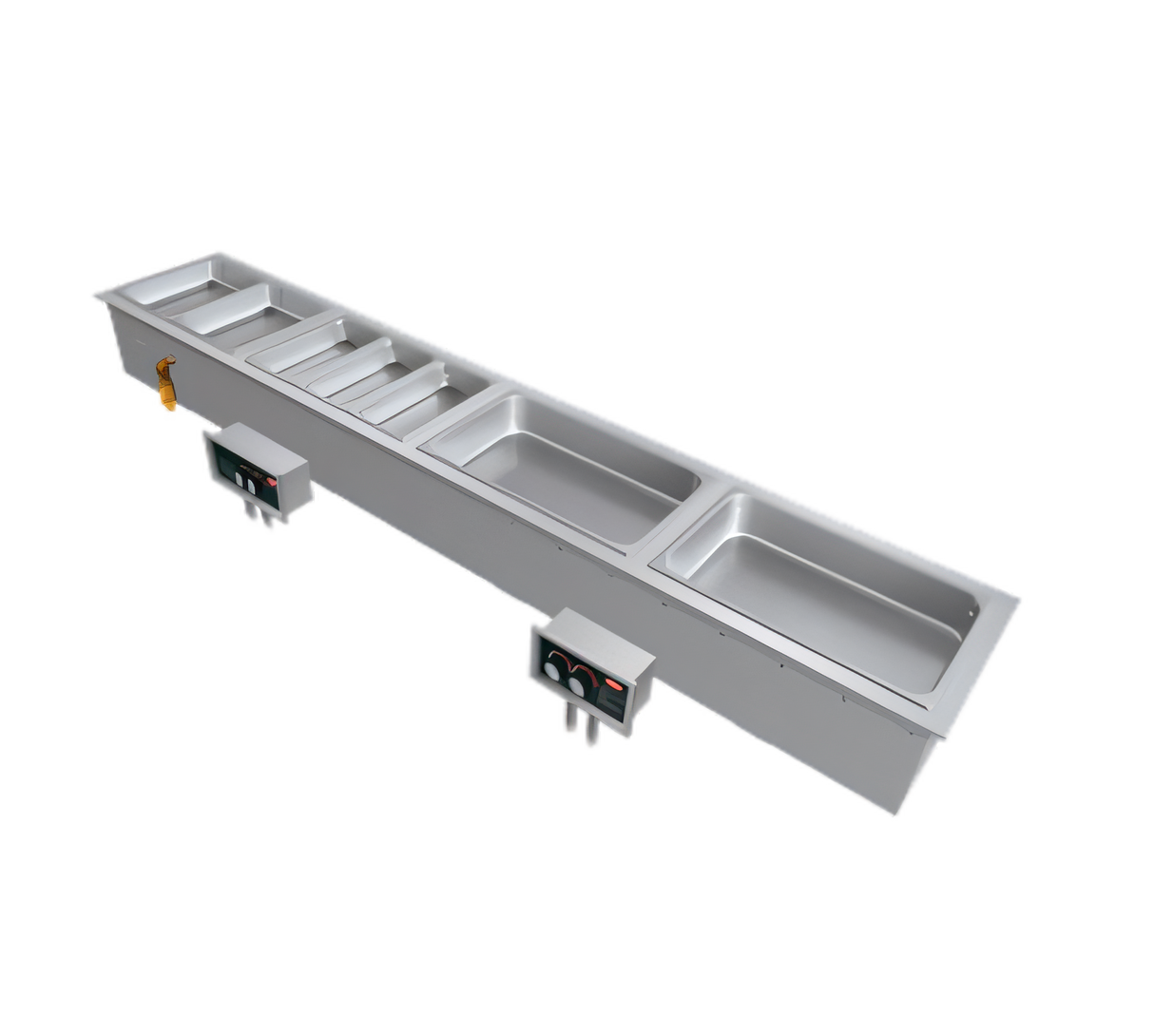

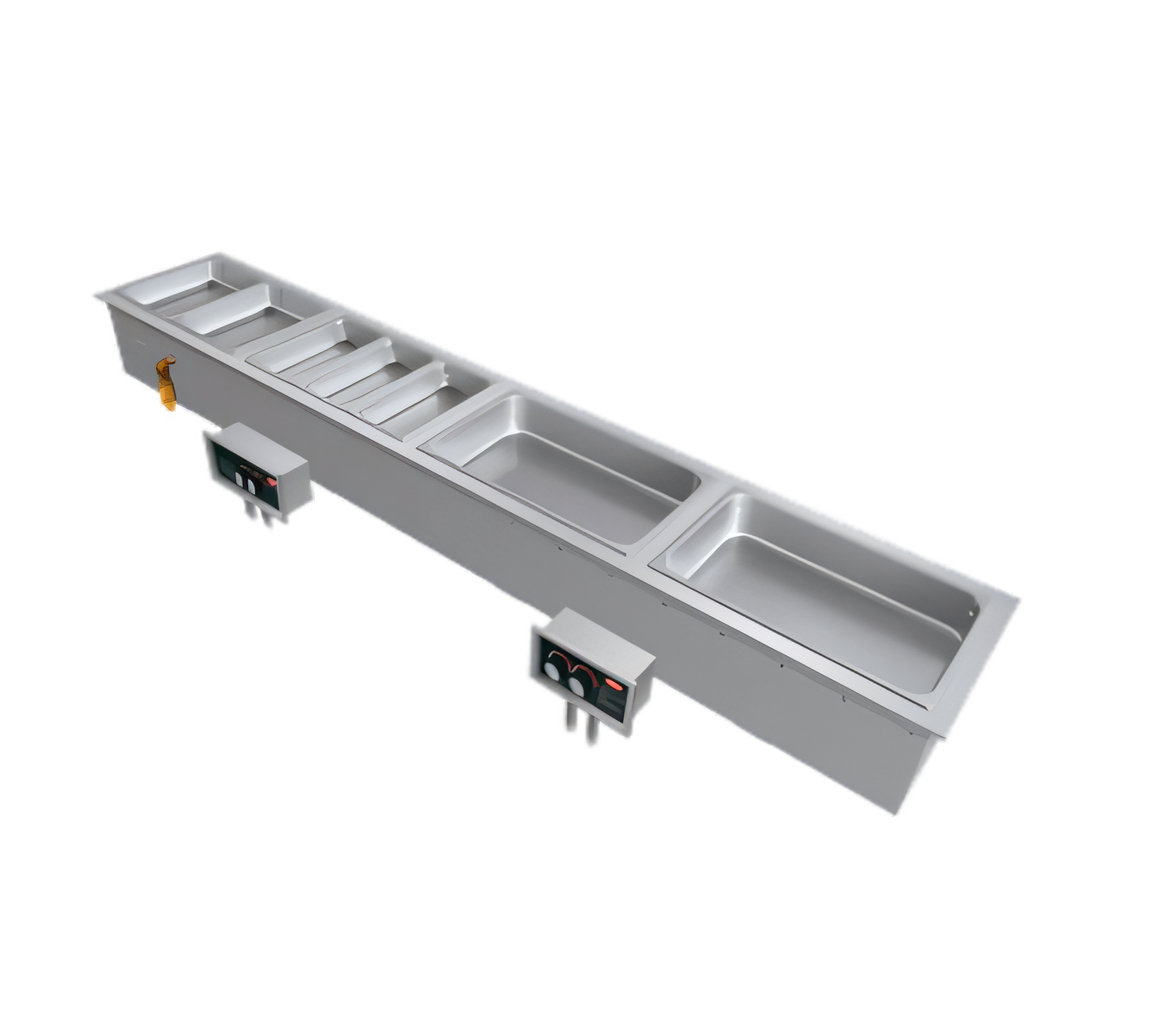

Hatco HWBI-S3 Slim Drop-In Heated Well — 3 Full-Size Pans
Auto-Fill • Manifold Drain • Remote Thermostat • Made in USABuild a buffet line that flows as smoothly as your service. Hatco’s 3-pan HWBI-S3 Slim Heated Well drops neatly into your counter, holding hot entrées and sides at precise, food-safe temperatures without crowding your guests or staff.
Why You’ll Love It
- Full-size capacity in a slim footprint — three 12" × 20" pans sit lengthwise for easier reach under sneeze guards.
- Auto-fill system keeps water levels perfect all shift long, eliminating manual refills (installer must connect manifold to fill all wells).
- 1" NPT manifold drain with flat screen lets you empty and clean the wells in seconds.
- Remote thermostat with lighted power switch gives each well its own temperature dial for pinpoint control.
- Insulated sides & bottom reduce heat loss while keeping counter surfaces cooler for guest safety.
- Wet OR dry operation with fast pre-heat and quick recovery saves time between service periods.
- Rugged stainless steel well and aluminized exterior housing stand up to daily commercial use.
- Simple EZ-Lock mounting hardware and a 6' (1829 mm) control conduit speed up installation.
Perfect For
- Buffet lines & self-service counters
- Hotel breakfast bars
- Supermarket hot food islands
- Cafeteria & institutional serving lines
Specification Highlights
| Pan capacity | 3 × Full-size (12" × 20") pans |
|---|---|
| Overall dimensions | 67.5" W × 15.625" D × 9.56" H (1715 × 397 × 243 mm) |
| Counter cut-out | 66.125"–66.375" W × 14.25"–14.5" D (1680–1686 × 362–368 mm) |
| Electrical | Standard watt • 208-240 V, single or three-phase • up to 3615 W (single-phase) Field-convertible to 3-phase where permitted |
| Controls | Remote mechanical thermostats (one per well) with separate lighted on/off rocker switches |
| Drain | 1" NPT manifold drain, side or bottom exit (installer selectable) |
| Water management | Auto-fill kit with low-water protection |
| Construction | Stainless steel wells, aluminized steel exterior, fully insulated |
| Certifications | cULus • UL EPH Classified • CE Marked |
| Origin | Manufactured in Milwaukee, Wisconsin USA |
Optional Accessories (sold separately)
- Swanstone® simulated-stone well covers to convert the well into a heated shelf.
- Full-, half- or third-size stainless food pans and round insets.
- Ball or gate valves, remote drain handles, and plug options.
Installation note: This unit requires a water supply line, drain connection, and hard-wired electrical hook-up by a qualified professional. Each circuit must be protected by its own breaker.
Hatco backs every heated well with 24/7 parts & service assistance in the U.S. and Canada.
Features & Specs
Features & Specs
Manufacturer
Hatco
Certifications
cULus, UL EPH Classified, Made in USA
Height
9.48in
Width
67.5in
Depth
15.63in
Shipping Weight
125.0lbs
Style
individual pans
Insulated or Non-Insulated
insulated
Construction
stainless steel top, corrosion resistant steel exterior
Pan Capacity
(3) full size (12" x 20")
Drain
with drain
Controls
thermostatic controls
Wet or Dry operation
wet or dry
Specifications
Drop-In Modular Slim Heated Well, with manifold drains & auto-fill, (3) full size pan capacity, insulated, top mounted, remote thermostat with separate power switch, stainless steel & Aluminized construction (standard watt), CE, cULus, UL EPH Classified, Made in USA
