Hatco HWBI-S3M Steam Tables & Food Wells
Description

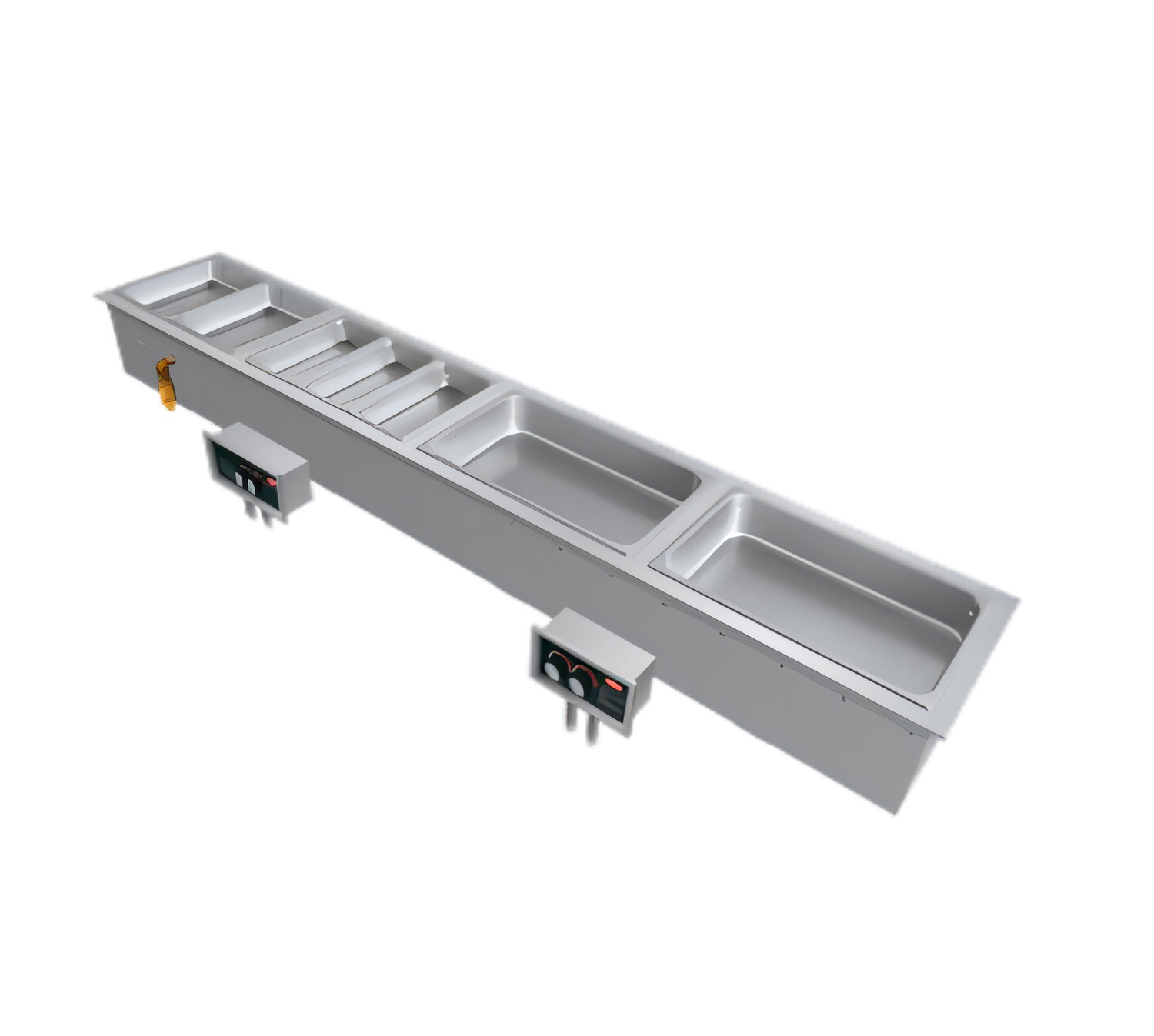

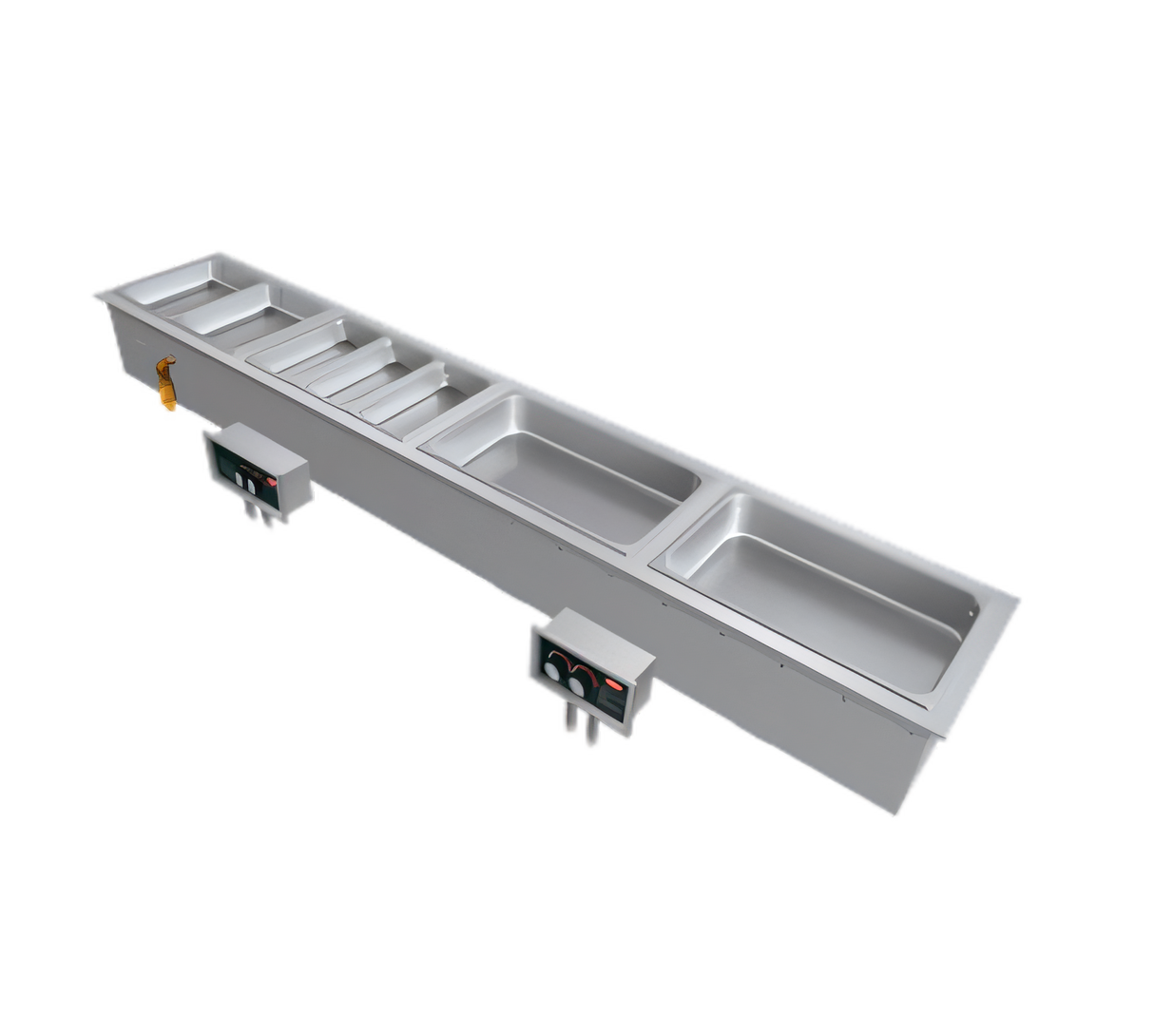

Hatco HWBI-S3 Slim Drop-In Heated Well – 3 Pan, Manifold Drain
Top-mounted | Individually thermostated | Made in the USABuild a sleeker, more efficient buffet line with Hatco’s 3-well modular slim heated well. The HWBI-S3 keeps entrées, sides and sauces at precise, food-safe temperatures in either WET or DRY operation—all while fitting into a narrow 15 ⅝" counter cut-out that’s easy to reach beneath sneeze guards. Independent remote thermostats, a one-inch NPT manifold drain and fully insulated stainless/aluminized construction turn this unit into a chef-friendly workhorse built for years of service.
Why You’ll Love It
- 3 full-size (12" × 20") pans sit lengthwise—perfect for slim counters and island buffets.
- Independent remote controls: each well has its own lighted On/Off rocker switch and thermostat dial for pinpoint holding.
- Fully insulated sides & bottom reduce energy use and keep surrounding surfaces cooler.
- Fast pre-heat and quick temperature recovery for high-volume service.
- Wet or dry operation—no need to babysit water levels during change-over.
- 1" NPT manifold drain with flat screen allows rapid, simultaneous emptying of all wells.
- Rugged stainless steel wells with aluminized steel exterior plus solid-brazed drain fittings for long-term durability.
- EZ-Lock hardware and a 6' (1.8 m) armored conduit make installation simple and flexible.
- Standard-watt design operates on 208 V or 240 V (single- or three-phase).
- Certified safe & sanitary: CE, cULus, UL EPH Classified.
Perfect For
- Banquet and hotel buffets
- C-stores and grocery hot bars
- Cafeterias & corporate dining
- Catering build-outs and mobile serving lines
Technical Specs
| Model | HWBI-S3 (Standard Watt) |
|---|---|
| Pan Capacity | 3 full-size steam table pans (12" × 20") |
| Overall Dimensions | 67.5" W × 15.625" D × 9.56" H (1715 × 397 × 243 mm) |
| Cut-out (W × D) | 66.125"–66.375" W × 14.25"–14.50" D (1680–1686 × 362–368 mm) |
| Electrical |
208 V or 240 V, single- or three-phase 3615 W max (240 V, 1-ph) · 17.4 A max (208 V, 1-ph) |
| Drain | 1" NPT manifold (side or bottom exit, field-selectable) |
| Controls | Remote thermostat panel with separate lighted power switches (one per well) |
| Construction | Stainless steel wells, aluminized steel housing, EZ-Lock mounting flange |
| Shipping Weight | 118 – 125 lb (54 – 57 kg) |
| Certifications | CE · cULus · UL EPH Classified |
| Country of Origin | Made in the USA |
Optional Accessories (sold separately)
- Simulated stone Swanstone® heated well covers (Night Sky, Gray Granite, Bermuda Sand)
- Stainless steel pans in 2½", 4", or 6" depths
- Round-pan adapter plates & hinged lids (4 qt or 7 qt)
- Ball or gate valves, 1" NPT, for manifold drain shut-off
Need a different size or auto-fill capability? Ask us about 2- and 4-well Hatco HWBI-S series models.
