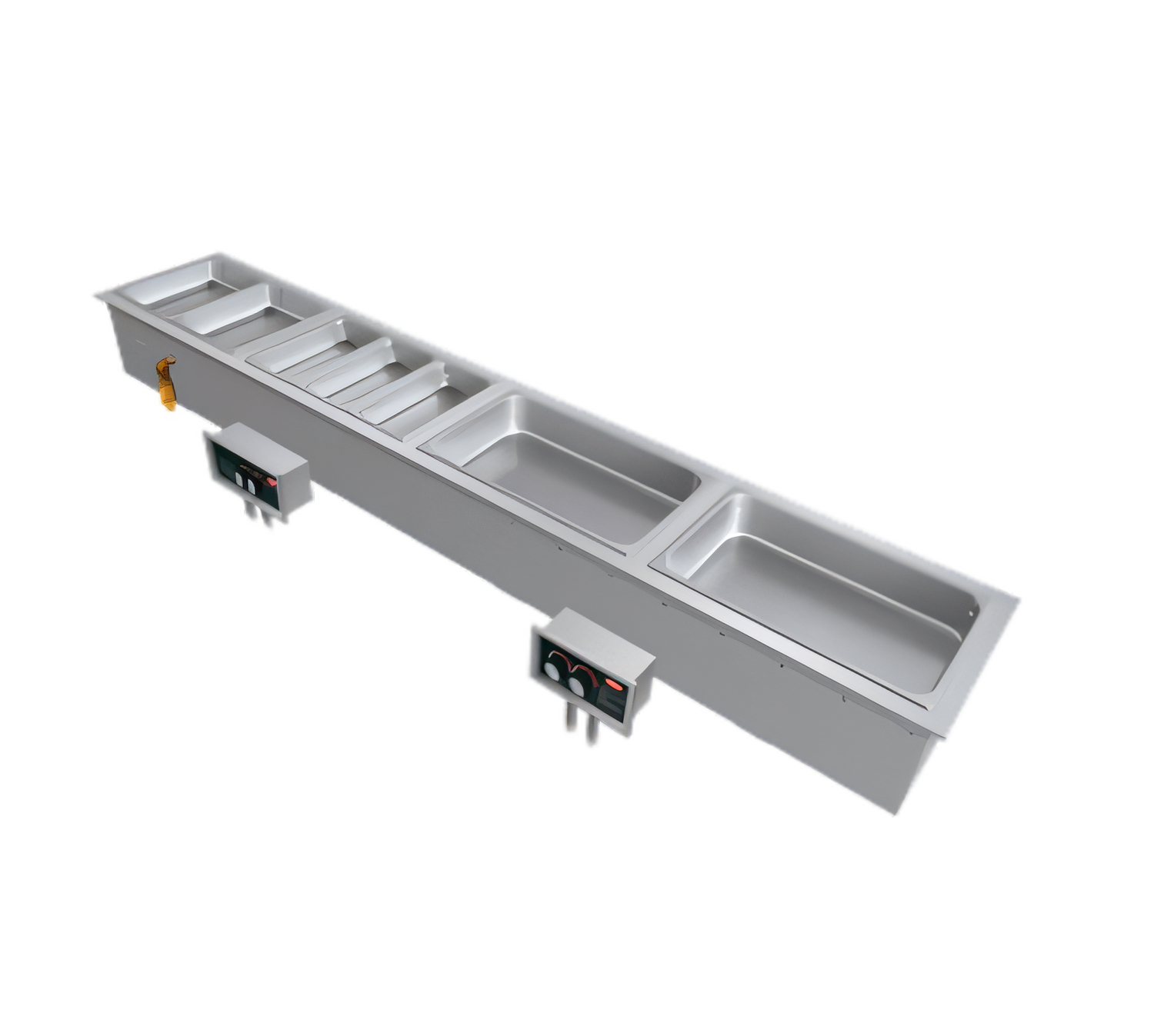

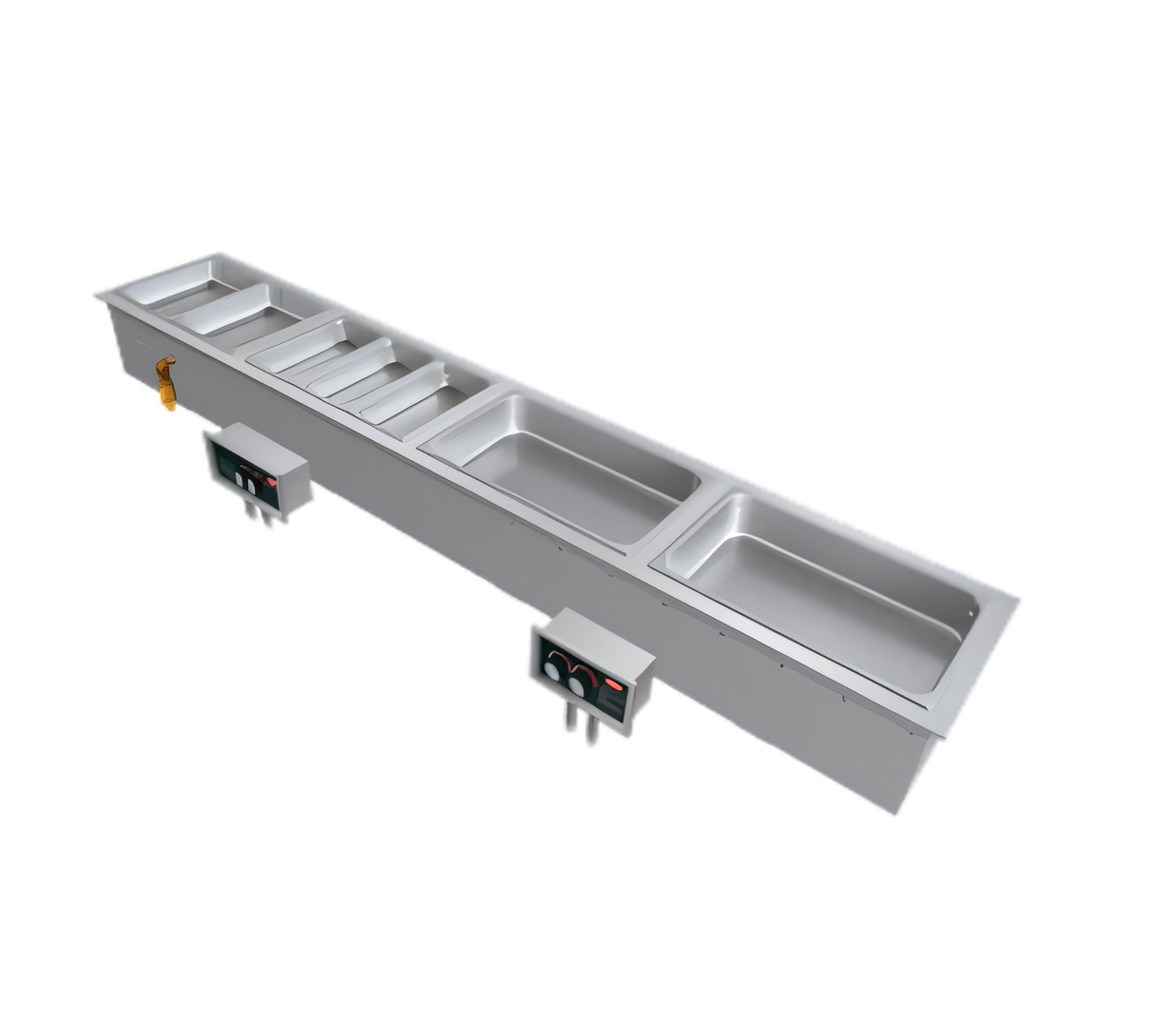

Hatco HWBI-S3DA Drop-In Modular/Ganged Slim Heated Well, 3 Full-Size Pan Capacity, With Drain and Auto-Fill

SKU: HWBI-S3DA
$3,181.20
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines Hatco Hot Well New Arrivals Restaurant Equipment Steam Tables & Food Wells

Hatco HWBI-S3DA Drop-In Modular/Ganged Slim Heated Well, 3 Full-Size Pan Capacity, With Drain and Auto-Fill

240 Volts, 1-Phase, Insulated, Wet or Dry Operation

Built for high-volume buffet service, this insulated 3-pan heated well combines auto-fill, drain, and remote thermostat control in a clean drop-in package.

  • Compact drop-in, modular/ganged slim design fits buffet and steam table layouts.
  • Holds three full-size 12" x 20" pans in a lengthwise arrangement.
  • Fully insulated sides and bottom help retain heat and improve safety.
  • Auto-fill and drain features simplify water management and cleanup.
  • Designed for wet or dry operation for flexible serving applications.
  • Remote thermostat control with a separate power switch makes temperature adjustments straightforward.

Overall Dimensions:

67.5"W x 15.63"D x 9.48"H

Product Weight:

125.0 lb

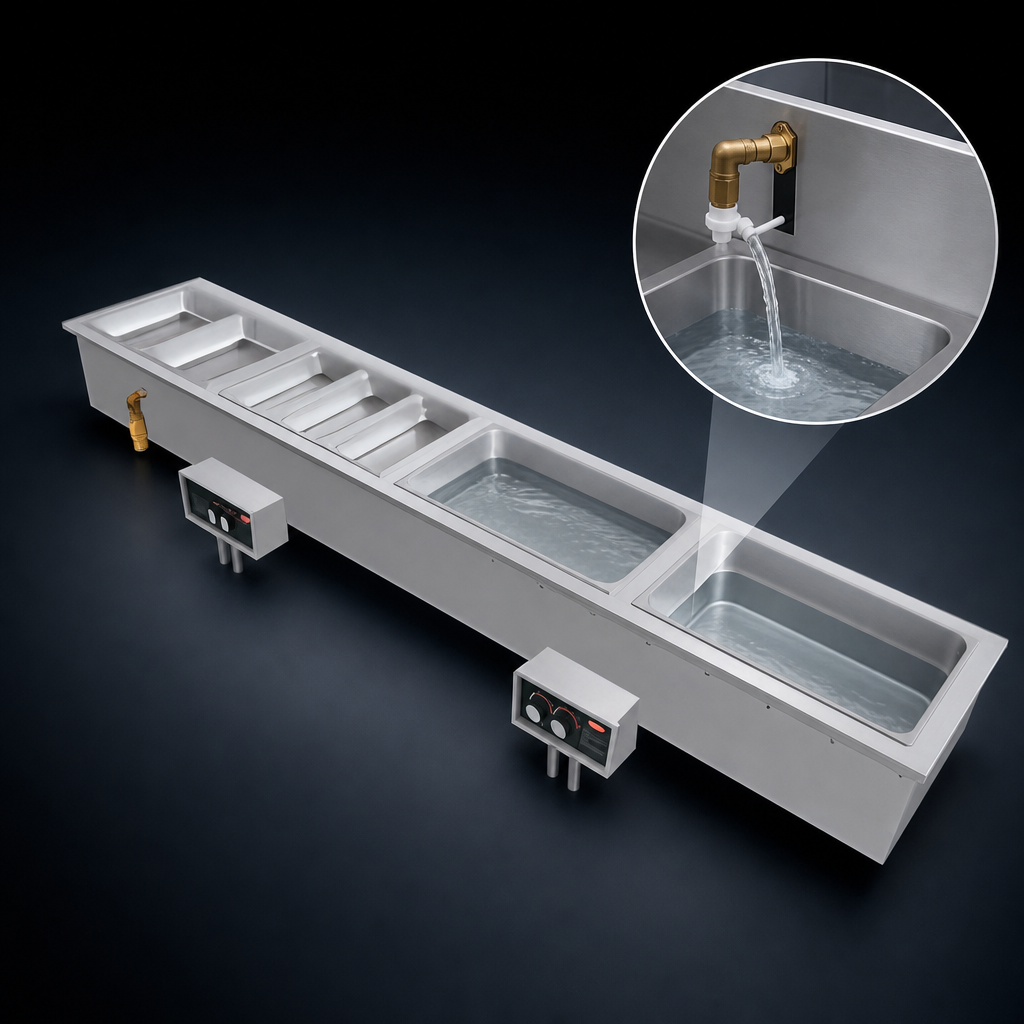

Auto-Fill System

Automatically fills and replenishes water to help maintain proper water levels.

Fully Insulated Construction

Insulated sides and bottom improve heat retention and help keep surrounding surfaces cooler.

Wet or Dry Operation

Designed for use in either wet or dry service applications.

Remote Thermostat Control

Remote thermostat with a separate lighted On/Off rocker switch supports simple temperature adjustment.

Large Drain With Flat Screen

A larger drain opening and flat screen help simplify cleaning and keep pans level.

Stainless Steel Well Construction

Stainless steel well construction with aluminized steel housing supports durability.

Easy Service Access

Heating elements and thermostats are easier to access for service.

6-Foot Control Conduit

Includes a 6-foot conduit for flexible control placement.

Type Slim Heated Well
Style Individual Pans
Installation Type Drop-In
Pan Capacity 3 Full-Size Pans
Pan Size 12 Inches x 20 Inches
Controls Remote Thermostat
Material Stainless Steel
Usage Wet/Dry
Voltage 240 Volts
Amps 15.1 Amps
Watts 3.615 kW
Phase 1-Phase
Plug Type NEMA 6-20P
Water Connection Required
Drain Connection Required
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 68 Inches
Shipping Depth 16 Inches
Shipping Height 10 Inches
Shipping Weight 125 lb.

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

24/7 parts and service assistance

Documents

PDF Cutsheet PDF Download PDF Parts list PDF Download PDF Owner's manual PDF Download PDF Catalog brochure PDF Download PDF Color chart PDF Download PDF Assembly instructions PDF Download

Frequently Asked Questions

It holds three full-size pans in a lengthwise arrangement.
It is designed for full-size pans measuring 12" x 20".
Yes. The wells are designed for both wet and dry operation.
Yes. This model includes both auto-fill and drain features.
It uses a remote thermostat with a separate lighted On/Off rocker switch.
Accessories include heated well covers, stainless steel food pans, round pans, trivets, adapters, support bars, valves, and a remote handle for 3/4" drains.
