Hatco HWBI-S3D Steam Tables & Food Wells
Description

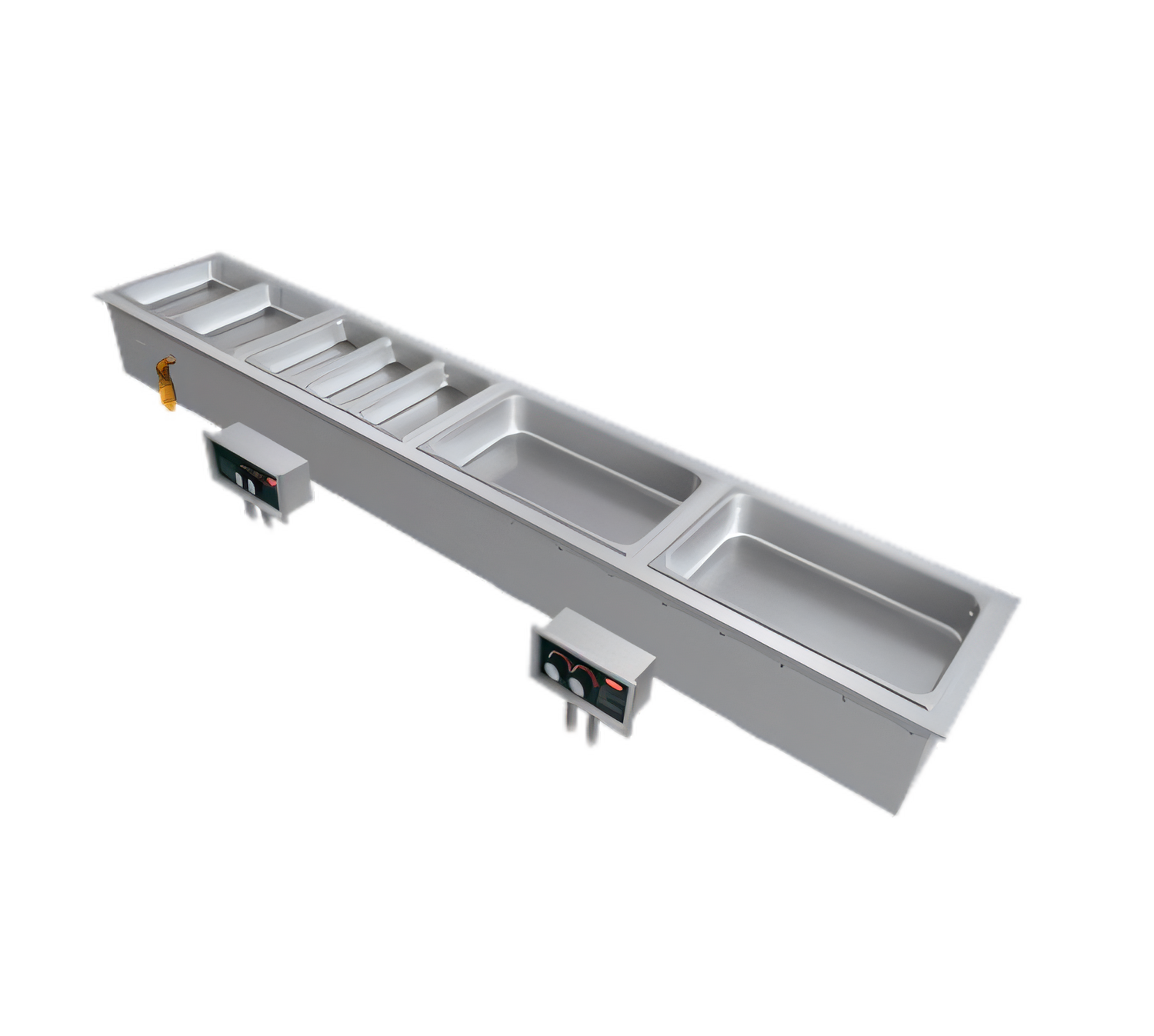

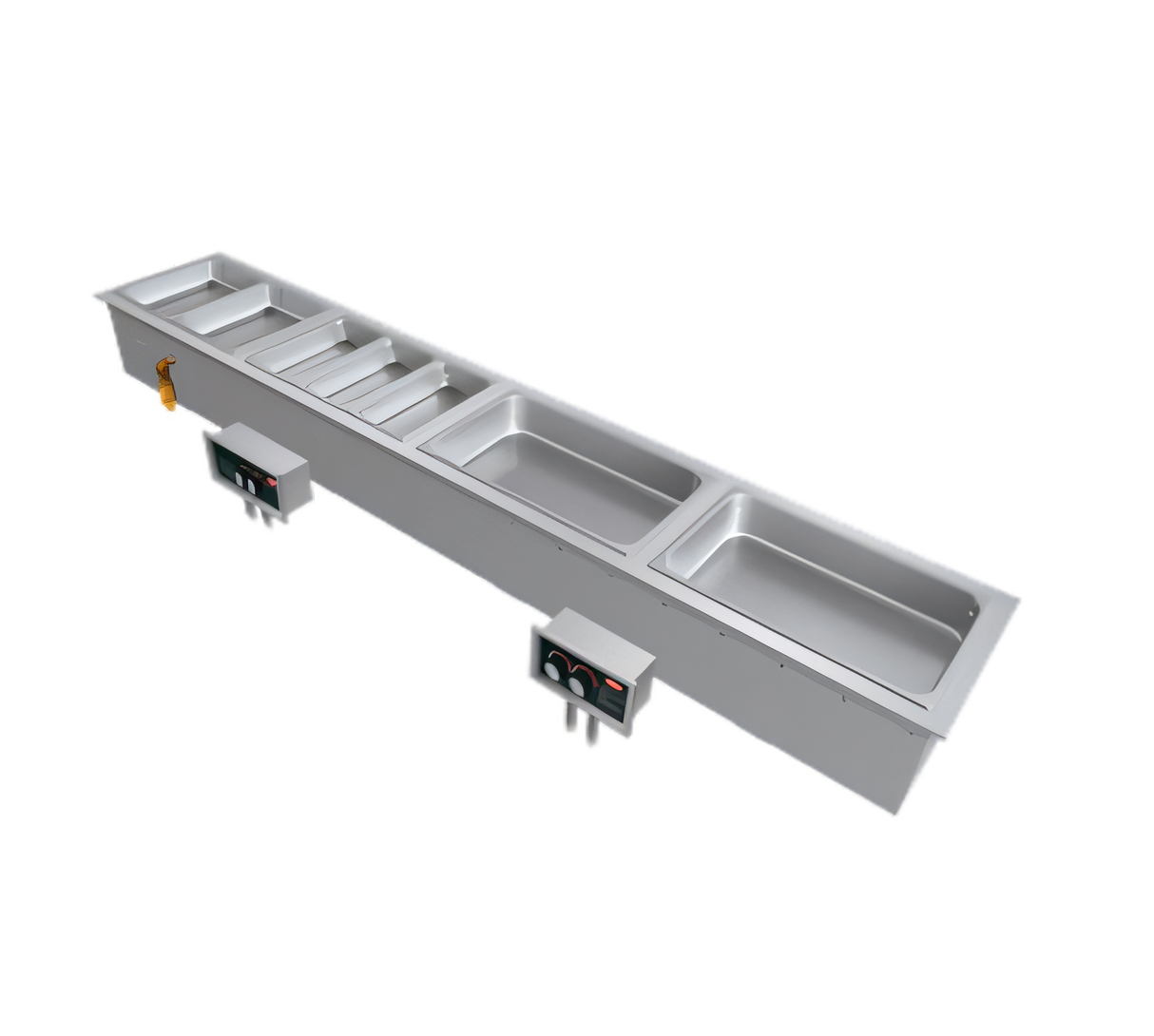

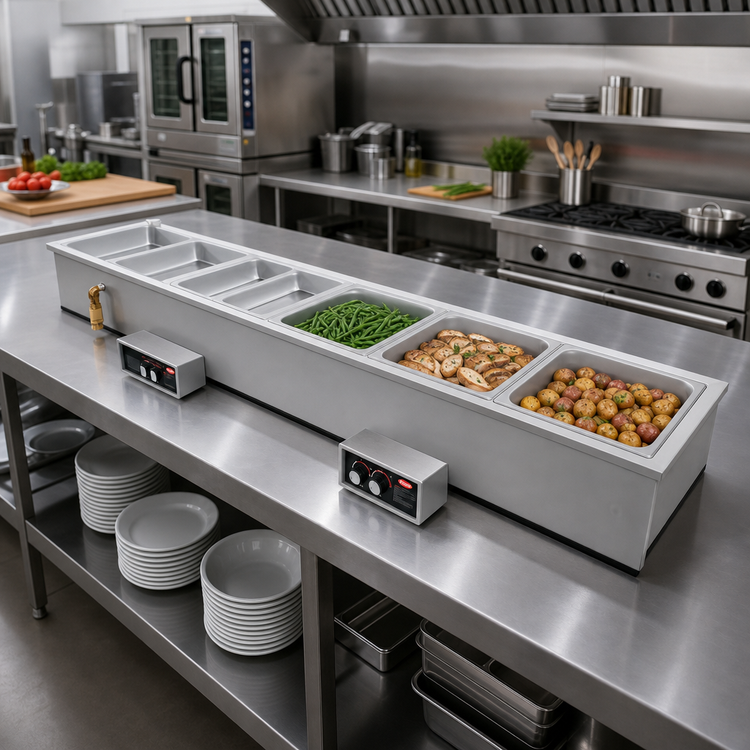

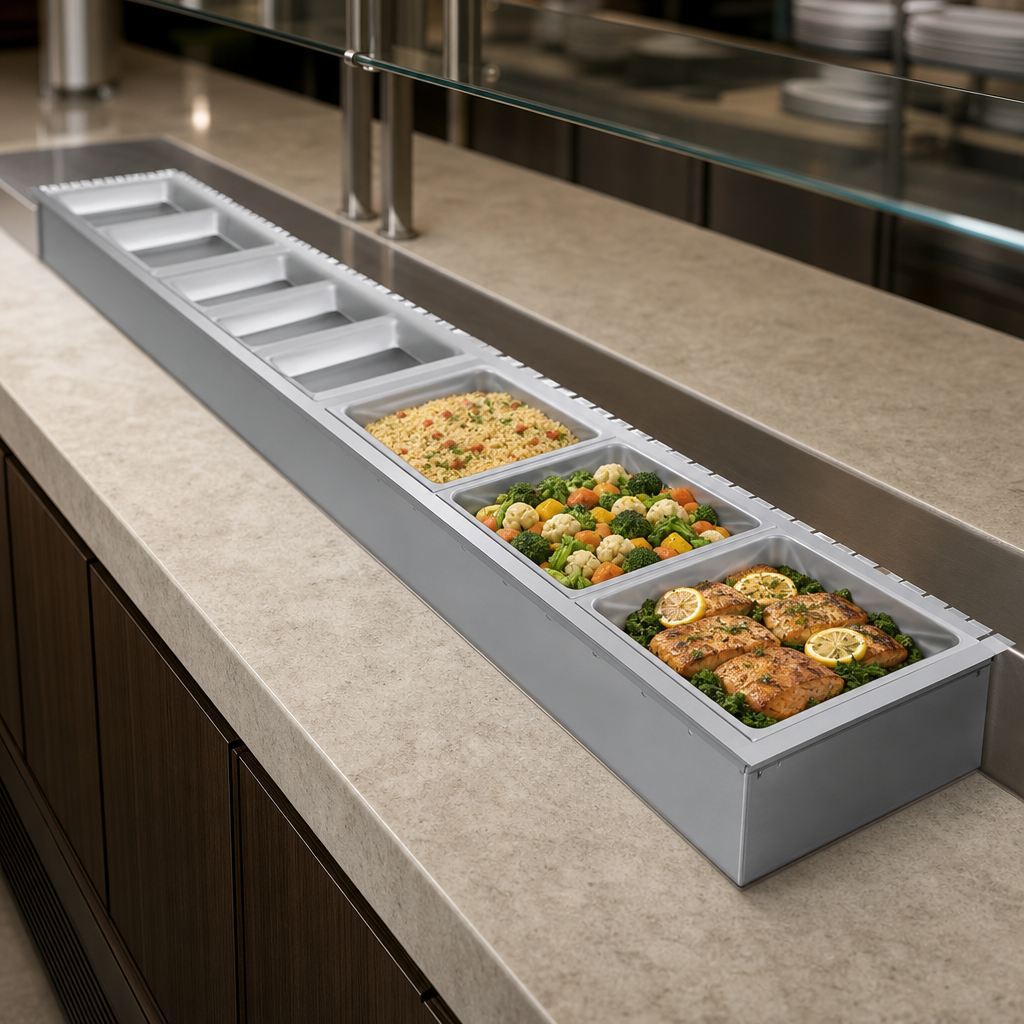

Hatco HWBI-S3 Slim Drop-In Heated Well – 3 Pan, With Drains
Full-size holding power, space-saving footprintGive guests hot, delicious food all service long without crowding your counter. The Hatco HWBI-S3 Slim Heated Well installs flush in a narrow 14 ¼" cut-out yet accommodates three full-size steam-table pans. Independent remote controls, rapid pre-heat and an oversized drain system make this USA-built unit a hardworking—and easy-working—addition to any buffet, cafeteria or grab-and-go station.
Top benefits
- 3 insulated, full-size wells placed lengthwise for easy reach under sneeze-guards.
- Wet OR dry operation—no water, no problem.
- Remote control box puts a lighted On/Off switch and thermostat at your fingertips for each well.
- Factory-installed ¾" NPT brass drains with 50 % larger opening speed clean-up and reduce clogs.
- EZ-Lock mounting hardware drops in from the top for a tight, professional seal.
- Stainless-steel well liner with aluminized outer housing stands up to daily commercial abuse.
- 6 ft (1829 mm) flexible conduit allows controls to be mounted where staff can access them safely.
- Listed to CE, cULus & UL EPH sanitation standards—ready for kitchens worldwide.
- Made in the USA and backed by Hatco’s 24 ⁄ 7 parts & service network.
Ideal for
- Buffet & cafeteria lines
- Supermarkets, delis & C-stores
- Hotel breakfast or banquet setups
- Food trucks or kiosks needing narrow counter installs
Specifications
| Pan capacity | 3 × full-size 12" × 20" pans (can be subdivided with ½ or ⅓ pans) |
|---|---|
| Overall size | 67.5" W × 15.63" D × 9.56" H (1715 × 397 × 243 mm) |
| Countertop cut-out | 66.13–66.38" W × 14.25–14.50" D (1680–1686 × 362–368 mm) |
| Drain connection | (3) individual ¾" NPT drains with flat stainless screens |
| Electrical (standard watt) | 208–240 V, single or 3-phase field convertible, up to 3.6 kW; hard-wired (optional NEMA 6-30P cord for single-phase models) |
| Operation | Wet or dry |
| Ship weight | Approx. 118 lb (54 kg) |
| Certifications | CE, cULus, UL EPH Classified |
| Country of origin | Made in USA |
What’s in the box
- HWBI-S3 Slim Heated Well with factory-installed drains
- Remote mechanical control box & 6 ft conduit
- EZ-Lock drop-in mounting tabs
- Installation & operation manual
Looking for pan support bars, round-pan adapters, stone-look heated covers or manifold drain valves? Chat with our team and we’ll bundle the right Hatco accessories with your order.
