Hatco  |  SKU: HWBI-S3

Hatco HWBI-S3 Steam Tables & Food Wells

$2,584.20
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Catalog brochure Assembly instructions Parts list Color chart
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

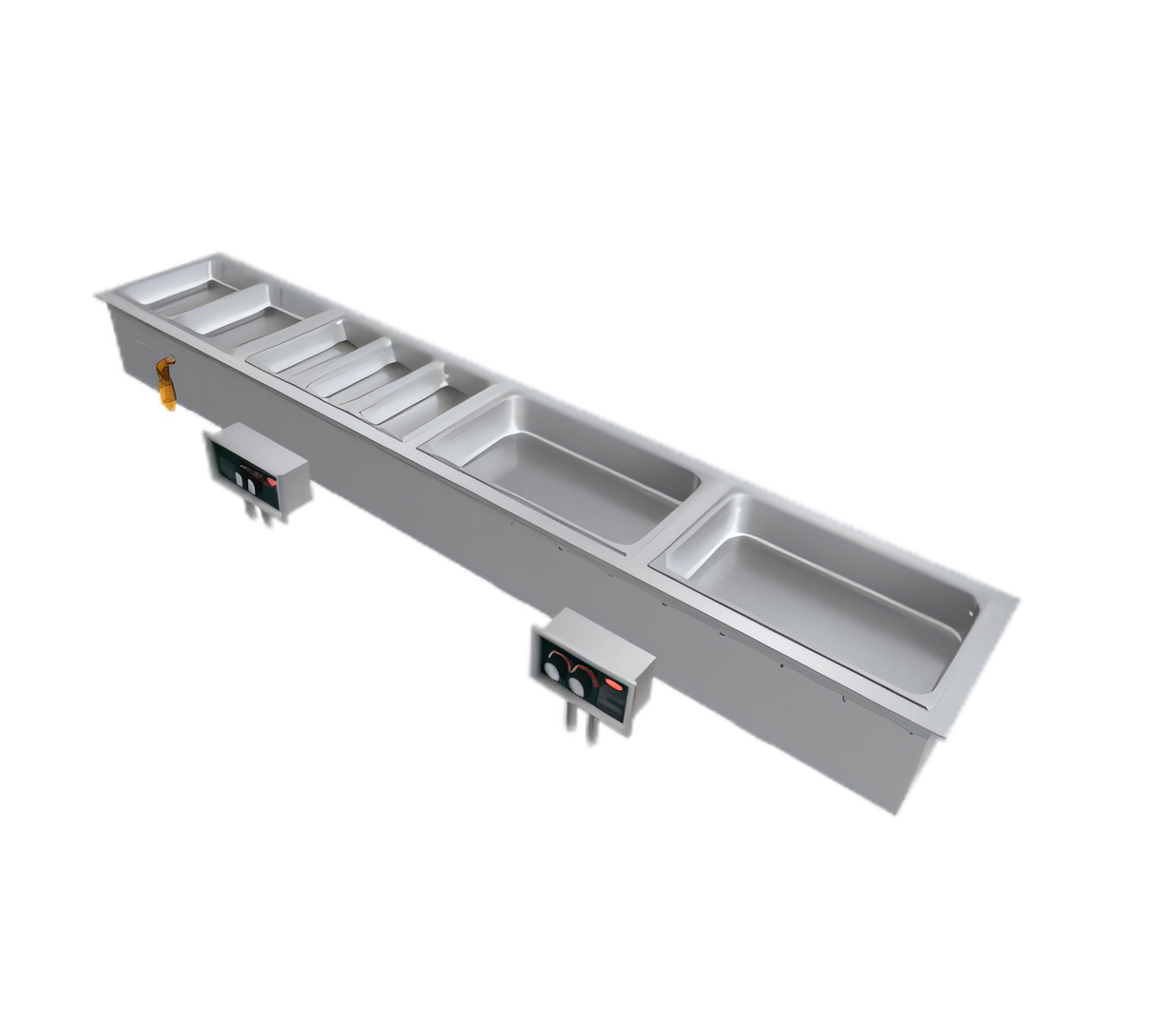

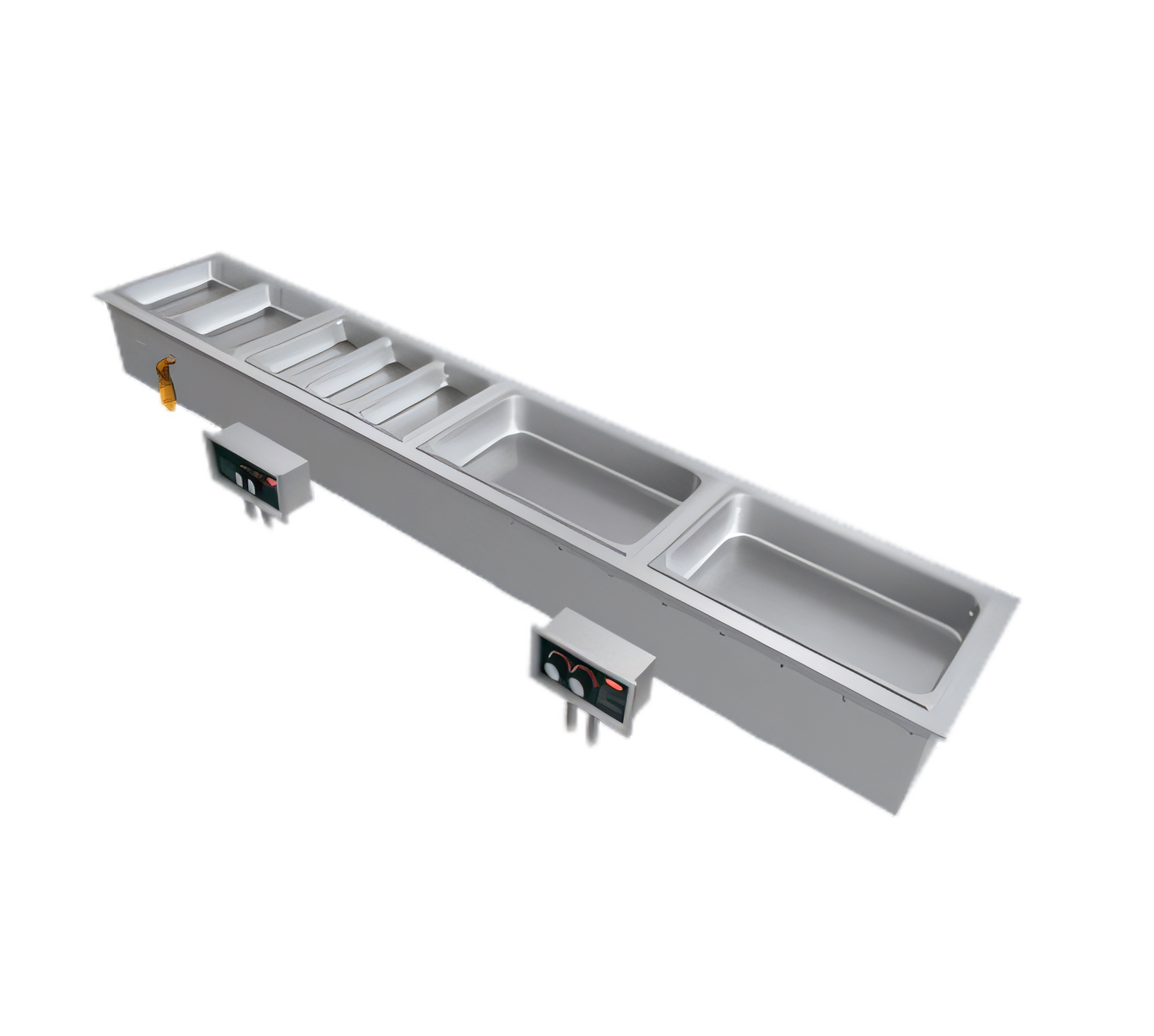

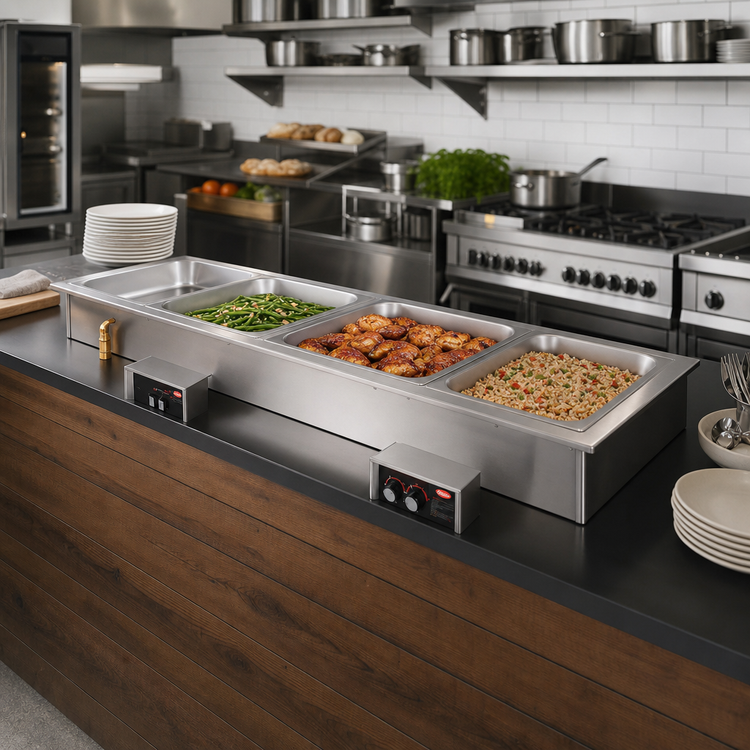

Hatco HWBI-S3 Slim Drop-In Modular Heated Well

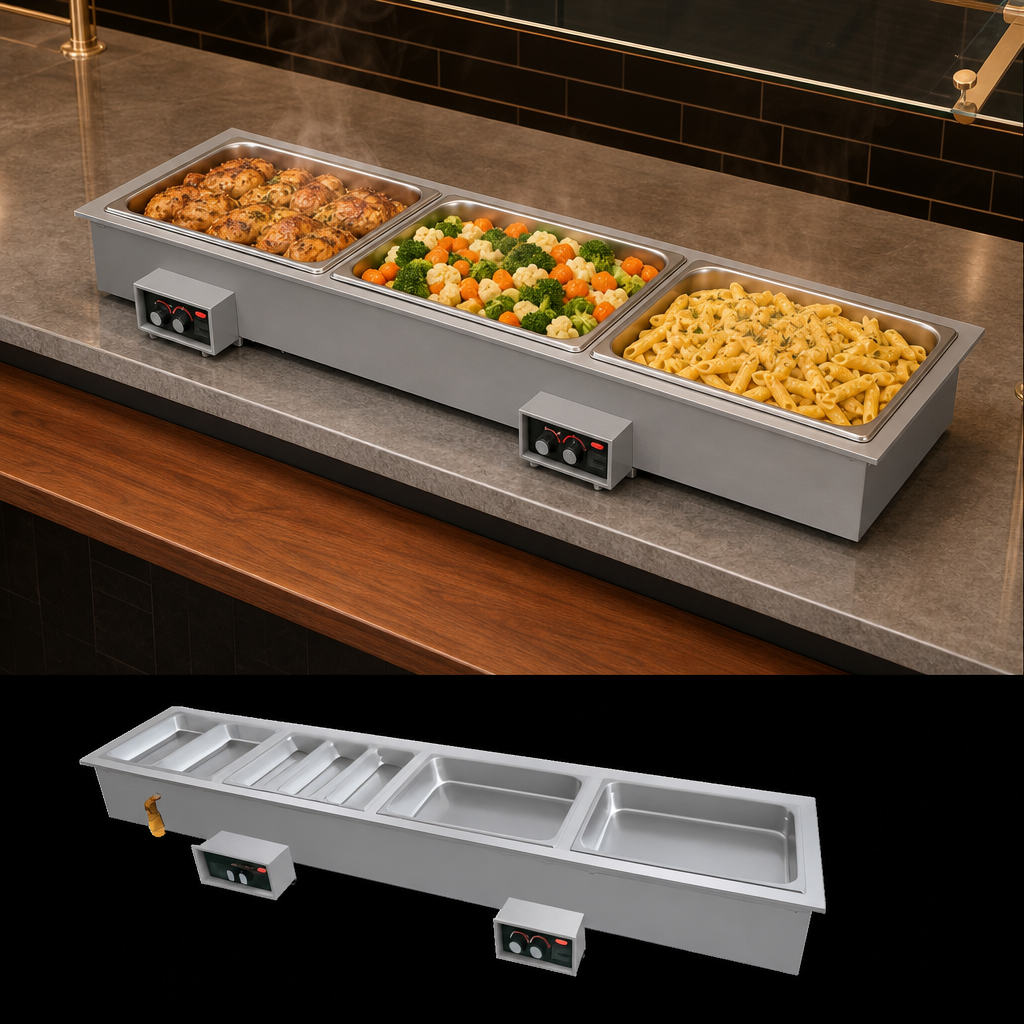

3 Full-Size Pan Capacity • Wet or Dry • Individual Thermostatic Control

Build a buffet line that’s as streamlined as it is powerful. Hatco’s HWBI-S3 Slim Heated Well drops neatly into a 6 ft (≈1.7 m) cut-out and keeps three full-size pans of entrées, sides or sauces at perfect serving temperature—no matter how busy the rush.

Top reasons operators choose the HWBI-S3

  • Full-size wells placed lengthwise for an easy reach under sneeze guards.
  • Separate lighted On/Off rocker switch and remote thermostat for each well—dial in exact temps without disturbing adjacent foods.
  • Fully insulated sides & bottom minimize heat loss and keep surrounding surfaces cool for guest safety.
  • Wet or dry operation with rapid pre-heat and fast recovery to meet the peaks of service.
  • 50 % larger brass drain with flat strainer simplifies cleanup and holds pans level (drain manifold kits optional).
  • Rugged stainless-steel well with aluminized outer housing and solid brazed joints for years of worry-free performance.
  • EZ-Lock mounting hardware and 6 ft (1829 mm) flexible conduit make installation quick and clean.
  • Meets or exceeds CE, cULus and UL EPH sanitation standards—Made proudly in the USA.

Perfect for

  • Cafeterias & buffet lines
  • QSR & fast-casual makelines
  • Supermarkets & delis
  • Catering drop-in stations

Key specifications

Pan capacity 3 full-size (12 × 20 in / 305 × 508 mm) pans placed end-to-end
Overall size 67.5 W × 15.625 D × 9.56 H in (1715 × 397 × 243 mm)
Counter cut-out Width 66.125-66.375 in (1680-1686 mm) × Depth 14.25-14.5 in (362-368 mm)
Electrical (standard) 208 V / 17.4 A / 3600 W or 240 V / 15.1 A / 3615 W
Single-phase, hard-wired; other voltages & 3-phase available
Control Remote mechanical thermostats with illuminated rocker switches (one per well)
Drain ¾ " NPT individual brass drain with flat screen (manifold kits optional)
Construction Type 304 stainless steel liner, aluminized outer housing, high-density insulation
Certifications CE • cULus • UL EPH Classified
Country of origin Made in USA
Included EZ-Lock mounting brackets, 6 ft (1.8 m) conduit, installation manual

Popular accessories (sold separately)

  • Swanstone® simulated-stone heated well covers—turns each cavity into a flush heated shelf.
  • Stainless steel food pans (⅓, ½, 4", 6" & 8" depths).
  • Round pan adapters for two 4-qt or two 7-qt soup insets per well.
  • Copper or manifold drain kits with side or bottom exit.
  • Factory-installed gasket to eliminate field caulking.
  • NEMA 6-30P or BS 1363 cord & plug (single-phase units only).
Installation note: This equipment must be installed by a qualified electrician and wired to a dedicated circuit sized to the voltage and amperage selected. Always verify cut-out dimensions before making countertop modifications.

Need a different size? Hatco Slim Heated Wells are also available in 2-pan and 4-pan configurations. Contact us for lead-times and custom quotes.

Features & Specs

Manufacturer

Hatco

Certifications

cULus, UL EPH Classified, Made in USA

Height

9.48in

Width

67.5in

Depth

15.63in

Shipping Weight

118.0lbs

Drain

without drain

Pan Capacity

(3) full size (12" x 20")

Style

individual pans

Insulated or Non-Insulated

insulated

Construction

stainless steel top, corrosion resistant steel exterior

Controls

thermostatic controls

Wet or Dry operation

wet or dry

Specifications

Drop-In Modular Slim Heated Well, (3) full size pan capacity, insulated, top mounted, remote thermostat with separate power switch, stainless steel & Aluminized construction (standard watt), CE, cULus, UL EPH Classified, Made in USA
