Hatco HWBI-S2MA Steam Tables & Food Wells
Description

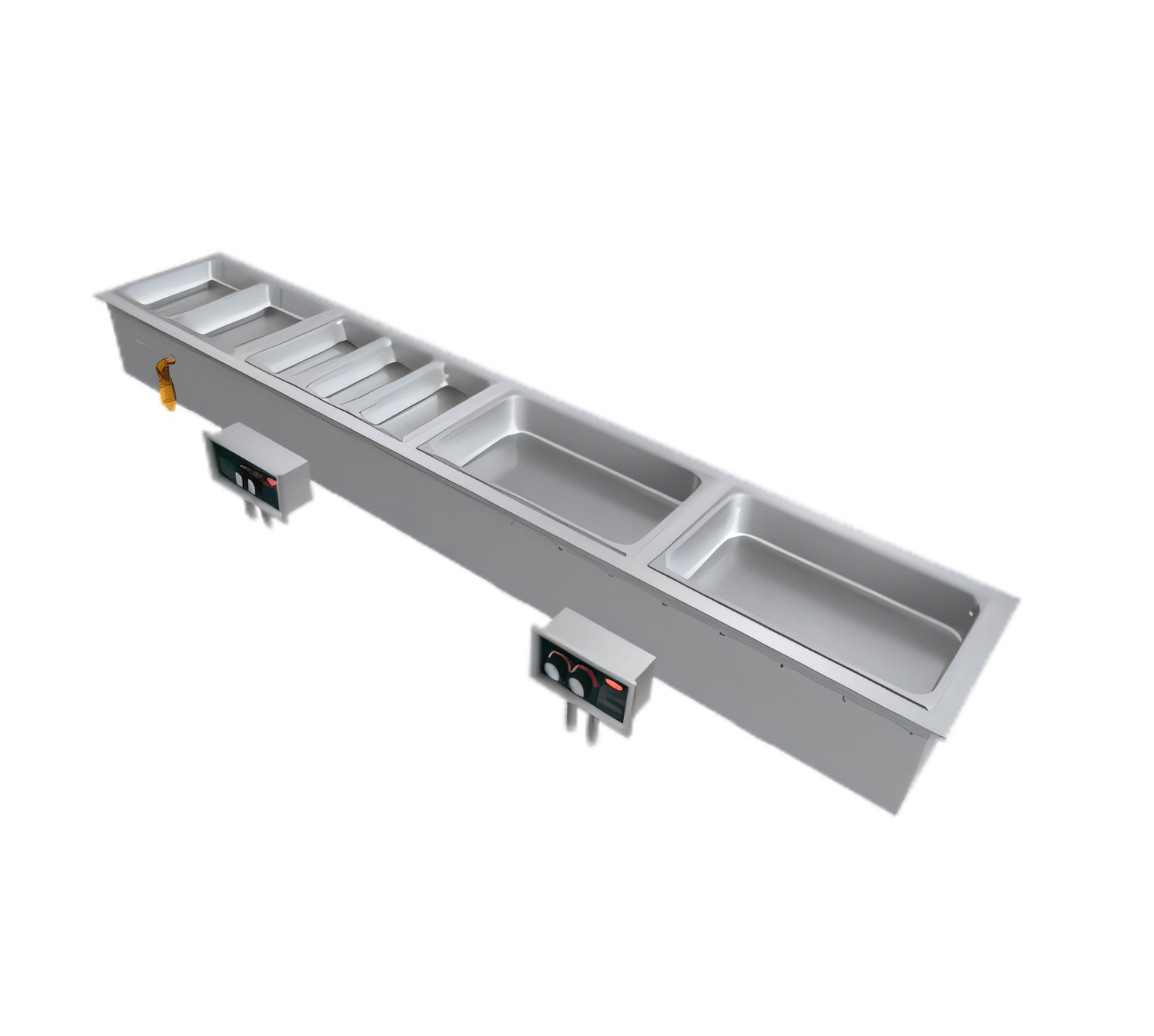

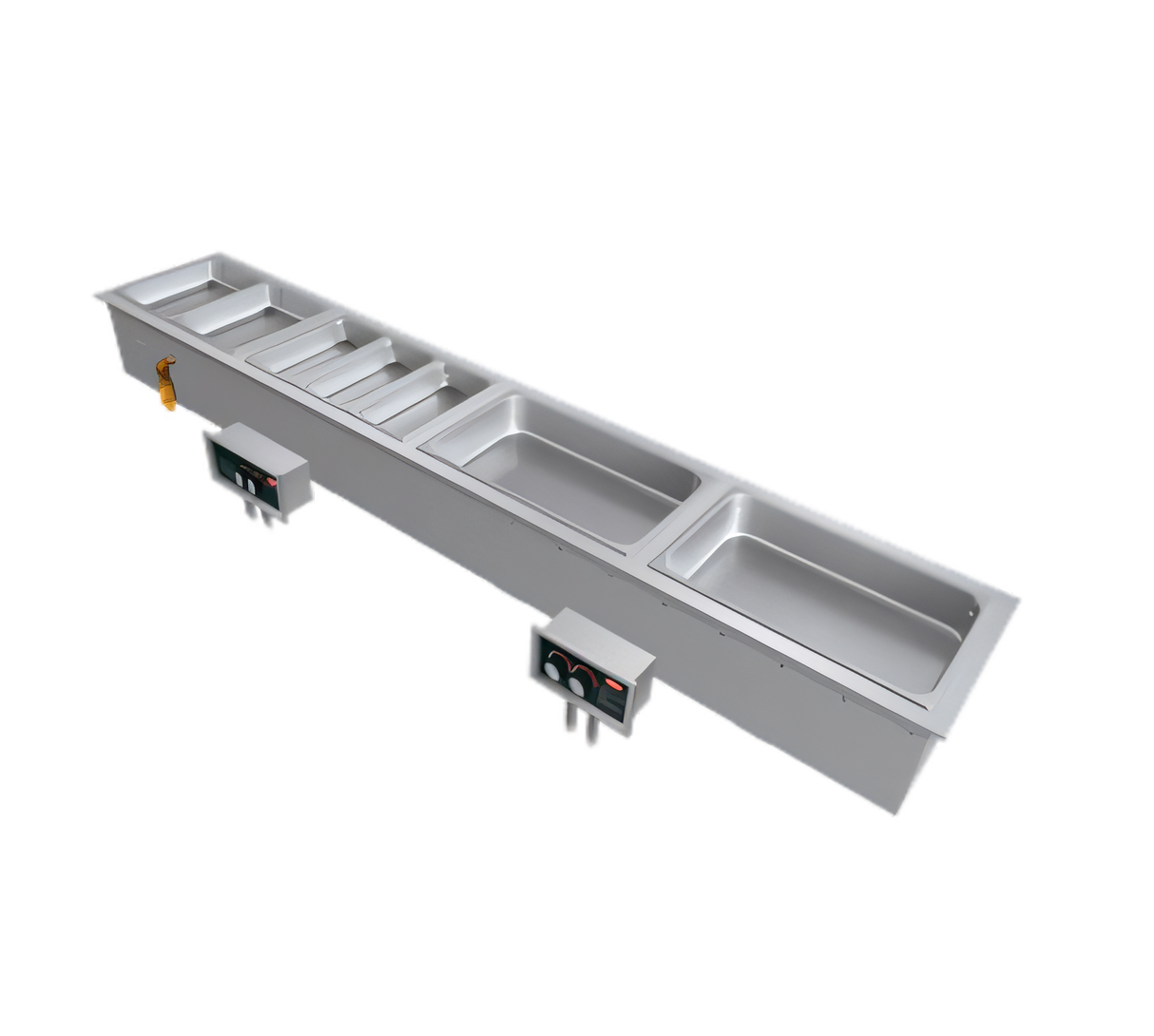

Hatco HWBI-S2MA Slim Drop-In Modular Heated Well
2-Pan • Auto-Fill • 1" Manifold Drain • Remote ThermostatGive chefs and guests effortless access to hot, ready-to-serve foods with Hatco’s Made-in-USA HWBI-S2MA. This slim, two-well drop-in sits lengthwise in the counter, keeping entrées and sides directly under the sneeze guard while freeing up valuable lineup space. Fully insulated, wet-or-dry operation and an automatic water replenishment system deliver the accurate holding temperatures your menu demands—with less labor and less energy.
Why You’ll Love It
- 2 full-size (12" × 20") wells grouped in one slim drop-in module for a clean, integrated look.
- Auto-fill valve keeps the left well at the correct water level; manifold drain allows both wells to empty through a single 1" NPT connection.
- Individual remote thermostats with illuminated rocker switches put precise control at your fingertips.
- Wet OR dry operation—ideal for soups, sauces, proteins, veggies and more.
- 50 % larger drain opening with flat strainer speeds clean-up and keeps pans level.
- Rapid pre-heat and quick recovery improve energy efficiency during rush periods.
- EZ-Lock hardware and 6' (1829 mm) flexible conduit simplify installation.
- Rugged stainless-steel wells, aluminized housing and brazed fittings stand up to daily commercial use.
- Backed by CE, cULus & UL EPH Classified certifications and Hatco’s 24/7 parts & service network.
At-a-Glance Specs
| Model | HWBI-S2MA |
|---|---|
| Pan Capacity | (2) full-size 12" × 20" (305 × 508 mm) pans – accepts fractional pans with optional adapters |
| Overall Dimensions | 45.5" W × 15.625" D × 9.56" H (1156 × 397 × 243 mm) |
| Countertop Cut-Out | 44.125-44.375" W × 14.25-14.5" D |
| Electrical (standard watt) |
208–240 V, 1-ph, 2.4 kW Other voltages/3-ph available |
| Drain | 1" NPT brass manifold, side or bottom outlet (field selectable) |
| Auto-Fill | Factory-installed; plumb ½" cold water |
| Controls | Remote thermostatic dial & lighted On/Off switch (one per well) |
| Operation Mode | Wet or Dry |
| Construction | Stainless-steel wells, aluminized steel exterior, fully insulated |
| Certifications | CE • cULus • UL EPH Classified |
| Origin | Made in USA |
Popular Accessories (sold separately)
- Heated well covers with simulated stone surfaces (Night Sky, Gray Granite, Bermuda Sand) – turns the well into a heated shelf.
- Stainless food pans: third-, half- and full-size depths up to 6".
- Round pan adapters & lids for 4 Qt or 7 Qt soup insets.
- Stainless wire trivets and 12" support bars for fractional pans.
- Ball or gate valves, remote drain handle and gasket kits.
Auto-fill sensor is located in the left well; to equalize water levels between both wells, installer must connect the manifold drain to the right well as specified in the installation manual.
