Hatco HWBI-S2M Steam Tables & Food Wells
Description

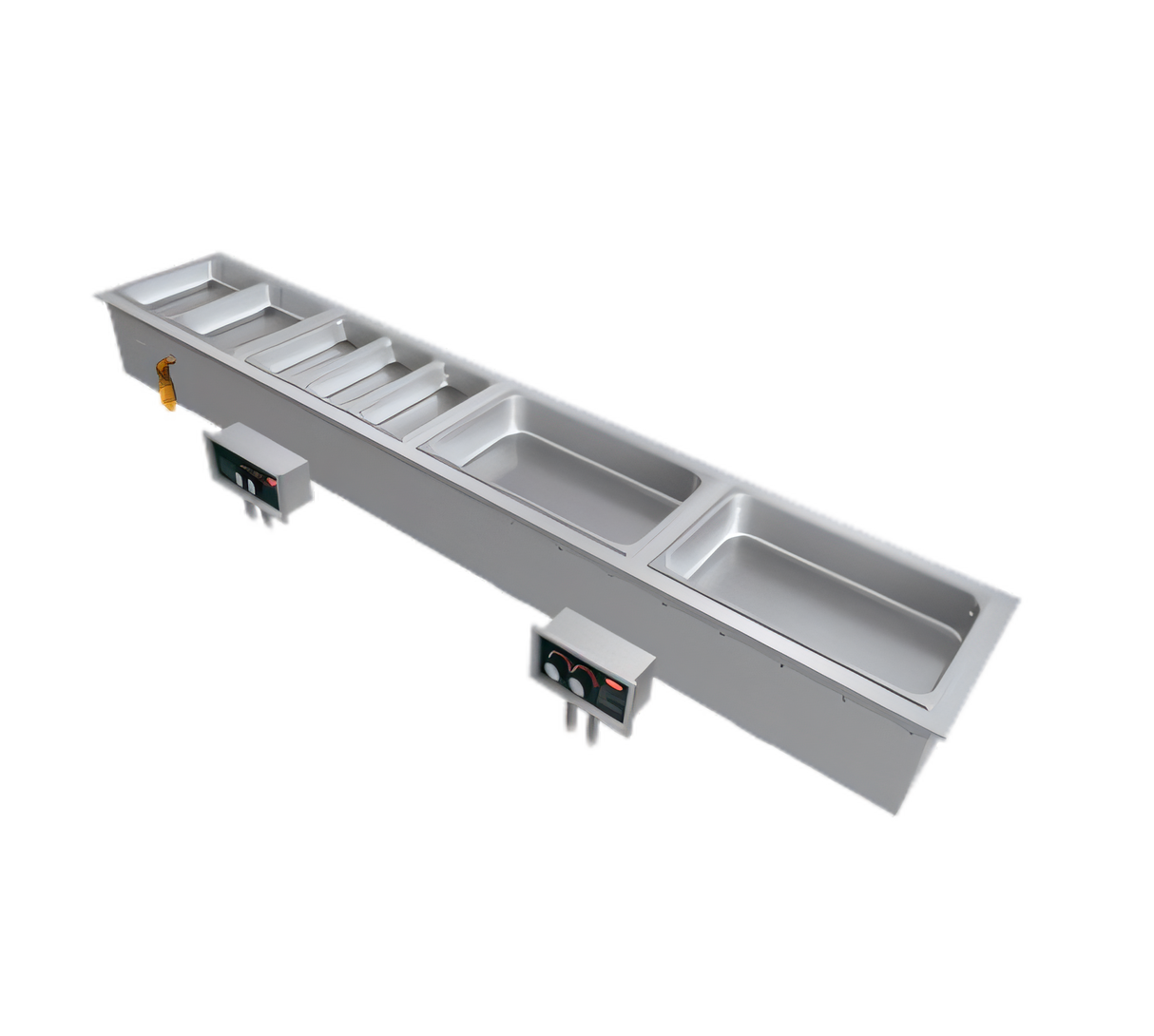

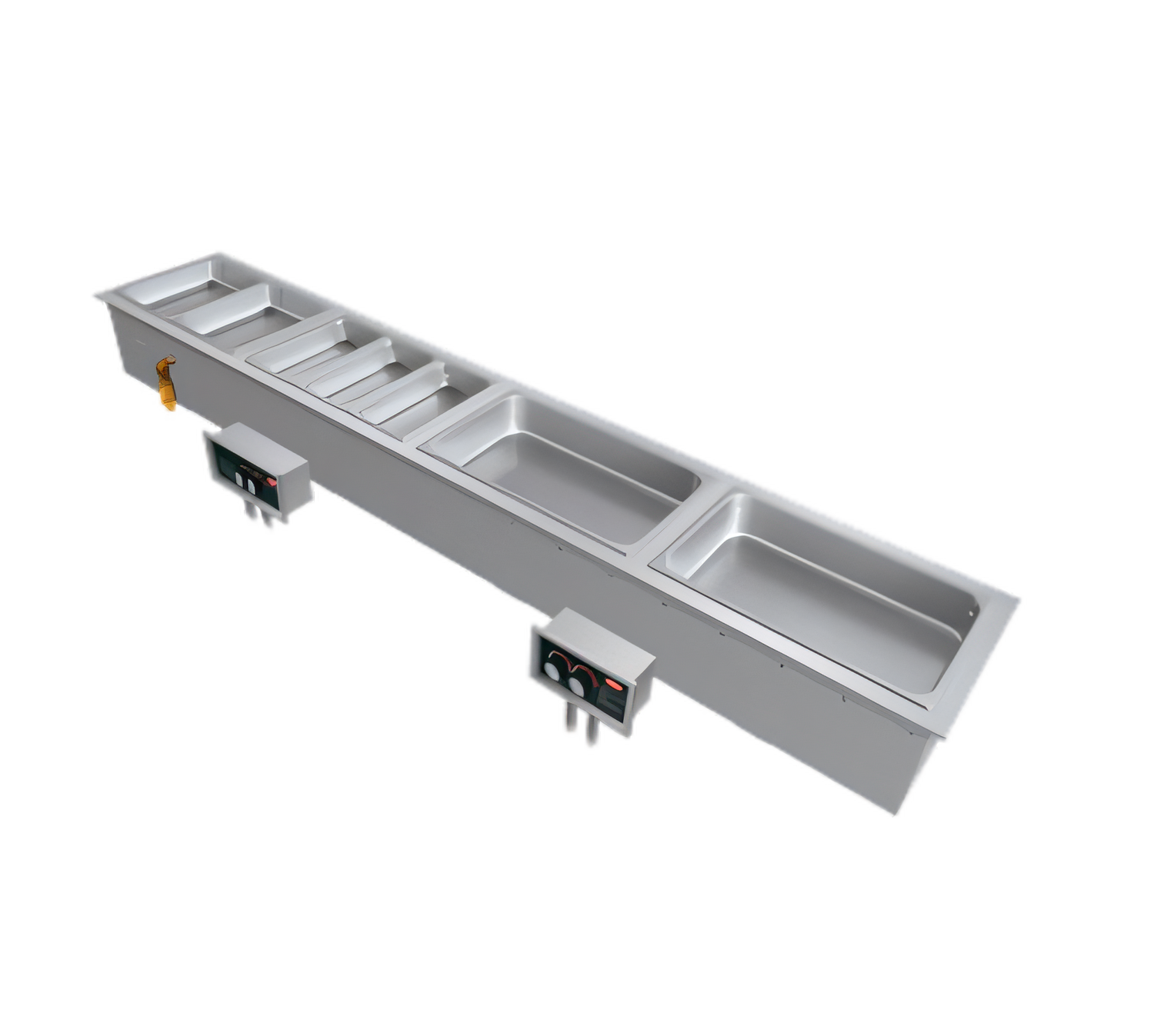

Hatco HWBI-S2M Drop-In Modular Slim Heated Well
2 Full-Size Pan Capacity • Manifold Drain • Remote ThermostatBuild a streamlined, high-performance buffet line with the Made-in-USA Hatco HWBI-S2M. This top-mounted, fully-insulated slim well keeps two 12 × 20 in pans of entrées, sides or sauces at safe-serving temperatures—wet or dry—while its single 1 in NPT manifold drain makes end-of-service cleanup fast and frustration-free.
Key Advantages
- Space-saving slim profile holds (2) full-size pans lengthwise for easy reach under sneeze guards.
- Remote control box with lighted rocker On/Off switch & individual thermostat delivers pinpoint temperature control and keeps electronics away from heat and spills.
- Wet or dry operation – no water required for short service periods, yet fully compatible with steam-table use.
- 1 in manifold drain (50 % larger than standard) empties both wells through a single outlet; flat screen prevents food debris from clogging.
- Fully-insulated sides & bottom improve energy efficiency and keep surrounding surfaces cooler for customer and staff safety.
- Rugged stainless-steel well with aluminized outer housing and solid-brazed fittings built to withstand daily commercial use.
- Quick pre-heat and recovery for minimized down-time between meal periods.
- 6 ft (1829 mm) flexible conduit supplied for convenient placement of the control box.
- Backed by Hatco’s 24/7 parts & service network.
Specifications
| Model | HWBI-S2M (manifold drain) |
|---|---|
| Pan Capacity | 2 × full-size (12 in × 20 in) – accepts half, third & other fractional pans with optional adapters |
| Overall Dimensions | 45.5 in W × 15.625 in D × 9.56 in H (1156 × 397 × 243 mm) |
| Countertop Cut-out | 44.125–44.375 in W × 14.25–14.5 in D (1121–1127 mm W × 362–368 mm D) |
| Drain | 1 in NPT brass manifold, side-exit (field-selectable left or right) |
| Construction | Stainless-steel well, aluminized steel housing, EZ-Lock mounting hardware |
| Electrical |
2.4 kW, 208–240 V, single or three-phase (field-convertible) 11–12 A @ 208 V | 10 A @ 240 V |
| Controls | Remote mechanical thermostat (608 °F capillary) with separate lighted power switch |
| Certifications | cULus, UL EPH Classified, CE |
| Shipping Weight | ≈ 86 lb (39 kg) |
| Country of Origin | Made in the USA |
Popular Add-Ons (sold separately)
- Full-size and fractional stainless-steel pans (2.5 – 6 in deep).
- Swanstone® simulated-stone pan covers that convert the well into a heated shelf for off-hour merchandising.
- 12 in or 20 in support bars for ganged or mixed-size pan layouts.
- Ball or gate valves, food-safe hose kits, and heated well remote drain handles.
Pans, lids, valves and other accessories are shown for illustration only and must be ordered separately. Always verify electrical and cut-out requirements with a qualified professional before installation.
