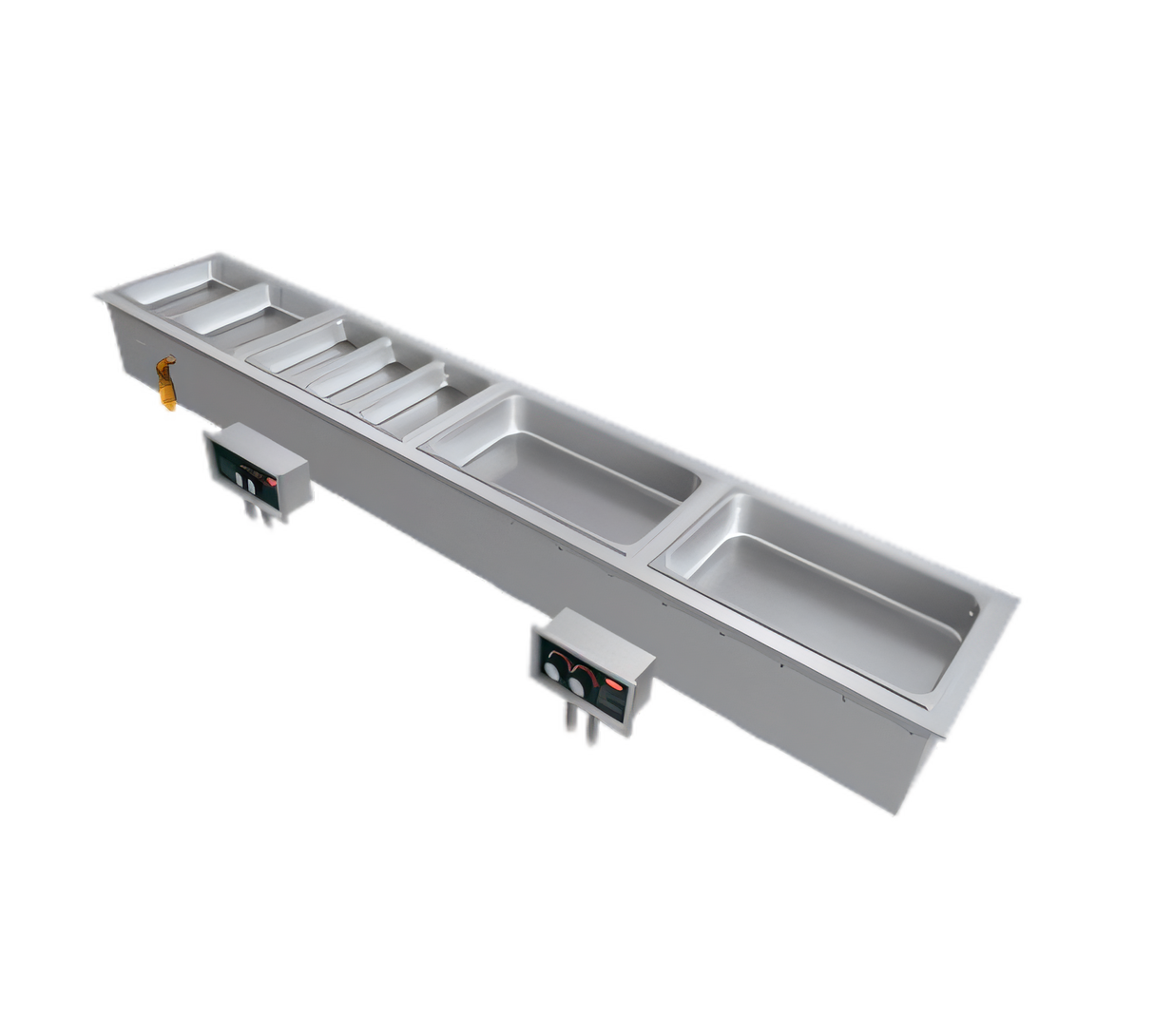

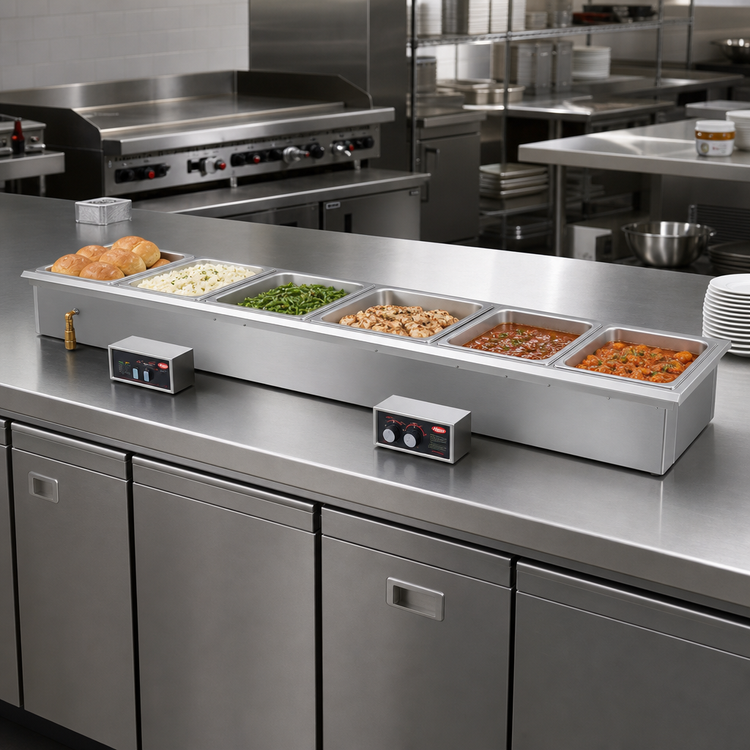

Hatco HWBI-S2D Drop-In Modular Slim Heated Well with Drains, 2 Full-Size Pan Capacity

Insulated, Wet or Dry Operation, 208V, 3-Phase

Keep two full-size pans hot and ready in a slim, drop-in design built for flexible wet or dry service.

  • Holds two full-size 12 x 20 inch pans in a lengthwise slim footprint.
  • Fully insulated sides and bottom improve heat retention and help keep surrounding surfaces cooler.
  • Designed for wet or dry operation to fit a wide range of buffet setups.
  • Top-mounted remote thermostat and separate power switch make temperature control simple.
  • Large drain with flat screen helps speed cleaning and keep pans level.
  • 208V, 3-phase model made in the USA.

Overall Dimensions:

45.5"W x 15.63"D x 9.48"H

Product Weight:

81.0 lb

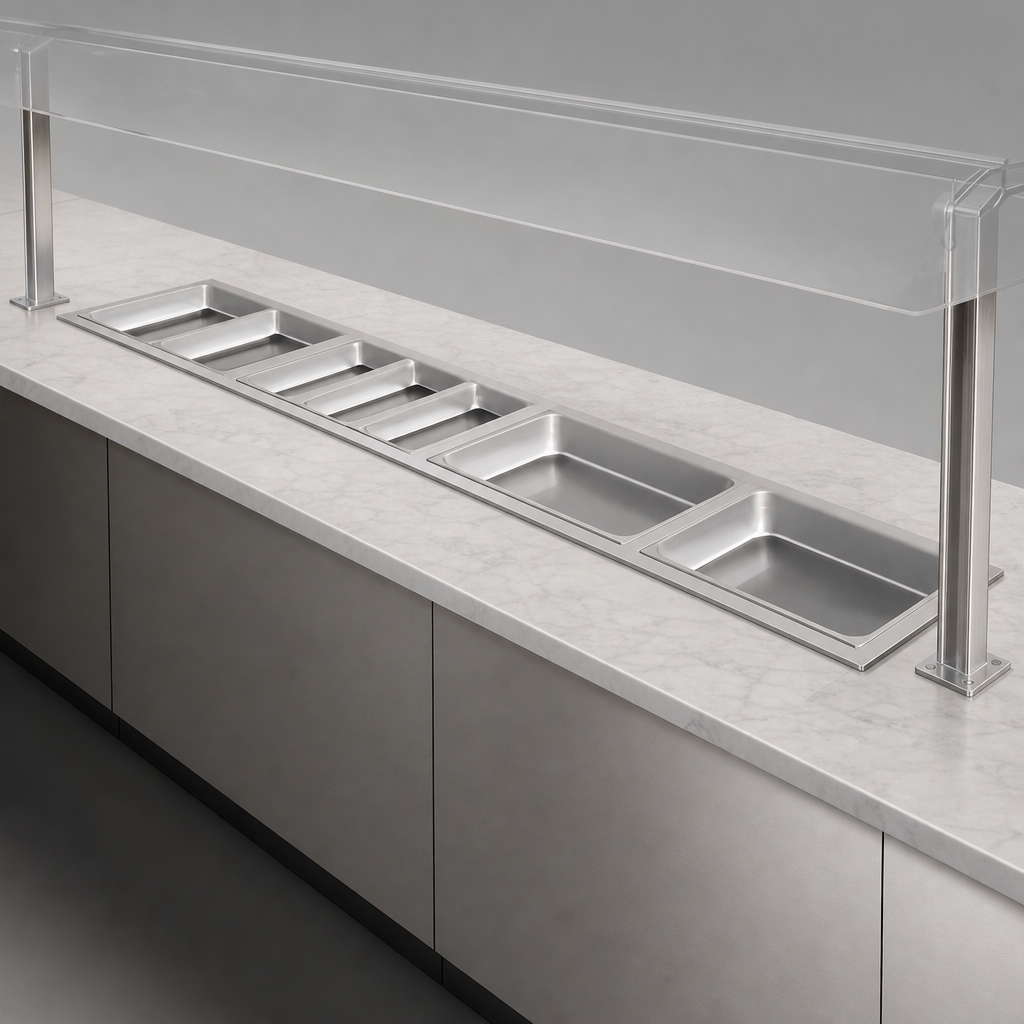

Slim Modular Drop-In Design

Lengthwise full-size wells create a compact, integrated look for buffet and steam table lines.

Fully Insulated Construction

Insulated sides and bottom improve heat retention and help keep adjacent surfaces cooler.

Wet or Dry Operation

Designed for either wet or dry use so the well can match the needs of your service style.

Top-Mounted Remote Controls

Includes a remote thermostat with a separate lighted power switch and temperature dial for straightforward operation.

Large Drain with Flat Screen

A larger drain opening simplifies emptying and cleaning while the flat screen helps keep pans level.

Stainless Steel and Aluminized Construction

Stainless steel well construction with an aluminized steel housing supports durability in demanding service.

Easy Service Access

Heating elements and thermostats are accessible for easier maintenance.

6-Foot Control Conduit Included

Included conduit provides convenient placement of the control box.

Made in USA

Manufactured in the United States.

Type Heated Well
Style Individual Pans
Installation Type Drop-In
Pan Capacity 2 Full-Size Pans
Pan Size 12 x 20 Inches
Controls Thermostatic
Material Stainless Steel
Voltage 208 Volts
Amps 10.1 Amps
Phase 3-Phase
Plug Type Not Available
Country of Origin USA
Shipping Width 46 Inches
Shipping Depth 16 Inches
Shipping Height 10 Inches
Shipping Weight 81 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

24/7 parts and service assistance

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Parts list PDF Download PDF Assembly instructions PDF Download PDF Color chart PDF Download PDF Catalog brochure PDF Download

Frequently Asked Questions

It is designed for two full-size pans.
It is sized for full-size pans measuring 12 x 20 inches.
Yes, it is designed for both wet and dry operation.
Yes, it includes a drain with a flat screen to simplify cleaning and help keep pans level.
The HWBI-S2D is rated 208 volts, 3-phase, and 10.1 amps, with no plug available.
For the HWBI-S2 series, the cutout width is 44.125 to 44.375 inches and the cutout depth is 14.25 to 14.50 inches.
