Hatco  |  SKU: HWBI-7QTDA

Hatco HWBI-7QTDA Steam Tables & Food Wells

$1,228.80
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

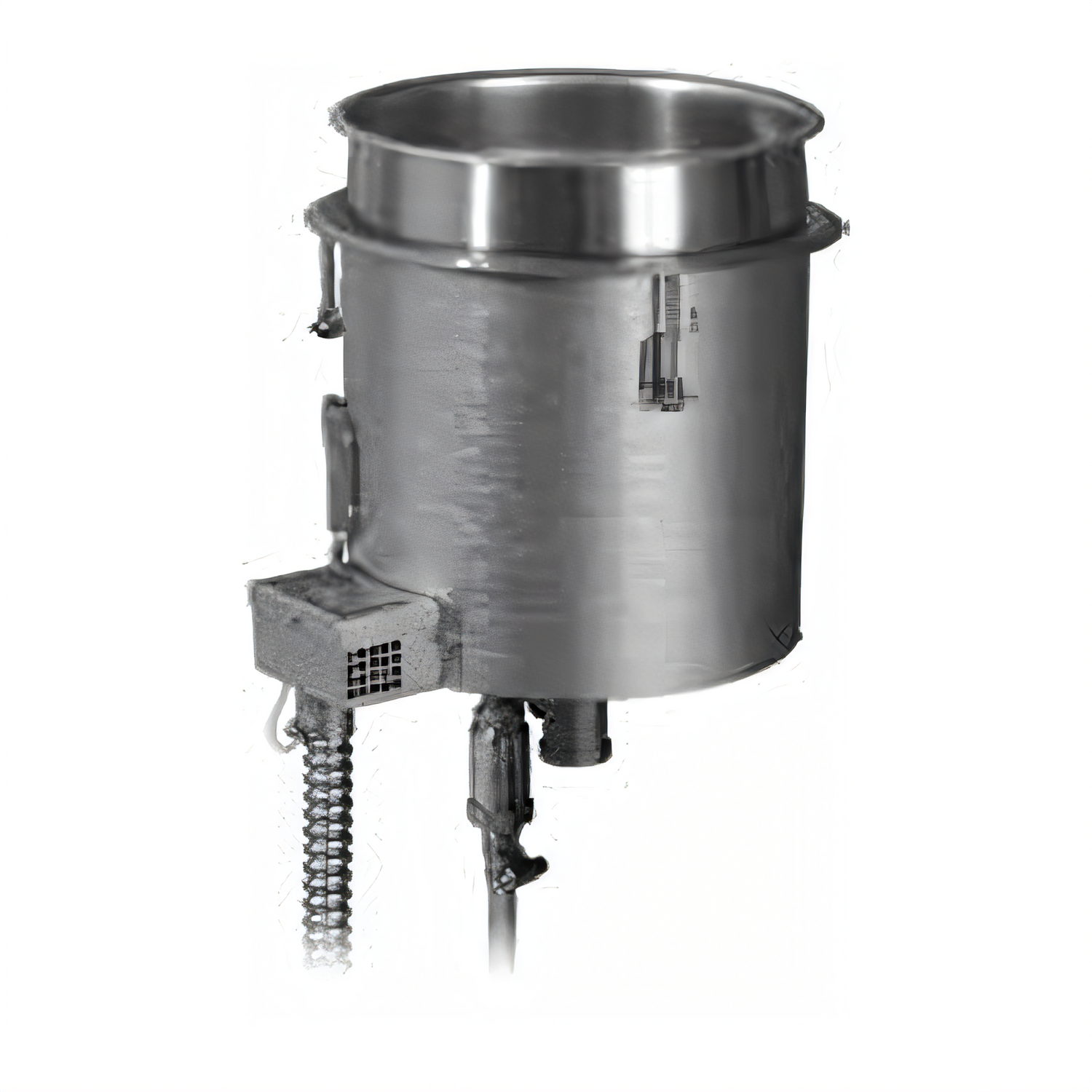

Hatco HWBI-7QTDA Drop-In Insulated Heated Well

7 qt • Auto-Fill & Drain • Top-Mounted • Stainless Steel

Boost holding capacity and cut labor with the only 7-quart round well that automatically maintains its water level, drains in seconds, and delivers Hatco’s legendary temperature accuracy. Built for wet or dry operation, the HWBI-7QTDA keeps soups, sauces, gravies and sides at perfect serving temperature while protecting your countertop and your bottom line.

Why you’ll love it
  • Auto-Fill system connects to a ¼″ NPT water line so the well never runs dry or scorches your food.
  • Built-in ¾″ NPT drain valve speeds end-of-day cleanup—just open, rinse, done.
  • Self-adjusting thermostat senses well temperature and applies heat only when needed, saving energy.
  • Separate lighted ON/OFF rocker switch and temperature dial make operation fool-proof.
  • Fully insulated, all-stainless construction keeps heat where it belongs and stays cool to the touch above counter.
  • Designed for both wet and dry holding—ideal for soups, chili, queso, oatmeal, dessert sauces and more.
  • Remote control box mounts under the counter for a clean, guest-facing presentation.
  • CE, cULus & UL EPH Classified for worldwide electrical and sanitation compliance.
  • Proudly engineered & built in Wisconsin, USA.
Specifications
Model HWBI-7QTDA (standard watt)
Capacity 7 qt (7 L) round inset
Overall Size (Ø × H) 10.31″ × 9.71″ (262 mm × 247 mm)
Countertop Cut-out
(non-combustible)
Ø 9.38″–9.56″ (239–242 mm)
Countertop Cut-out
(combustible*)
Square 11″–11.25″ (279–286 mm)
Electrical 120 V / 515 W / 4.3 A (standard)
208 V / 551 W / 2.6 A • 240 V / 615 W / 2.6 A available
Plug Hard-wired (optional NEMA 5-15P cord set for 120 V)
Water Connections Auto-Fill inlet ¼″ NPT • Drain ¾″ NPT
Listings CE • cULus • UL EPH Classified
Shipping Weight 15 lb (6.8 kg)
Country of Origin Made in USA

*Mounting kit required for combustible or extra-thick countertops (sold separately).

Recommended accessories
  • 7-qt stainless-steel food pan (smooth rim, notched or hinged lid)
  • Designer-color control bezels to match your décor
  • Combustible-countertop mounting kit
Installation note: This is a built-in commercial appliance. Professional installation in accordance with local electrical and plumbing codes is required.

Features & Specs

Manufacturer

Hatco

Certifications

CE, cULus, UL EPH Classified, Made in USA

Height

9.71in

Width

10.31in

Depth

10.31in

Shipping Weight

15.0lbs

Pan Capacity

(1) 7 qt round

Insulated or Non-Insulated

insulated

Style

individual pans

Controls

thermostatic controls

Drain

with drain

Wet or Dry operation

wet or dry

Construction

stainless steel construction

Specifications

Drop-In Heated Well, with drain & auto fill, round, insulated, 7 quart, top mounted, separate lighted on/off rocker switch & temperature dial, stainless steel construction (standard wattage), CE, cUL, UL EPH Classified, MADE IN USA
