Hatco HWBI-6MA Steam Tables & Food Wells
Description

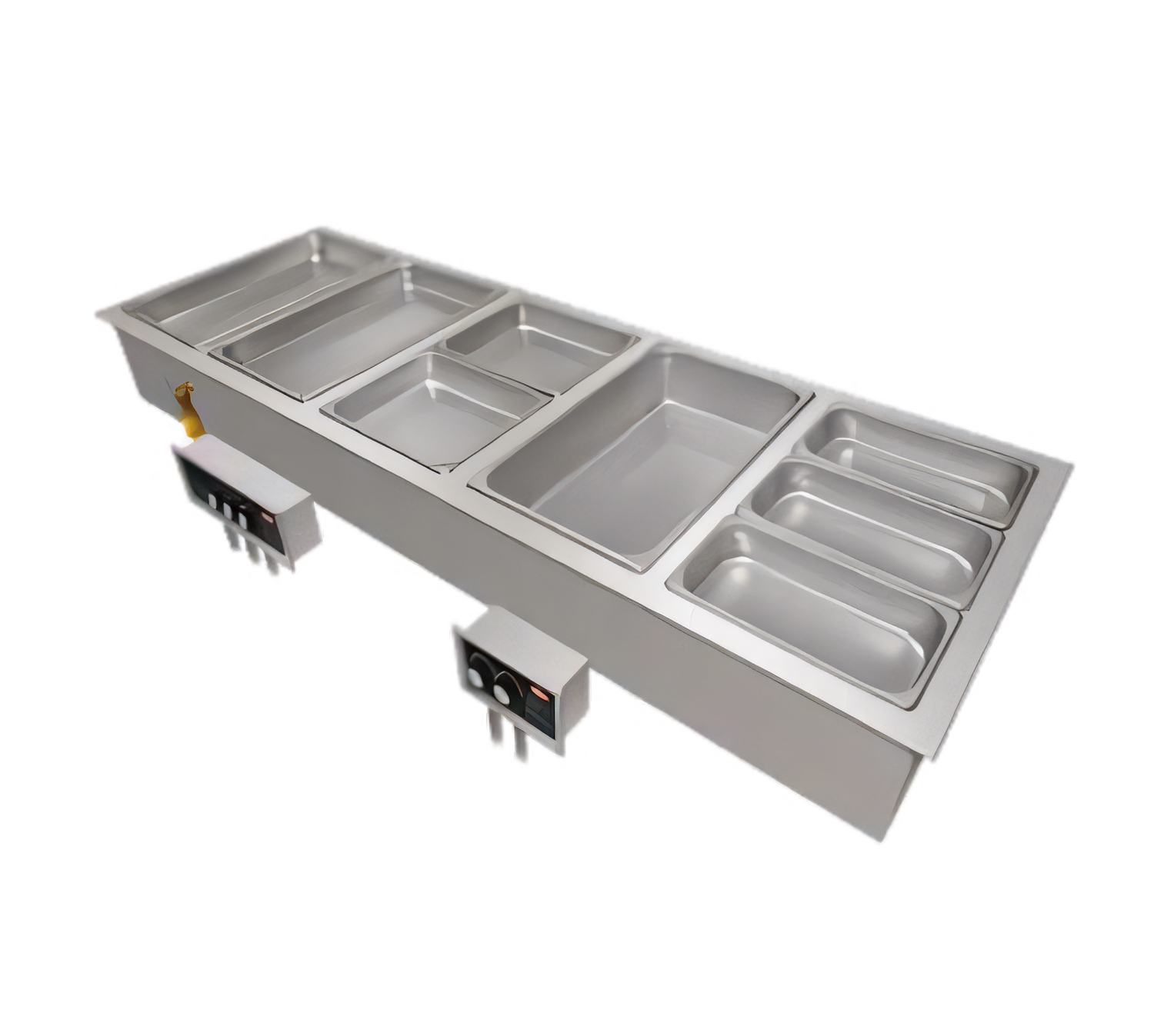

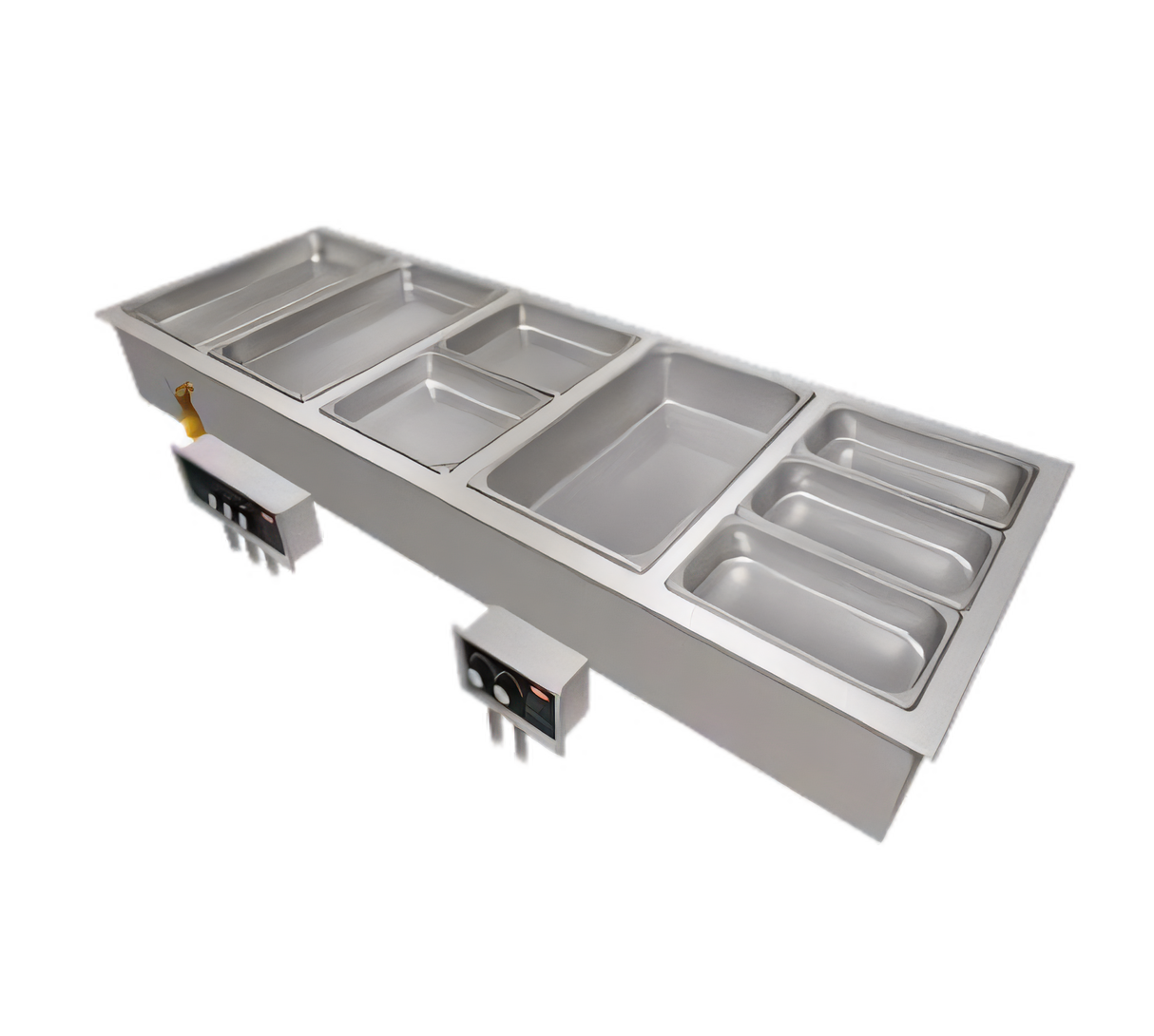

Hatco HWBI-6MA Drop-In Modular/Ganged Heated Well

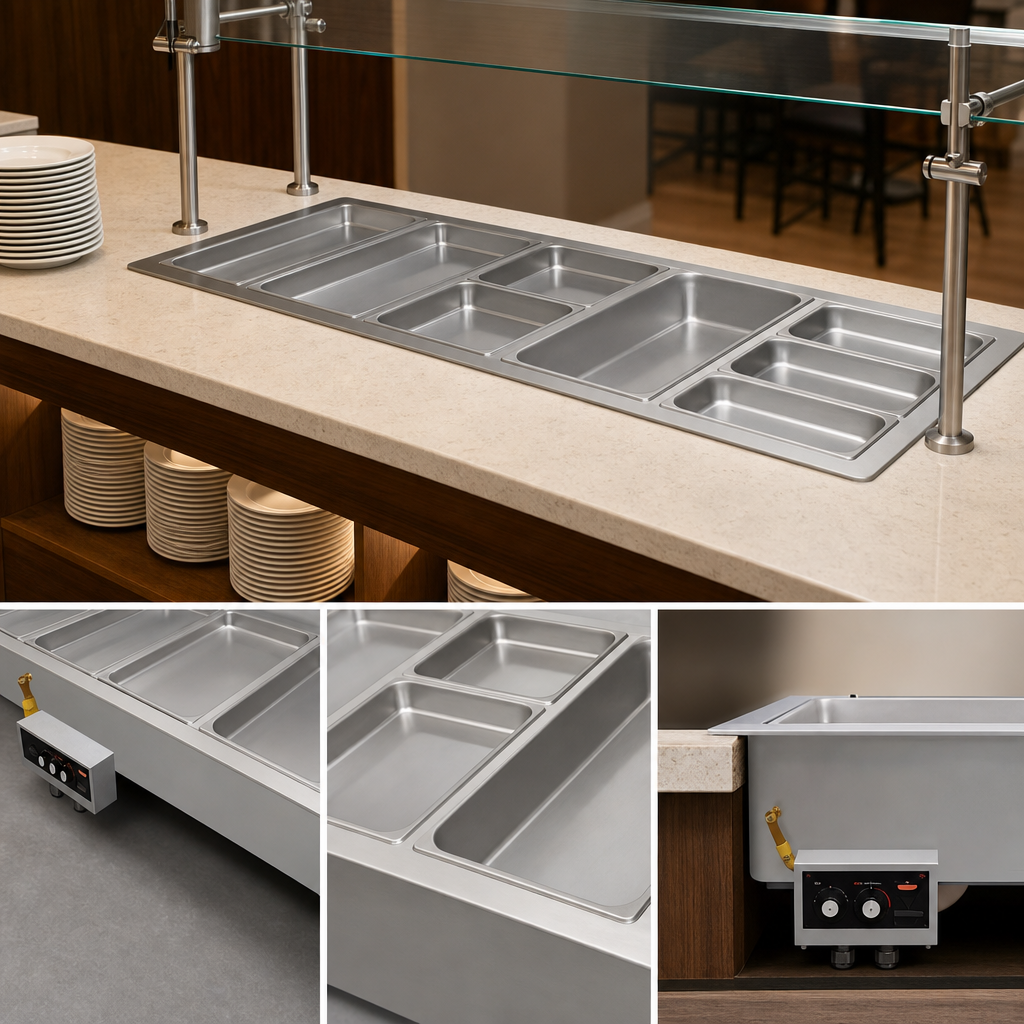

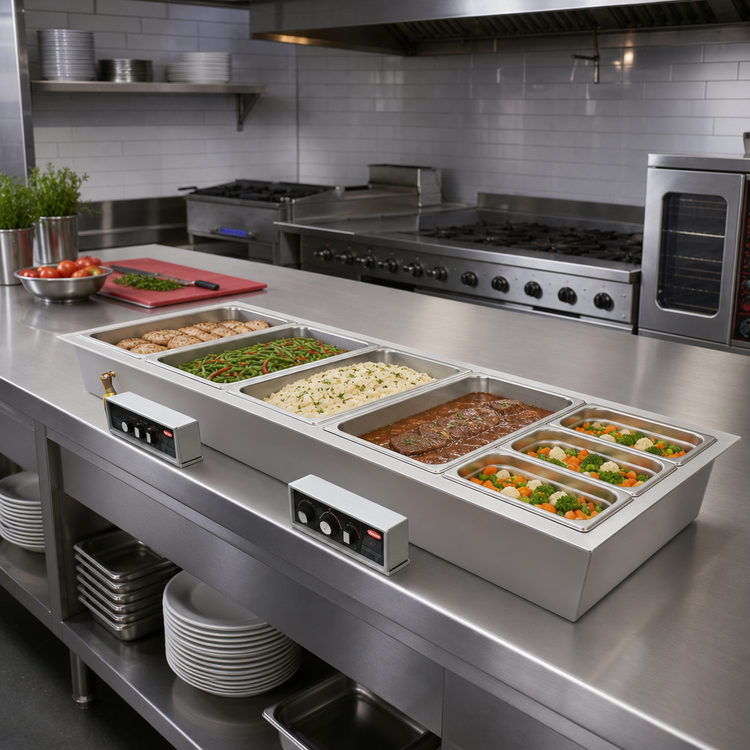

6 Full-Size Wells • Auto-Fill & Manifold Drains • Made in USABuild a seamless, high-capacity steam table in a single cut-out. The Hatco HWBI-6MA combines six independently controlled, full-size wells with automatic water fill and a copper manifold drain—delivering precise temperature holding, faster clean-up and a sleek, integrated look for any buffet line or serving station.
Why You’ll Love It
- Six insulated 12" × 20" wells hold entrées, sides or sauces at safe serving temps.
- Auto-fill system keeps water levels constant—no manual refilling or hot-spot worries.
- 1" NPT copper manifold drain with individual shut-off valves makes end-of-day draining quick and mess-free.
- Remote thermostats with lighted power switches give each well its own temperature dial for pinpoint control.
- EZ-Lock mounting hardware lets one person drop the unit into a counter—no silicone beads or through-studs required.
- 50 % larger flat-screen drains prevent clogging and keep pans perfectly level.
- Durable stainless-steel top and aluminized steel housing stand up to daily commercial use.
- Fully certified (cULus, UL EPH, CE) and backed by 24/7 parts & service support.
Perfect For
- Cafeterias & school lunch lines
- Hotel breakfast buffets
- C-store & grocery hot bars
- Catering, banquet & corporate dining operations
Technical Specs
| Model | HWBI-6MA (Standard Watt) |
|---|---|
| Pan Capacity | 6 × Full-Size (12" × 20") steam table pans |
| Exterior Dimensions | ≈ 85.5" W × 23.63" D × 9.56" H (2172 × 600 × 243 mm) |
| Installation | Top-mount drop-in with EZ-Lock tabs |
| Water Fill | Automatic, factory plumbed |
| Drain | 1" NPT copper manifold, side or bottom exit, individual shut-offs |
| Controls | Remote panel; separate lighted On/Off switch & thermostat per well |
| Construction | Stainless-steel deck; aluminized steel body; brazed drain fittings |
| Electrical | 208–240 V; single or three phase (consult wiring chart) |
| Certifications | cULus • UL EPH Classified • CE |
| Origin | Made in USA |
Popular Accessories
- Swanstone® simulated-stone well covers (convert wells to a heated shelf in dry mode)
- Stainless or plated wire trivets (half & full size)
- Round pan adapters for two 4 qt or two 7 qt inserts
- Full, half & third-size stainless-steel food pans
- Remote drain handle for ¾" drains
Need a different footprint? Hatco modular wells are available in 1- to 6-pan configurations with or without drains and auto-fill—contact us for a tailored quote.
