Hatco HWBI-6M Steam Tables & Food Wells
Description

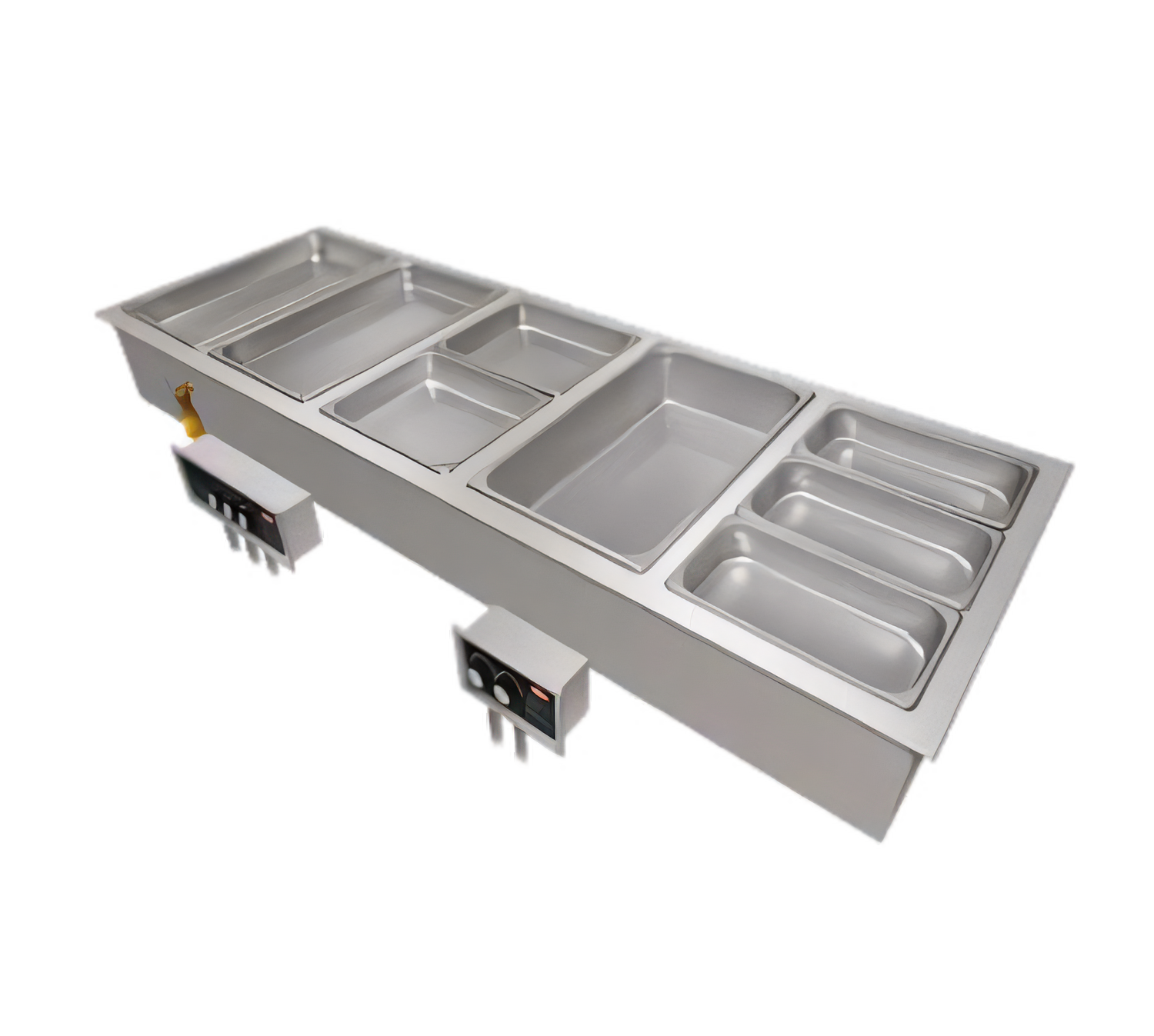

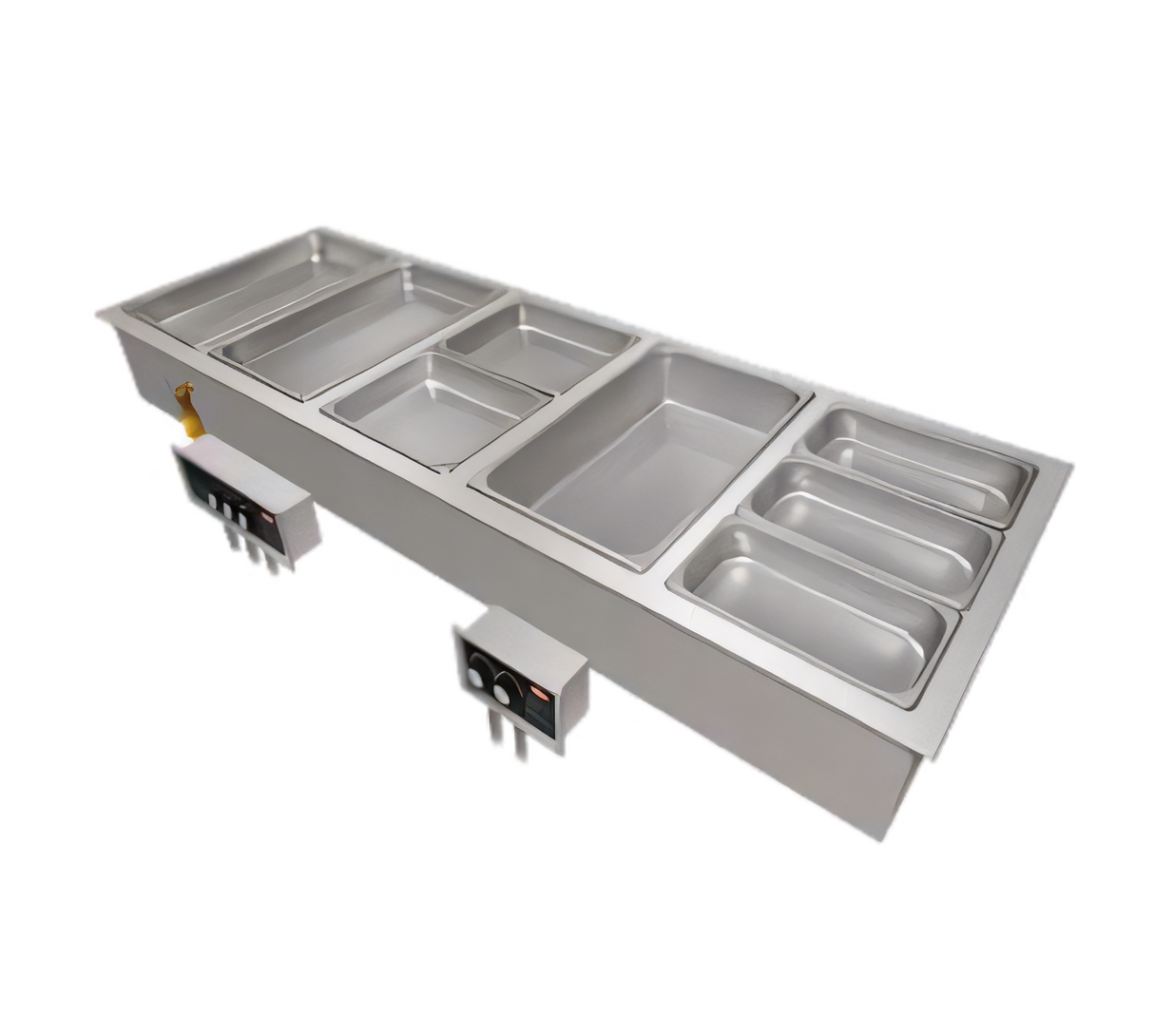

Hatco Drop-In Modular/Ganged Heated Well – 6 Pan w/ Manifold Drain
Model: HWBI-6M | Standard-Watt | Made in USAMaximize buffet performance and minimize installation time with Hatco’s largest modular heated well. Six individually controlled, full-size wells are factory-ganged into one seamless drop-in unit, giving you the capacity and precision you need for high-volume service without cluttering your counter.
Why you’ll love it
- Capacity for six 12 × 20 in. (GN 1/1) pans up to 6 in. deep.
- Remote thermostat & separate lighted power switch for each well—hold multiple menu items at their ideal serving temperature.
- 1 in. copper manifold drain with single shut-off valve simplifies daily draining and clean-up.
- Factory-installed fiberglass insulation around and between wells reduces heat loss and energy costs.
- EZ-Lock mounting tabs plus included gasket allow a fast, tool-free, silicone-free installation.
- 50 % larger flat-screen drain openings keep pans level and catch debris.
- Field-replaceable heating elements and thermostats keep downtime (and service calls) to a minimum.
- Rugged stainless steel top and aluminized steel body resist corrosion in the toughest kitchen environments.
- 6 ft (1829 mm) flexible conduit gives you freedom to mount the control box exactly where you need it.
Technical specifications
| Overall dimensions (W × D × H) | 85.5 × 23.63 × 9.56 in. (2172 × 600 × 243 mm) |
|---|---|
| Installation | Top-mounted, drop-in with EZ-Lock tabs & factory gasket |
| Well capacity | 6 full-size pans (12 × 20 in.) — wet or dry operation |
| Wattage / Voltage | 7,215 W @ 208 V single-phase (standard-watt) 208–240 V and export voltages available |
| Drain | 1 in. NPT copper manifold, side or bottom outlet (field selectable) |
| Controls | Remote thermostatic control box with illuminated rocker switch for each well |
| Temperature range | 140 – 212 °F (60 – 100 °C) holding |
| Construction | 18-ga stainless steel wells & bezel, aluminized steel housing |
| Certifications | CE • cULus • UL EPH Classified (NSF/ANSI Std 4) |
| Ship weight | ≈ 189 lb (86 kg) |
| Country of origin | USA |
Popular accessories (sold separately)
- Swanstone® simulated-stone well covers (Night Sky, Gray Granite or Bermuda Sand).
- Full-, half-, and third-size stainless steel food pans.
- Round pan adapters & hinged lids (4 qt & 7 qt).
- External shut-off valve kits for remote drain control.
- Split control boxes, three-phase wiring and auto-fill kits for special installations.
Need a specific voltage, bezel depth or mounting style? Hatco builds every modular well to order—contact us for a custom configuration and lead time.
