Hatco HWBI-6DA Steam Tables & Food Wells
Hatco HWBI-6DA Steam Tables & Food Wells is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Hatco HWBI-6DA Steam Tables & Food Wells
Description

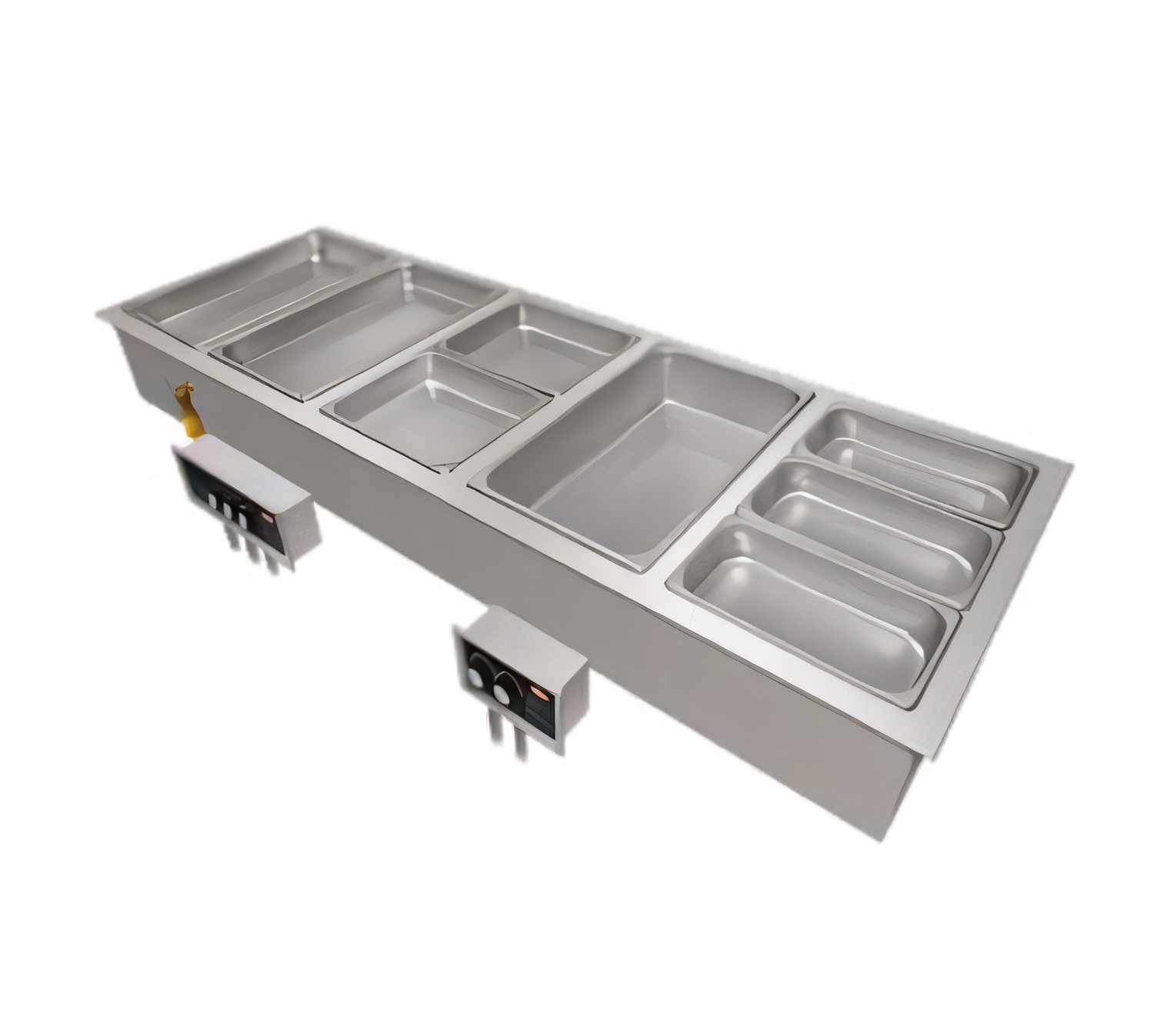

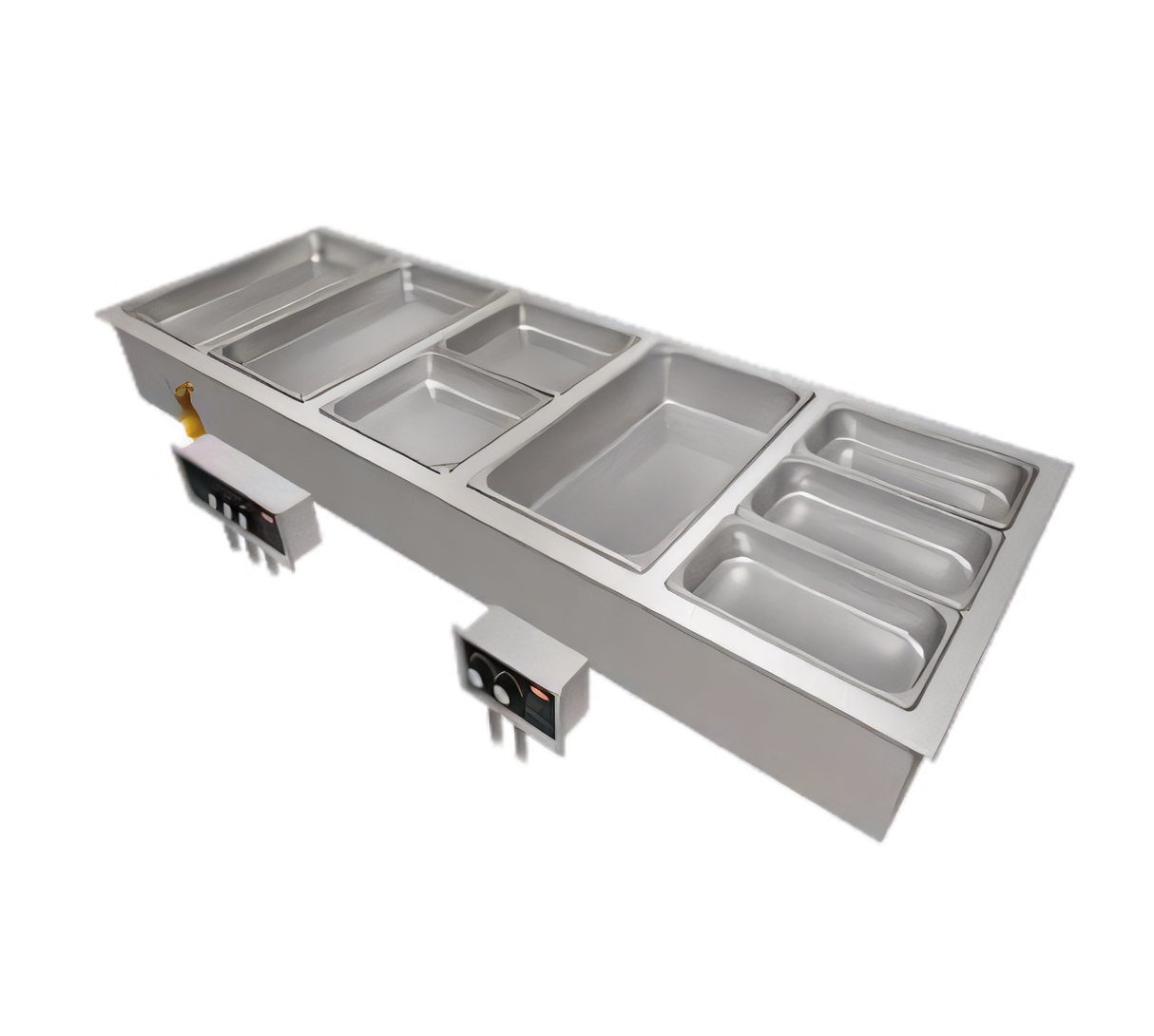

Hatco HWBI-6DA Drop-In Modular / Ganged Heated Well
6-Pan | Auto-Fill & Integrated Drains | Remote ThermostatBuild a continuous, professional steam table without the headache of separate wells. The Hatco HWBI-6DA is a factory-ganged, six-pan heated well that drops cleanly into your counter, keeps food at safe serving temperatures and automatically maintains its water level—all while giving you individual control of every pan.
Why You’ll Love It

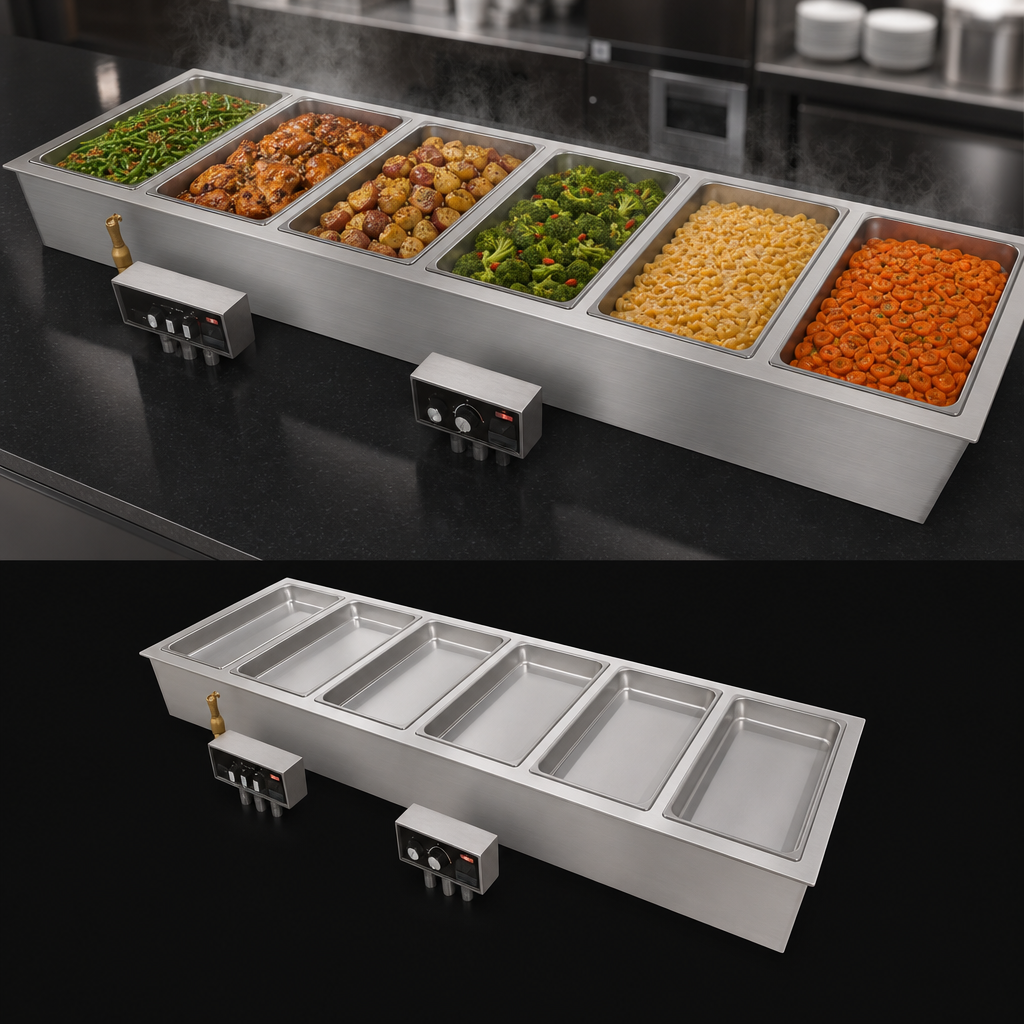

- Six full-size wells (12" × 20") deliver the capacity of a 6-ft steam table in one seamless unit.
- Auto-fill system maintains proper water level so staff can focus on guests, not buckets.
- Oversized ¾" drains with flat strainers speed clean-up and keep pans perfectly level.
- Independent controls – each well has its own lighted On/Off rocker and thermostat dial for pinpoint holding temps.
- EZ-Lock mounting hardware (included) lets one person secure the well from the top in minutes.
- Service-friendly design allows elements or thermostats to be changed from above the counter.
- Fully insulated stainless-steel wells and aluminized outer housing maximize energy efficiency and durability.
- Comes pre-wired with a 6' (1829 mm) flexible conduit for convenient control-box placement.
- Made in the USA and listed to CE, cULus & UL EPH for sanitation.
Perfect For
- Cafeterias & buffets
- Quick-service & fast-casual restaurants
- Hotels, casinos & catered banquet lines
- Supermarkets & deli hot bars
Technical Specs
| Model | HWBI-6DA (Standard Watt) |
|---|---|
| Pan Capacity | 6 × Full Size (12" × 20") – accepts fractional pans with adapters |
| Overall Dimensions | 85.5" W × 23.63" D × 9.56" H (2172 × 600 × 243 mm) |
| Countertop Cut-Out | Min 84.125" W × 22.25" D | Max 84.375" W × 22.5" D* |
| Electrical | 208 / 220-240 V, single or three-phase • 7,215 W (standard watt) Field-wired; plug not supplied |
| Drain Size | ¾" NPT brass drain per well |
| Auto-Fill Connection | ³⁄₈" O.D. water inlet (1 bar / 15 psi min.) |
| Construction | 18-ga stainless steel wells, aluminized steel outer housing, solid-brazed drain fittings |
| Ship Weight | ≈ 189 – 195 lb (86 – 89 kg) |
| Certifications | CE • cULus • UL EPH Classified • Made in USA |
*Add ⅛" to maximum width when using EZ-Lock mounting tabs.
Optional Accessories (sold separately)
- Heated well covers with Swanstone® simulated-stone tops (1- or 2-pan)
- Stainless steel food pans – third, half or full size (2.5", 4" or 6" deep)
- Round-pan adapters & hinged lids (4 qt or 7 qt)
- Copper drain manifolds with common shut-off
- Support bars for split-pan layouts
This listing reflects the factory-configured HWBI-6DA: standard-watt six-pan unit with drains and auto-fill. Need a different size, wattage or control setup? Contact us for a custom quote.
