Hatco HWBI-6D Steam Tables & Food Wells
Hatco HWBI-6D Steam Tables & Food Wells is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Hatco HWBI-6D Steam Tables & Food Wells
Description

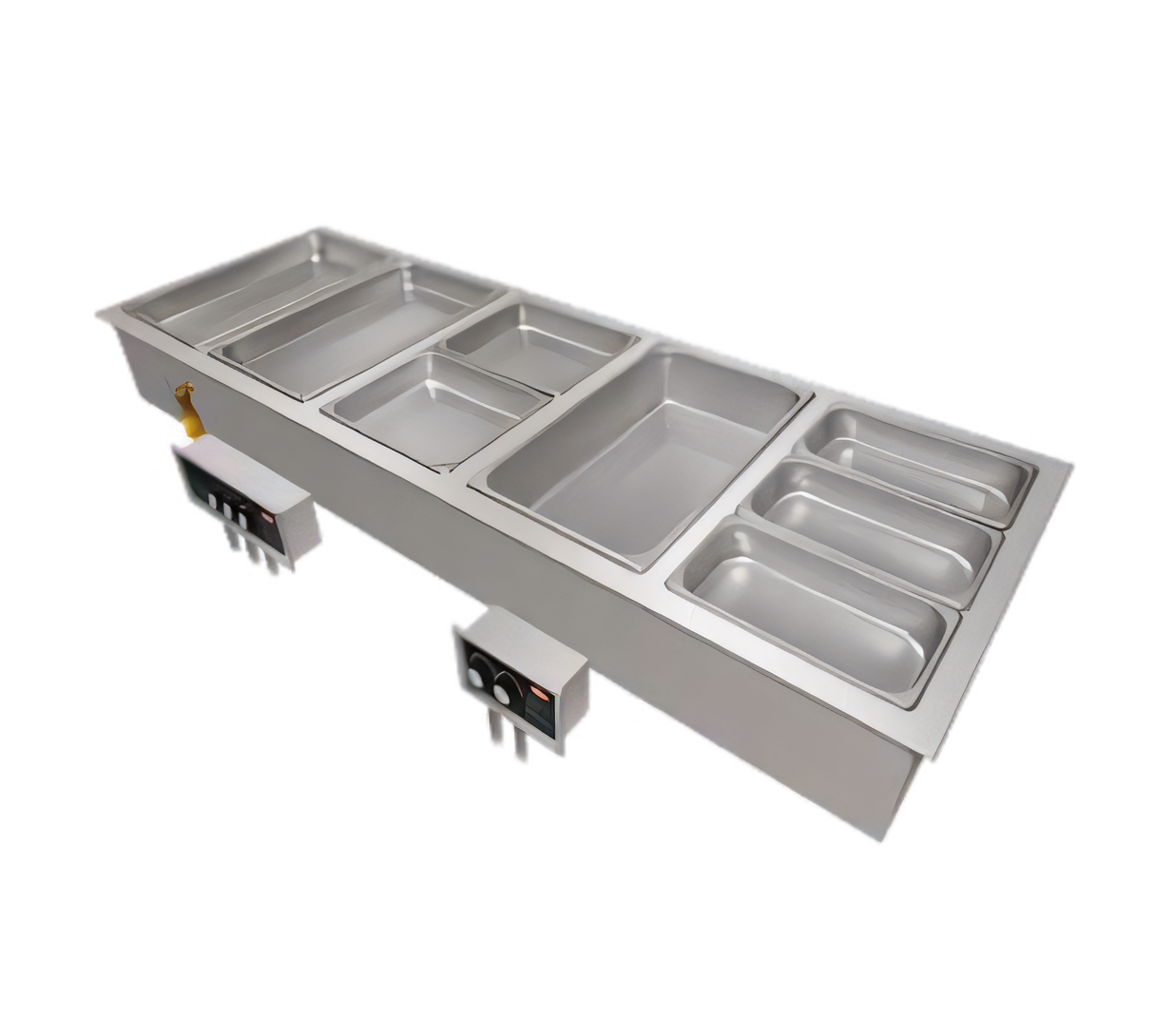

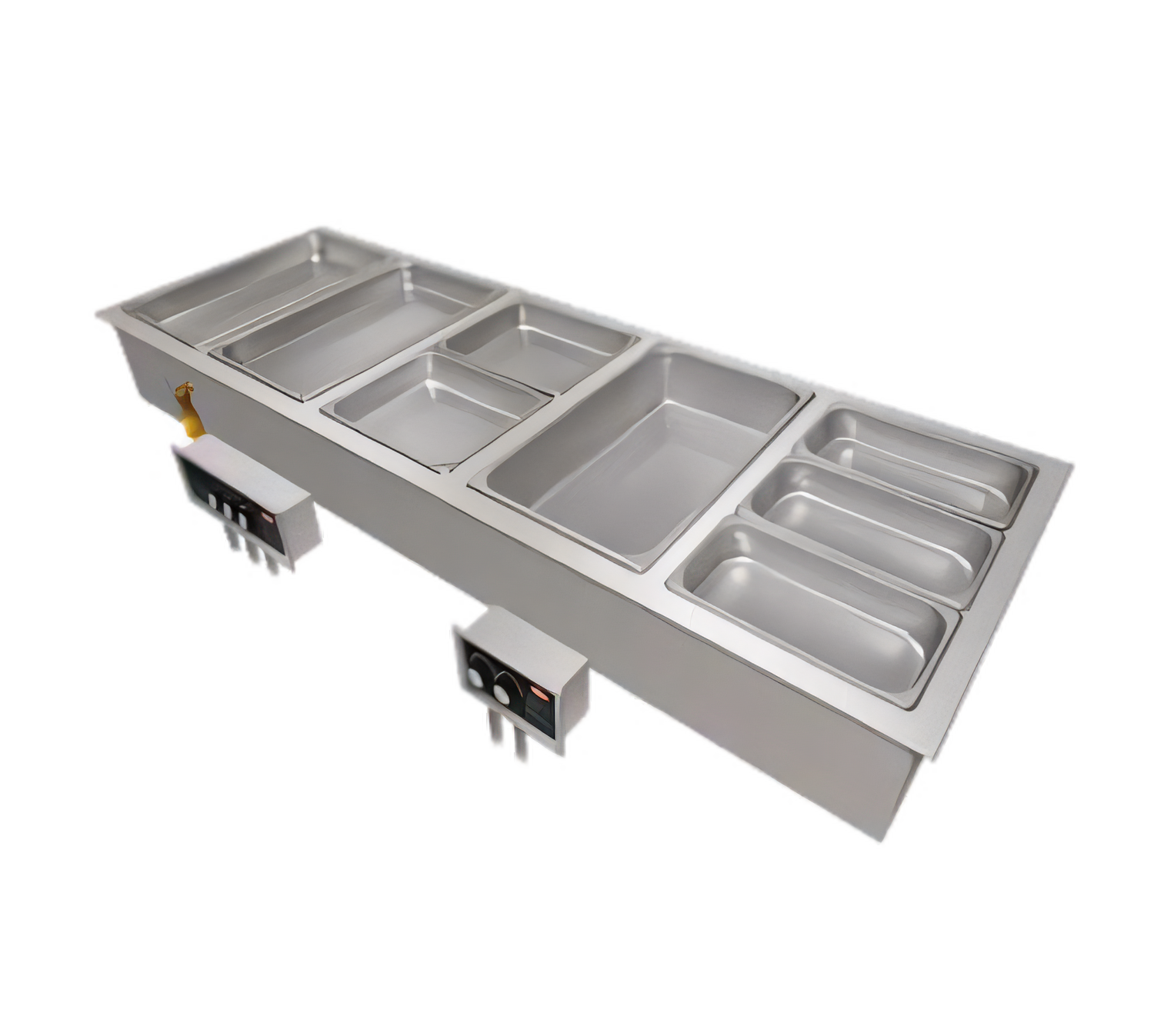

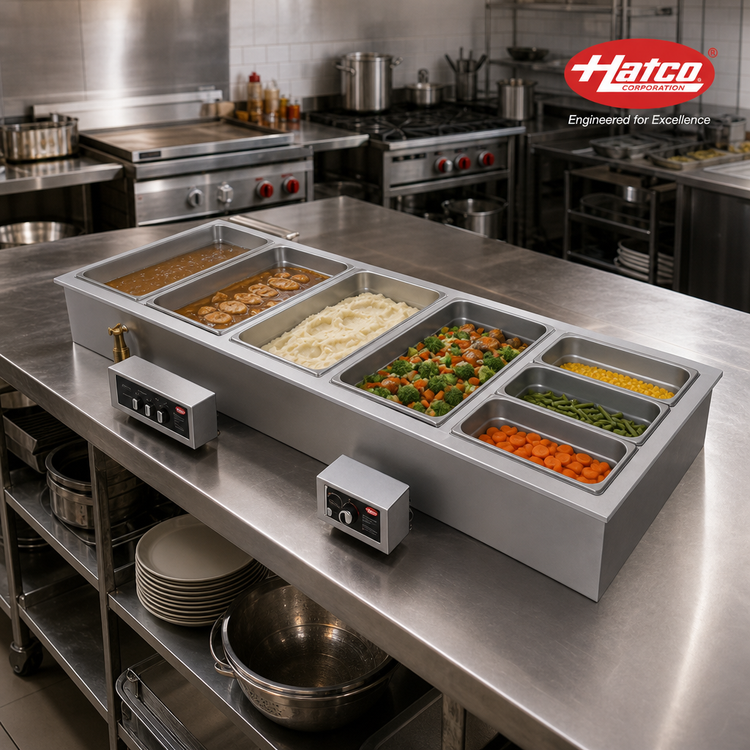

Hatco HWBI-6D Drop-In Modular/Ganged Heated Well
(6) Full-Size Pan Capacity • Individual Drains • Remote ThermostatsGive your hot bar the power and flexibility it deserves with Hatco’s largest modular heated well. The HWBI-6D combines six independently controlled, fully insulated wells into one sleek, top-mount unit—perfect for buffets, supermarkets, cafeterias and any high-volume operation that needs reliable hot holding without sacrificing counter space.
Why You’ll Love It
- Independent remote thermostat & lighted power switch for each well—dial-in precise holding temps on the fly.
- 50 % larger 1" NPT drains with flat screens keep pans level and speed up clean-up.
- Hatco’s EZ Lock™ hardware snaps the unit firmly into the cut-out for a fast, silicone-free install.
- Stainless steel top, aluminized steel housing and solid-brazed drain joints stand up to daily commercial use.
- Quick-service design lets you swap a heating element or thermostat in minutes, minimizing downtime.
- Factory-installed 6 ft (1829 mm) flexible conduit simplifies remote control box placement.
- CE, cULus & NSF/ANSI 4 sanitation listings—ready for any inspection.
- Proudly Made in the USA and backed by Hatco’s world-class support team.
Technical Specs
| Model | HWBI-6D (standard watt) |
|---|---|
| Pan Capacity | 6 × Full Size (12" × 20") / 100 mm max depth |
| Overall Dimensions | 85.5" W × 23.63" D × 9.56" H (2172 × 600 × 243 mm) |
| Mounting Style | Top-mount, flush flange with EZ Lock tabs |

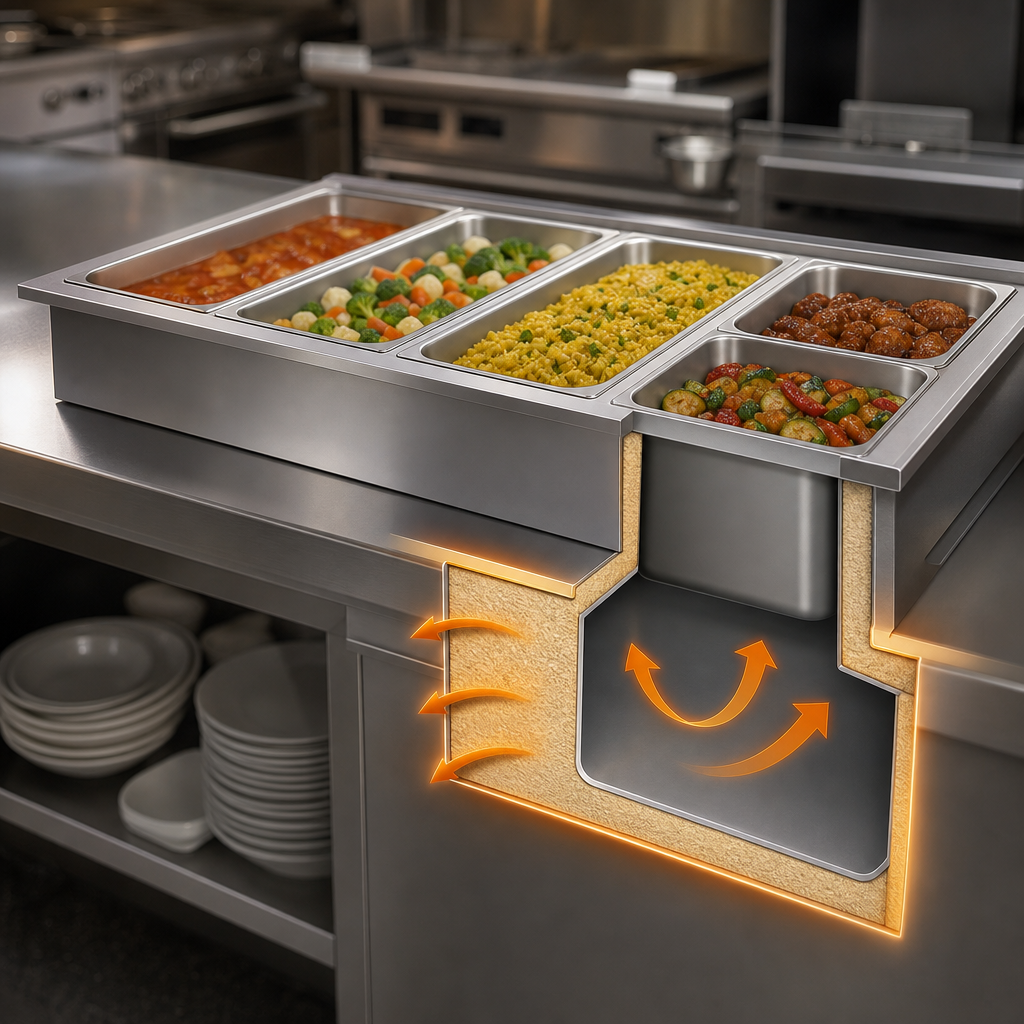

| Construction | Stainless steel top, aluminized steel housing; fully insulated wells |
| Drainage | (6) Individual 1" NPT drains, flat screens included |
| Electrical | 208–240 V, 50/60 Hz, single or three-phase; 7,215 W (240 V, 1-phase) |
| Controls | Remote control box with (6) thermostats & lighted rocker switches |
| Certifications | CE • cULus • UL EPH Classified |
| Origin | Made in USA |
| Ship Weight | ≈ 195 lb (89 kg) |
Perfect Applications
- Full-service or self-serve buffets
- Grocery & convenience store hot bars
- University dining & corporate cafeterias
- Catering lines and commissary kitchens
Electrical connection must be performed by a qualified professional and matched to site voltage/phase. Low-watt and auto-fill versions are available by special order.
