Description

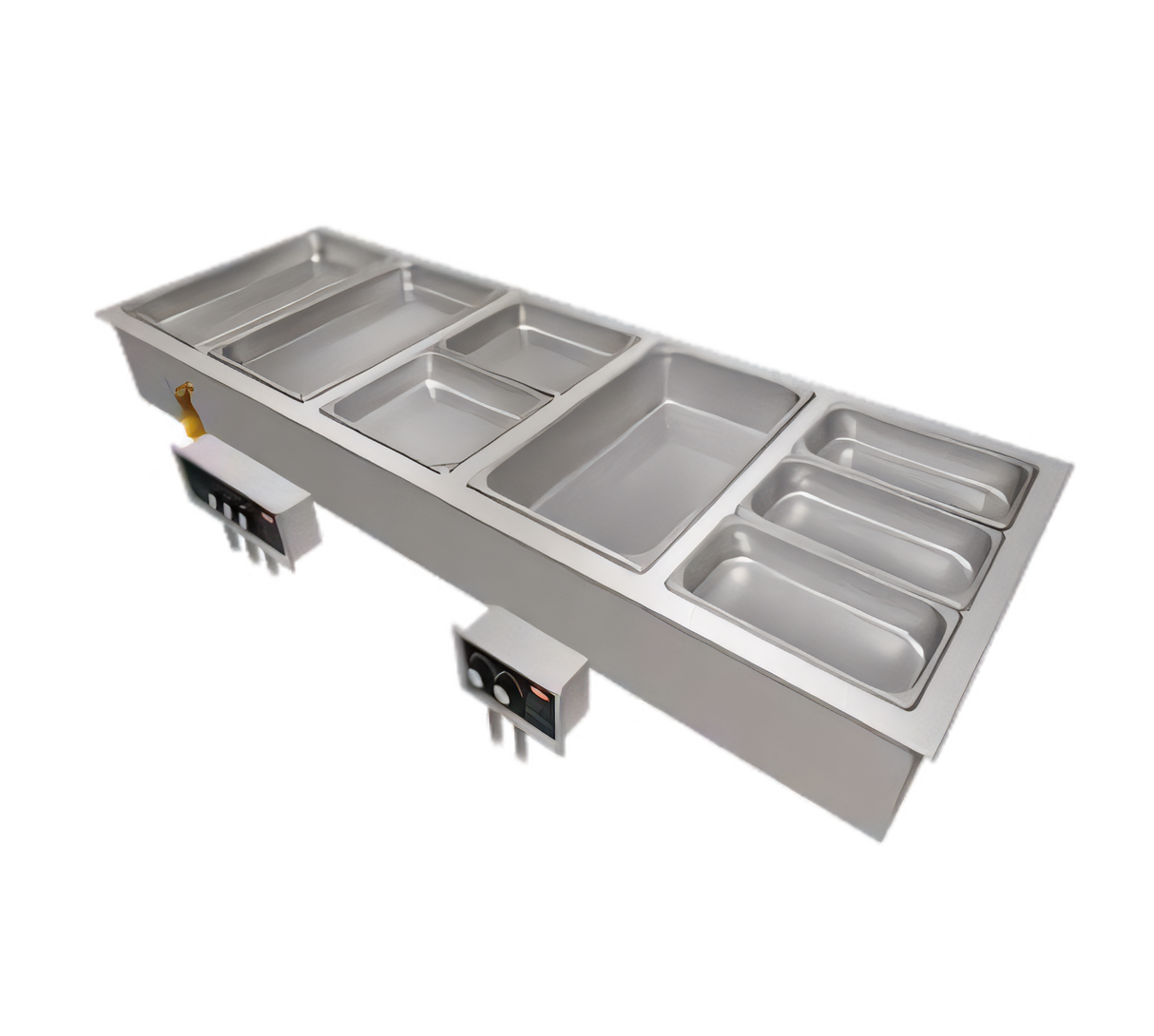

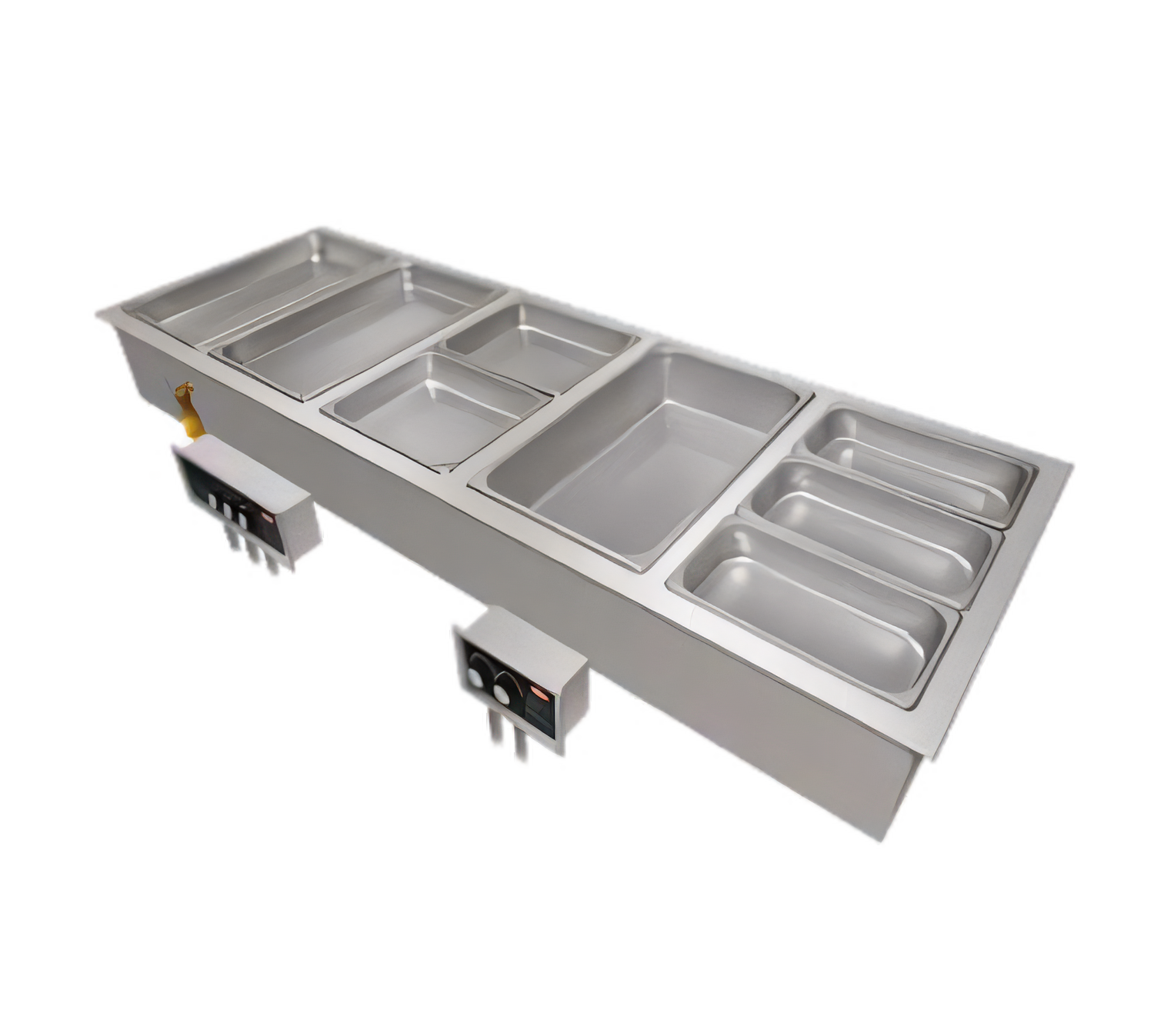

Hatco HWBI-5MA Drop-In Modular/Ganged Heated Well

5-Pan Capacity • Auto-Fill & Manifold Drain • Remote Thermostats

Engineered for high-volume lines and all-day service, Hatco’s HWBI-5MA keeps five full-size pans of food hot, fresh and ready to serve – all in one seamless, insulated drop-in unit. Individual remote controls, an automatic water-level system and a single 1" manifold drain minimize labor while maximizing food quality.

Key benefits at a glance

  • Independent remote thermostat & lighted power switch for each well – dial in the perfect temperature for every menu item.
  • Auto-fill maintains water level automatically and includes low-water cut-off for element protection.
  • Factory-installed 1" NPT manifold drain with oversized, flat-screen openings empties all five wells quickly through a single outlet.
  • 50 % larger drain opening reduces clogging and lets pans sit perfectly level.
  • Top-mounted, EZ-Lock hardware speeds installation and creates a clean, flush presentation.
  • Fully insulated stainless-steel wells with aluminized steel housing for cooler exterior surfaces and energy savings.
  • 6 ft (1829 mm) flexible conduit included for simple placement of the control box.
  • Built in the USA and certified CE, cULus & UL EPH for worldwide peace of mind.

Technical specifications

Model HWBI-5MA (standard watt)
Pan capacity 5 full-size steam-table pans (12" × 20" / 305 × 508 mm)
Overall dimensions 71.5" W × 23.63" D × 9.56" H
(1816 × 600 × 243 mm)
Mounting style Top-mount drop-in with EZ-Lock tabs
Construction Stainless-steel wells; aluminized steel exterior
Heating power 6015 W @ 208 V single-phase (208–240 V; single or 3-phase available)
Electrical connection Hard-wired; optional NEMA 6-50P plug (single-phase)
Water management Automatic water fill & 1" manifold drain with individual shut-offs
Controls Remote thermostat dial & lighted rocker switch per well
Approx. ship weight 167 lb (76 kg) – single control box
Certifications CE • cULus • UL EPH Classified • Made in USA

Perfect for

  • Supermarket deli & grab-and-go islands
  • Hotel breakfast and lunch buffets
  • Cafeterias, C-stores & corporate dining
  • Catered events requiring extended hot holding
Important: Unit must be installed and hard-wired by qualified professionals in accordance with local electrical & plumbing codes. Wet operation is recommended for most foods.

Looking for different voltages, low-watt elements or split control boxes? Reach out via chat or our Hatco Rep network for tailored configurations.

Features & Specs

Manufacturer

Hatco

Certifications

cULus, UL EPH Classified, Made in USA

Height

9.63in

Width

71.5in

Depth

23.63in

Shipping Weight

184.0lbs

Pan Capacity

(5) full size (12" x 20")

Insulated or Non-Insulated

insulated

Style

individual pans

Controls

thermostatic controls

Construction

stainless steel top, corrosion resistant steel exterior

Drain

with drain

Wet or Dry operation

wet or dry

Specifications

Drop-In Modular/Ganged Heated Well, with manifold drains & auto-fill, (5) full size pan capacity, insulated, top mounted, remote thermostat with separate power switch, stainless steel & Aluminized construction (standard watt), CE, cULus, UL EPH Classified, Made in USA
