Hatco HWBI-5D Steam Tables & Food Wells
Description

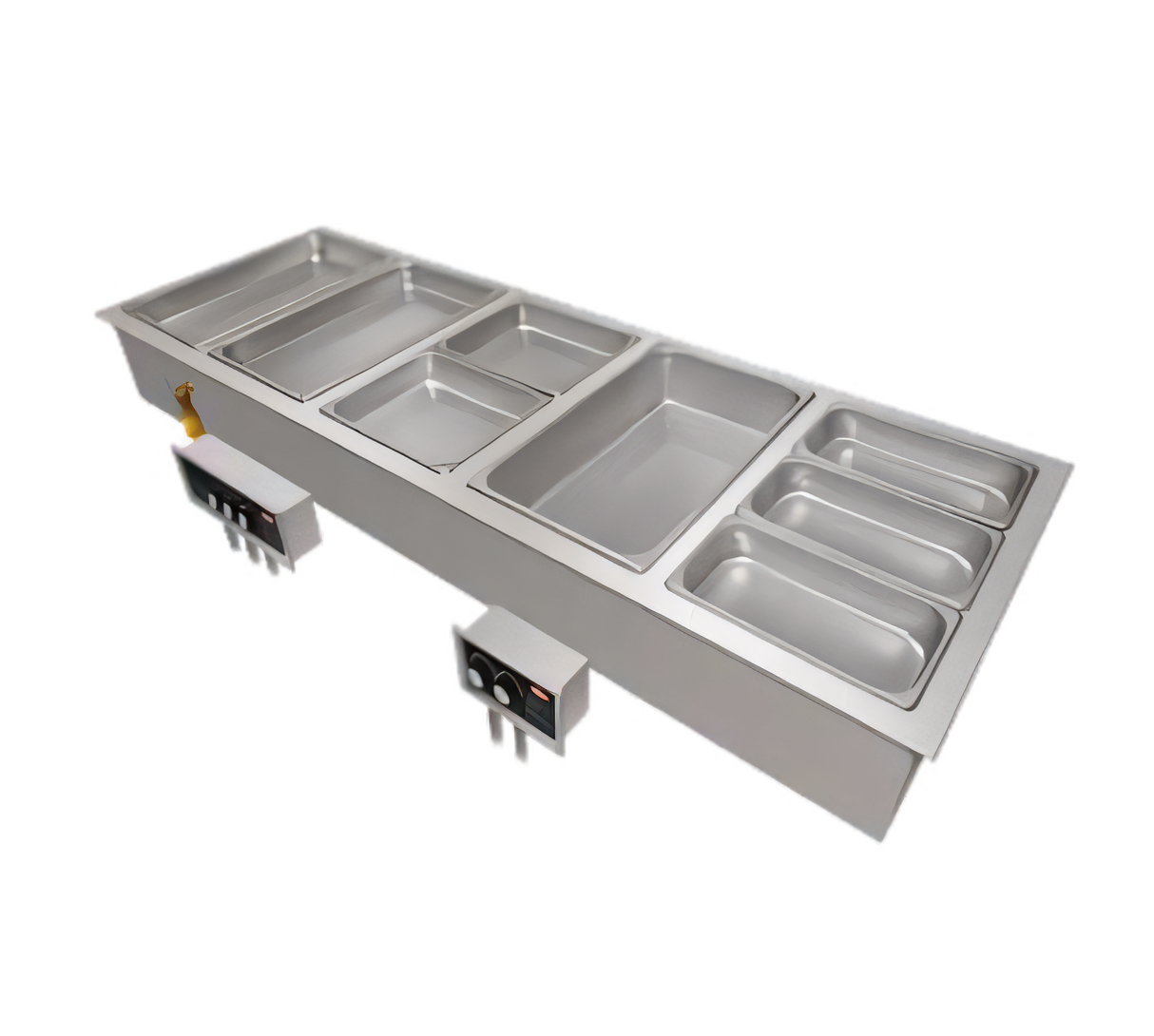

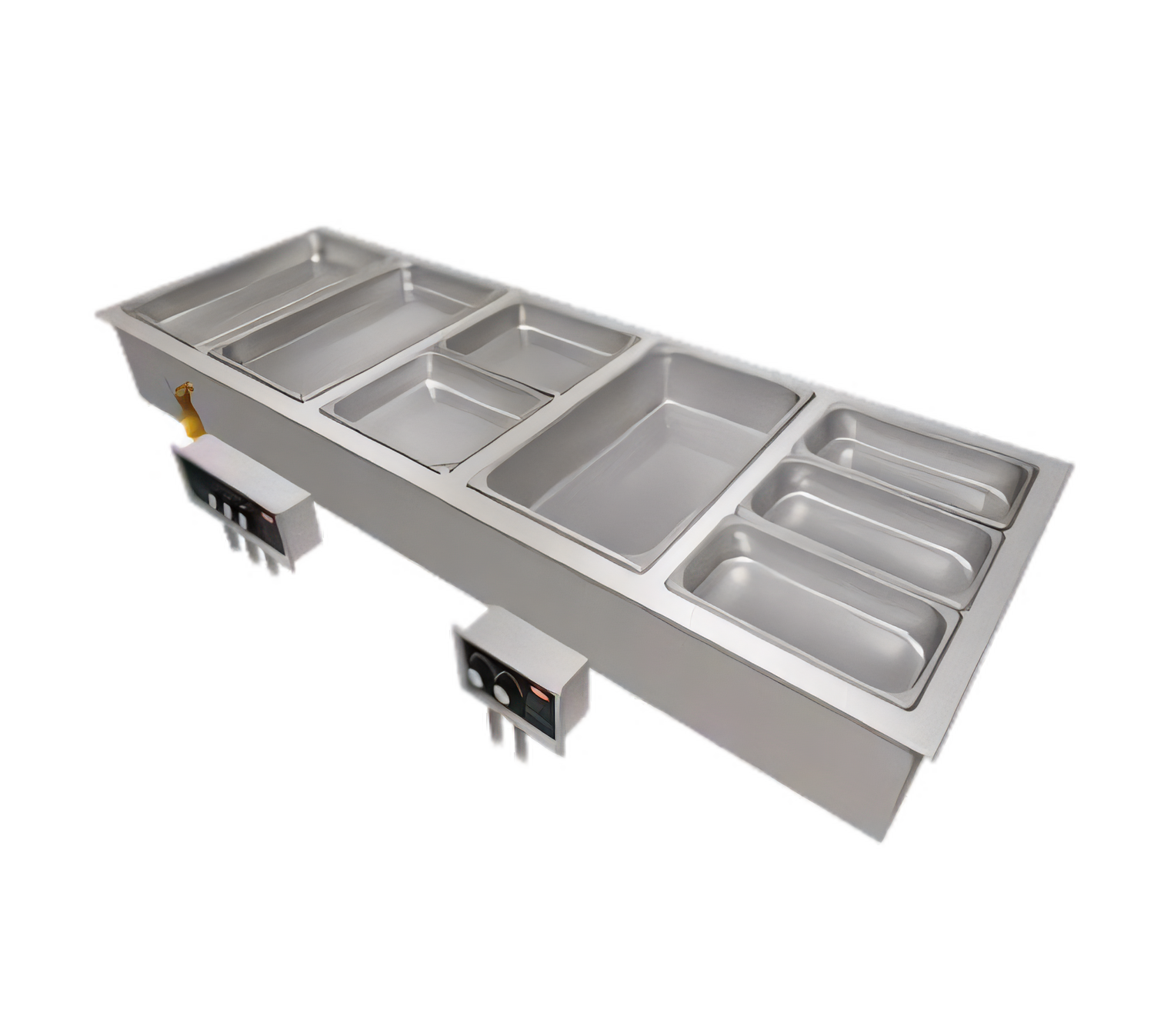

Hatco HWBI-5D Drop-In Modular/Ganged Heated Well – 5 Pan
Remote-mount controls • Individual drains • Standard-watt performanceGive every menu item the perfect finish temperature with the HWBI-5D from Hatco – a fully-insulated, five-well steam table module that drops straight into your counter for a seamless, professional look. Built for the demands of high-volume service lines, each full-size well features its own remote thermostat and lighted power switch, letting you dial in precise holding conditions for entrées, sides or sauces while conserving energy and protecting food quality.
Why You’ll Love It
- Five independent wells accept standard 12" × 20" (305 × 508 mm) pans for maximum menu flexibility.
- Standard-watt element (≈ 6 kW) delivers fast heat-up and recovery to keep food ready during rushes.
- Remote control box puts the thermostatic dials and lighted rocker switches right where staff need them.
- 50 % larger ¾" NPT drains with flat screens simplify cleanup and keep pans sitting level.
- Top-mount EZ Lock tabs clamp the assembly firmly to the countertop—no tools or messy silicone required.
- Rugged build – stainless steel wells, aluminized exterior and solid-brazed drain joints stand up to daily use.
- 6 ft (1.8 m) flexible conduit included for easy routing of the control wiring.
- Quick-swap design lets you change a heating element or thermostat without removing the entire unit.
Quick Specs
| Model | HWBI-5D (with individual drains) |
|---|---|
| Pan Capacity | 5 × full-size steam table pans (12" × 20") |
| Overall Dimensions | 71.5" W × 23.63" D × 9.56" H (1816 × 600 × 243 mm) |
| Counter Cut-out (EZ Lock) | Min 70.375" W × 21.25" D (1787 × 540 mm) |
| Heat Output | Up to 6015 W @ 208 V (single-phase) See spec sheet for additional volt/phase options |
| Electrical | 208, 220 or 240 V; single or 3-phase, field wired |
| Drain Connection | Individual ¾" NPT per well (side outlet) |

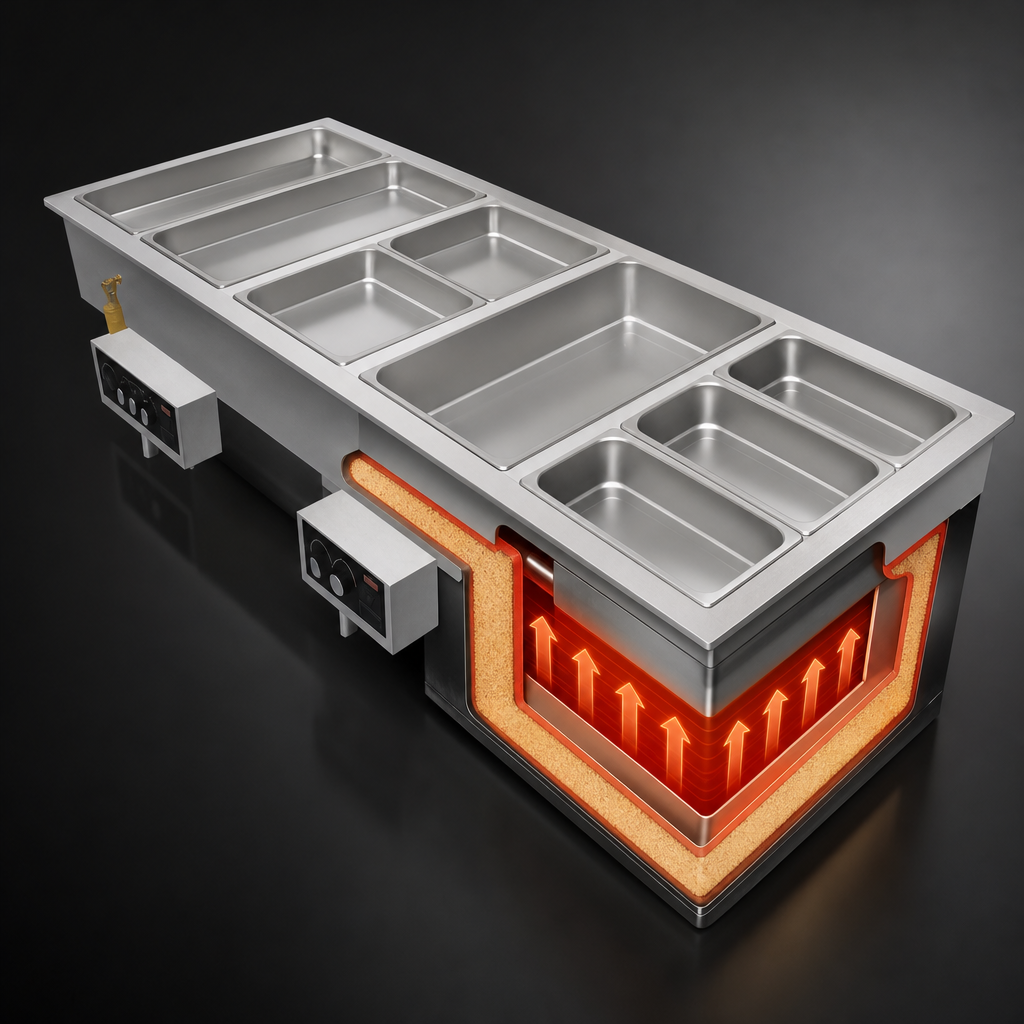

| Construction | Stainless steel wells, aluminized steel housing, fully insulated |
| Certifications | CE • cULus • UL EPH Classified (Sanitation) |
| Origin | Made in USA |
| Shipping Weight | Approx. 167 lb (76 kg) |
Popular Accessories (Sold Separately)
- Swanstone® simulated-stone well covers – convert a wet well to a heated display shelf.
- Rectangular stainless steel food pans – full, half or third size, 2.5"–6" depths.
- Adapters & round pans – hold two 4 qt or 7 qt round inset pans per well.
- Copper drain manifolds & shut-off valves for centralized plumbing.
Steam table pans and accessories shown in photos are not included. Always follow Hatco’s installation and operating instructions for safe operation.
