Hatco HWBI-5 Steam Tables & Food Wells
Description

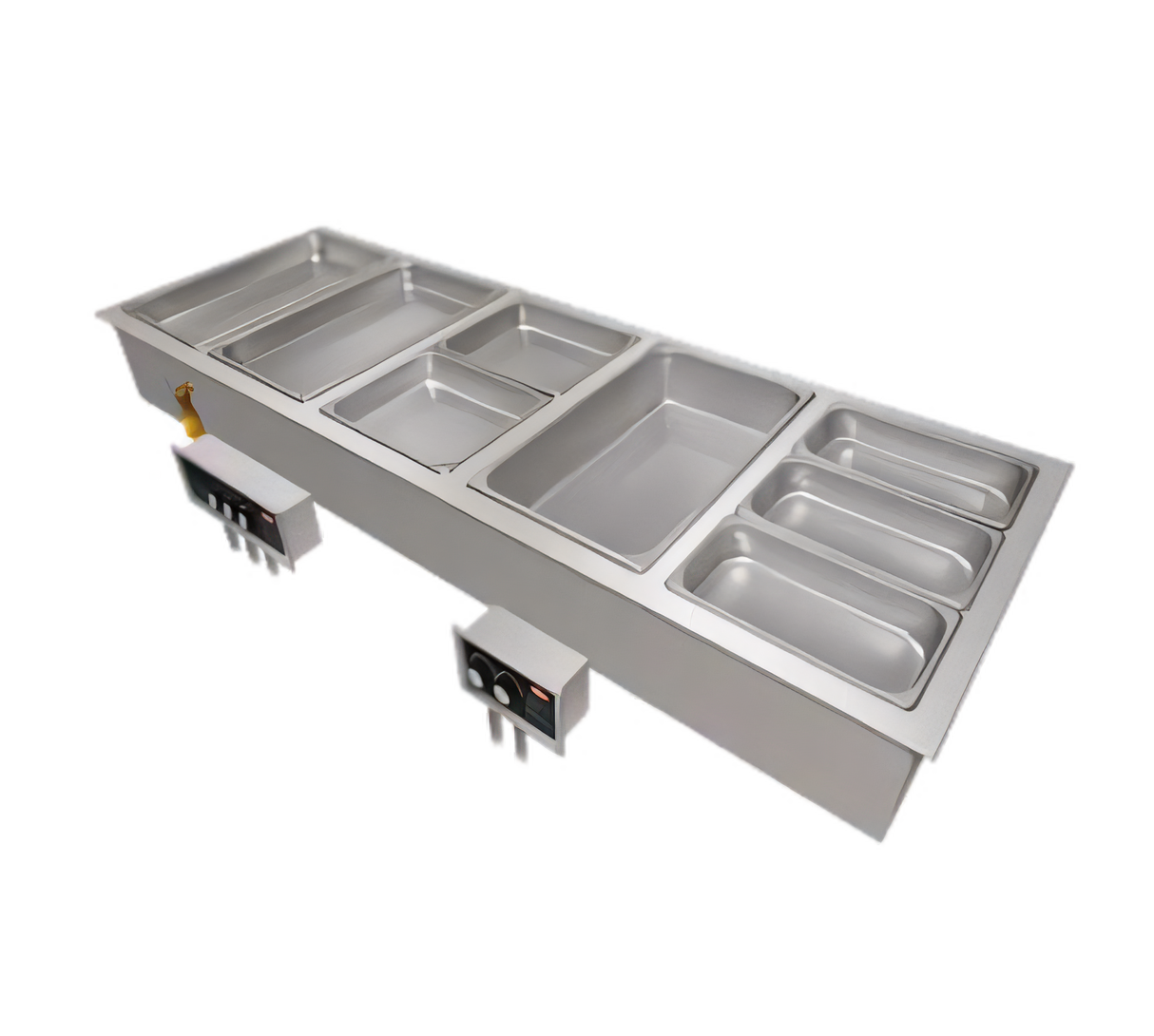

Hatco HWBI-5 Drop-In Modular/Ganged Heated Well
Five full-size wells | Standard watt | Remote thermostatUpgrade your serving line with the power of five individually-controlled hot wells in one seamless drop-in module. Built to Hatco’s legendary standards, the HWBI-5 maintains safe, appetizing temperatures for entrées, sides and sauces while giving your counter a clean, professional finish.
Key benefits
- 5 × 12 ″ × 20 ″ full-size wells deliver high-volume capacity in a single footprint.
- Remote control box features a lighted On/Off rocker switch and precision thermostat for each well.
- Fully insulated stainless-steel wells and metal-sheathed elements provide fast heat-up and longer holding times.
- EZ-Locking tabs allow quick, tool-free installation into virtually any countertop.
- 6 ft (1829 mm) factory-installed flexible conduit lets you position the control box exactly where you need it.
- Heavy-duty stainless & aluminized steel construction stands up to everyday commercial use.
- Certified CE, cULus and UL EPH Classified for global compliance and food-safe operation.
- Made in the USA and backed by Hatco’s renowned 24/7 service network.
At-a-glance specs
| Model | HWBI-5 (Standard Watt) |
|---|---|
| Pan Capacity | 5 full-size (12 ″ × 20 ″) steam table pans |
| Overall Dimensions | 71.5 ″ W × 23.63 ″ D × 9.56 ″ H (1816 × 600 × 243 mm) |
| Installation | Top-mount drop-in with EZ-Locking hardware |
| Controls | Remote thermostatic dial & lighted rocker switch (one per well) |
| Temperature Range | Up to 212 °F / 100 °C holding |
| Electrical | 6015 W total • 208 V / 1 ph 28.9 A • 240 V / 1 ph 25.1 A (other voltages & phases available) |
| Construction | Stainless-steel wells with aluminized outer housing & high-density insulation |
| Certifications | CE • cULus • UL EPH Classified |
| Country of Origin | Made in USA |
Looking for drains, auto-fill or split control boxes? Hatco builds every HWBI to order—contact us before checkout to customize this unit for your exact operation.
