Hatco HWBI-4MA Steam Tables & Food Wells
Description

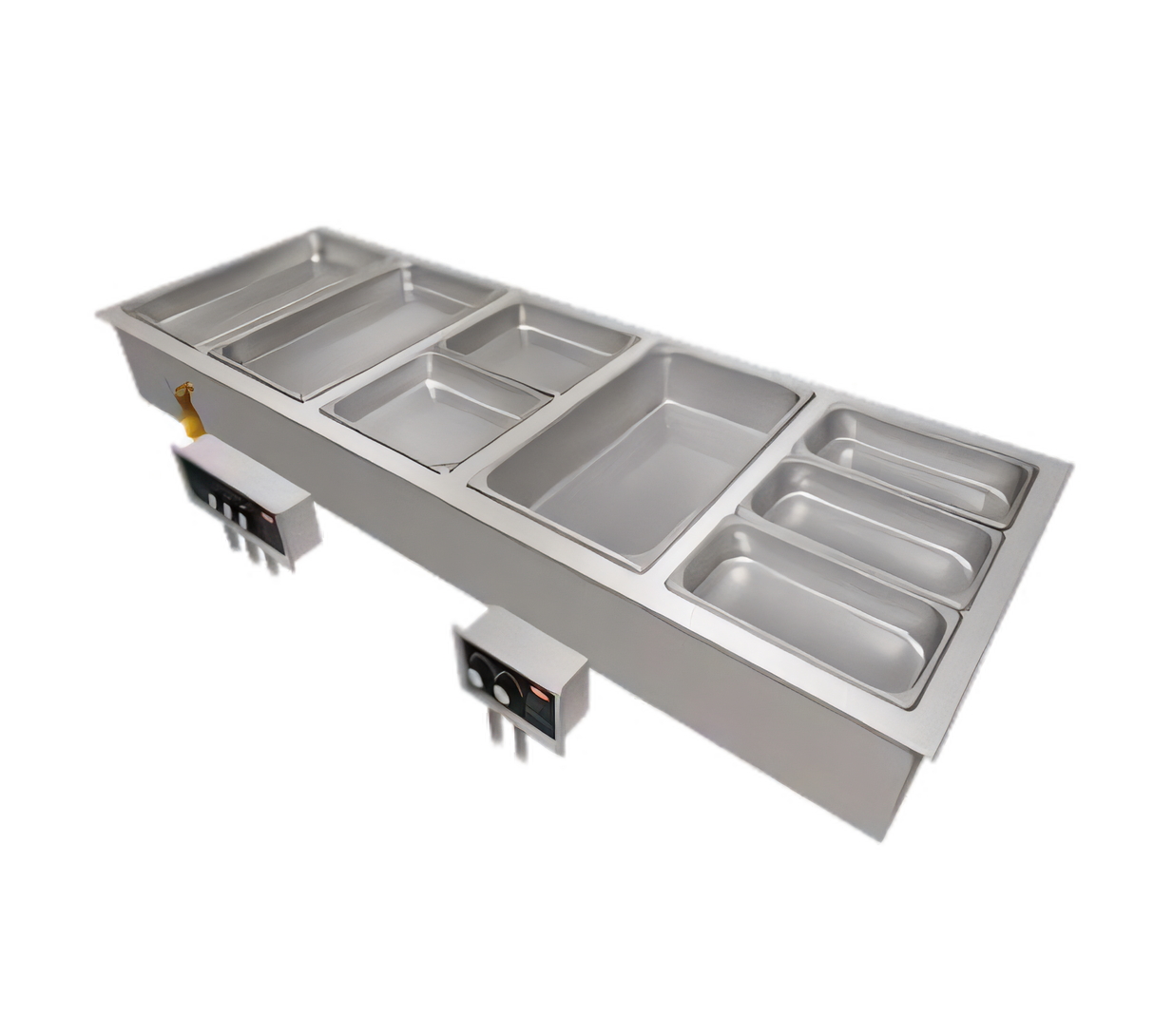

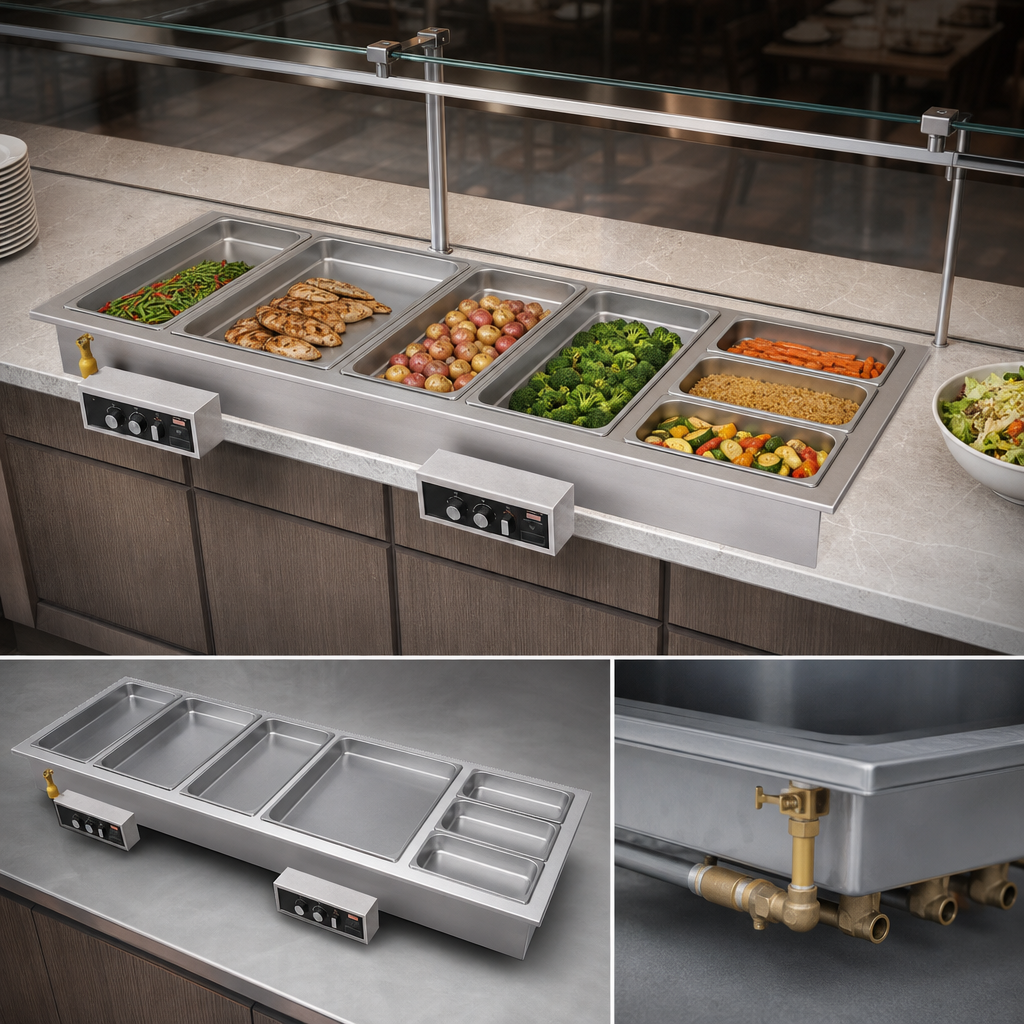

Hatco HWBI-4 Drop-In Modular/Ganged Heated Well
4 Full-Size Wells • Manifold Drain & Auto-Fill • Made in USAKeep entrées, sides and sauces at perfect serving temperature without the usual hassles of a steam table. Hatco’s HWBI-4 combines four insulated, full-size wells into one seamless, top-mounted unit complete with automatic water fill, a single 1" manifold drain and remote controls that are simple for staff to use — all while meeting CE, cULus and UL EPH sanitation standards.
Why you’ll love it
- 4 individual wells hold (4) 12 × 20 in (GN 1/1) pans or fractional pans with adapter bars.
- Auto-fill system maintains proper water level and protects elements from dry-firing, reducing labor and downtime.
- 1 in NPT copper manifold drain empties all wells through a single connection for quicker clean-up.
- Remote control enclosure (6 ft/1829 mm conduit included) with:
- Separate thermostat dial for each well
- Lighted On/Off rocker switch per well
- 50 % larger drain opening with flat screen keeps pans level and traps debris.
- EZ Lock hardware allows one-person, tool-free installation into the counter cut-out.
- Durable stainless-steel wells, aluminized outer housing and full fiberglass insulation for maximum energy efficiency.
- Field-selectable left or right drain exit suits a variety of layouts.
- Proudly built in Milwaukee, WI with 24/7 parts & service support.
Perfect for
- Buffet lines & cafeterias
- Stadium, arena & concession stands
- Hotel breakfast bars
- Catering and banqueting kitchens
Technical specifications
| Pan capacity | 4 full-size (12 × 20 in) pans |
|---|---|
| Overall dimensions | 57.5 in W × 23.63 in D × 9.56 in H (1461 × 600 × 243 mm) |
| Mounting style | Top-mount, drop-in with EZ Lock tabs |
| Heating power | Standard wattage • 4,815 W @ 208–240 V |
| Electrical | 208 or 240 V, 1-phase (23.2 A @ 208 V / 20.1 A @ 240 V) 3-phase wiring optional at time of order |
| Controls | Remote thermostat dials & lighted power switches (one per well) |
| Plumbing | Auto-fill water inlet (3/8 in) with back-flow preventer 1 in NPT manifold drain, side exit |
| Construction | Stainless-steel wells, aluminized steel outer housing, full insulation |
| Certifications | CE • cULus • UL EPH Classified (NSF/ANSI 4) |
| Approx. ship weight | 167 lb (76 kg) |
| Country of origin | USA |
Popular add-ons (sold separately)
- Simulated-stone well covers (Night Sky, Gray Granite or Bermuda Sand) – convert wells to a heated shelf during off-hours.
- Stainless-steel food pans in full, half or third size depths.
- Round pan adapters & trivets for soup or sauce service.
- External drain manifold with individual shut-off valves.
- NEMA 6-30P cord & plug kit for single-phase installations.
Please contact us for pricing and lead time on factory-installed options.
Food pans shown in images are for illustration only and are not included. Full operating instructions are provided with purchase and can be downloaded anytime from Hatco’s Document Library.
