Hatco  |  SKU: HWBI-4M

Hatco HWBI-4M Steam Tables & Food Wells

$3,645.97
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Restaurant solutions Owner's manual Stadium & concession solutions Super market & in-store solutions Parts list Catalog brochure Assembly instructions Color chart
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

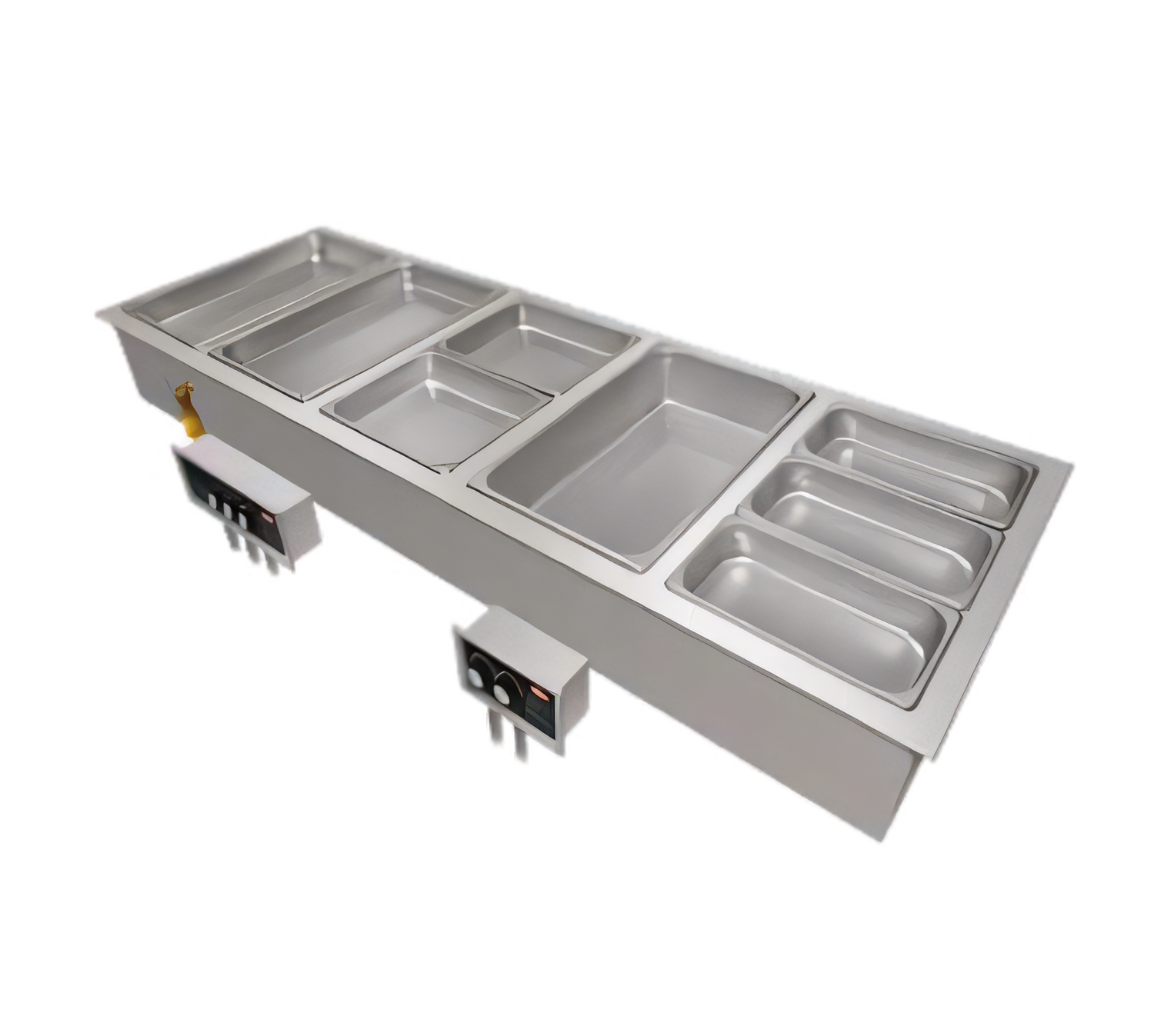

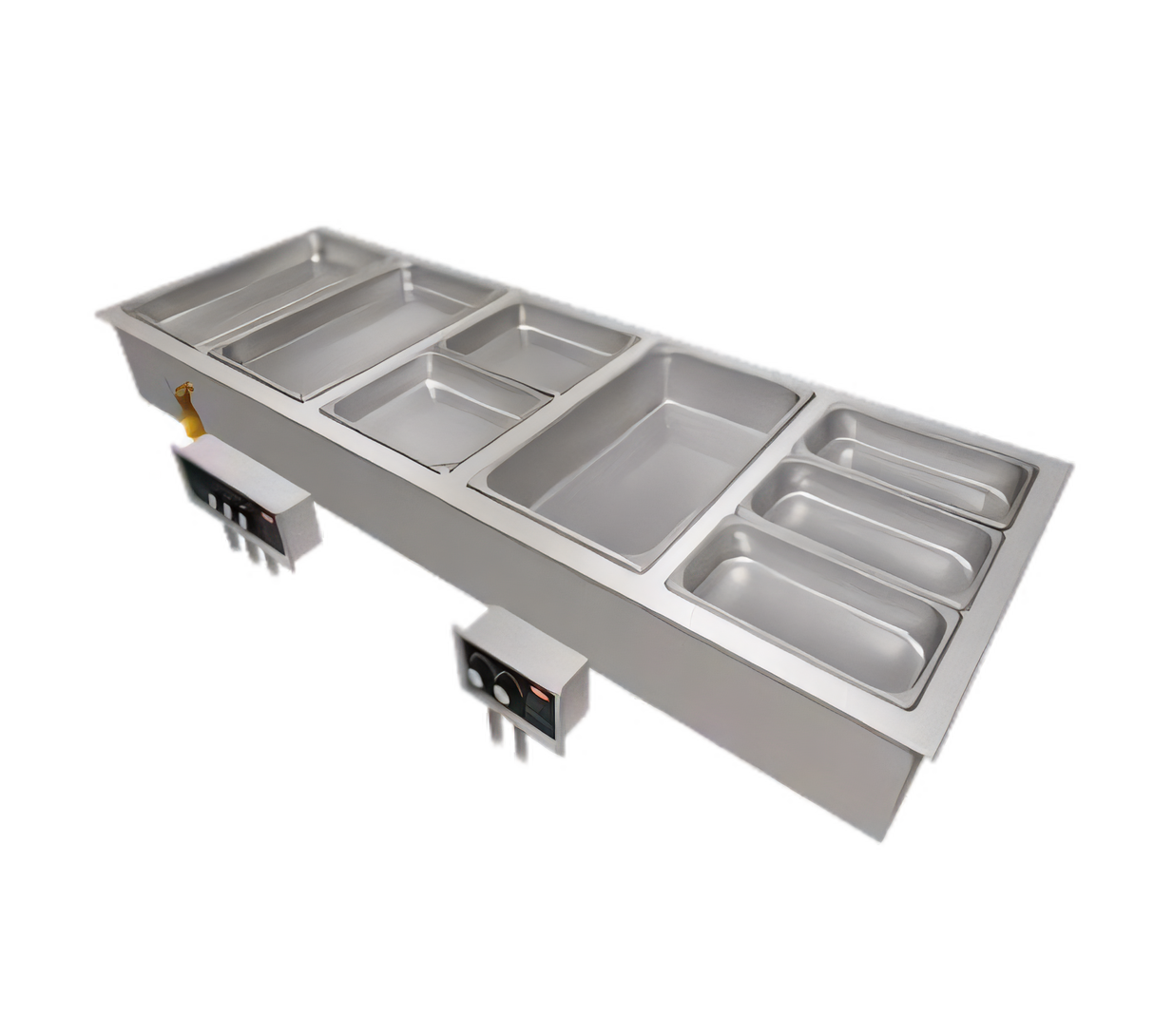

Drop-In 4-Pan Modular/Ganged Heated Well with Manifold Drains

Hatco HWBI-4 • Standard Watt • Top-Mounted

Keep entrées and sides at perfect serving temperature without sacrificing counter space. The Hatco HWBI-4 combines four individually controlled, full-size hot wells into one seamless drop-in module—built tough for nonstop commercial use and certified safe for kitchens around the globe.

Key Benefits
  • Holds 4 full-size 12" × 20" (305 × 508 mm) pans in one integrated unit.
  • Each well features its own remote thermostat and lighted On/Off rocker switch for pinpoint control.
  • 1" NPT copper manifold drain with flat screen speeds clean-up and keeps pans level.
  • Fully insulated, top-mounted design minimizes heat loss and boosts energy efficiency.
  • EZ-Lock mounting hardware and a 6' (1829 mm) flexible conduit arrive factory-installed for fast, hassle-free installation.
  • Stainless steel well liner and aluminized outer housing stand up to daily wear and tear.
  • Elements and thermostats can be swapped out quickly—no need to remove the entire unit.
  • Made in the USA and listed CE, cULus, UL EPH for worldwide compliance.
Perfect For
  • Buffet and cafeteria lines
  • Exhibition cooking & action stations
  • Quick-service, convenience & grab-and-go counters
  • Catering and banquet operations
Specifications
Pan Capacity 4 × Full-size (12" × 20") hotel pans
Overall Dimensions 57.5" W × 23.63" D × 9.56" H
(1461 × 600 × 243 mm)
Countertop Cut-Out
(EZ-Lock tabs)		 56.375" W – 56.31" W × 22.25" D – 22.50" D*
Drain 1" NPT copper manifold, field-selectable side or bottom exit
Electrical Standard watt; 208–240 V, single- or three-phase, 2322–4815 W (amps vary by configuration)
Construction Stainless steel well & flange, aluminized steel housing, fully insulated
Controls Remote thermostats with separate lighted rocker switches (one per well)
Certifications CE • cULus • UL EPH Classified
Country of Origin Made in USA

*Refer to the installation manual for complete cut-out dimensions.

Popular Accessories
  • Swanstone® simulated-stone well covers (single or double pan)
  • Round-pan adapters & lids (4 qt and 7 qt)
  • Stainless or plated wire trivets
  • External shut-off valves & remote drain handles
  • 27" (686 mm) bezel to match Hatco CWB refrigerated wells
Important: This drop-in well must be hard-wired by a qualified electrician. Verify available voltage and phase before ordering.

Features & Specs

Manufacturer

Hatco

Certifications

cULus, UL EPH Classified, Made in USA

Height

9.63in

Width

57.5in

Depth

23.63in

Shipping Weight

138.0lbs

Style

individual pans

Controls

thermostatic controls

Construction

stainless steel top, corrosion resistant steel exterior

Insulated or Non-Insulated

insulated

Wet or Dry operation

wet or dry

Pan Capacity

(4) full size (12" x 20")

Drain

with drain

Specifications

Drop-In Modular/Ganged Heated Well, with manifold drains, (4) full size pan capacity, insulated, top mounted, remote thermostat with separate power switch, stainless steel & Aluminized construction (standard watt), CE, cULus, UL EPH Classified, Made in USA
