Hatco HWBI-4DA Steam Tables & Food Wells
Description

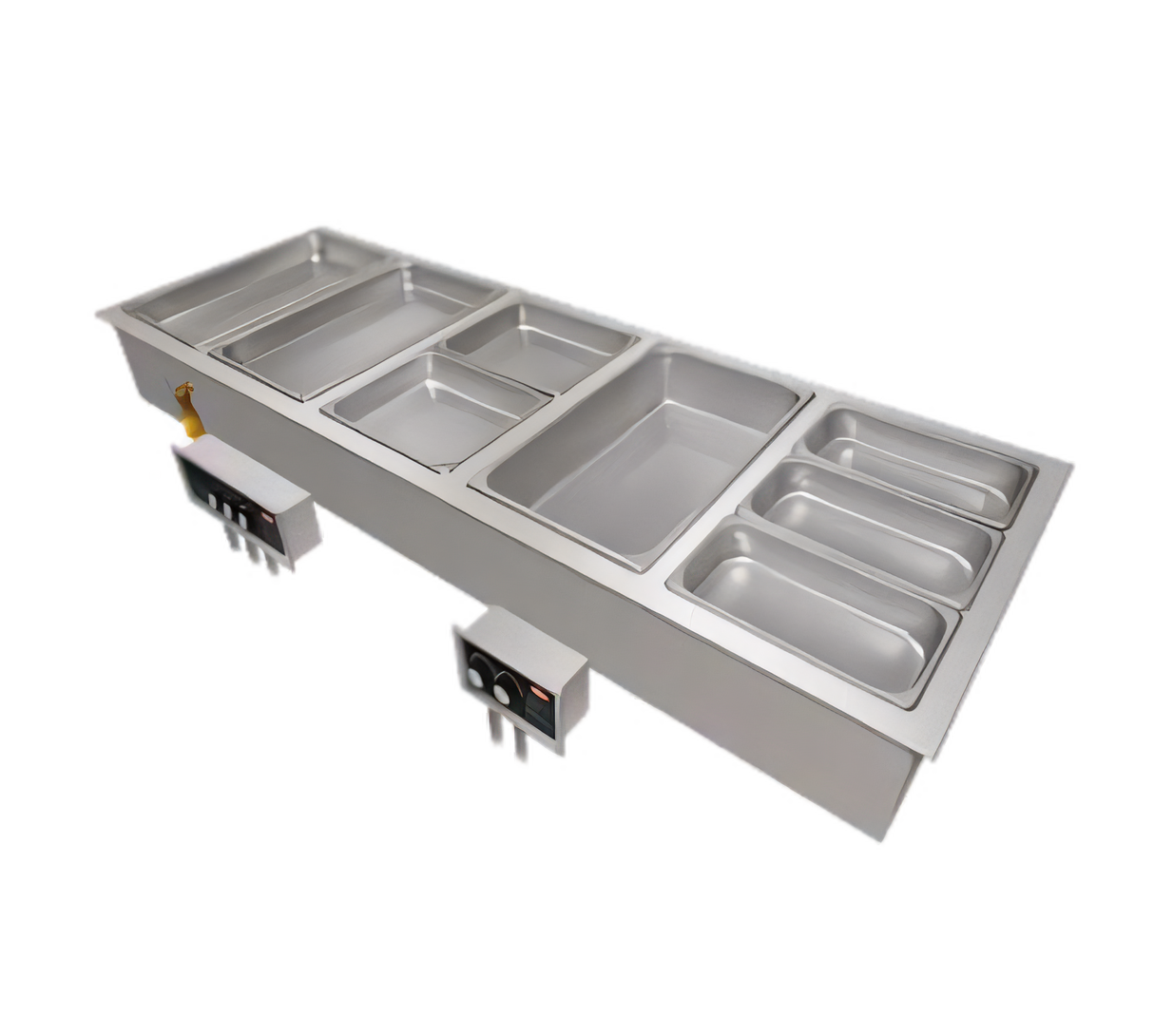

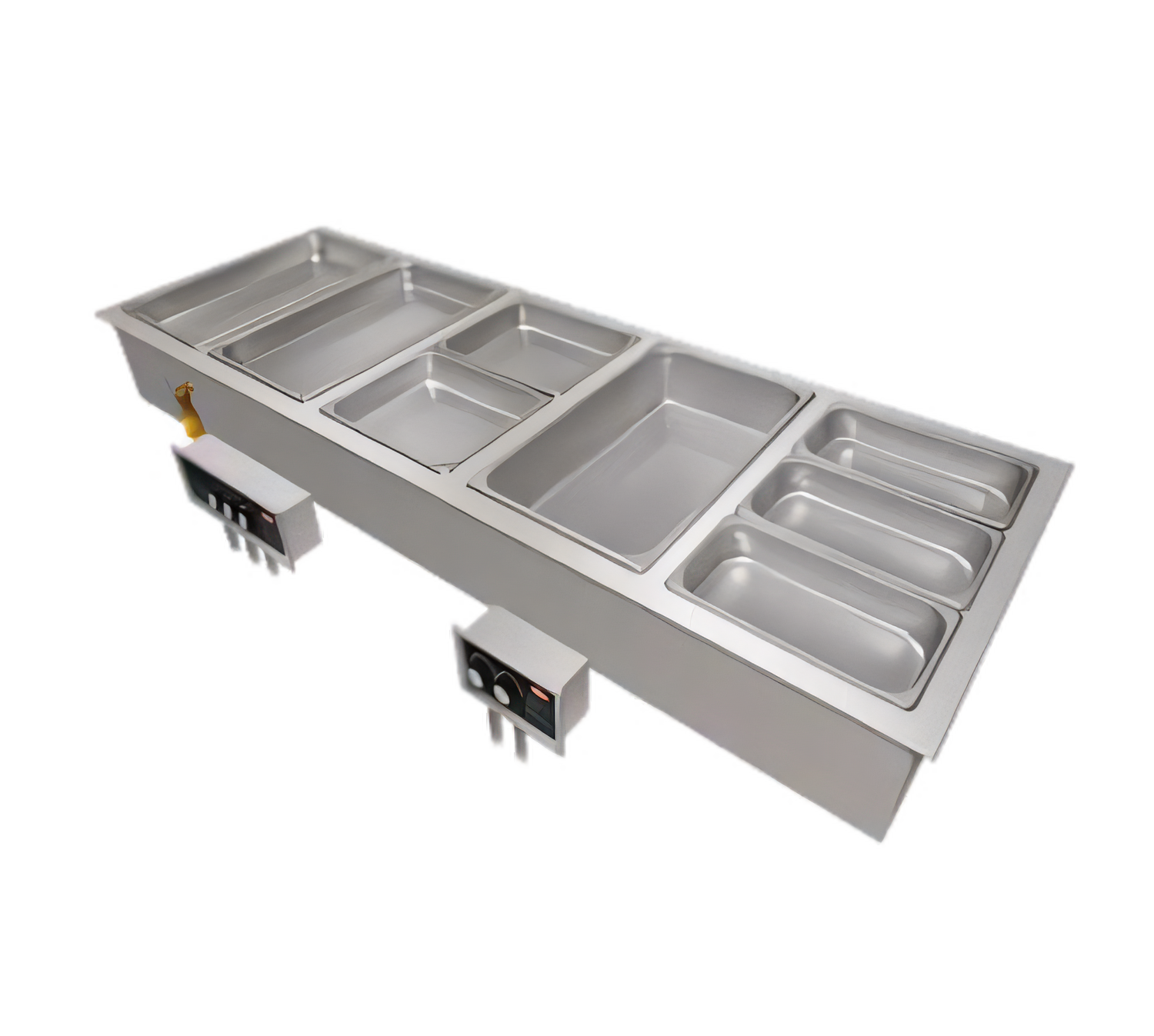

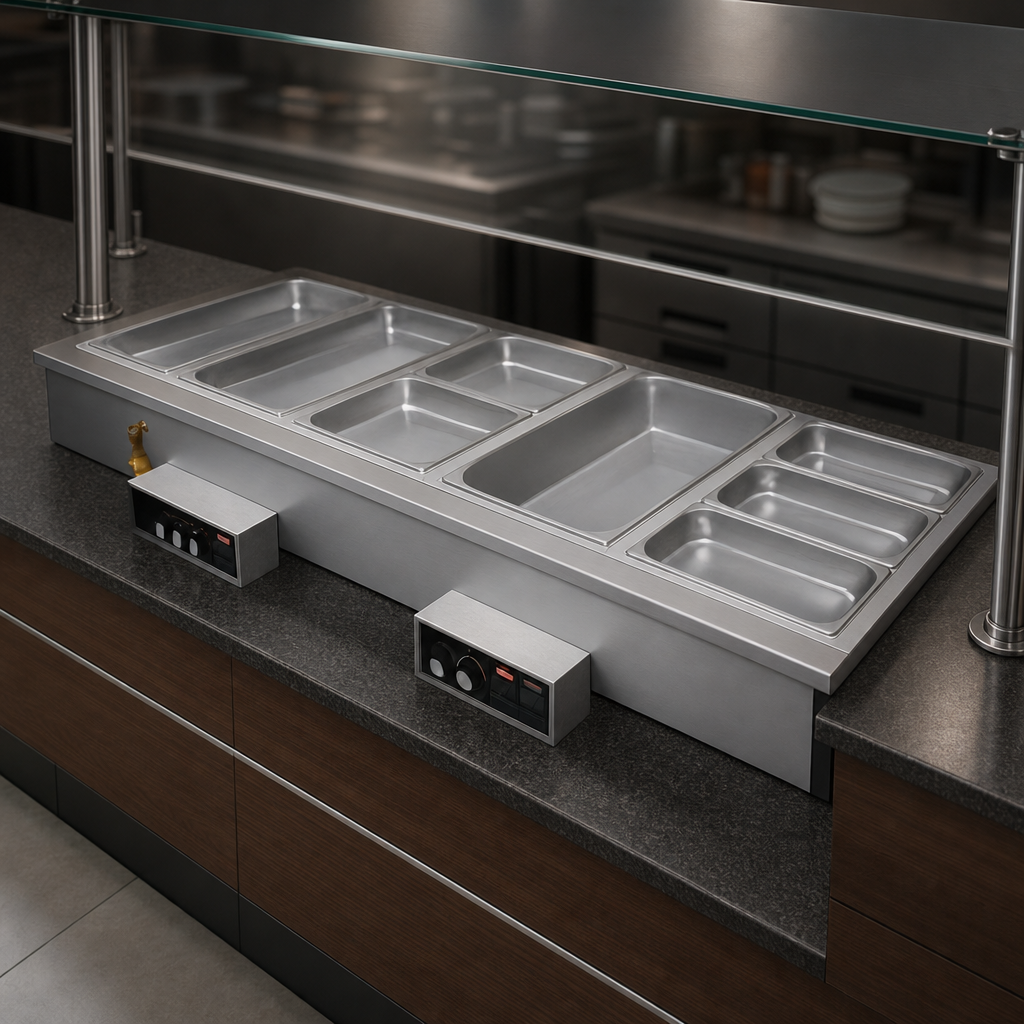

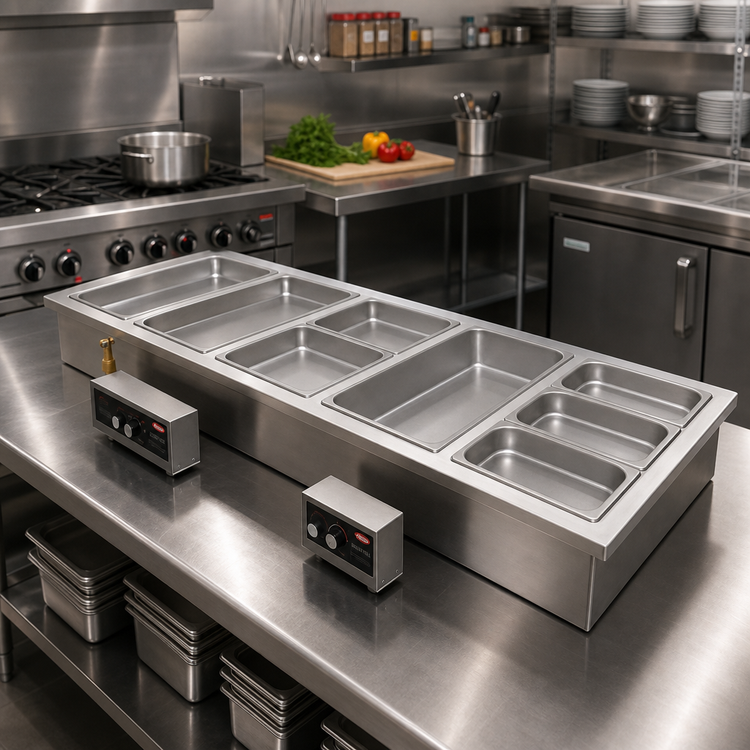

Hatco Drop-In 4-Well Modular/Ganged Heated Well
Model HWBI-4DA – with drains & auto-fillGive every entrée the perfect serving temperature without cluttering your counter. Hatco’s 4-pan insulated heated well drops cleanly into your lineup, delivers reliable water-bath heat with automatic water fill, and puts fully independent temperature control at your fingertips.
Why you’ll love it
- Four full-size wells, one seamless module. Holds 4 × 12" × 20" pans (not included) in a single, top-mounted chassis.
- Auto-fill system maintains optimum water level automatically for longer holding times and less staff oversight.
- Oversized 1" drains in each well speed clean-up and keep pans level; comes standard with flat drain screens.
- Remote thermostat & lighted power switch for each well—precise, independent control and easy night shutdown.
- EZ-Lock™ mounting hardware secures the unit from above the counter in seconds—no silicone mess.
- Durable & efficient. Fully insulated 304 stainless steel wells with aluminized outer housing conserve energy.
- Quick-service ready. Fast heat recovery keeps up with rush periods in buffets, cafeterias and concessions.
Product specifications
| Pan capacity | 4 full-size (12" × 20") steam table pans |
|---|---|
| Overall dimensions | 57.5" W × 23.63" D × 9.56" H (1461 × 600 × 243 mm) |
| Mounting type | Top-mounted drop-in with EZ-Lock tabs |
| Heating style | Wet operation (auto-fill), standard-watt tubular elements |
| Controls | Remote panel, individual infinite thermostats & illuminated on/off rocker switches |
| Drain connection | (4) individual 1" NPT drains, field-selectable left or right exit |
| Electrical | 120, 208 or 240 V • single or 3-phase (consult options) |
| Construction | Stainless steel wells, aluminized steel exterior, solid-brazed joints |
| Certifications | CE • cULus Listed • UL EPH Classified (NSF/ANSI 4) |
| Origin | Made in USA |
| Warranty | 24/7 parts & service assistance (U.S. & Canada) |
Popular accessories (sold separately)
- Simulated stone Swanstone® well covers—convert any or all wells to a heated shelf during slow periods.
- Full-size or fractional stainless steel pans in 2.5", 4" or 6" depths.
- Copper drain manifold with individual shut-off valves (4-pan kit) for one-point plumbing.
- Ball or gate valves, ¾" or 1", for quick service access beneath the counter.
Add accessories from the menu above or ask our team for guidance.
Upgrade your steam table with the reliability of Hatco. Select your voltage, choose any add-ons, and keep every dish guest-ready from the first plate to the last.
