Hatco  |  SKU: HWBI-4D

Hatco HWBI-4D Steam Tables & Food Wells

$3,378.08
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Super market & in-store solutions Catalog brochure Parts list Color chart Stadium & concession solutions Owner's manual Assembly instructions Restaurant solutions
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

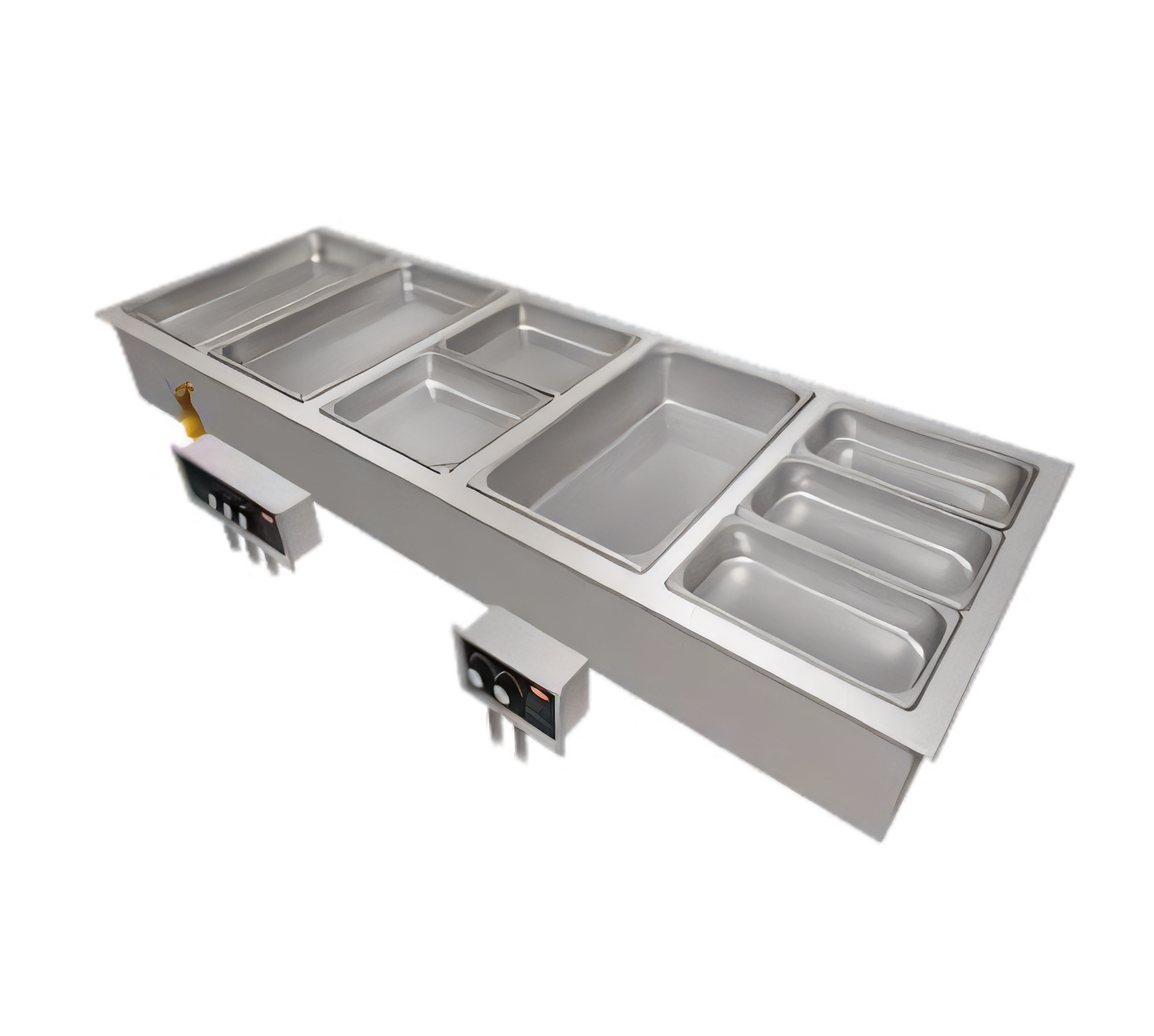

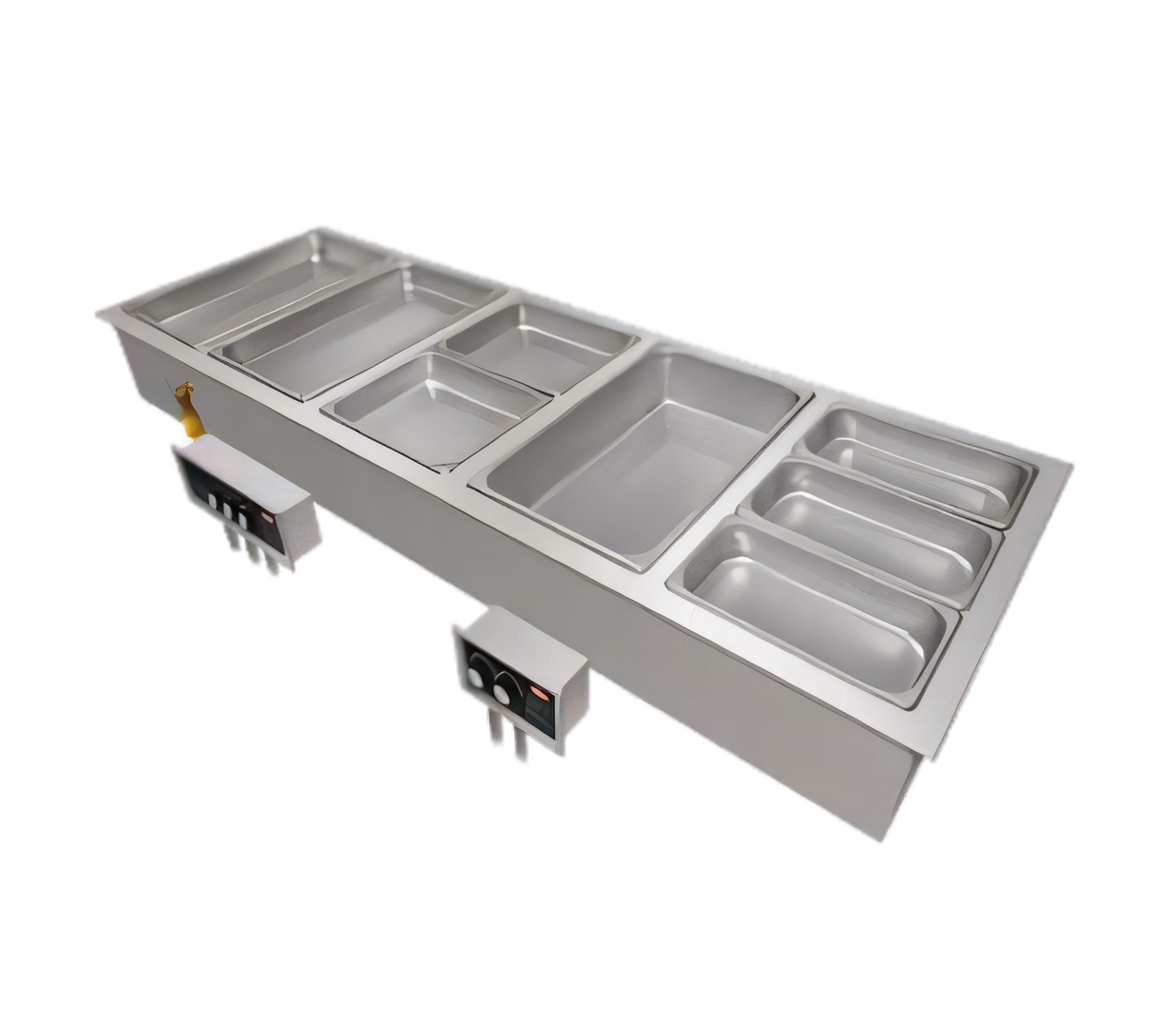

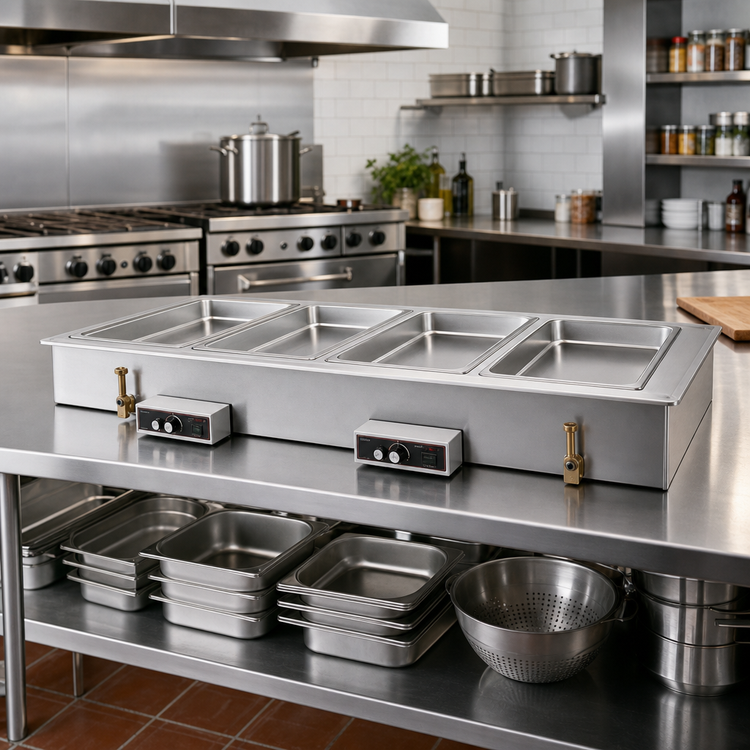

Hatco HWBI-4D Drop-In Modular/Ganged Heated Well

4 full-size wells • individual drains • remote controls

Give every menu item the chef-perfect heat it deserves. Hatco’s four-well, top-mounted heated module keeps entrées, sides and sauces at safe serving temperatures while streamlining installation, operation and cleanup for busy food-service lines.

Key advantages
  • Four independent, full-size 12" × 20" (GN 1/1) wells in one seamless drop-in.
  • Remote thermostat dial and illuminated power switch for each well—precise control at a glance.
  • 50 % larger ¾" NPT drains with flat screens speed water removal and keep pans level.

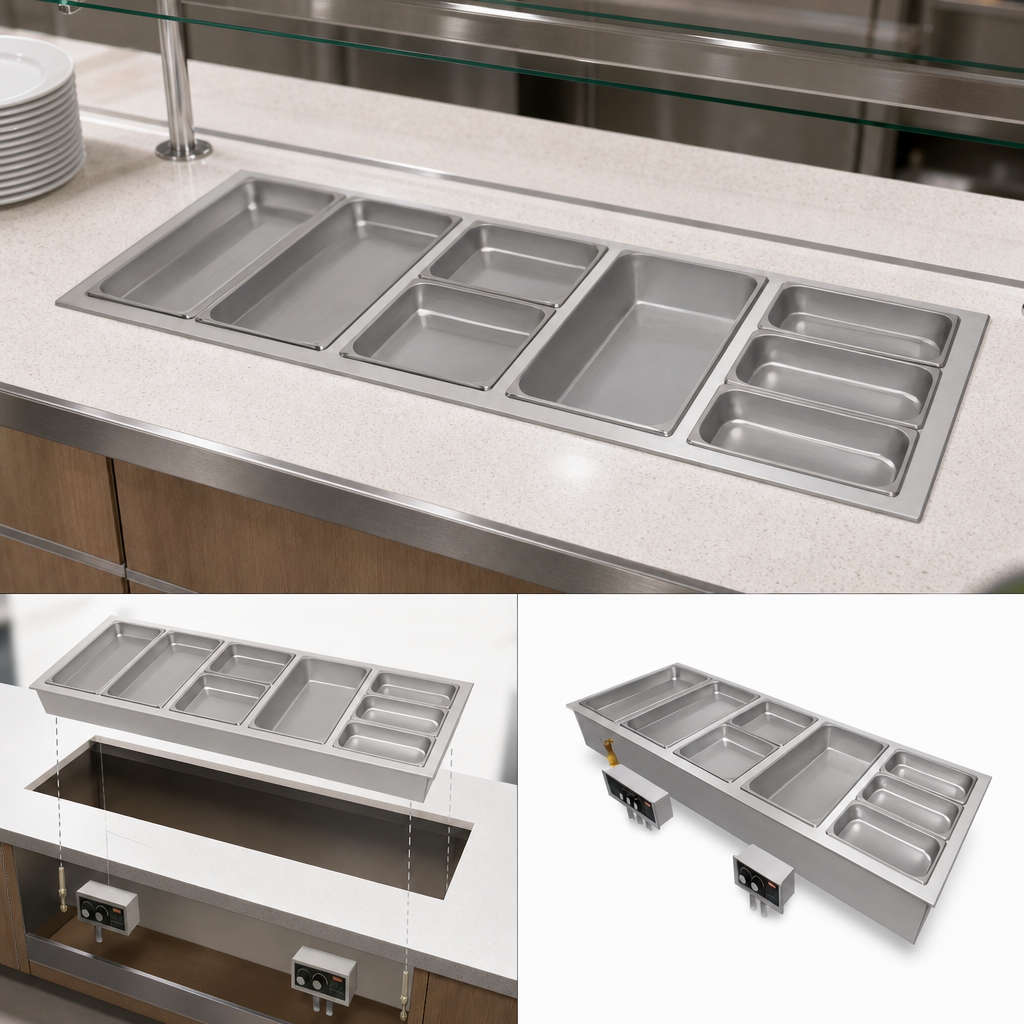

  • EZ Locking hardware and 6 ft (1829 mm) flexible conduit make installation fast and clean.
  • Heavy-duty stainless-steel top with aluminized steel housing; fully insulated for energy efficiency.
  • Field-replaceable elements and thermostats cut service downtime.
  • CE, cULus & UL EPH Classified for global electrical and sanitation compliance.
  • Made in the USA and backed by Hatco’s renowned 24/7 parts & service support.
Ideal applications
  • Supermarket & convenience-store hot bars
  • Buffets and self-serve lines
  • QSR & cafeteria service counters
  • Catering build-outs and commissary kitchens
Specifications
Pan capacity 4 × Full-size steam pans (12" × 20")
Mounting style Top-mounted drop-in with EZ Lock tabs
Overall dimensions 57.5" W × 23.63" D × 9.56" H (1461 × 600 × 243 mm)
Construction Stainless-steel top, aluminized steel body, fully insulated
Drains Individual ¾" NPT drains; left or right exit (field selectable)
Heating power Standard-watt design  •  approx. 4.8 kW @ 208 V (see manual for all ratings)
Electrical 208-240 V, 50/60 Hz, single or three-phase; hard-wired connection
Controls Remote enclosure with thermostat dial & illuminated rocker switch per well
Certifications CE • cULus • UL EPH Classified
Country of origin Made in USA

Looking for well covers, adapter plates or copper drain manifolds? Contact us and we’ll add the perfect accessories to your order.

Installation note: Unit must be hard-wired by a qualified electrician and mounted in a countertop opening sized per Hatco’s installation manual.

Features & Specs

Manufacturer

Hatco

Certifications

cULus, UL EPH Classified, Made in USA

Height

9.63in

Width

57.5in

Depth

23.63in

Shipping Weight

136.0lbs

Style

individual pans

Insulated or Non-Insulated

insulated

Construction

stainless steel top, corrosion resistant steel exterior

Controls

thermostatic controls

Pan Capacity

(4) full size (12" x 20")

Wet or Dry operation

wet or dry

Drain

with drain

Specifications

Drop-In Modular/Ganged Heated Well, with drains, (4) full size pan capacity, insulated, top mounted, remote thermostat with separate power switch, stainless steel & Aluminized construction (standard watt), CE, cULus, UL EPH Classified, Made in USA
