Hatco  |  SKU: HWBI-3MA

Hatco HWBI-3MA Steam Tables & Food Wells

$3,213.64
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Color chart Super market & in-store solutions Stadium & concession solutions Catalog brochure Parts list Restaurant solutions Owner's manual Assembly instructions
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

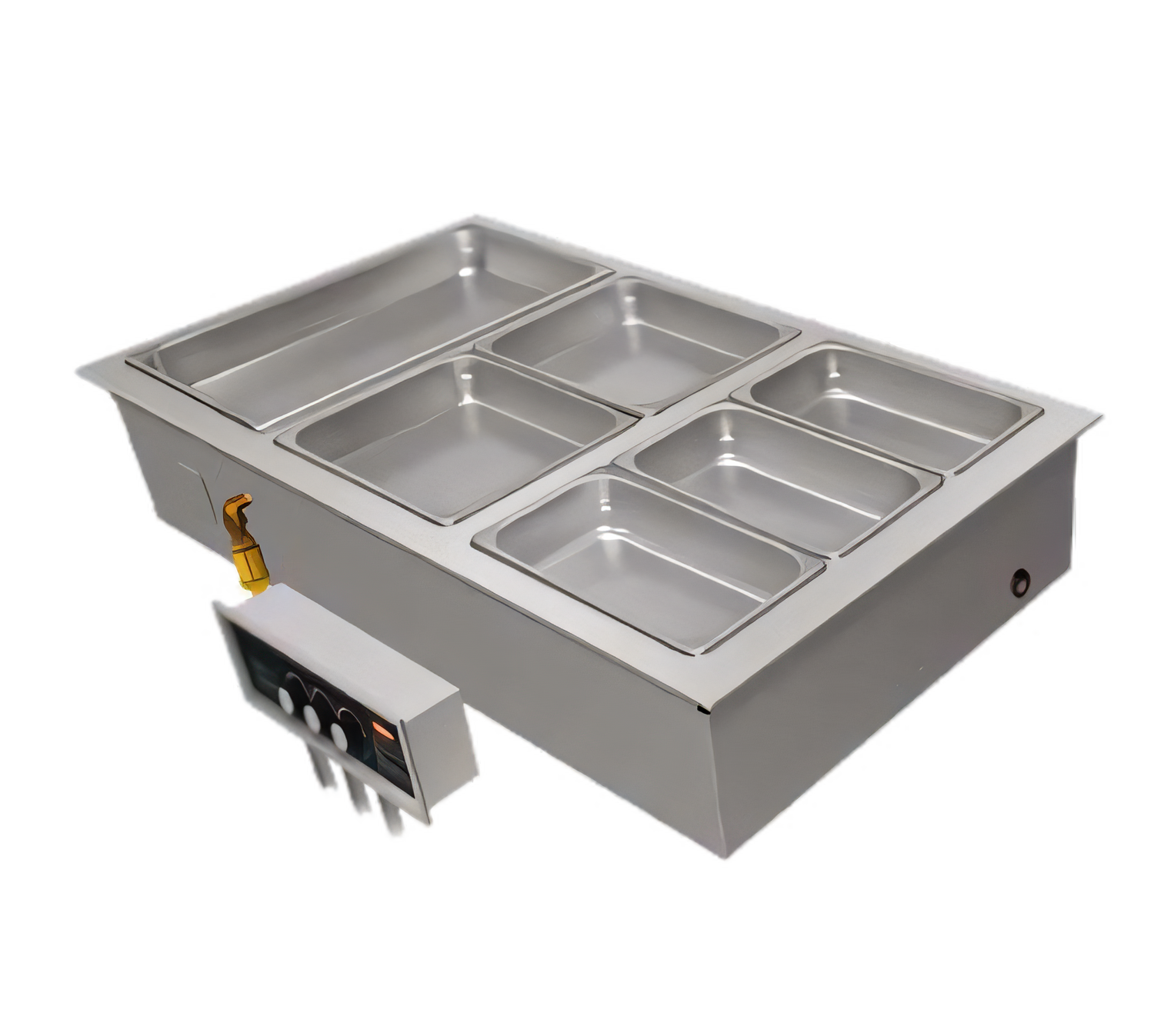

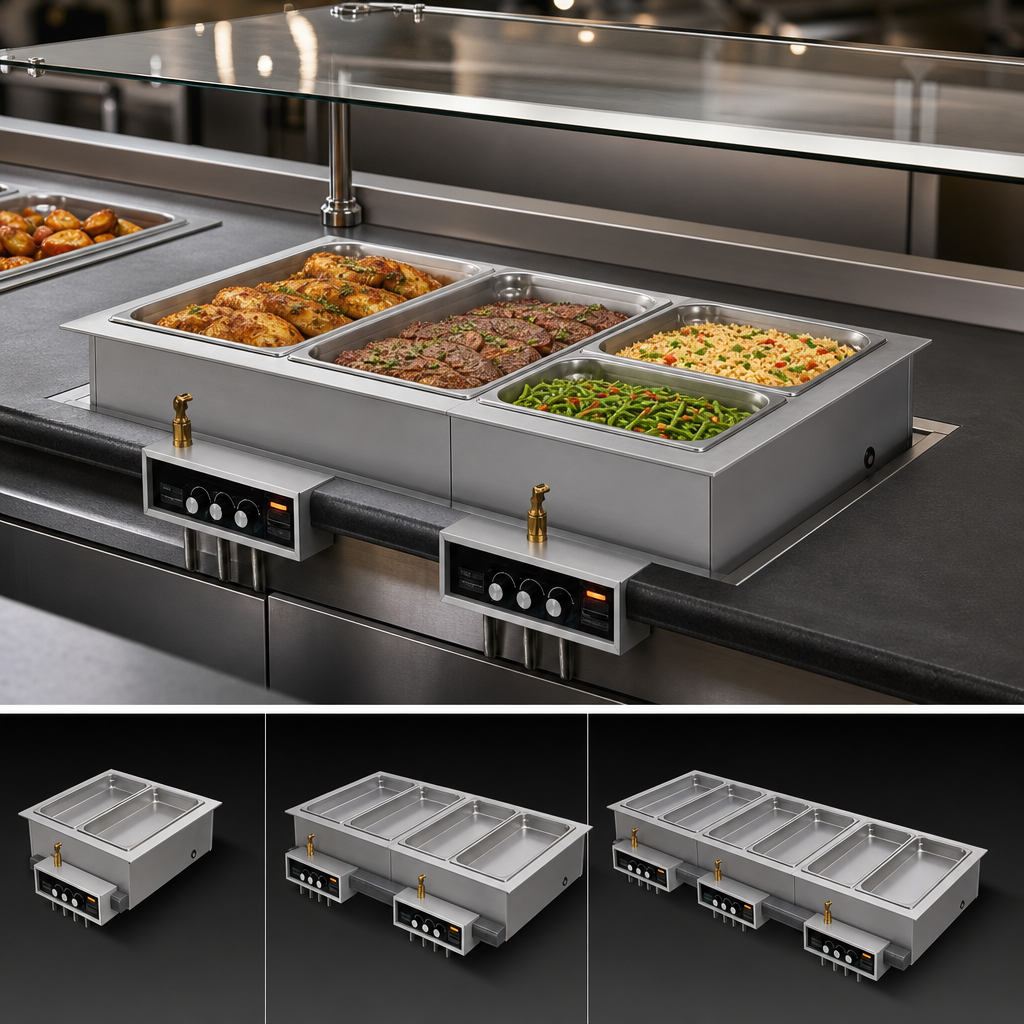

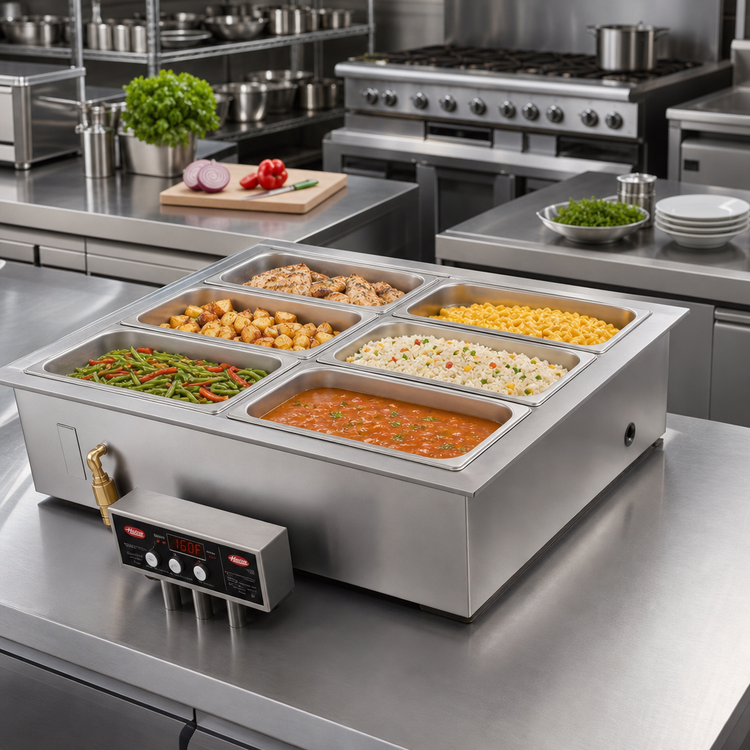

Hatco HWBI-3MA Drop-In Modular/Ganged Heated Well

3-Pan • Auto-Fill • Manifold Drain • Top-Mounted

Give every guest a perfectly hot serving—without giving your crew extra work. Hatco’s U.S-built HWBI-3MA combines three full-size heated wells, automatic water management and an oversize manifold drain in one rugged, easy-to-install module that drops flush into your counter for a clean, professional look.

Why You’ll Love It
  • Three independent wells. Hold three 12" × 20" pans (or assorted fractional pans) at safe, even temperatures.
  • Auto-Fill system. Maintains the ideal water level automatically—no manual refills, no element burnout.
  • 1" manifold drain. 50 % larger opening with flat screen lets you empty and clean all wells at once.
  • Remote thermostats. Each well has its own dial thermostat with a lighted On/Off rocker switch for precise, worry-free control.
  • Top-mounted & insulated. EZ-Lock tabs clamp the unit tight to the countertop while high-density insulation keeps heat where it belongs.
  • Built to last. All-stainless & aluminized steel construction with solid brazed drain fittings stands up to daily commercial abuse.
  • Fast element swaps. Unique design lets you replace a heating element or thermostat in minutes, not hours.
  • Food-safe certifications. CE, cULus and UL EPH Classified for sanitation—ready for kitchens worldwide.
  • Made in the USA. Backed by Hatco’s legendary 24/7 service and support.
Specifications
Pan Capacity (3) Full-size steam table pans — 12" × 20" (305 × 508 mm) each
Overall Dimensions 43.5" W × 23.63" D × 9.56" H (1105 × 600 × 243 mm)
Mounting Style Top-mount, drop-in with EZ-Lock hardware (no silicone required)
Heating Configuration Standard-watt metal-sheathed elements; wet or dry operation
Water Management Factory-installed auto-fill with ½" NPT connection
Drain 1" NPT copper manifold, side exit, single shut-off
Electrical 208–240 V, single phase, 3.6–4.2 kW (other voltages & three-phase wiring available)
Agency Listings CE • cULus • UL EPH Classified
Origin Manufactured in Milwaukee, WI, USA
Popular Accessories (sold separately)
  • Simulated-stone Swanstone® well covers to convert each well into a heated shelf.
  • Stainless or plated wire trivets for holding round soup pans.
  • External shut-off valve kit for remote draining.
  • Split control boxes (required for three-phase or multi-counter layouts).
Installation note: Verify countertop cut-out dimensions and electrical requirements before ordering. Always follow Hatco’s Installation & Operating Manual.

Features & Specs

Manufacturer

Hatco

Certifications

cULus, UL EPH Classified, Made in USA

Height

9.63in

Width

43.5in

Depth

23.63in

Shipping Weight

112.0lbs

Style

individual pans

Insulated or Non-Insulated

insulated

Construction

stainless steel top, corrosion resistant steel exterior

Pan Capacity

(3) full size (12" x 20")

Drain

with drain

Controls

thermostatic controls

Wet or Dry operation

wet or dry

Specifications

Drop-In Modular/Ganged Heated Well, with manifold drains & auto-fill, (3) full size pan capacity, insulated, top mounted, remote thermostat with separate power switch, stainless steel & Aluminized construction (standard watt), CE, cULus, UL EPH Classified, Made in USA
