Hatco HWBI-3DA Steam Tables & Food Wells
Description

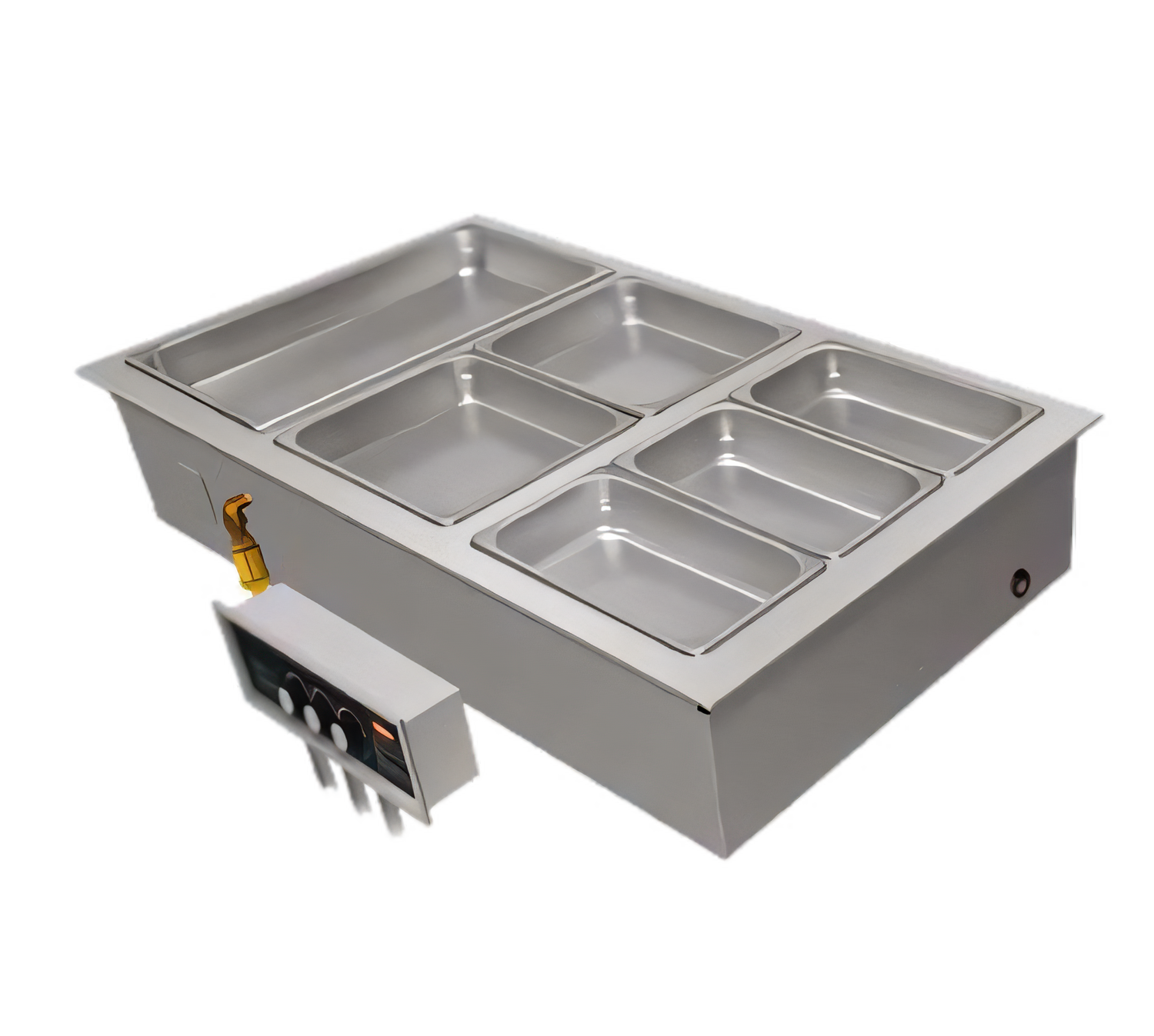

Hatco HWBI-3DA Drop-In Modular/Ganged Heated Well
3-Pan | Auto-Fill & Individual Drains | Made in USAGive every entrée the just-made appeal diners expect. The HWBI-3DA combines three full-size, insulated wells, automatic water fill and oversized drains into one seamless, top-mount package—so you can install fast, hold longer and serve with confidence shift after shift.
Key advantages at a glance
- Three independent 12" × 20" (full-size) wells for maximum menu flexibility.

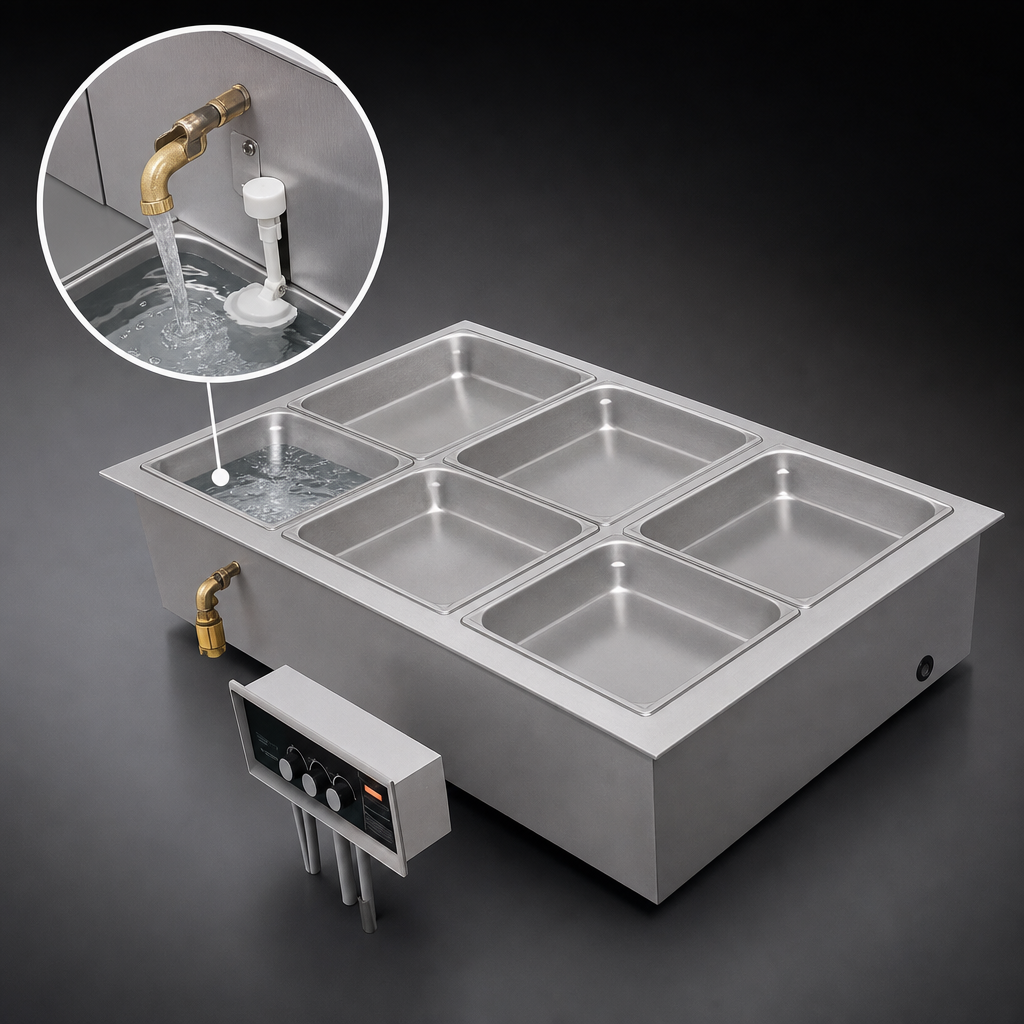

- Factory-installed Auto-Fill system maintains optimal water levels—no manual refilling during service.
- Individual ¾" NPT drains with 50 % larger openings and flat screens speed cleanup and keep pans level.
- Remote thermostat for each well plus a lighted on/off rocker switch for simple, precise control.
- Top-mount design with EZ-Lock™ hardware drops in from above for a clean, integrated look—no silicone required when factory gasket option is chosen.
- Durable stainless-steel wells and aluminized housing with solid-brazed drain fittings stand up to the demands of high-volume kitchens.
- Fully insulated sides and bottom conserve energy and keep surrounding counters cool.
- Metal-sheathed heating elements are quick-change ready—swap an element or thermostat in minutes when service is required.
- 6' (1829 mm) flexible conduit included for convenient placement of the control box.
Technical specifications
| Model | HWBI-3DA |
|---|---|
| Pan capacity | (3) Full-size 12" × 20" steam table pans (up to 6" deep) |
| Overall dimensions | 43.5" W × 23.63" D × 9.56" H (1105 × 600 × 243 mm) |
| Mounting | Top-mounted, EZ-Lock™ clamps included |
| Heating | Standard-watt, thermostatically controlled (one thermostat per well) |
| Drain system | Individual ¾" NPT drains per well, flat screens included |
| Auto-Fill | Built-in float system automatically adds water as needed |
| Construction | Stainless-steel wells; aluminized & stainless exterior; full insulation |
| Electrical | 208 / 220 / 240 V, single phase standard; three-phase wiring available See spec sheet for amp draw & plug configurations |
| Certifications | cULus, CE, UL EPH Classified (NSF/ANSI Sanitation) |
| Origin | Made in USA |
Popular accessories (sold separately)
- One- or two-pan Swanstone® simulated-stone covers—convert the unit to a buffet-friendly heated shelf.
- Copper drain manifolds with side or bottom exit for single-point drainage.
- Full-, half-, and third-size stainless-steel food pans in 2.5", 4" and 6" depths.
- Round-pan adapters, trivets and hinged lids for soup or sauce service.
- ¾" or 1" ball/gate valves and remote drain handles.
Need a different size or voltage? Hatco offers 1- to 6-well configurations, standard or low-watt models and a variety of mounting and control options—contact us for help tailoring the perfect solution.
