Hatco  |  SKU: HWBI-1D

Hatco HWBI-1D Steam Tables & Food Wells

$962.68
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog brochure Color chart Restaurant solutions Owner's manual Super market & in-store solutions Parts list Assembly instructions Stadium & concession solutions
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

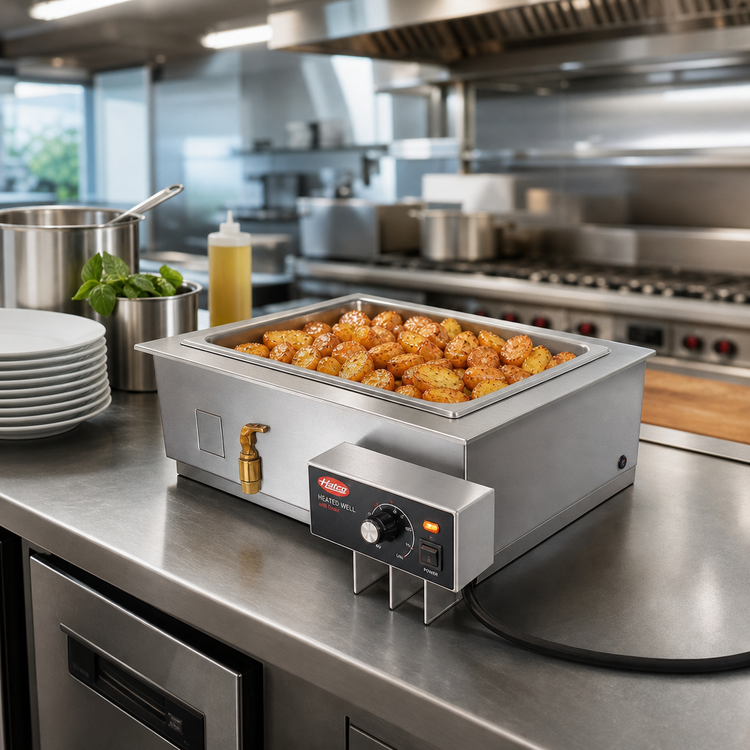

Hatco HWBI-1D Drop-In Heated Well

1 full-size pan | integral ¾" drain | remote controls

Keep menu items hot, appetizing and within easy reach with Hatco’s modular/ganged HWBI-1D Drop-In Heated Well. The insulated, top-mounted design drops cleanly into a countertop cut-out and is engineered for superior temperature consistency, faster clean-up and simple daily operation.

Why you’ll love it

  • Full-size capacity – Holds one 12" × 20" (GN 1/1) pan up to 6" deep.
  • Precise holding – Remote thermostat with a lighted on/off rocker switch lets each well be dialed-in independently.
  • Rapid installation – Factory-installed EZ-Lock hardware tightens from above the counter; no underside access needed.
  • 50 % larger drain – Built-in ¾" NPT drain with flat strainer speeds water removal and keeps pans level.
  • Built to last – Seam-welded stainless-steel well and aluminized outer housing resist corrosion and daily wear.
  • Service-friendly – Unique design lets you swap the heating element or thermostat in minutes.
  • Ready to wire – 6' (1829 mm) flexible conduit connects the controls to the well for versatile mounting.
  • Certified & compliant – CE marked, cULus listed, UL EPH Classified for sanitation and proudly Made in the USA.

Technical specifications

Model HWBI-1D (standard wattage)
Pan capacity 1 × full-size steam table pan (12" × 20")
Exterior dimensions 15.5" W × 23.63" D × 9.56" H
(394 × 600 × 243 mm)
Cut-out (min/max) 14.13–14.38" W × 23.63" D
(359–365 mm W × 600 mm D)
Drain connection ¾" NPT (integral)
Construction Stainless-steel well, aluminized steel housing, brazed drain fitting
Electrical* 120 V, 1,215 W, 10.1 A • Single phase (other voltages available)
Controls Remote box with thermostat dial & illuminated power switch
Certifications CE • cULus • UL EPH Classified
Origin Made in USA

*Electrical ratings shown for the most common configuration. Consult the spec sheet or your Hatco representative for alternate voltages, wattages and plug options.

Perfect for

  • Buffet & self-service lines
  • Cafeterias and commissaries
  • Quick-service & fast-casual restaurants
  • C-stores and grab-and-go stations
Important: This equipment is intended for holding pre-cooked, hot foods only. It is not designed to cook or reheat food products.

Features & Specs

Manufacturer

Hatco

Certifications

CE, cULus, UL EPH Classified, Made in USA

Height

9.63in

Width

15.5in

Depth

23.63in

Shipping Weight

38.0lbs

Pan Capacity

(1) full size (12" x 20")

Style

individual pans

Insulated or Non-Insulated

insulated

Construction

stainless steel top, corrosion resistant steel exterior

Controls

thermostatic controls

Drain

with drain

Wet or Dry operation

wet or dry

Specifications

Drop-In Modular/Ganged Heated Well, with drain, (1) full size pan capacity, insulated, top mounted, remote thermostat with separate power switch, stainless steel & aluminized construction (standard wattage), CE, cULus, UL EPH Classified, Made in USA
