Hatco  |  SKU: HWBI-11QTDA

Hatco HWBI-11QTDA Steam Tables & Food Wells

$1,228.80
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog brochure Owner's manual Parts list Color chart
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

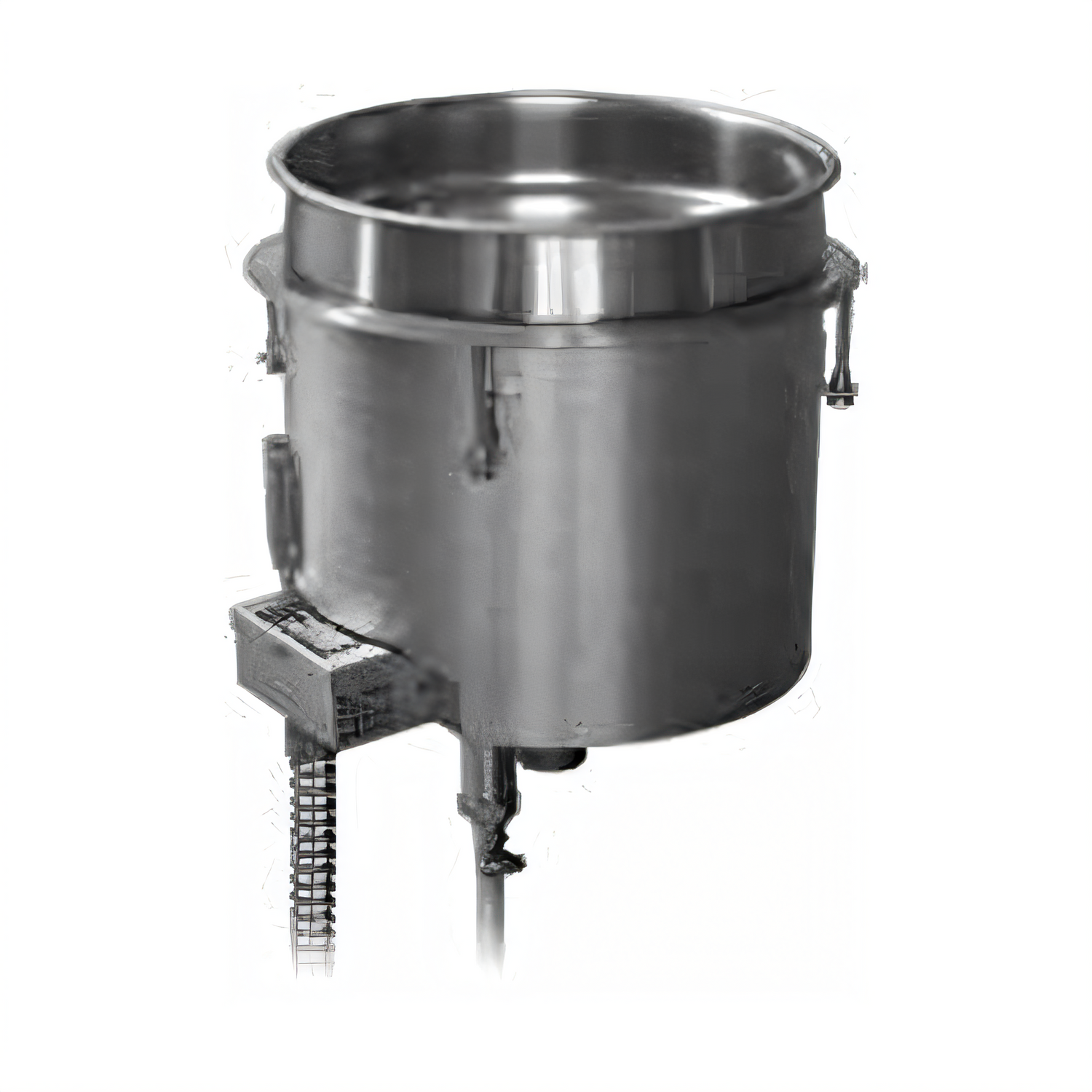

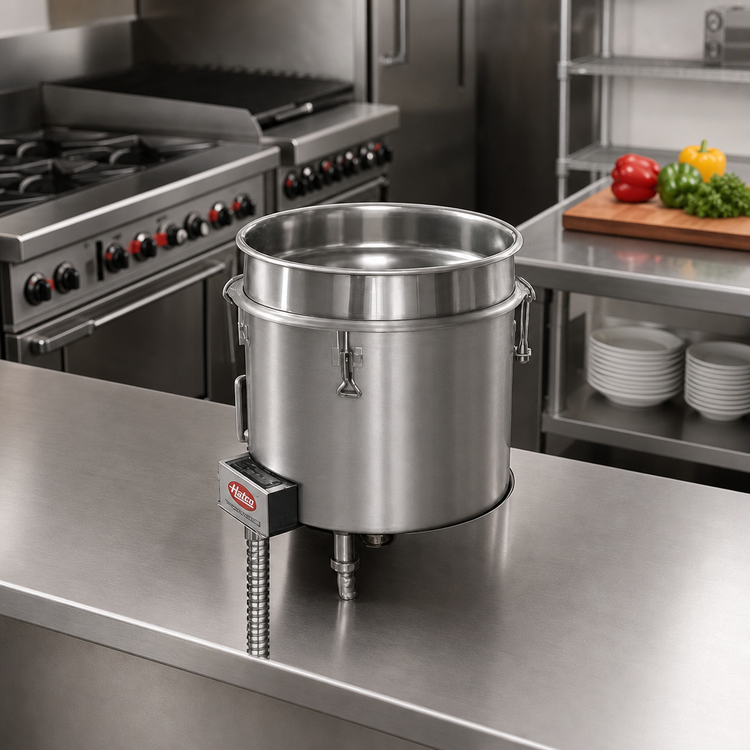

Hatco HWBI-11QTDA Drop-In Round Heated Well

11 Qt • Auto-Fill & Drain • Standard Watt • Stainless Steel

Give your soup, sauce and side stations the professional edge with Hatco’s insulated, top-mounted heated well. The HWBI-11QTDA maintains precise serving temperatures, refills itself automatically and drains at the flip of a valve—so your staff can focus on guests, not equipment.

Why You’ll Love It

  • 11-quart (10 L) capacity fits common soup, chili and gravy pans.

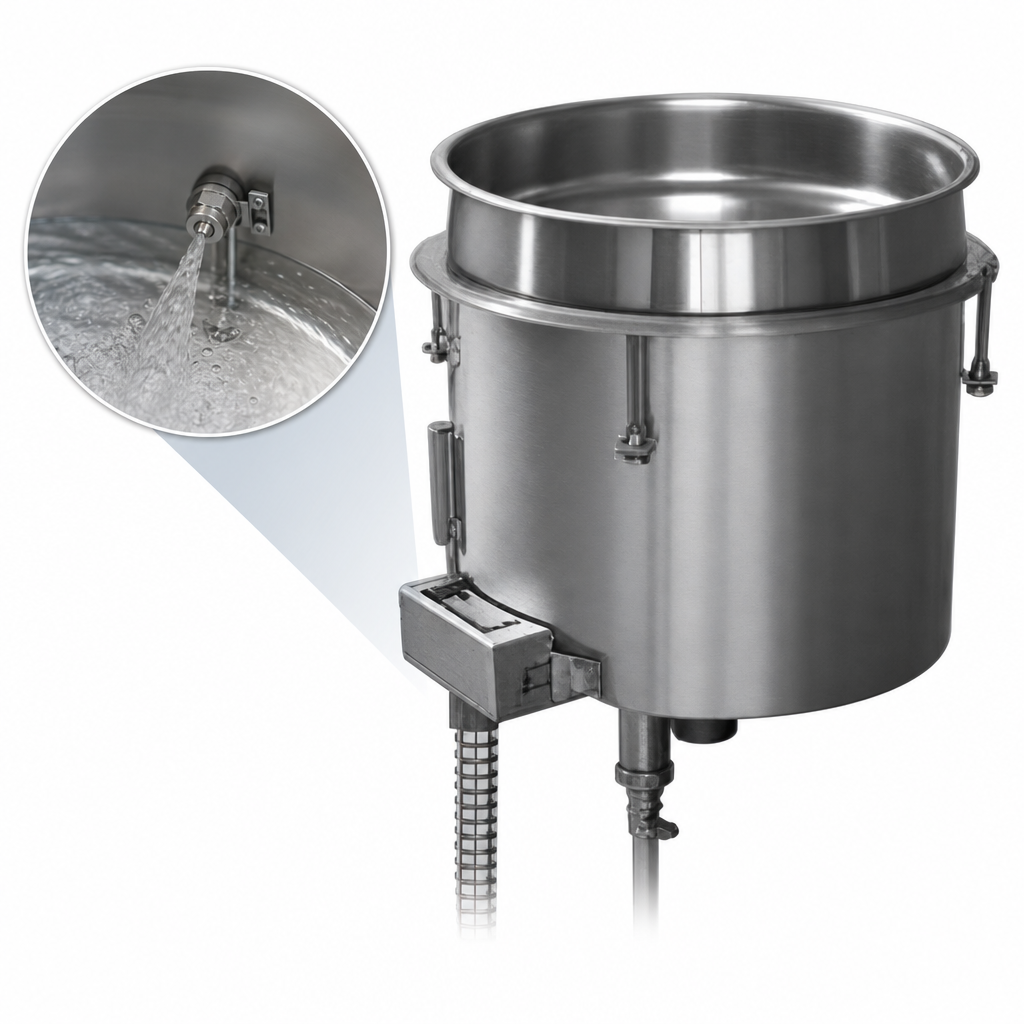

  • Automatic water fill (¼″ NPT) keeps the bath at the ideal level all day—no manual topping-off.
  • Integrated ¾″ NPT drain with ball valve speeds end-of-shift cleanup.
  • Self-adjusting thermostat senses actual well temperature for energy-efficient, consistent holding.
  • Separate lighted ON/OFF rocker switch and temperature dial for quick, fool-proof control.
  • Wet or dry operation—load food immediately without waiting for water to heat.
  • Heavy-gauge stainless steel well and flange, fully insulated sides & bottom.
  • Easy service access to element and controls via the bottom cover.
  • Certified CE, cULus and UL EPH Classified; proudly Made in the USA.

Specifications

Model HWBI-11QTDA (standard watt)
Capacity 11 qt / 10 L
Operation Wet or dry
Overall Size (Ø × H) 12.31″ × 9.70″ (313 × 246 mm)
Counter Cut-Out (non-comb.) Ø 11.38–11.56″ (289–293 mm)
Electrical 120 V • 500 W • 4.2 A • NEMA 5-15P  (208 / 240 V models available)
Water Connections Auto-fill inlet ¼″ NPT • Drain ¾″ NPT (ball valve supplied)
Control Lead 36″ (914 mm) flexible conduit between well and control box
Shipping Weight ≈ 23 lb (10.4 kg)
Agency Listings CE • cULus • UL EPH Classified
Country of Origin United States

Perfect For

  • Soup & chili bars
  • Breakfast buffets
  • C-store and QSR topping stations
  • Cafeterias, delis and catering lines
Installation Note: Unit requires a ¼″ cold-water supply, compatible drain line and a dedicated electrical circuit. Follow all local codes for safe operation.

Accessory 11-qt pans, lids and mounting kits for combustible countertops are available separately.

Features & Specs

Manufacturer

Hatco

Certifications

CE, cULus, UL EPH Classified, Made in USA

Height

9.7in

Width

12.31in

Depth

12.31in

Shipping Weight

23.0lbs

Insulated or Non-Insulated

insulated

Pan Capacity

(1) 11 qt round

Style

individual pans

Controls

thermostatic controls

Drain

with drain

Wet or Dry operation

wet or dry

Construction

stainless steel construction

Specifications

Drop-In Heated Well, with drain & auto fill, round, insulated, 11 quart, top mounted, separate lighted on/off rocker switch & temperature dial, stainless steel construction (standard wattage), CE, cUL, UL EPH Classified, MADE IN USA
