Hatco HWBHIB-FULDA Steam Tables & Food Wells
Description

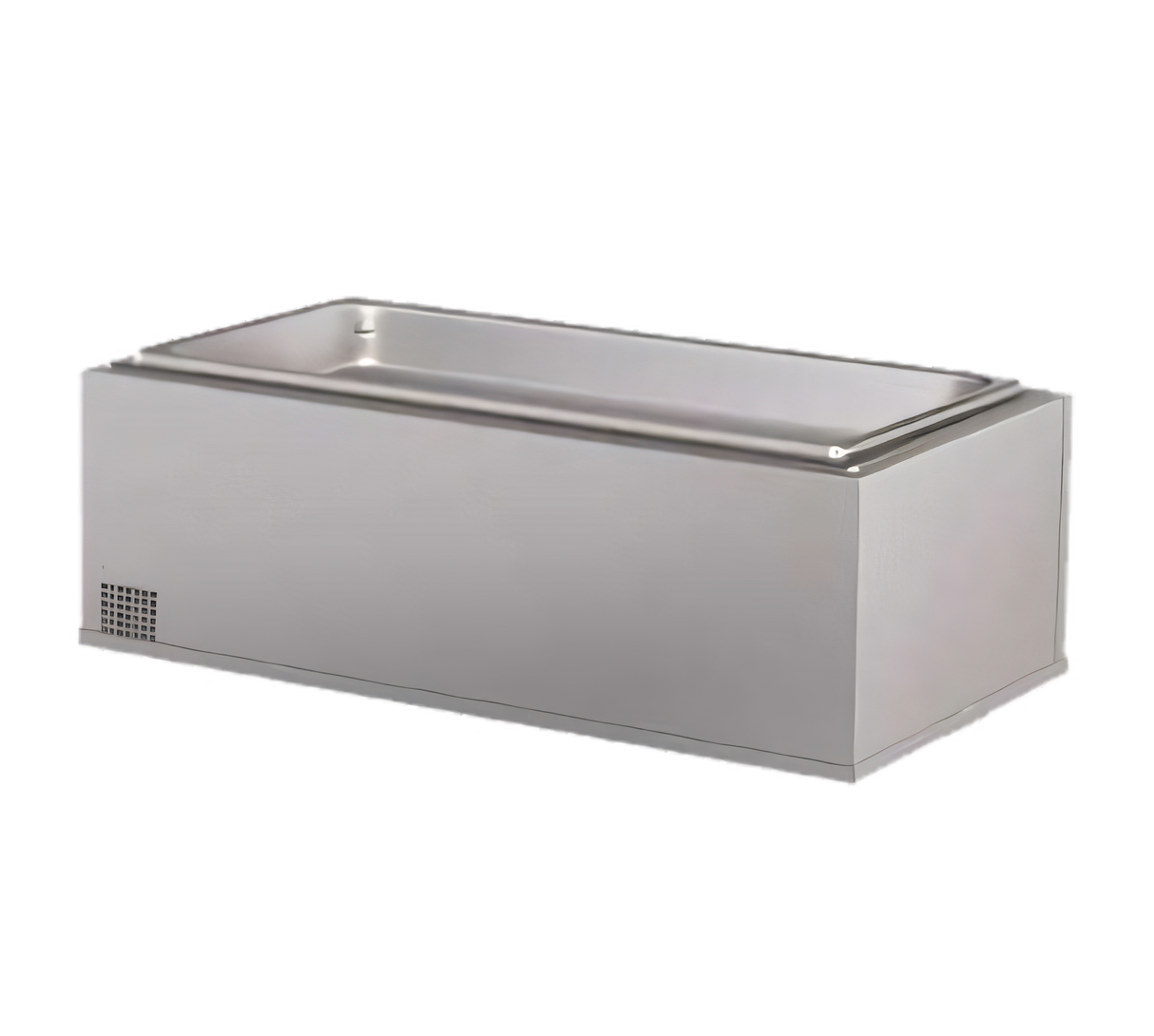

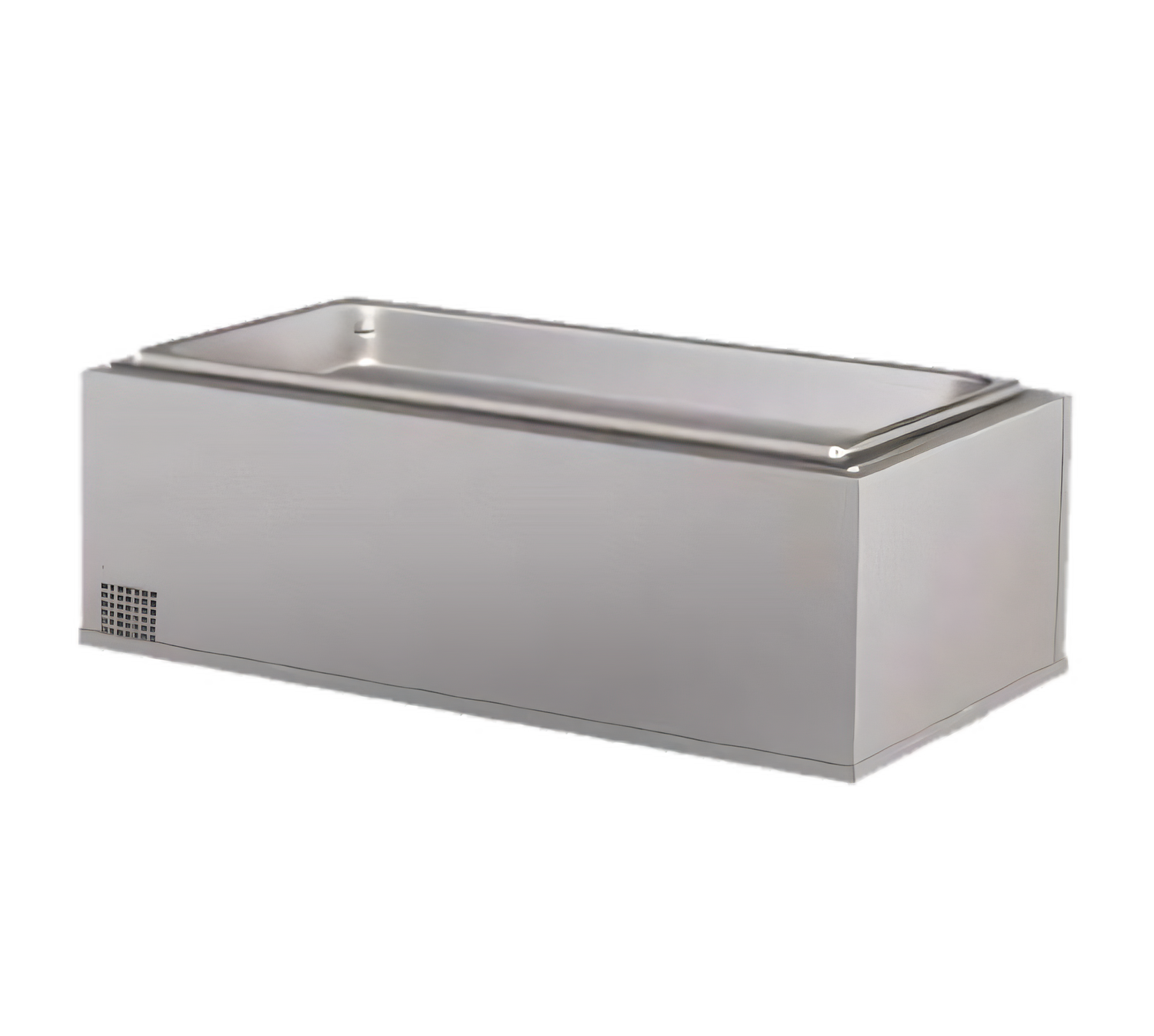

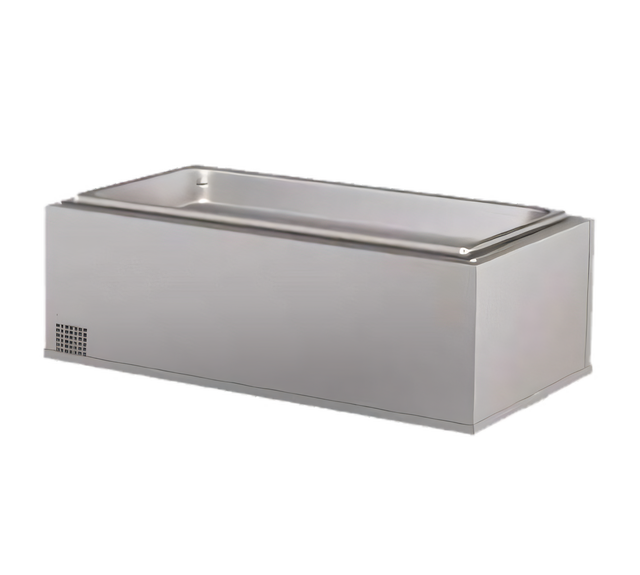

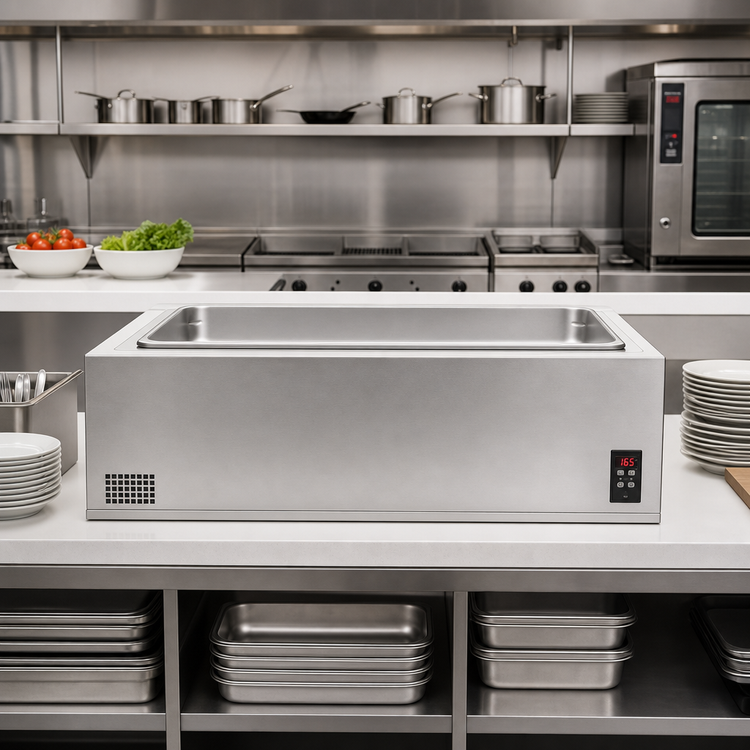

HWBHIB-FULDA High-Watt Built-In Heated Well
Bottom-mount • Full-size rectangular pan • Auto-fill & drain • 1650 WDesigned for demanding, high-volume food-service operations, the Hatco HWBHIB-FULDA keeps entrées, sides and toppings at safe, appetising temperatures for as long as you need them. A fully-insulated stainless-steel well, constant-level auto-fill system and remote thermostatic control combine to deliver precise, worry-free performance shift after shift.
Why choose the HWBHIB-FULDA?
- High-watt heat (1650 W) for fast recovery and even holding—ideal for peak periods.

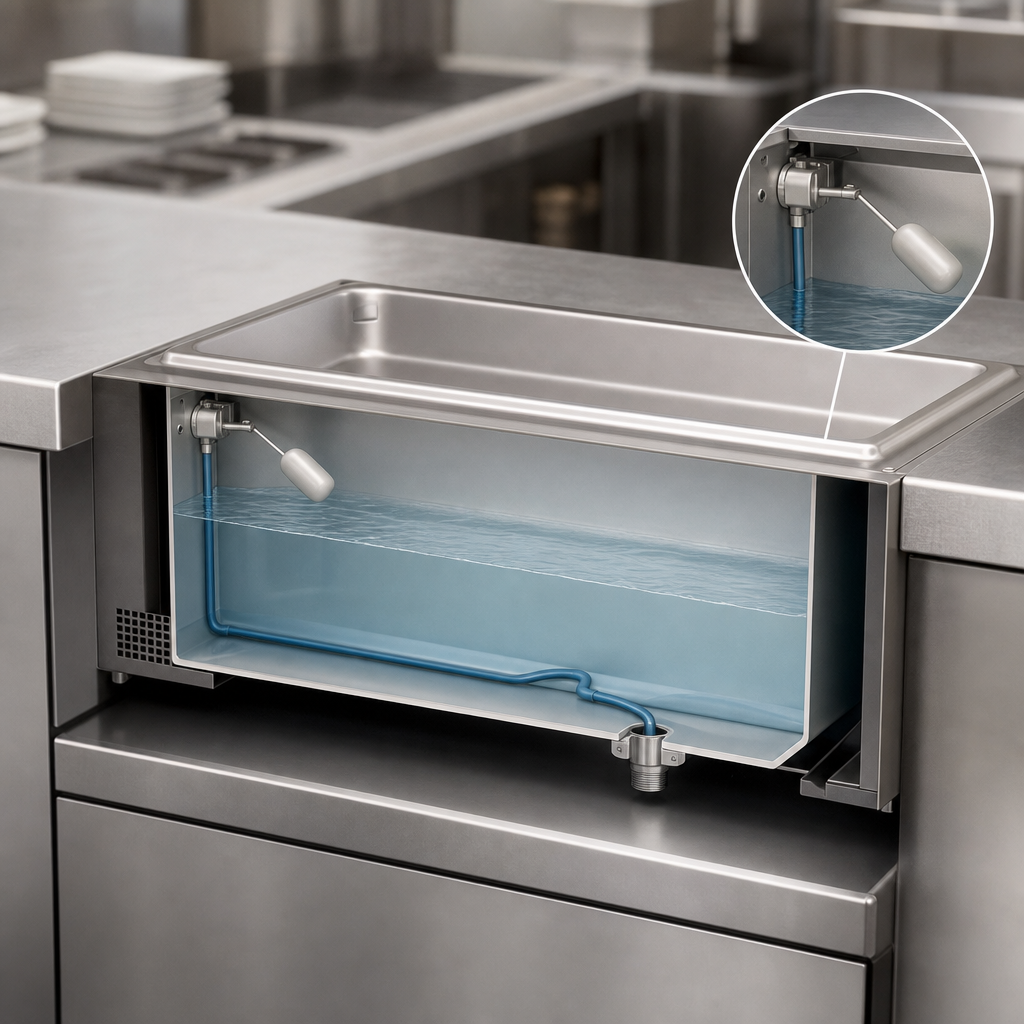

- Auto-fill technology maintains the optimal water level automatically, eliminating manual refills and preventing element burn-out.
- Bottom-mount design keeps the countertop flush and opens valuable pan-rim space for merchandising.
- Large ¾ in. NPT drain with flat strainer speeds clean-up and resists clogging.
- Full insulation on all sides and the base reduces energy loss and keeps surrounding surfaces cooler to the touch.
- Remote control box with lighted rocker switch and thermostat dial allows convenient, precise adjustment away from the heat source.
- Heavy-duty 300-series stainless steel construction with solid-brazed seams stands up to commercial abuse.
- Field-serviceable elements and thermostat—no need to remove the well for most repairs.
- EZ-locking hardware speeds installation into stainless, stone or composite counters.
- Safety & compliance: CE marked, UL, cUL and UL-EPH Classified for food-zone sanitation.
Specifications
| Model | HWBHIB-FULDA |
|---|---|
| Configuration | Bottom-mount, insulated full-size rectangular well with auto-fill & drain |
| Interior pan size | Accepts one standard 12 in. x 20 in. (GN 1/1) steam-table pan |
| Dimensions (W × D × H) | 13.84 in. × 22.09 in. × 10.28 in. (352 × 561 × 261 mm) |
| Wattage | 1650 W (High-watt) |
| Voltage & amps |
120 V / 13.8 A 208 V / 7.9 A 240 V / 6.9 A 220-230 V (CE) / 7.5 A |
| Water connection | ⅜ in. auto-fill inlet (back-flow preventer included) |
| Drain | ¾ in. NPT with flat stainless-steel strainer |
| Shipping weight | 35 lb (16 kg) |
| Certifications | UL, cUL, UL-EPH Classified, CE |
| Warranty | 1-year parts & labour (U.S./Canada) • 24/7 factory technical support |
Popular accessories (sold separately)
- Full-, half- or third-size stainless-steel food pans (2.5", 4" or 6" deep)
- Round-pan adapter plates for soup and sauce inserts
- Stainless-steel wire trivets to elevate pans above water level
- Remote drain handle kit for below-deck ball-valve operation
- Designer-colour control-box bezels to match your décor
Installation must be performed by a qualified electrician/plumber in accordance with local codes. Refer to the supplied Installation & Operating Manual for cut-out dimensions, wiring instructions and daily maintenance guidelines.
