Hatco HWBHI-FULDA Steam Tables & Food Wells
Hatco HWBHI-FULDA Steam Tables & Food Wells is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Hatco HWBHI-FULDA Steam Tables & Food Wells
Description

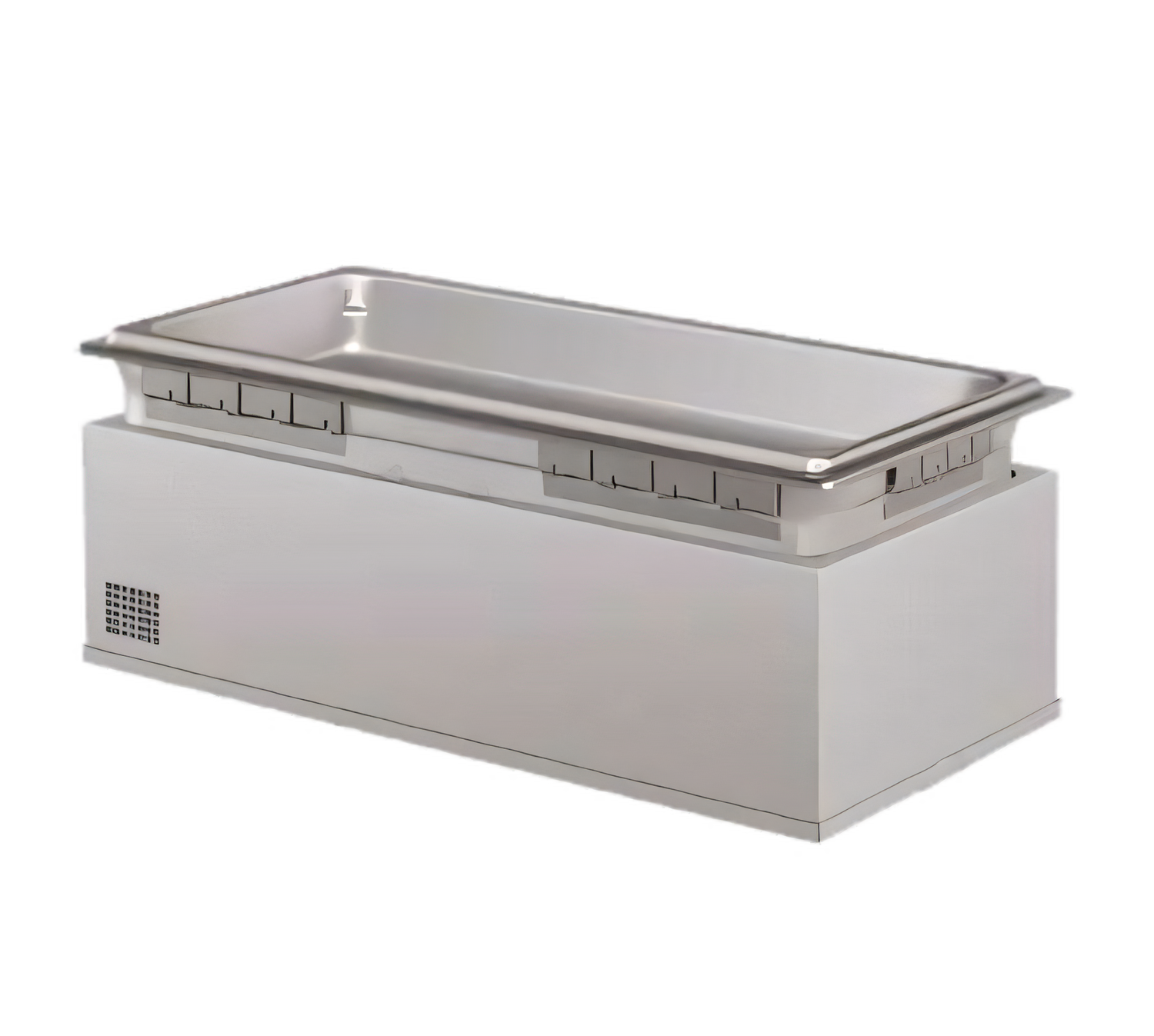

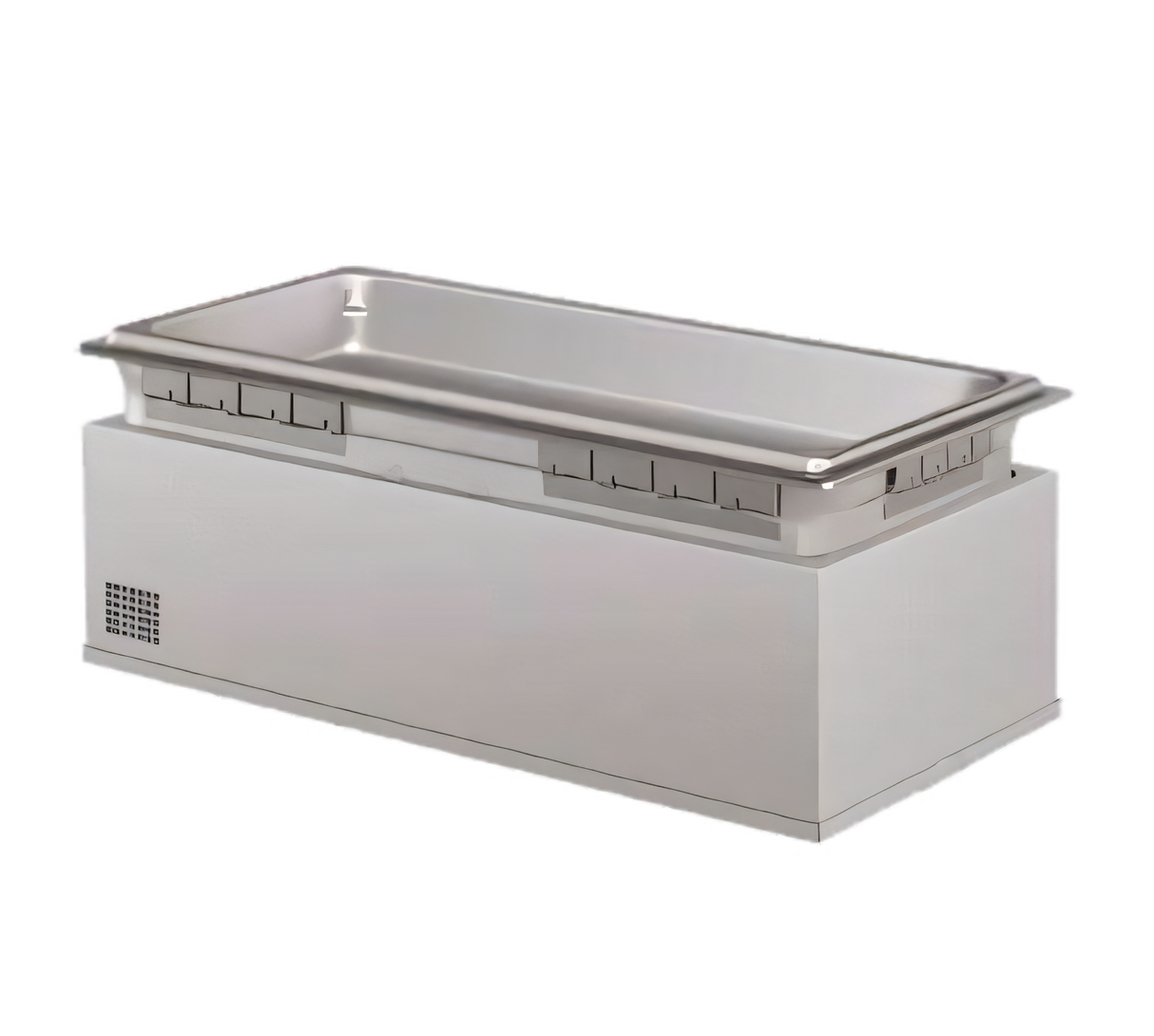

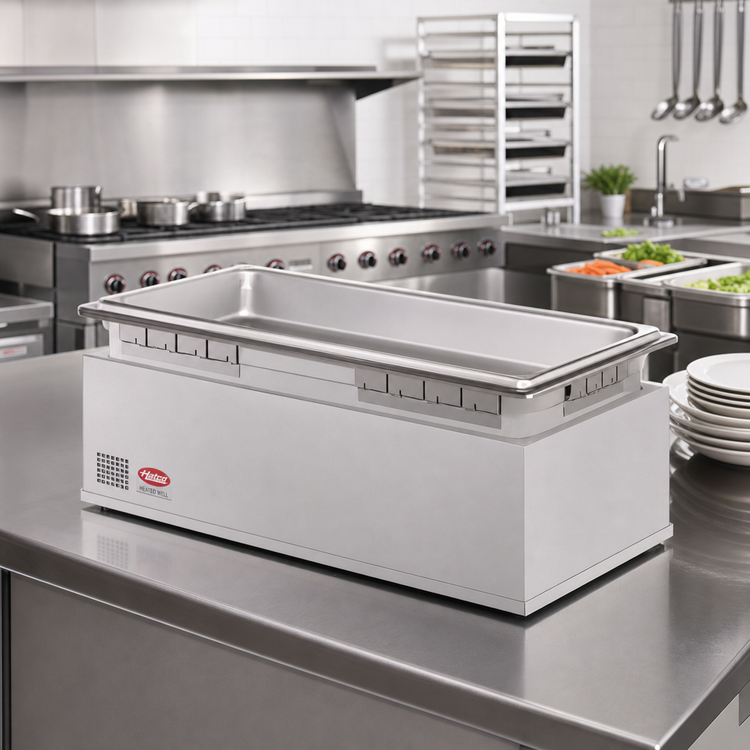

Hatco HWBI-FULDA Drop-In Insulated Heated Well – High Watt, Auto-Fill & Drain
Full-size • Top-Mounted • Remote Thermostat ControlKeep entrées, soups and sides at food-safe temperatures without constant attention. The Hatco HWBI-FULDA is a high-watt, fully-insulated, stainless-steel well that drops flush into your counter, automatically maintains its water level, and drains fast at closing time.
Why you’ll love it
- High-watt element (up to 1,650 W) delivers rapid heat-up and quick recovery during rush periods.
- Full perimeter insulation keeps heat around the pan while keeping surrounding surfaces cooler and safer.
- Auto-fill system senses low water and opens a solenoid valve to protect the element and guarantee even holding temperatures.
- Large ¾" brass drain with flat strainer speeds cleaning and resists clogging.
- Remote control box with lighted ON/OFF rocker switch and precise thermostat dial—mount it exactly where staff can reach it.
- EZ-locking hardware allows one-person drop-in installation.
- Heavy-gauge, fully-welded stainless steel well built for years of commercial use.

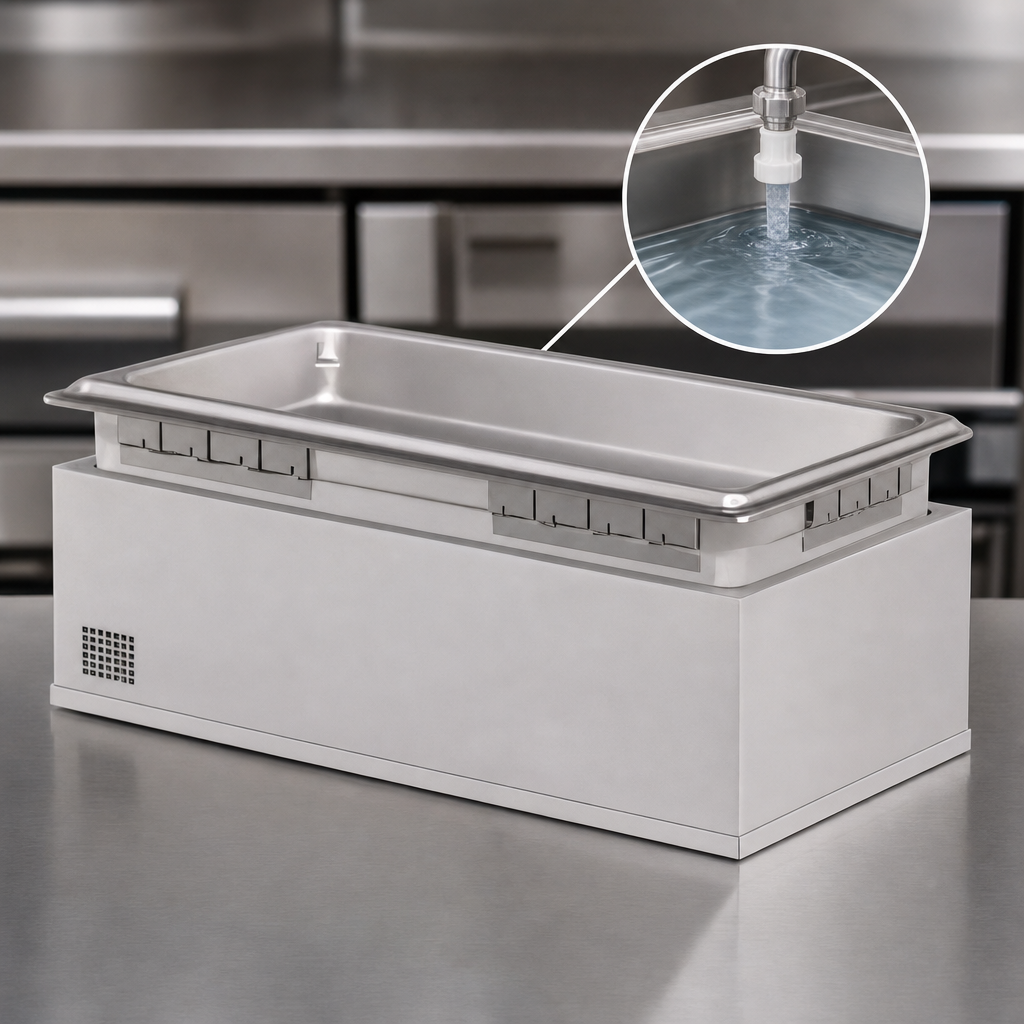

Smart auto-fill technology
A factory-installed low-water probe and back-flow–protected solenoid keep the bath at the correct level all day—no more manual refills or burnt elements.
Certifications & compliance
- UL & cUL Listed
- UL EPH Classified (sanitation)
- CE Marked
Technical specifications
| Model | HWBI-FULDA (High Watt) |
|---|---|
| Mounting style | Top mount, drop-in with EZ-lock brackets |
| Pan capacity | (1) full-size 12" × 20" (305 × 508 mm) pan, up to 6" (152 mm) deep |
| Overall dimensions | 13.68" W × 21.76" D × 10.34" H (347 × 553 × 263 mm) |
| Heating capacity | High Watt – 1,650 W |
| Electrical (single-phase) |
120 V / 13.8 A 208 V / 7.9 A 240 V / 6.9 A |
| Drain | ¾" NPT brass with flat strainer |
| Water inlet (auto-fill) | ⅜" OD compression connection, 20–90 psi potable water |
| Control lead | 36" (914 mm) flexible conduit standard • 72" (1829 mm) optional |
| Construction | Stainless steel well, flange & brazed joints with high-density insulation |
| Approx. ship weight | ≈ 31 lb (14 kg) |
Optional accessories
- Full-size pans (2.5", 4" or 6" deep)
- Adapter bars for half- or third-size pan layouts
- Round-pan adapter for soup inserts (4 qt or 7 qt)
- Remote drain handle kit
- Designer-color bezel for the control box
Looking for a different voltage, cord set, or conduit length? Hatco builds every well to order—contact us for customization before purchasing.
