Hatco HWBH-FULDA Steam Tables & Food Wells

$1,066.13
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list Color chart Catalog brochure Owner's manual Assembly instructions
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

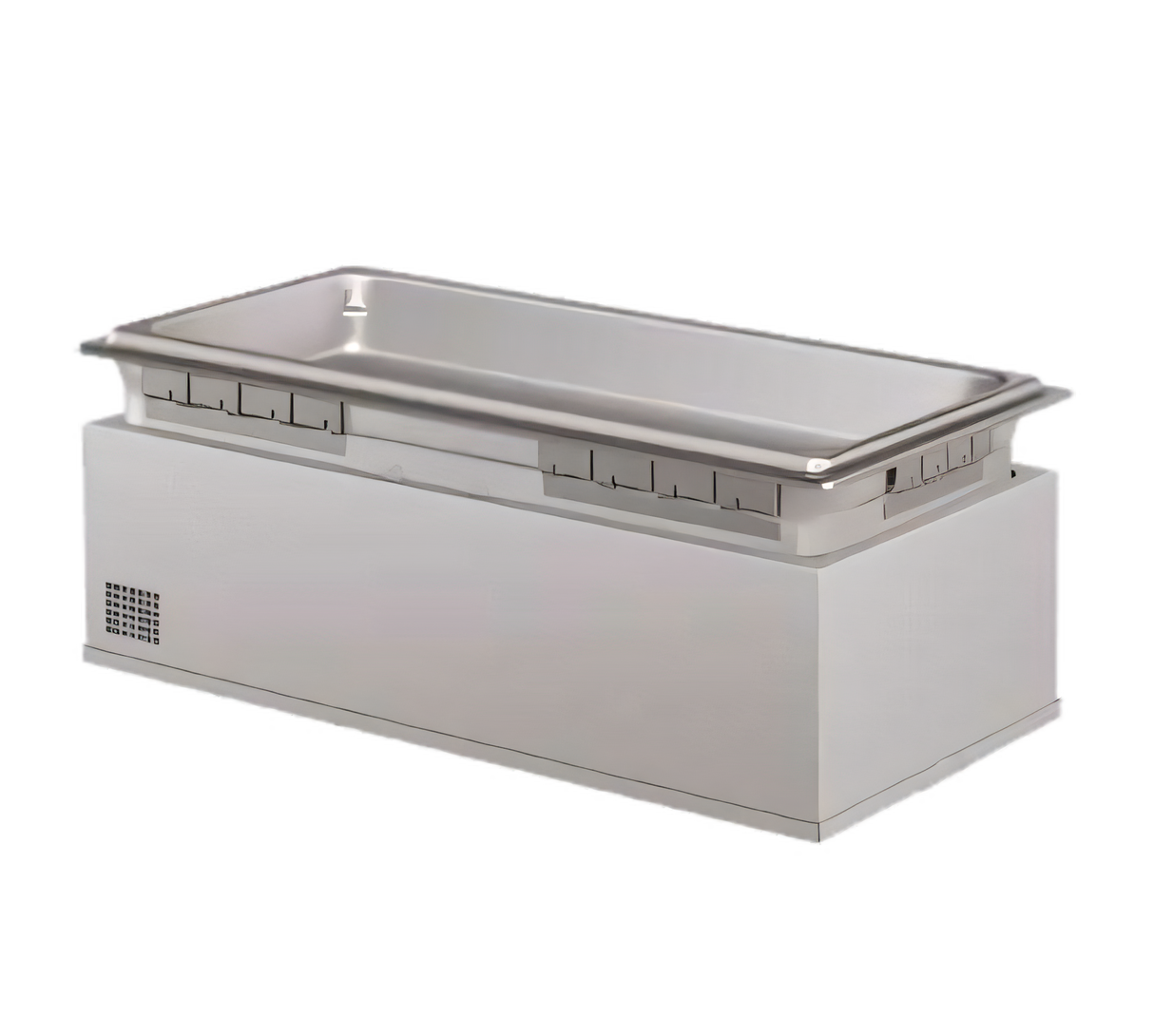

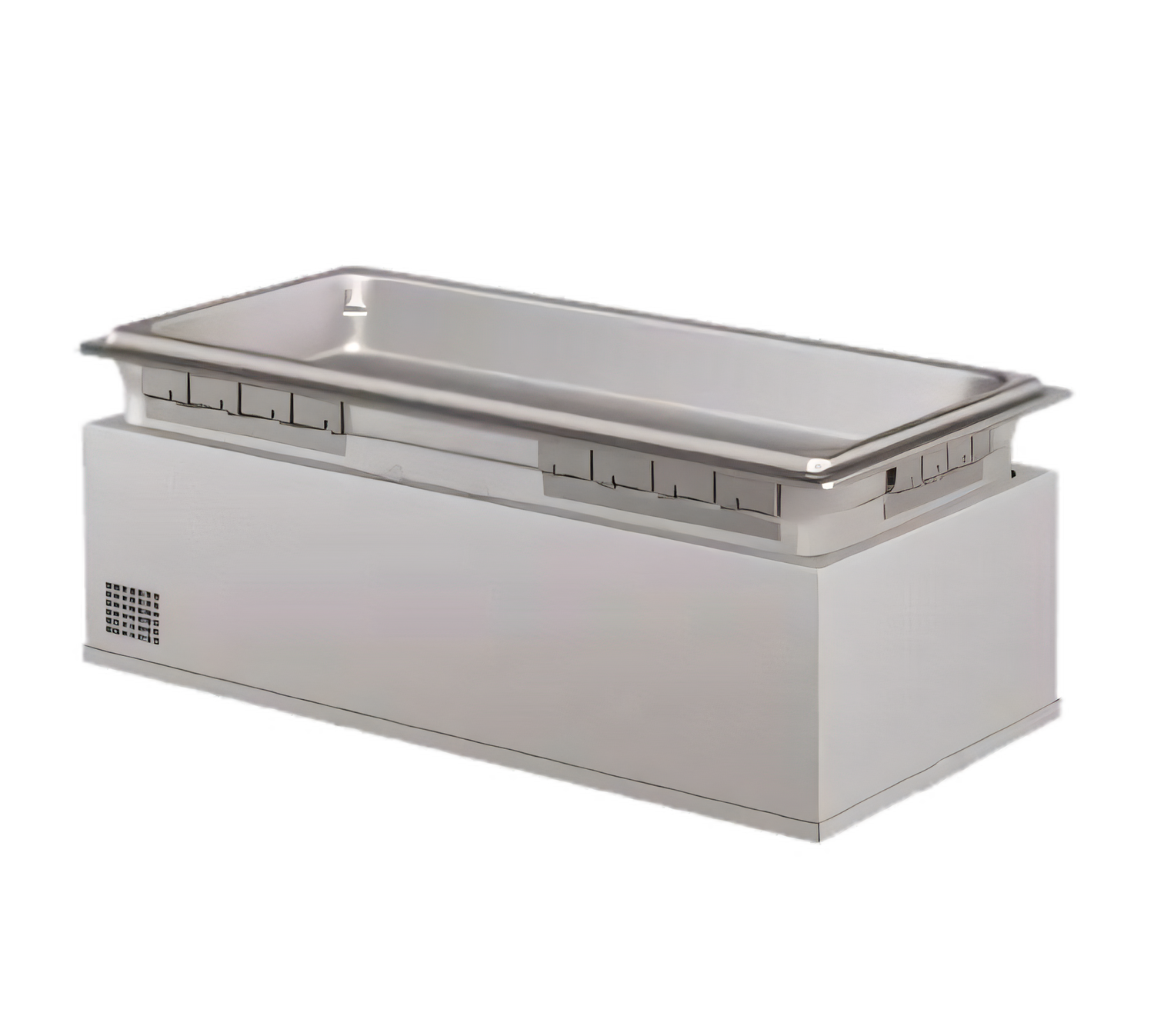

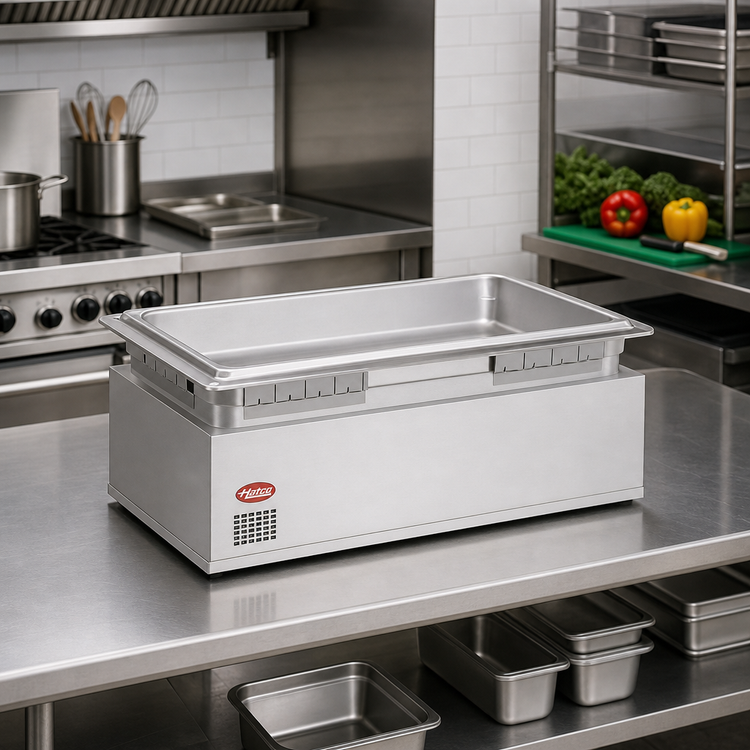

Hatco Drop-In Rectangular Heated Well – High Watt, Auto-Fill

Full-size 12 × 20 in • Top or Bottom Mount • Stainless Steel

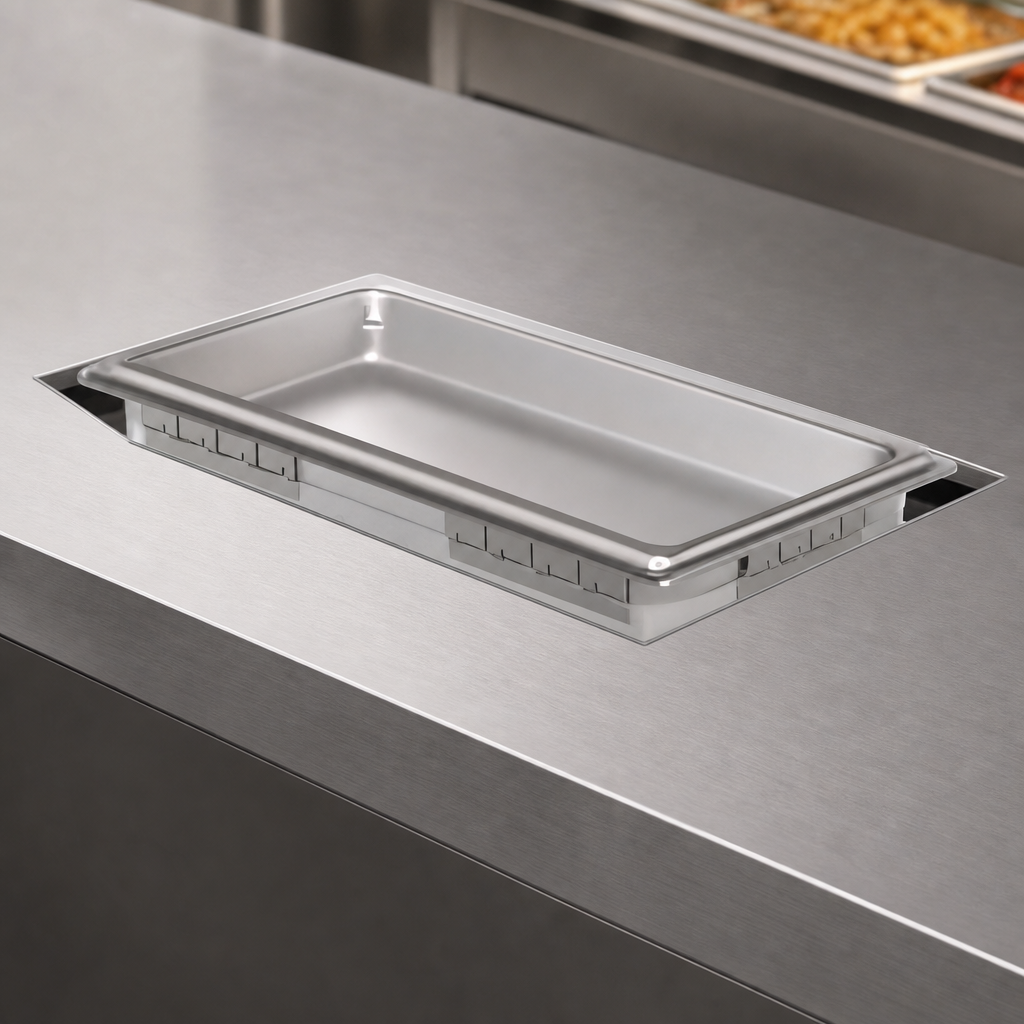

Designed for demanding buffet lines, cafeterias and service counters, this Hatco high-watt heated well keeps your menu items hot, fresh and ready for service while eliminating the daily hassles of manual refilling. Drop it in, set the temperature on the remote control box, and let the auto-fill system do the rest.

Key benefits

  • High-watt performance (1650 W) – rapid heat-up and quick temperature recovery during peak periods.
  • Auto-fill & low-water protection – integrated solenoid, back-flow preventer and sensor keep the water level perfect and prevent element burnout.
  • Remote thermostat with lighted rocker switch – maintain precise water temperature, not element temperature, from a convenient control box.
  • 3⁄4 in flat drain with strainer – larger outlet speeds draining and the flat screen keeps pans level for an attractive presentation.
  • Top or bottom mount – EZ Lock™ hardware makes installation fast in virtually any counter configuration.
  • Heavy-gauge stainless steel well – solid brazed seams and thicker material stand up to daily commercial use and make cleaning easy.
  • Versatile pan handling – holds one full-size 12 × 20 in pan up to 6 in deep, or fractional/round pans with optional adapters.
  • Globally certified – UL, cUL, UL EPH Classified (NSF/ANSI 4) and CE approvals support installations worldwide.

Ideal for

  • Buffet or carving stations
  • Cafeterias & institutional kitchens
  • Quick-service & convenience stores
  • Hotel breakfast bars

Specifications

Capacity 1 × Full-size 12 × 20 in (GN 1/1) pan, up to 6 in (152 mm) deep
Overall dimensions (W × D × H) 13.68 × 21.77 × 9.32 in   (347 × 553 × 237 mm)
Recommended cut-out (non-combustible) 12.63 – 12.94 in W  ×  20.63 – 20.94 in D   (321 – 328 mm × 524 – 531 mm)
Electrical (single phase) 120 V / 1650 W / 13.8 A   (NEMA 5-20P)
208 V / 1650 W / 7.9 A   (NEMA 6-15P)
220-240 V / 1650 W / 6.9-7.5 A  (CEE 7/7 Schuko or BS 1363)
Control lead length 36 in (914 mm) flexible conduit standard  •  72 in (1829 mm) optional
Drain outlet 3⁄4 in NPT with removable flat strainer
Shipping weight Approx. 22 lb (10 kg)
Certifications UL, cUL, UL EPH Classified, CE

Need adapters, support bars or extended control leads? Ask our team to configure the well to your exact workflow before it ships.

Features & Specs

Manufacturer

Hatco

Certifications

CE, cULus, UL EPH Classified, Made in USA

Height

9.4in

Width

13.75in

Depth

21.75in

Shipping Weight

26.0lbs

Pan Capacity

(1) full size (12" x 20")

Style

individual pans

Controls

thermostatic controls

Drain

with drain

Wet or Dry operation

wet or dry

Construction

stainless steel construction

Insulated or Non-Insulated

non-insulated

Specifications

Drop-In Heated Well, rectangular, with drain & auto-fill, non-insulated, full size pan, top or bottom mounted, remote thermostat with separate power switch, stainless steel construction (high wattage), CE, cUL, UL, UL EPH Classified
