Hatco

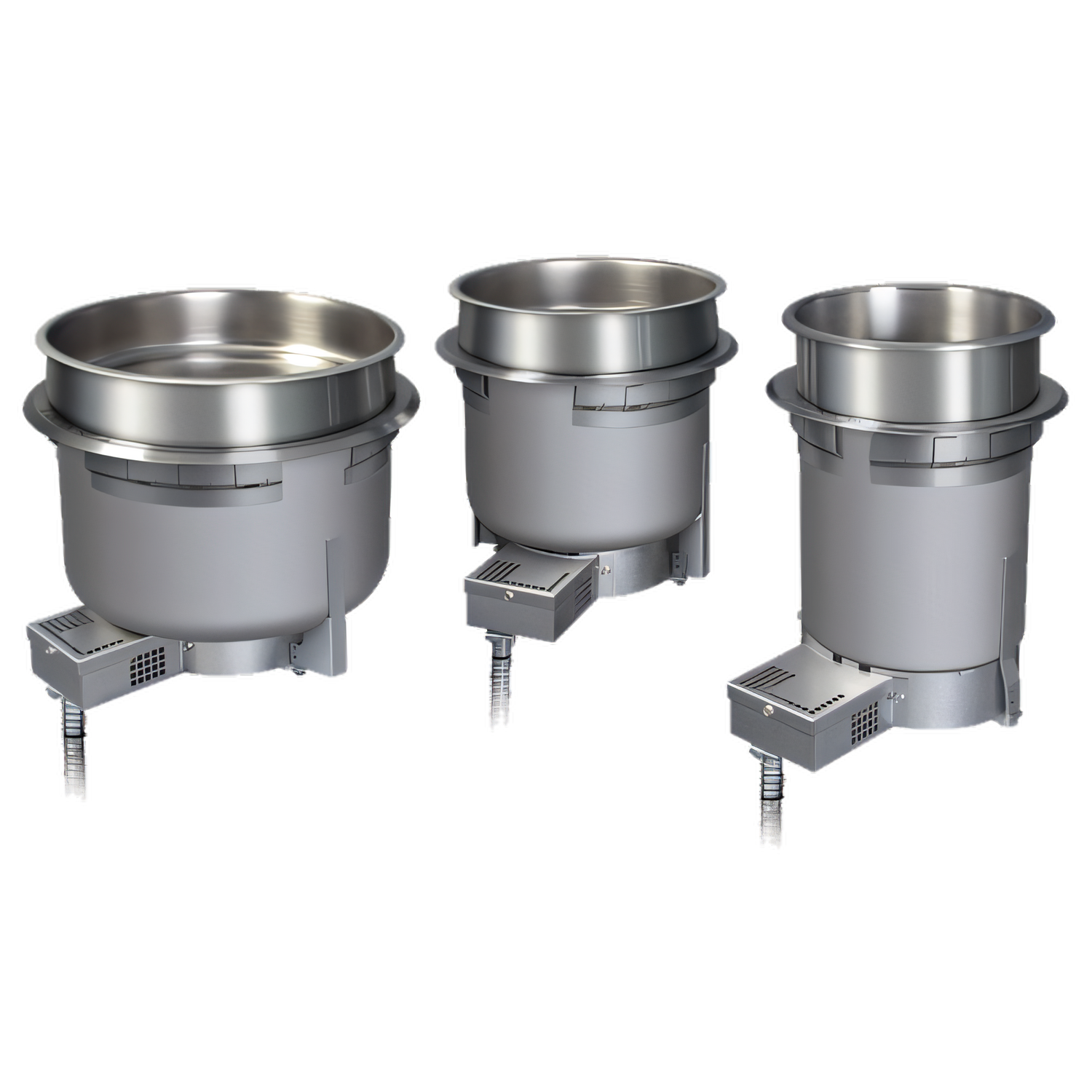

Hatco Drop-In Round High-Watt Uninsulated Heated Well with Drain, 7 Quart

SKU: HWBH-7QTD
$565.40
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines Hatco Hot Well New Arrivals Restaurant Equipment Steam Tables & Food Wells

Hatco Drop-In Round High-Watt Uninsulated Heated Well with Drain, 7 Quart

Top-Mounted, Wet or Dry Operation, Remote Thermostat

A compact, drain-equipped 7-quart round heated well that keeps buffet foods hot and ready while giving operators wet or dry flexibility.

  • 7-quart round drop-in heated well for buffet and serving-line applications.
  • High-watt design helps maintain serving temperatures in demanding foodservice settings.
  • Uninsulated stainless steel construction is built for commercial durability.
  • Remote thermostatic controls include a separate lighted ON/OFF switch and temperature dial.
  • Drain-equipped design with a 3/4-inch NPT drain simplifies emptying and cleanup.
  • Designed for wet or dry operation and features EZ locking hardware for quick installation.

Overall Dimensions:

10.31"W x 10.31"D x 9.6"H

Product Weight:

12.0 lb

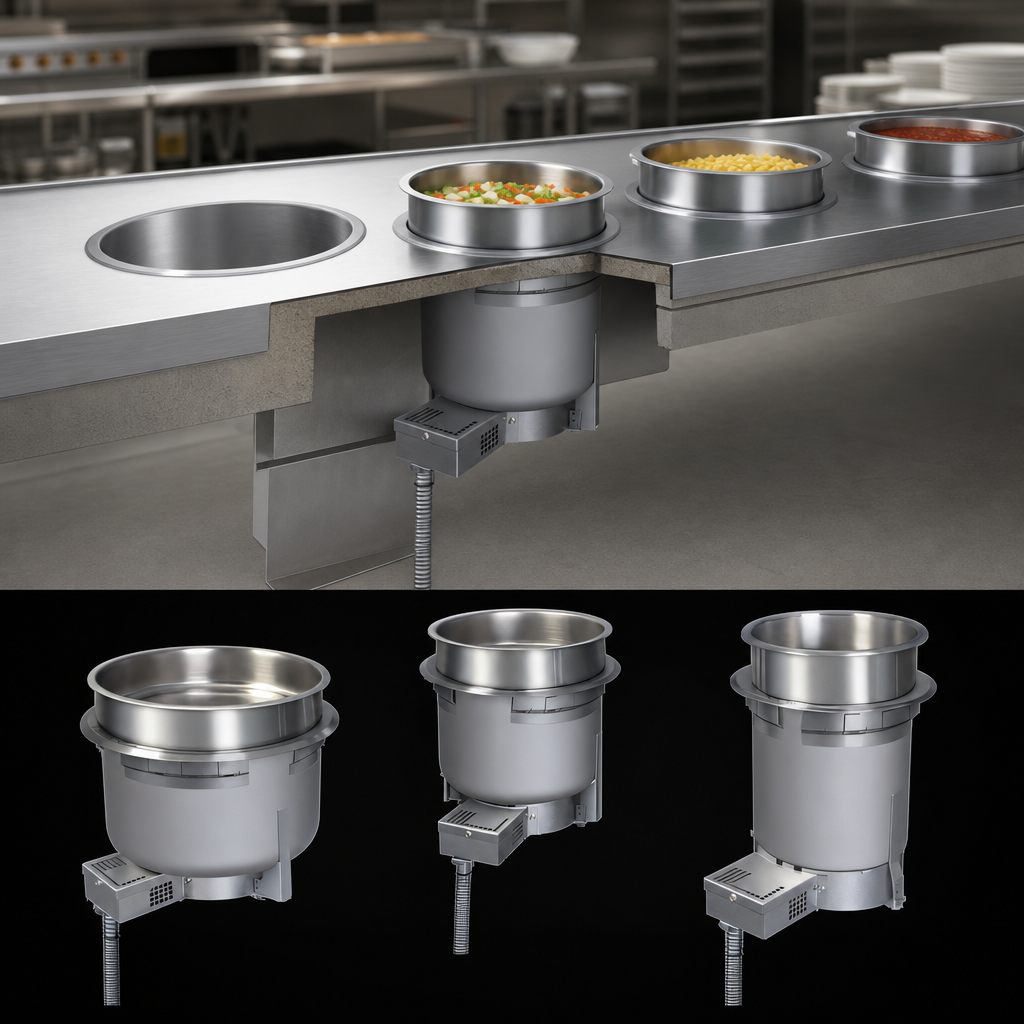

Uninsulated Construction

Non-insulated design supports a simple drop-in heated well setup.

Stainless Steel Construction

Built with stainless steel construction for commercial use and durability.

High-Watt Output

High-watt heating supports strong heat retention for hot-holding applications.

7-Quart Round Well

Holds one 7-quart round pan for individual-pan buffet service.

Wet or Dry Operation

Designed for either wet or dry operation, giving operators more flexibility.

Remote Thermostatic Control

Self-adjusting thermostat with a separate lighted ON/OFF switch and temperature dial.

Drain-Equipped Design

Includes a 3/4-inch NPT drain with flat screen to simplify draining and cleaning.

EZ Locking Hardware

EZ locking hardware helps speed installation and provides easy service access.

Listings

cULus listed and UL EPH Classified.

Type Heated Well
Style Individual Pans
Installation Type Drop-In
Capacity 7 Quarts
Pan Capacity 1
Pan Size 7 Quart Round
Controls Thermostatic
Material Stainless Steel
Drain Connection Required
Drain Connection Size 3/4 Inch NPT
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 11 Inches
Shipping Depth 11 Inches
Shipping Height 10 Inches
Shipping Weight 12 Pounds

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

24/7 parts and service assistance

Documents

PDF Cutsheet PDF Download PDF Hotel & lodging solutions PDF Download PDF Color chart PDF Download PDF Catalog brochure PDF Download PDF Parts list PDF Download PDF Restaurant solutions PDF Download PDF Super market & in-store solutions PDF Download PDF Cafeteria & buffet solutions PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

It holds one 7-quart round pan.
Yes. The well is designed for both wet and dry operation.
Yes. The D in the model number means drain equipped, and the well includes a 3/4-inch NPT drain.
For a non-combustible countertop, the opening is approximately 9.125 to 9.56 inches in diameter. Combustible countertops require an accessory mounting kit and an 11 to 11.25 inch square opening.
The series is available in 120, 208, 220, 220-230 CE, 230-240 CE, and 240 volt configurations.
It is cULus listed and UL EPH Classified, and it is made in the USA.
