Hatco HWBH-43DA Steam Tables & Food Wells
Description

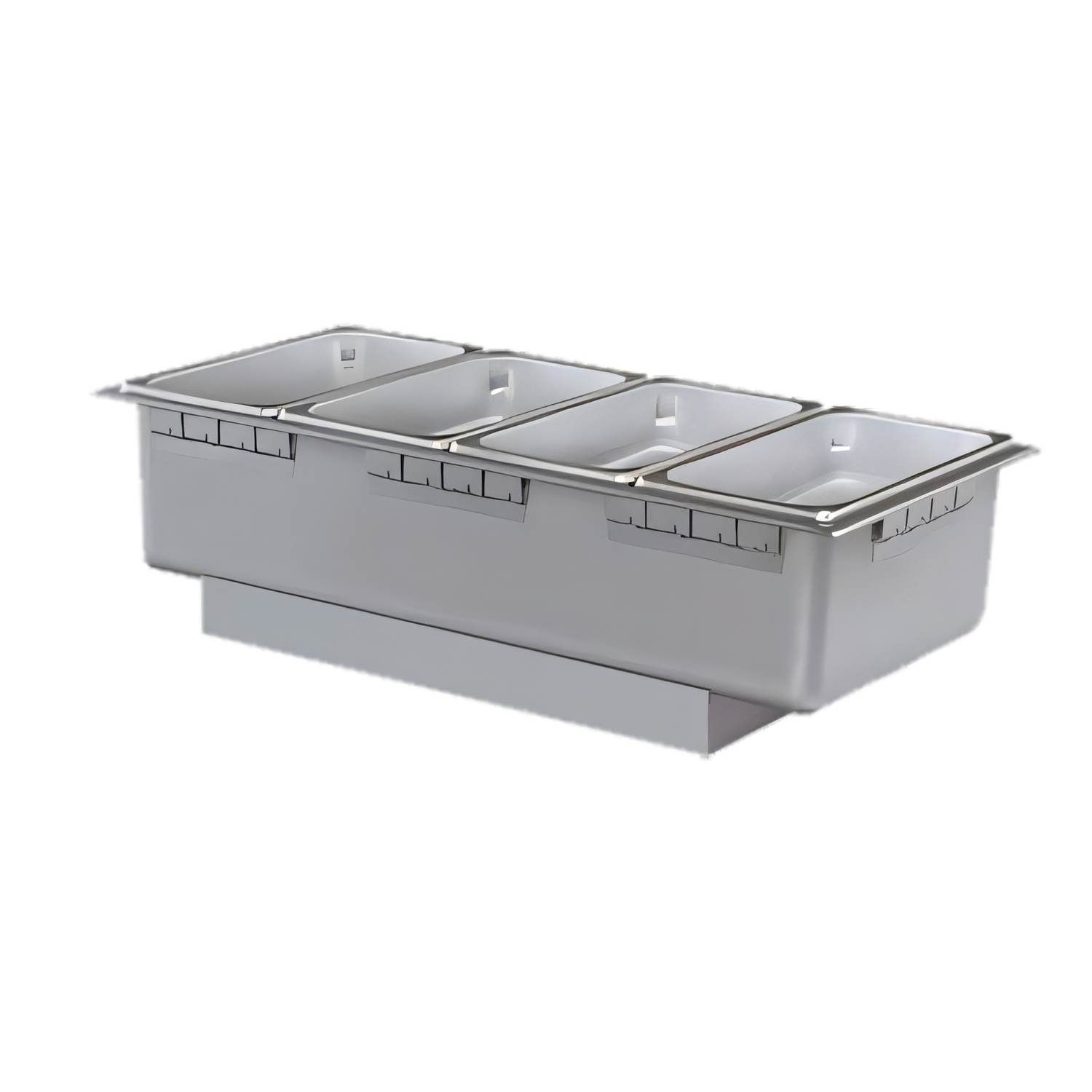

Hatco 4/3-Size Drop-In Heated Well – High Watt, Auto-Fill & Drain
Model HWB-43DA (Rectangular • Top-Mounted)Give your buffet, serving line or prep station the rock-solid reliability of Hatco. This high-wattage, 4/3-size drop-in well keeps four 1/3-size hotel pans of soups, sides or proteins at perfect serving temperatures – automatically maintaining the water level and draining fast for quick change-outs.
Key advantages
- High watt heating (up to 1650 W) for rapid pre-heat and steady temperature recovery during peak service.
- Integrated auto-fill system – no more babysitting the well; a low-water sensor triggers the inlet valve to top-off water as needed.
- Large ¾" drain with flat strainer speeds clean-up and soup-to-entrée menu changes.
- Remote-mount control box with separate lighted ON/OFF rocker switch and precision thermostat – set once, serve all day.
- Heavy-gauge stainless steel well and flange; aluminized steel housing resists corrosion and warping.

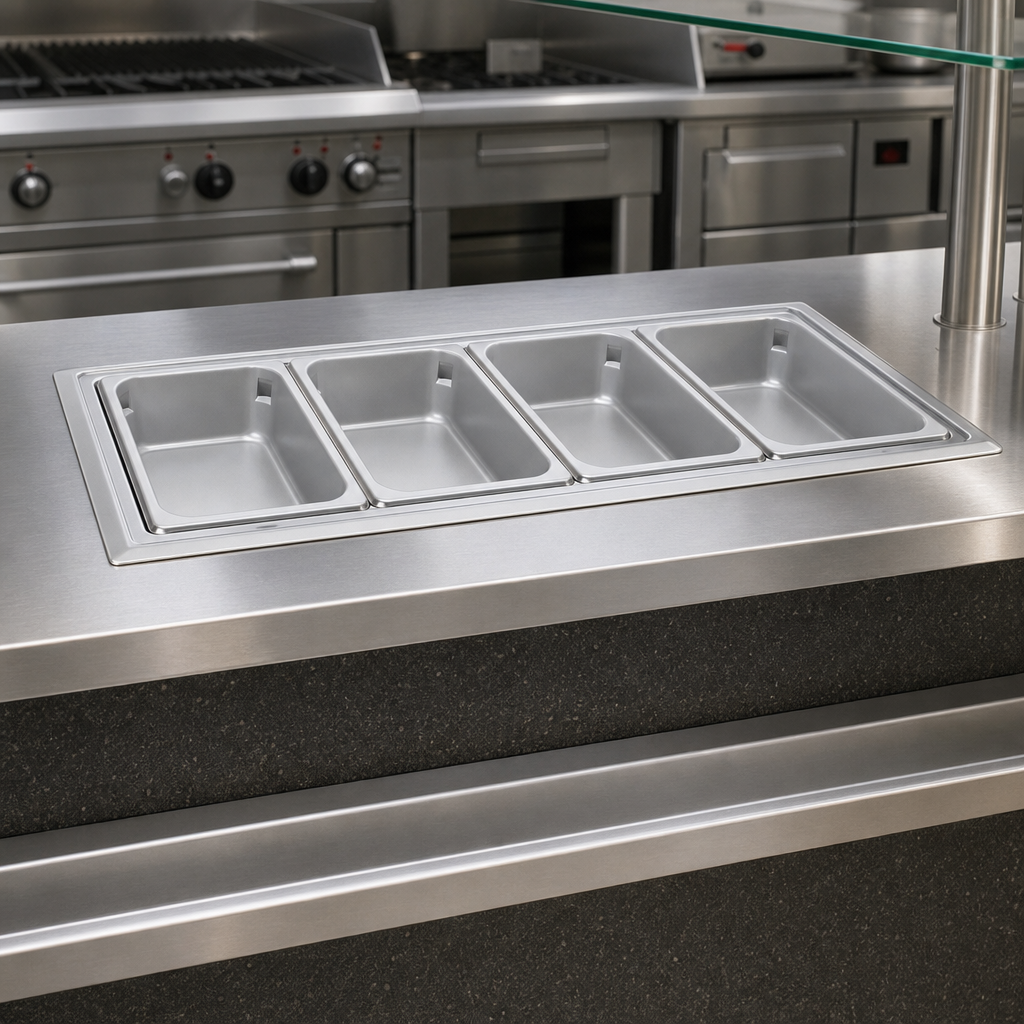

- Top-mount design drops neatly into non-combustible or combustible counters (accessory kit required for combustible tops).
- Field-replaceable elements and thermostat for fast, economical service.
Product details
| Pan capacity | (4) 1/3-size steam table pans (12" × 27" well opening) |
|---|---|
| Overall dimensions (W × L × H) | 13.58" × 28.58" × 9.42" (345 × 726 × 239 mm) |
| Power | High Watt, 1650 W max (see voltage chart below) |
| Voltage / Phase | 120, 208, 220/230, or 240 V • Single phase |
| Amps | Up to 13.8 A @ 120 V | 6.9 A @ 240 V |
| Water inlet | Auto-fill solenoid with factory-installed hose & back-flow preventer |
| Drain | ¾" NPT ball-valve drain with removable flat screen |
| Controls | Remote mechanical thermostat (50-200 °F) with lighted switch |
| Construction | 304 stainless steel well & flange; aluminized steel exterior; gasket included |
| Ship weight | ≈ 30 lb (14 kg) |
| Certifications | UL • cUL • UL EPH Classified • CE |
| Country of origin | Made in the USA |
Included
- 36" (914 mm) flexible conduit between well and control box
- Factory-installed auto-fill components & low-water sensor
- Mounting gasket and hardware
Popular accessories (sold separately)
- Stainless steel food pans (1/3, ½ or full size)
- Round pan adapter – holds two 11 qt inserts
- Support bars (12" or 20")
- ¾" remote drain handle kit
- Designer-color or recessed control bezels
Need help matching voltage or choosing pans? Contact our food-service specialists – we’re happy to help!
