Hatco  |  SKU: HWB-FULDA

Hatco HWB-FULDA Steam Tables & Food Wells

$1,066.13
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Assembly instructions Parts list Owner's manual Color chart Catalog brochure
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

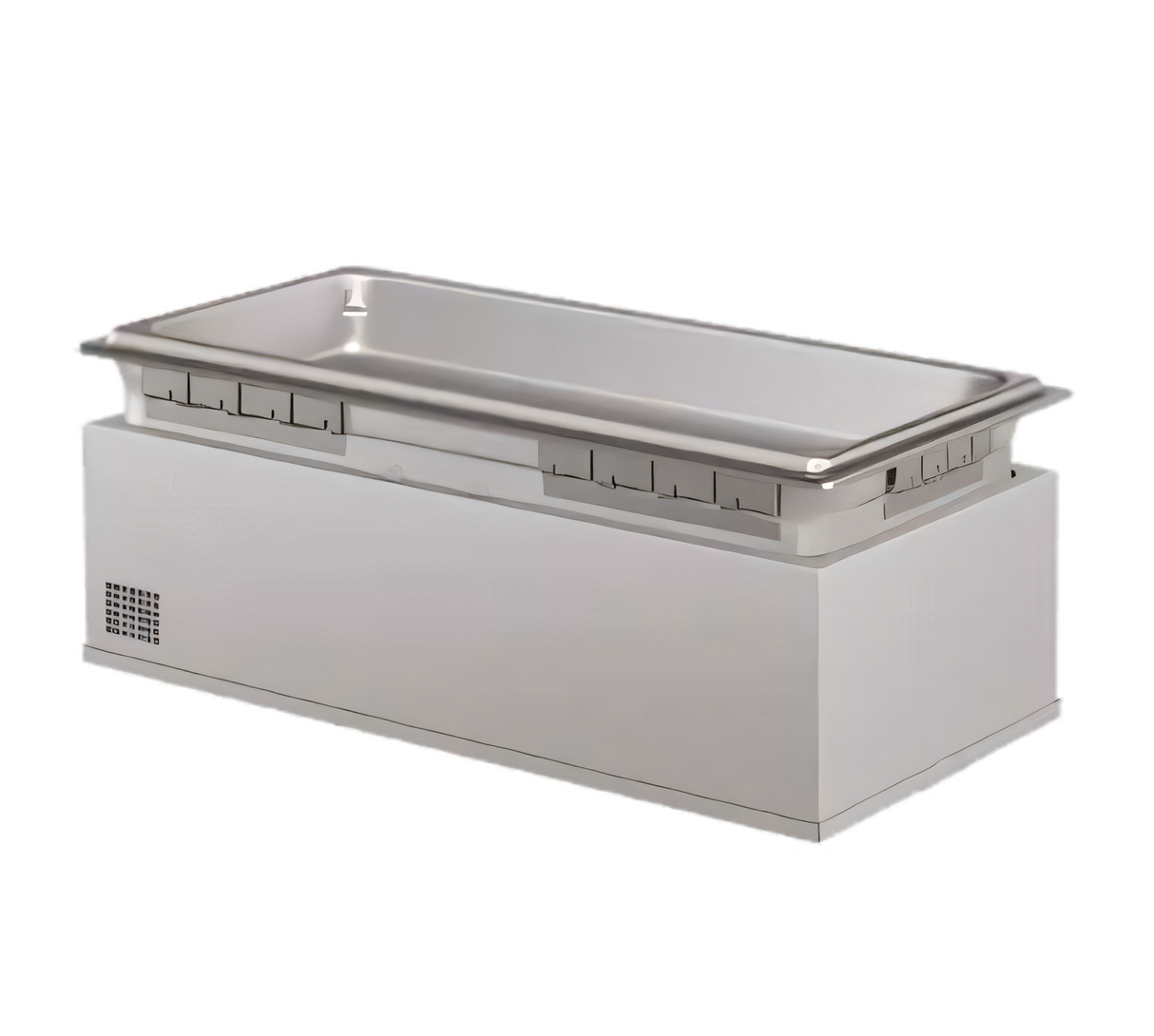

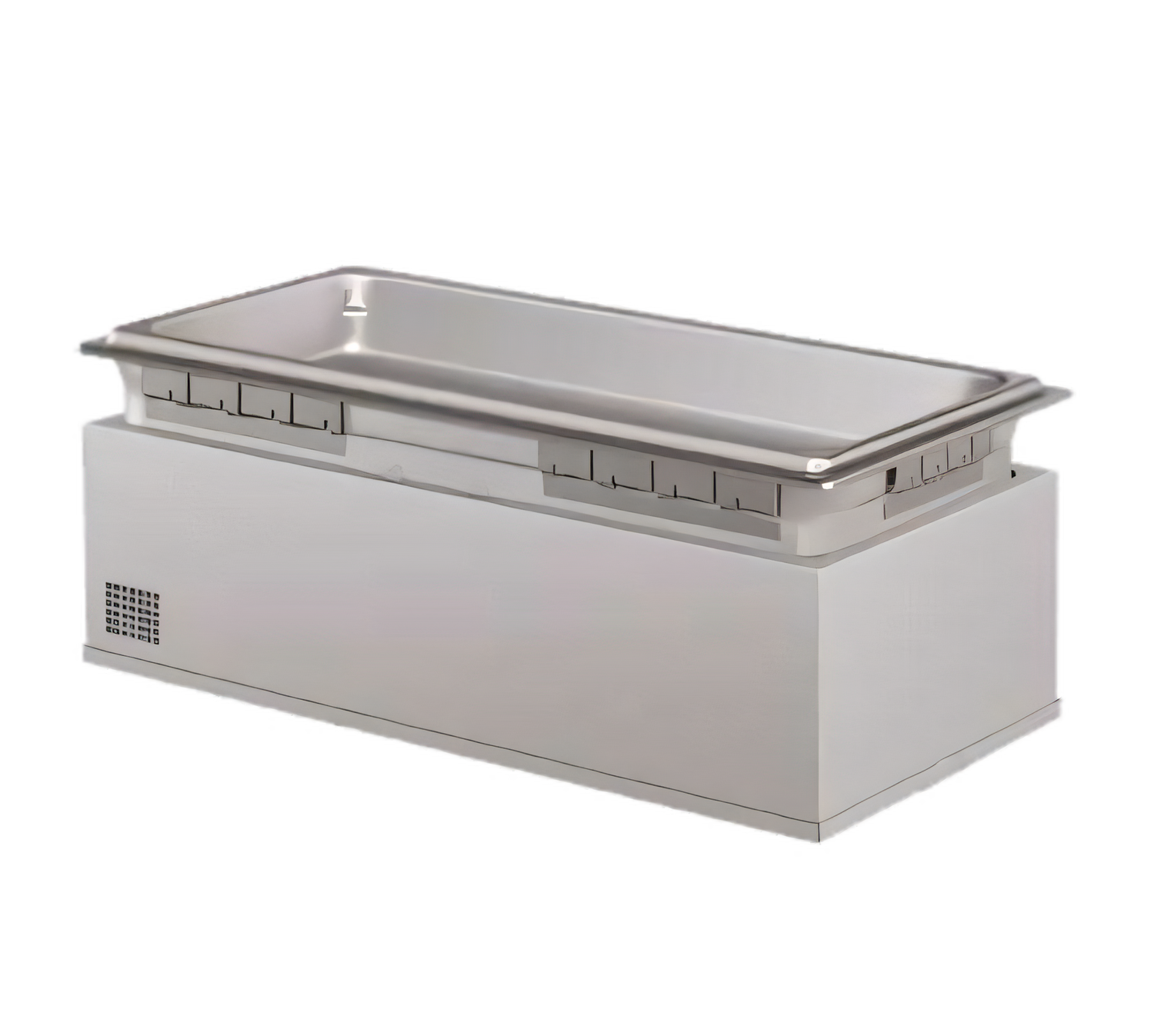

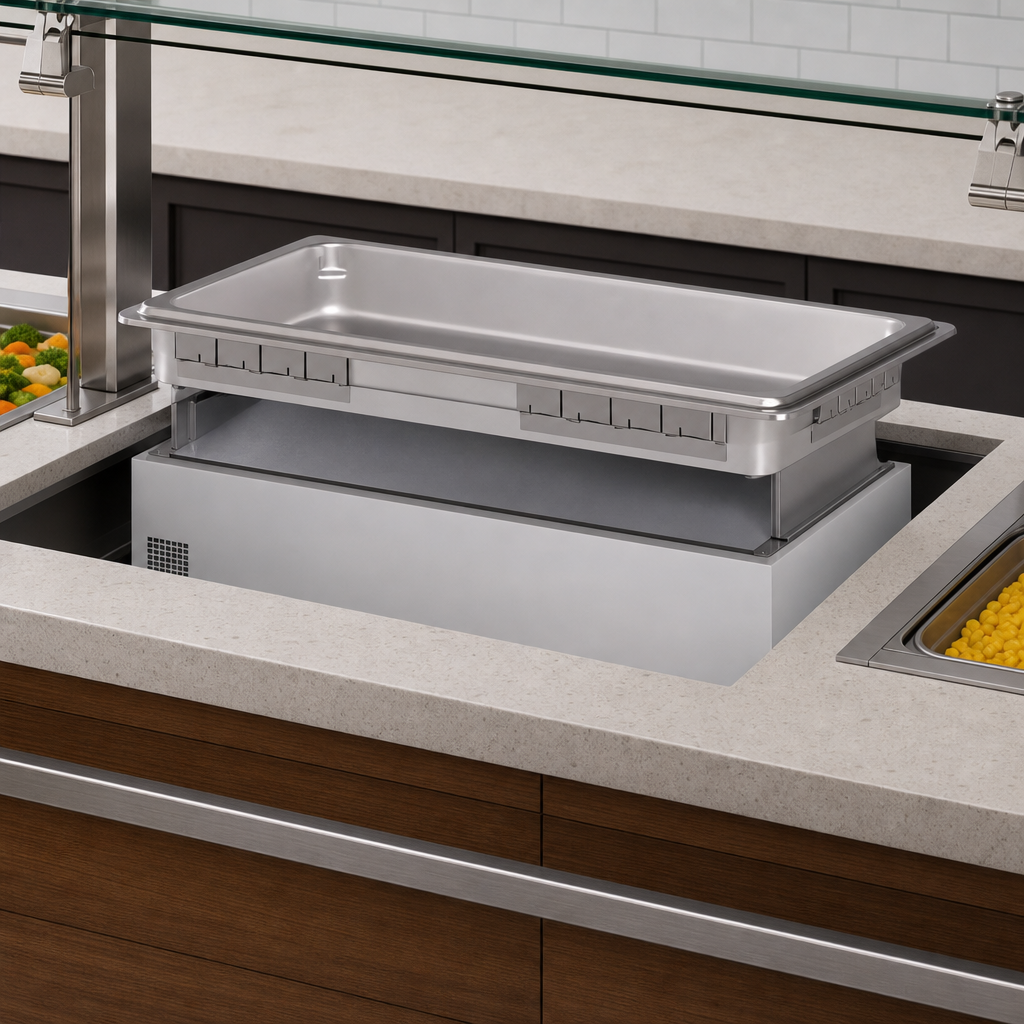

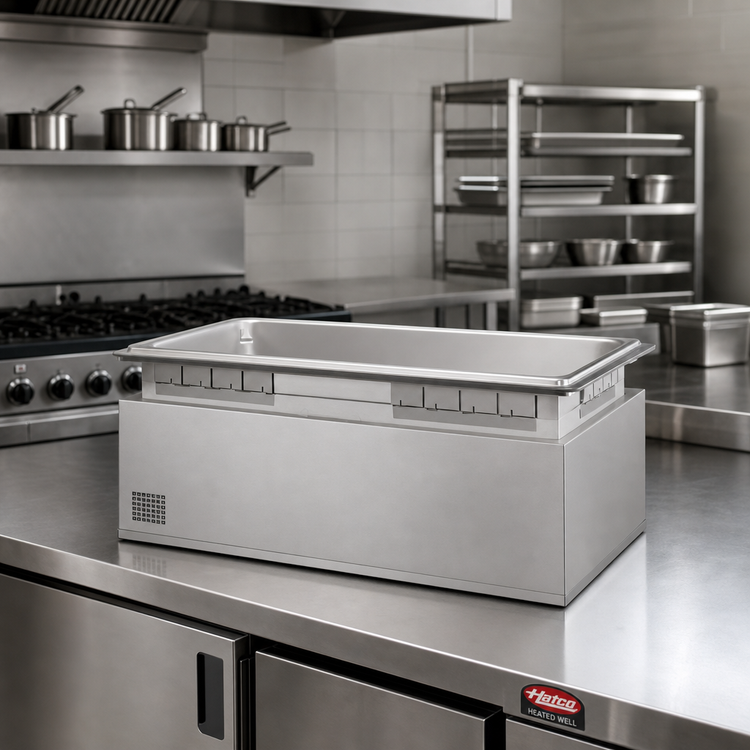

Hatco Drop-In Heated Well – Rectangular, Full-Size, Auto-Fill & Drain

Standard Watt • Remote Thermostat • Top or Bottom Mount

Keep your signature entrées hot, fresh and ready to serve. This Hatco full-size drop-in heated well combines precise thermostatic control with automatic water fill and an oversize drain, giving you worry-free holding and faster change-overs on busy buffet lines, cooklines and catering stations.

Key Features

  • Accepts one 12 × 20" steam table pan or fractional equivalents.
  • Auto-fill system maintains the ideal water level without manual refills.
  • 50 % larger flat-screen drain (¾" NPT) speeds clean-up and keeps pans level.
  • Remote thermostat (6 ft capillary) with separate lighted ON/OFF rocker switch for easy, repeatable temperature setting.
  • Thick stainless-steel well and solid-brazed joints withstand daily commercial use.
  • EZ-Lock hardware allows one-person, top-side installation in minutes.
  • Service-friendly design—elements and controls are accessible without removing the unit from the counter.
  • Approved for top or bottom mounting in both non-combustible and combustible countertops (with optional kit).
  • Standard-watt output balances energy savings with rapid temperature recovery.
  • Safety & quality certifications: UL, cUL, UL EPH Classified (NSF/ANSI 4) and CE.
  • Made in the USA by Hatco Corporation.

Specifications

Pan Capacity 1 × Full-size GN/steam table pan (12" × 20")
Overall Dimensions (W × D × H) 13.68" × 21.76" × 9.40" (347 × 553 × 239 mm)
Countertop Cut-Out
(Non-Combustible)		 12.63–12.94" W × 20.63–20.94" D
(321–328 × 524–531 mm)
Electrical Standard watt, single phase – choose 120, 208, 220 or 240 V
(see variant selector for amperage)
Controls Remote thermostatic dial with pilot light & power switch
Water Management Integral auto-fill inlet & float; ¾" drain with flat strainer screen
Construction 18-gauge stainless-steel pan, aluminized steel housing
Mounting Top or bottom drop-in (EZ-Lock fasteners included)
Shipping Weight ≈ 26 lb (12 kg)
Certifications UL, cUL, UL EPH Classified, CE

Popular Accessories (sold separately)

  • Stainless-steel food pans – 2.5", 4" or 6" deep
  • Adapter plates for three × 4 qt or two × 7 qt round inserts
  • Support bars for fractional pans (12" or 20")
  • ¾" ball or gate valve kits with remote handle
  • Mounting kits for combustible or extra-thick countertops

Have questions about voltage selection or accessories? Contact our equipment experts—we’re here 24/7.

Features & Specs

Manufacturer

Hatco

Certifications

CE, cULus, UL EPH Classified, Made in USA

Height

9.4in

Width

13.75in

Depth

21.75in

Shipping Weight

31.0lbs

Pan Capacity

(1) full size (12" x 20")

Style

individual pans

Controls

thermostatic controls

Drain

with drain

Wet or Dry operation

wet or dry

Construction

stainless steel construction

Insulated or Non-Insulated

non-insulated

Specifications

Drop-In Heated Well, rectangular with drain & auto-fill, non-insulated, full size pan, top or bottom mounted, remote thermostat with separate power switch, stainless steel construction (standard watt), CE, cUL, UL, UL EPH Classified
