Hatco HWB-43DA Steam Tables & Food Wells
Description

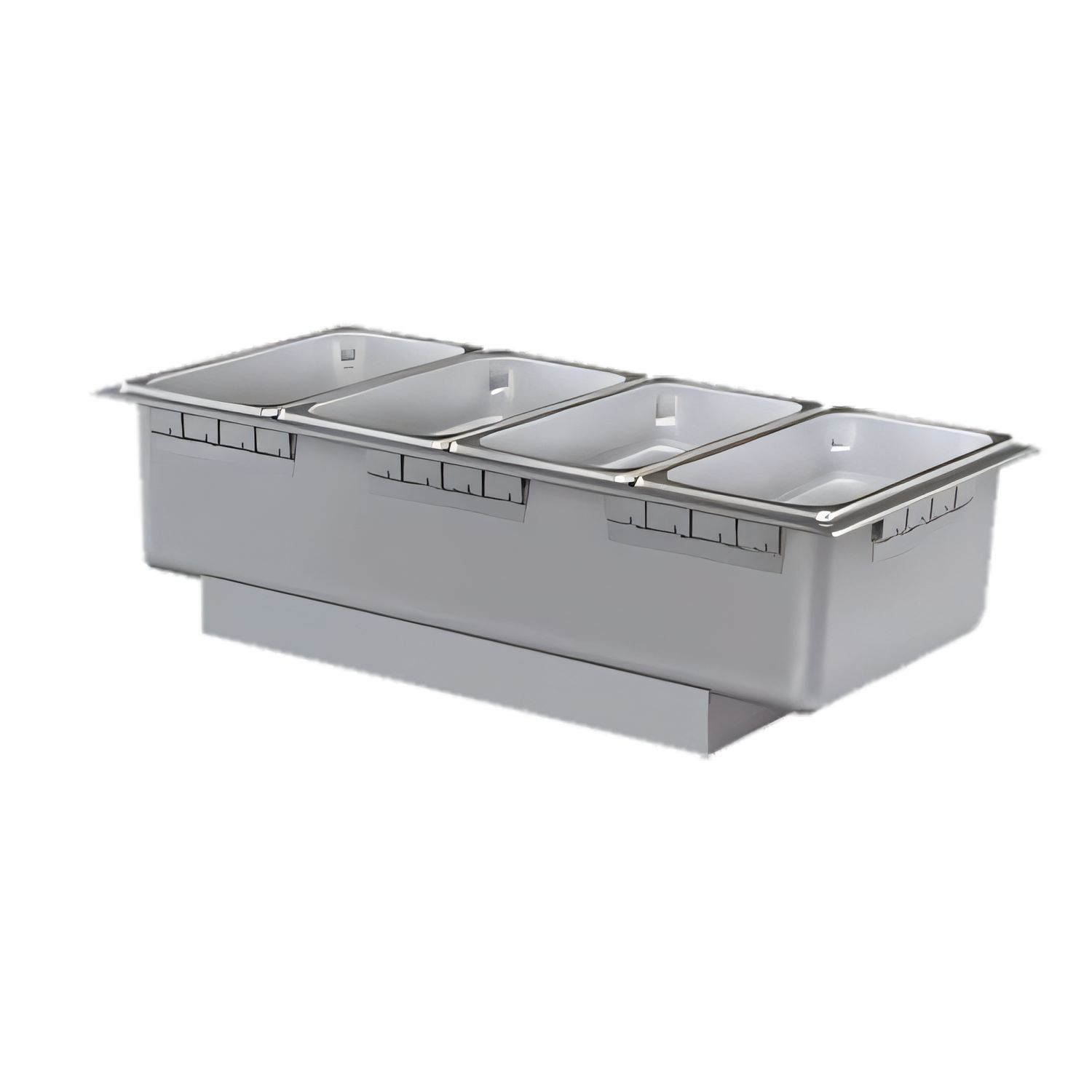

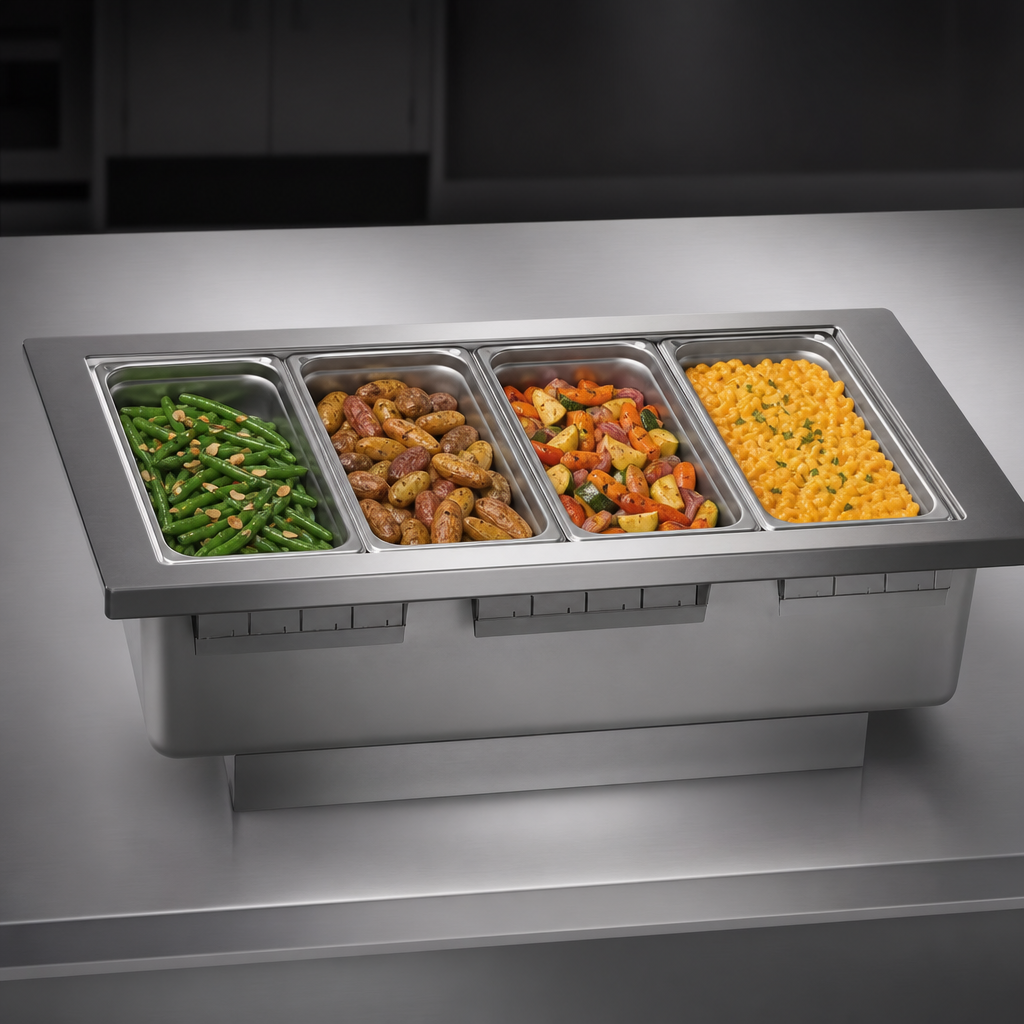

Hatco HWB-43DA Drop-In Heated Well with Drain & Auto-Fill
4/3-Size - Holds four 1/3-size pans (top-mount)Designed for high-volume serving lines, the Hatco HWB-43DA keeps foods hot and appetizing while automatically maintaining the correct water level. Its large 4/3 rectangular well, rugged stainless construction and remote control box make it the go-to choice for buffets, cafeterias and catering counters that demand reliable, hands-off performance.
Performance & Convenience
- Automatic water fill with low-water sensor prevents element burnout and eliminates manual refilling.
- Large ¾" drain and flat screen speed up end-of-day clean-up.
- Remote thermostat with separate lighted ON/OFF rocker switch lets staff preset and hold precise temperatures without reaching into the hot zone.
- Even, consistent heat distribution keeps every corner of the pan at safe holding temps.
- EZ-access design allows quick element or thermostat replacement from below the counter.
Construction Highlights
- Heavy-gauge stainless steel well and flange resist corrosion and daily wear.
- Factory-installed 36" (914 mm) flexible conduit for safe, code-compliant wiring; optional 72" (1829 mm) whip available.
- Top-mount drop-in style – requires only a rectangular counter cut-out for a clean, flush look.
Specifications
| Interior size | 13.58" W × 28.58" L × 9.42" D (345 × 726 × 239 mm) |
|---|---|
| Pan capacity | (4) 1/3-size steam table pans |
| Voltage / Phase | 120, 208, 220 or 240 V - single phase |
| Wattage range | Standard Watt – 1215 W | High Watt – 1665 W |
| Amps (120 V) | Standard 10.1 A | High 13.9 A |
| Drain outlet | ¾" NPT, ball-valve ready |
| Approvals | UL, cUL, UL EPH Classified, CE |
| Ship weight | ≈ 30 lb (14 kg) |
Optional Accessories
- Stainless or plated trivets (½ & full size)
- Food pans – 1/3, ½ or full-size depths 2.5" to 6"
- Mounting kit for combustible countertops
- Remote drain handle with integrated ball valve
- 72" flexible conduit whip
Cut-out dimensions vary by counter material. Refer to Hatco installation manual for exact sizing and clearance requirements.
